climate control VAUXHALL CASCADA 2016.5 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 45
Storage ........................................ 68
Instruments and controls .............76
Lighting ...................................... 112
Climate control ........................... 125
Driving and operating .................135
Vehicle care ............................... 187
Service and maintenance ..........233
Technical data ........................... 236
Customer information ................249
Index .......................................... 256Contents

In brief111Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................157
Speed limiter ....................... 158
Forward collision alert .........160
4 Side air vents ...................... 133
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................120
Exit lighting ......................... 123
Parking lights ...................... 121
Buttons for Driver
Information Centre ................95
6 Instruments .......................... 83
7 Steering wheel controls .......77
8 Driver Information Centre ...... 95
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 78
10 Sport mode ........................ 155
Central locking system ..........22Hazard warning flashers ....119
Control indicator for airbag deactivation .......................... 89
Control indicator for front
passenger seat belt .............89
Tour mode .......................... 155
11 Info-Display .......................... 99
12 Anti-theft alarm system
status LED ........................... 26
13 Centre air vents .................. 133
14 Glovebox, lockable ...............68
Fuse box ............................. 206
15 Traction Control system
(TC) ..................................... 153
Electronic Stability Control (ESC) .................................. 154
Parking assist systems .......163
Lane departure warning .....177
Eco button for stop-start
system ................................. 138
16 Climate control system ........ 125
17 AUX input, USB input ..........10
18 Power outlet .......................... 8219Soft top operation switch .....34
Central window switch .........31
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................151
22 Ignition switch with
steering wheel lock ............137
23 Horn ..................................... 78
Driver airbag ........................ 60
24 Bonnet release lever ..........189
25 Storage compartment ..........69
Fuse box ............................ 206
26 Steering wheel adjustment ..77
27 Light switch ........................ 112
Rear fog light ...................... 120
Instrument illumination .......121
Headlight range
adjustment ......................... 115
Front fog lights ...................120

14In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 78.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 78, Washer fluid 3 192.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 33.

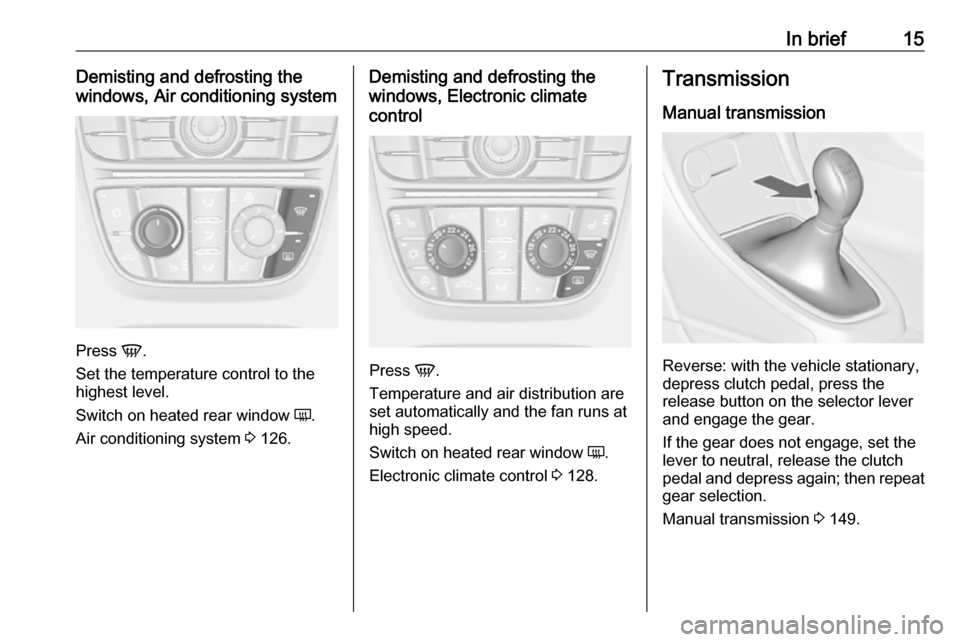

In brief15Demisting and defrosting the
windows, Air conditioning system
Press V.
Set the temperature control to the
highest level.
Switch on heated rear window Ü.
Air conditioning system 3 126.
Demisting and defrosting the
windows, Electronic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Electronic climate control 3 128.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 149.

Instruments and controls99potential is indicated. A switched-off consumer disappears from
the list and the consumption
value will be updated.
During sporadic driving
conditions, the heated rear
window is activated automatically to increase engine load. In this
event, the heated rear window is
indicated as one of the top
consumers, without activation by
the driver.
● Economy Trend : Displays the
average consumption
development over a distance of
50 miles. Filled segments display
the consumption in 5 mile steps
and shows the effect of
topography or driving behaviour
on fuel consumption.
Graphic-Info-Display, Colour-Info-Display
Depending on the vehicle
configuration the vehicle has a
Graphic-Info-Display or a Colour-
Info-Display.
The Info-Display is located in the
instrument panel above the
Infotainment system.
Graphic-Info-DisplayDepending on the Infotainment
system, the Graphic-Info-Display is
available in two versions.
Graphic-Info-Display indicates:
● time 3 80
● outside temperature 3 80
● date 3 80
● electronic climate control settings
3 128
● Infotainment system, see description in the Infotainment
manual
● settings for vehicle personalisation 3 103

100Instruments and controlsColour-Info-Display
The Colour-Info-Display indicates in
colour:
● time 3 80
● outside temperature 3 80
● date 3 80
● electronic climate control settings
3 128
● rear view camera 3 171
● Infotainment system, see description in the Infotainment
manual
● navigation, see description in the
Infotainment manual
● system settings
● vehicle messages 3 101
● settings for vehicle personalisation 3 103
The type of information and how it is
displayed depends on the equipment
of the vehicle and the settings made.
Selecting menus and settings
Menus and settings are accessed via the display.
Press CONFIG : Menu page Settings
is displayed.
Turn multifunction knob to:
● Select a setting or value.
● Display a menu option.
Press multifunction knob to: ● Confirm a setting or value.
● Select or activate the marked option.
● Switch a system function on/off.
Press BACK to:
● Exit a menu or setting without changing.
● Return from a submenu to a higher menu level.
● Delete the last character in a character sequence. Press and
hold BACK for a few seconds to
delete the entire entry.

104Instruments and controlsThe following settings can be
selected by turning and pressing the
multifunction knob:
● Sport mode settings
● Languages
● Time Date
● Radio settings
● Phone settings
● Vehicle settings
In the corresponding submenus the
following settings can be changed:
Sport mode settings
The driver can select the functions which will be activated in Sport mode
3 155.
● Sport suspension : Damping
becomes harder.
● Sport powertrain performance :
Accelerator pedal and gear
change characteristics become
more responsive.
● Sport steering : Steering support
is reduced.
● Swap backlight colour main
instr. : Changes the instrument
illumination colour.Languages
Selection of the desired language.
Time Date
See 'Clock' 3 80.
Radio settings
See Infotainment manual for further information.
Phone settings
See Infotainment manual for further information.
Vehicle settings● Climate and air quality
Auto fan speed : Modifies the
level of the cabin airflow of the
climate control in automatic
mode.
Climate control mode : Controls
the state of the cooling
compressor when the vehicle is
started. Last setting
(recommended) or at vehicle
start is either always ON or
always OFF.
Auto rear demist : Activates
heated rear window
automatically.

106Instruments and controls●Phone Settings
● Navigation Settings
● Display Settings
● Vehicle Settings
In the corresponding submenus the
following settings can be changed:
Sport Mode Profile ● Engine Sport Performance :
Accelerator pedal and gear
change characteristics become
more responsive.
● Sport Mode Back Lighting :
Changes the instrument
illumination colour.
● Sport Suspension : Damping
becomes harder.
● Sport Steering : Steering support
is reduced.
Languages
Selection of the desired language.
Time and Date
See Infotainment manual for further information.Radio Settings
See Infotainment manual for further information.
Phone Settings
See Infotainment manual for further information.
Navigation Settings
See Infotainment manual for further
information.
Display Settings ● Home Page Menu :
See Infotainment manual for
further information.
● Rear Camera Options :
Press to adjust the rear camera options 3 171.
● Display Off :
See Infotainment manual for
further information.
● Map Settings :
See Infotainment manual for
further information.Vehicle Settings
● Climate and Air Quality
Auto Fan Speed : Modifies the
level of the cabin airflow of the
climate control in automatic
mode.
Air Conditioning Mode : Controls
the state of the cooling
compressor when the vehicle is
started. Last setting
(recommended) or at vehicle
start is either always ON or
always OFF.
Auto Rear Demist : Activates
heated rear window
automatically.
● Comfort and Convenience
Chime Volume : Changes the
volume of warning chimes.
Personalisation by Driver :
Activates or deactivates the
personalisation function.
● Collision Detection Systems
Park Assist : Activates or
deactivates the ultrasonic
sensors. Activation is selectable with or without attached trailer
coupling.

Climate control125Climate controlClimate control systems.............125
Heating and ventilation system 125
Air conditioning system ...........126
Electronic climate control system .................................... 128
Auxiliary heater ........................132
Air vents ..................................... 133
Adjustable air vents .................133
Fixed air vents ......................... 133
Maintenance .............................. 133
Air intake ................................. 133
Pollen filter ............................... 133
Air conditioning regular
operation ................................ 134
Service .................................... 134Climate control systems
Heating and ventilation system
Controls for: ● temperature
● air distribution
● fan speed
● demisting and defrosting
Heated rear window Ü 3 33.
Temperature
red:warmblue:coldHeating will not be fully effective until
the engine has reached normal
operating temperature.
Air distributions:to windscreen and front door
windowsM:to head area via adjustable air
ventsK:to foot well and windscreen
All combinations are possible.
Fan speed
Adjust the air flow by switching the fan to the desired speed.

126Climate controlDemisting and defrosting
●Press V: fan automatically
switches to higher speed, the air
distribution is directed towards
the windscreen.
● Set temperature control to warmest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Air conditioning system
In addition to the heating and
ventilation system, the air
conditioning system has controls for:
n:cooling4:air recirculation
Heated seats ß 3 53, Heated
steering wheel * 3 77.
Cooling n
Press n to switch on cooling. The
LED in the button illuminates to
indicate activation. Cooling is only
functional when the engine is running and climate control fan is switched on.
Press n again to switch off cooling.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
the freezing point. Therefore
condensation may form and drip from under the vehicle.
