In brief9Exterior mirrors
Select the relevant exterior mirror andadjust it.
Convex exterior mirrors 3 29,
Electric adjustment 3 29, Folding
exterior mirrors 3 29, Heated
exterior mirrors 3 30.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 57, Ignition
positions 3 136.

10In briefInstrument panel overview

In brief111Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................156
Speed limiter ....................... 158
Forward collision alert .........159
4 Side air vents ...................... 132
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................119
Exit lighting ......................... 122
Parking lights ...................... 120
Buttons for Driver
Information Centre ................93
6 Instruments .......................... 83
7 Steering wheel controls .......77
8 Driver Information Centre ...... 93
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 78
10 Sport mode ........................ 154
Central locking system ..........22Hazard warning flashers ....118
Control indicator for airbag deactivation .......................... 88
Control indicator for front
passenger seat belt .............87
Tour mode .......................... 154
11 Info-Display .......................... 98
12 Anti-theft alarm system
status LED ........................... 26
13 Centre air vents .................. 132
14 Glovebox, lockable ...............68
Fuse box ............................. 205
15 Traction Control system
(TC) ..................................... 152
Electronic Stability Control (ESC) .................................. 153
Parking assist systems .......162
Lane departure warning .....176
Eco button for stop-start
system ................................. 137
16 Climate control system ........ 124
17 AUX input, USB input ..........10
18 Power outlet .......................... 8219Soft top operation switch .....34
Central window switch .........31
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................150
22 Ignition switch with
steering wheel lock ............136
23 Horn ..................................... 78
Driver airbag ........................ 60
24 Bonnet release lever ..........188
25 Storage compartment ..........69
Fuse box ............................ 205
26 Steering wheel adjustment ..77
27 Light switch ........................ 111
Rear fog light ...................... 119
Instrument illumination .......120
Headlight range
adjustment ......................... 114
Front fog lights ...................119

12In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlightsLight switch with automatic light
controlAUTO:automatic light control:
headlights are switched on
and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 111.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:pull lever
High beam 3 113, Headlight flash
3 114.
Automatic light control 3 112, High
beam assist 3 113, Adaptive forward
lighting 3 115.

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 119, Parking lights 3 120.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 118.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 78.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 78, Washer fluid 3 191.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 34.

In brief15Demisting and defrosting the
windows, Air conditioning system
Press V.
Set the temperature control to the
highest level.
Switch on heated rear window Ü.
Air conditioning system 3 125.
Demisting and defrosting the
windows, Electronic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Electronic climate control 3 127.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 149.

16In briefAutomatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 145.
Starting off
Check before starting off ● Tyre pressure and condition 3 213, 3 246.
● Engine oil level and fluid levels 3 189.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 29, 3 47,
3 55.
● Soft top must be completely opened or closed 3 34.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector to
P or N.
● Do not operate accelerator pedal.

In brief17● Diesel engines: turn the key toposition 2 for preheating and wait
until control indicator !
extinguishes.
● Turn key to position 3 and
release.
Starting the engine 3 136.Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Set the lever in neutral.
● Release the clutch pedal.

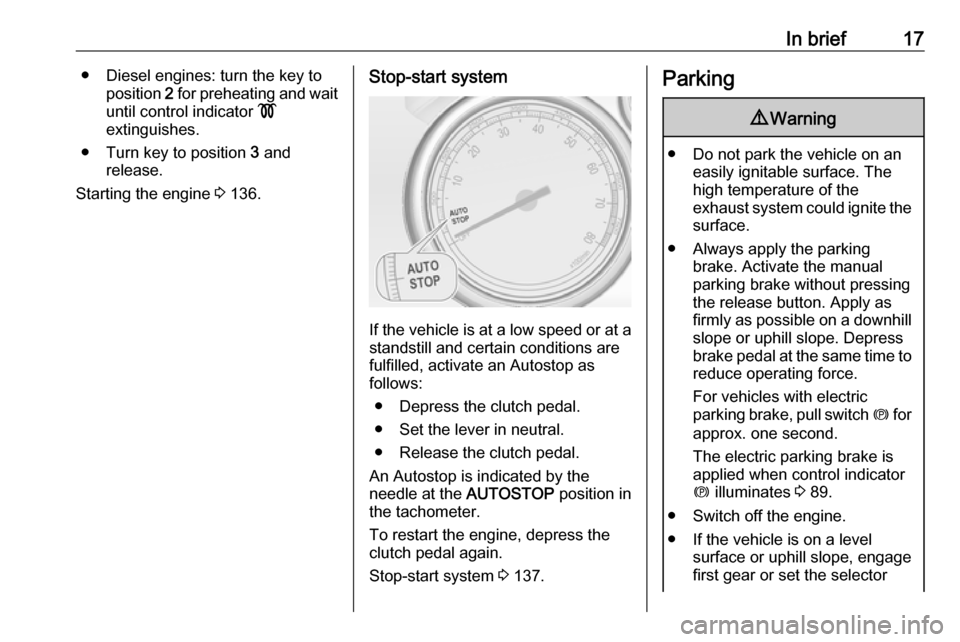

An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 137.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 89.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector

18In brieflever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position P before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the soft
top.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
●
Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 26.
● The engine cooling fans may run
after the engine has been
switched off 3 188.Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 187.
