technical data VAUXHALL CASCADA 2018.5 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 45
Storage ........................................ 68
Instruments and controls .............76
Lighting ...................................... 112
Climate control ........................... 125
Driving and operating .................135
Vehicle care ............................... 188
Service and maintenance ..........233
Technical data ........................... 237
Customer information ................248
Index .......................................... 258Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

Technical data237Technical dataVehicle identification..................237
Vehicle Identification Number ..237
Identification plate ...................237
Engine identification ................238
Vehicle data ............................... 239
Recommended fluids and lubricants ................................ 239
Engine data ............................. 242
Performance ............................ 243
Vehicle weight ......................... 243
Vehicle dimensions .................244
Capacities ................................ 245
Tyre pressures ........................ 246Vehicle identification
Vehicle IdentificationNumber

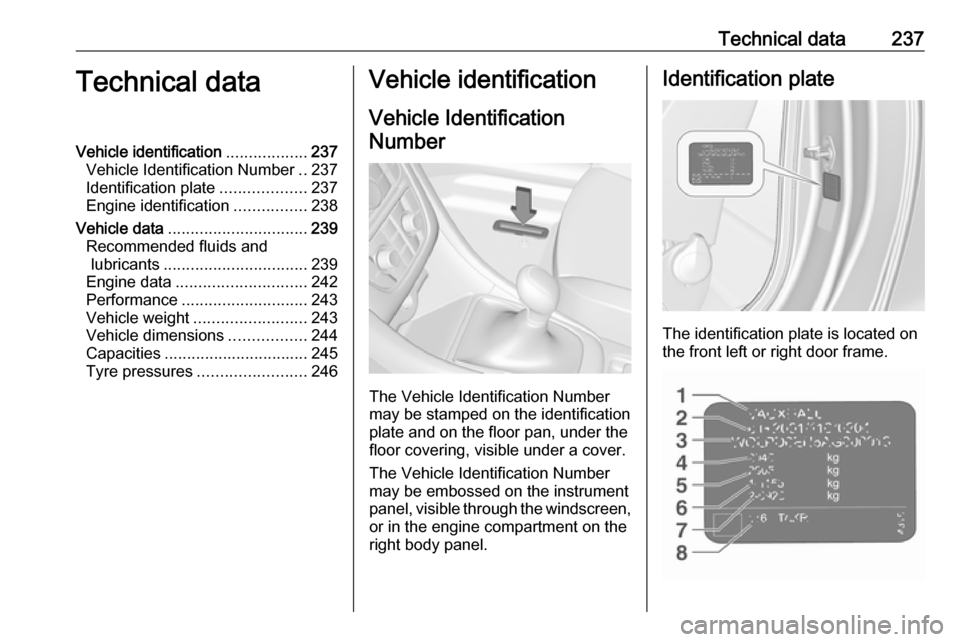

The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

238Technical dataInformation on identification label:1:Manufacturer2:Type approval number3:Vehicle Identification Number4:Permissible gross vehicle weight
rating in kg5:Permissible gross train weight
in kg6:Maximum permissible front axle
load in kg7:Maximum permissible rear axle
load in kg8:Vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 242.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

Technical data239Vehicle dataRecommended fluids and lubricants
European service schedule Required engine oil qualityAll European countries with European service interval 3 233Engine oil qualityPetrol engine
B14NETAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
All engines except B14NET: In case dexos quality is unavailable, you may not use max. one litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 233Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

240Technical dataInternational service schedule
Required engine oil qualityAll countries with international service interval 3 233Engine oil qualityPetrol engine
B14NETAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 233Engine oil qualityPetrol engine
B14NETAll other petrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔✔ACEA C3–✔✔

Technical data241Engine oil viscosity gradesAll countries with international service interval 3 233Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

242Technical dataEngine dataSales designation1.4 Turbo1.4 Turbo1.6 Turbo1.6 Turbo2.0 CDTIEngine identifier codeB14NELB14NETB16SHLB16SHTB20DTHEngineering codeB14NETB14NETB16SHTB16SHTB20DTHPiston displacement [cm3
]13641364159815981956Engine power [kW]88103125147125at rpm4200-60004900-60004750-600055003750Torque [Nm]200200260280400at rpm1850-42001850-49001650-45001650-50001750-2500Fuel typePetrolPetrolPetrolPetrolDieselOctane rating RON 2)recommended95959898possible98989595possible919191912)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

Technical data243PerformanceEngineB14NELB14NETB16SHTB16SHLB20DTHMaximum speed [mph]Manual transmission121129146–135Automatic transmission–––136–Vehicle weightKerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmissionwithout/with air conditioning
[kg]B14NEL1701 / 1714–B14NET1701 / 1714–B16SHT– / 1733–B16SHL–– / 1733B20DTH– / 1843–
Optional equipment and accessories increase the kerb weight.
Loading information 3 75.

244Technical dataVehicle dimensionsLength [mm]4696Length max. when operating soft top [mm]4760Width without exterior mirrors [mm]1839Width with two exterior mirrors [mm]2020Height (without antenna) [mm]1443Height max. when operating soft top [mm]2103Length of load compartment floor [mm]1121Length of load compartment with folded rear seats [mm]1818Load compartment width [mm]978Load compartment height [mm] with opened soft top246Load compartment height [mm] with closed soft top453Wheelbase [mm]2695Turning circle diameter [m]12.2
