fuse VAUXHALL CASCADA 2018 Owner's Manual

In brief111Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................155
Speed limiter ....................... 157
Forward collision alert .........158
4 Side air vents ...................... 131
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................118
Exit lighting ......................... 121
Parking lights ...................... 119
Buttons for Driver
Information Centre ................93
6 Instruments .......................... 83
7 Steering wheel controls .......77
8 Driver Information Centre ...... 93
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 78
10 Sport mode ........................ 153
Central locking system ..........21Hazard warning flashers ....117
Control indicator for airbag deactivation .......................... 88
Control indicator for front
passenger seat belt .............87
Tour mode .......................... 153
11 Info-Display .......................... 97
12 Anti-theft alarm system
status LED ........................... 26
13 Centre air vents .................. 131
14 Glovebox, lockable ...............68
Fuse box ............................. 205
15 Traction Control system
(TC) ..................................... 151
Electronic Stability Control (ESC) .................................. 152
Parking assist systems .......161
Lane departure warning .....175
Eco button for stop-start
system ................................. 136
16 Climate control system ........ 123
17 AUX input, USB input ..........10
18 Power outlet .......................... 8119Soft top operation switch .....34
Central window switch .........31
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................149
22 Ignition switch with
steering wheel lock ............135
23 Horn ..................................... 78
Driver airbag ........................ 60
24 Bonnet release lever ..........188
25 Storage compartment ..........69
Fuse box ............................ 205
26 Steering wheel adjustment ..77
27 Light switch ........................ 110
Rear fog light ...................... 118
Instrument illumination .......119
Headlight range
adjustment ......................... 113
Front fog lights ...................118

Instruments and controls87wTyre pressure monitoring
system 3 91IEngine oil pressure 3 91iLow fuel 3 92dImmobiliser 3 928Exterior light 3 92CHigh beam 3 92lHigh beam assist 3 92fAdaptive forward lighting 3 92>Fog light 3 92rRear fog light 3 92mCruise control 3 92AVehicle detected ahead 3 93hDoor open 3 93
Turn signal
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes
A turn signal or the hazard warning flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn
signal light on trailer.
Bulb replacement 3 194, Fuses
3 202.
Turn signals 3 118.
Seat belt reminder
Seat belt reminder on front seats
X for driver's seat illuminates or
flashes red.
k for front passenger seat illuminates
or flashes red, when seat is occupied.
Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.Airbag, belt tensioners and
roll bars
v illuminates red.
When the ignition is switched on, the control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not extinguish after
4 seconds or illuminates whilst
driving, there is a fault in the airbag
system, in the belt tensioner or the
deployable roll bars. The airbags, belt
pretensioners and roll bars may fail to trigger in the event of an accident.
Deployment of the belt tensioners,
airbags or deployable roll bars is
indicated by continuous illumination
of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Airbag system, belt tensioners 3 57,
3 54.
Rollover protection system 3 44.

186Vehicle careVehicle careGeneral Information...................187
Accessories and vehicle modifications .......................... 187
Vehicle storage ........................187
End-of-life vehicle recovery .....188
Vehicle checks ........................... 188
Performing work ......................188
Bonnet ..................................... 188
Engine oil ................................. 189
Engine coolant ......................... 190
Washer fluid ............................ 191
Brakes ..................................... 191
Brake fluid ............................... 192
Vehicle battery ......................... 192
Diesel fuel system bleeding .....193
Wiper blade replacement ........194
Bulb replacement .......................194
Halogen headlights ..................194
Adaptive forward lighting .........196
Fog lights ................................. 197
Front turn signal lights .............198
Tail lights ................................. 199
Side turn signal lights ..............200
Number plate light ...................201Interior lights ............................ 202
Instrument panel illumination ...202
Electrical system ........................202
Fuses ....................................... 202
Engine compartment fuse box . 203
Instrument panel fuse box .......205
Load compartment fuse box ....206
Vehicle tools .............................. 208
Tools ........................................ 208
Wheels and tyres .......................209
Winter tyres ............................. 209
Tyre designations ....................209
Tyre pressure monitoring
system .................................... 209
Tyre pressure .......................... 213
Tread depth ............................. 214
Changing tyre and wheel size . 214
Wheel covers ........................... 215
Tyre chains .............................. 215
Tyre repair kit .......................... 215
Wheel changing .......................218
Spare wheel ............................ 221
Jump starting ............................. 224
Towing ....................................... 226
Towing the vehicle ...................226
Towing another vehicle ...........227Appearance care .......................228
Exterior care ............................ 228
Interior care ............................. 230

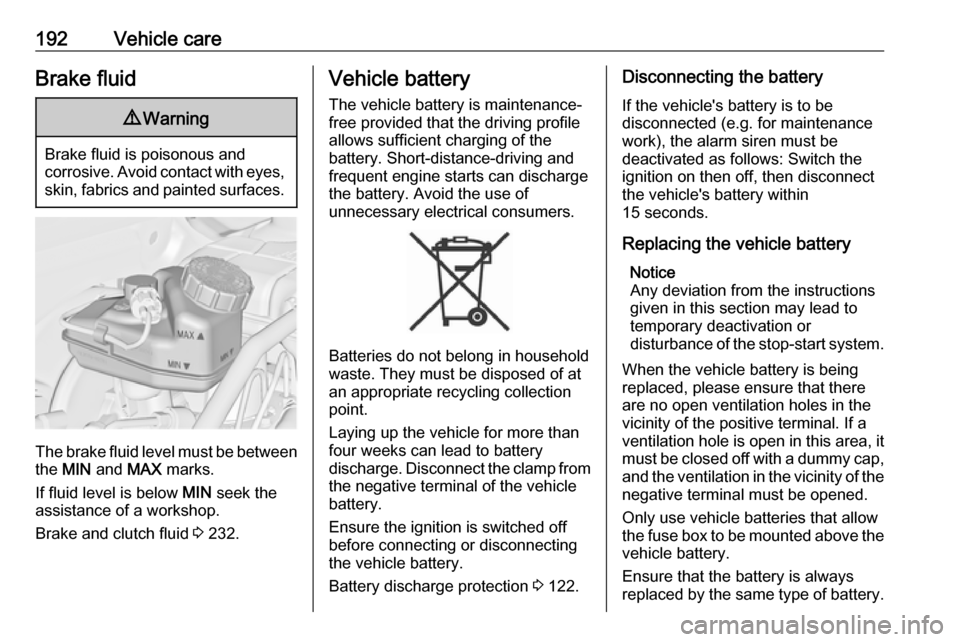

192Vehicle careBrake fluid9Warning
Brake fluid is poisonous and
corrosive. Avoid contact with eyes, skin, fabrics and painted surfaces.
The brake fluid level must be betweenthe MIN and MAX marks.
If fluid level is below MIN seek the
assistance of a workshop.
Brake and clutch fluid 3 232.
Vehicle battery
The vehicle battery is maintenance-
free provided that the driving profile
allows sufficient charging of the
battery. Short-distance-driving and
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
four weeks can lead to battery
discharge. Disconnect the clamp from the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
Battery discharge protection 3 122.
Disconnecting the battery
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.
Replacing the vehicle battery Notice
Any deviation from the instructions
given in this section may lead to
temporary deactivation or
disturbance of the stop-start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap, and the ventilation in the vicinity of the
negative terminal must be opened.
Only use vehicle batteries that allow the fuse box to be mounted above the
vehicle battery.
Ensure that the battery is always replaced by the same type of battery.

202Vehicle care5. Insert bulb holder into lamphousing and turn clockwise.
6. Insert lamp into bumper and let engage.
Interior lights Courtesy light, reading lights
Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panel illumination
Have bulbs replaced by a workshop.Electrical system
Fuses Data on the replacement fuse mustmatch the data on the defective fuse.
There are three fuse boxes in the vehicle:
● In the front left of the engine compartment,
● In left-hand drive vehicles, in the interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox,
● Behind a cover on the left side of
the load compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.

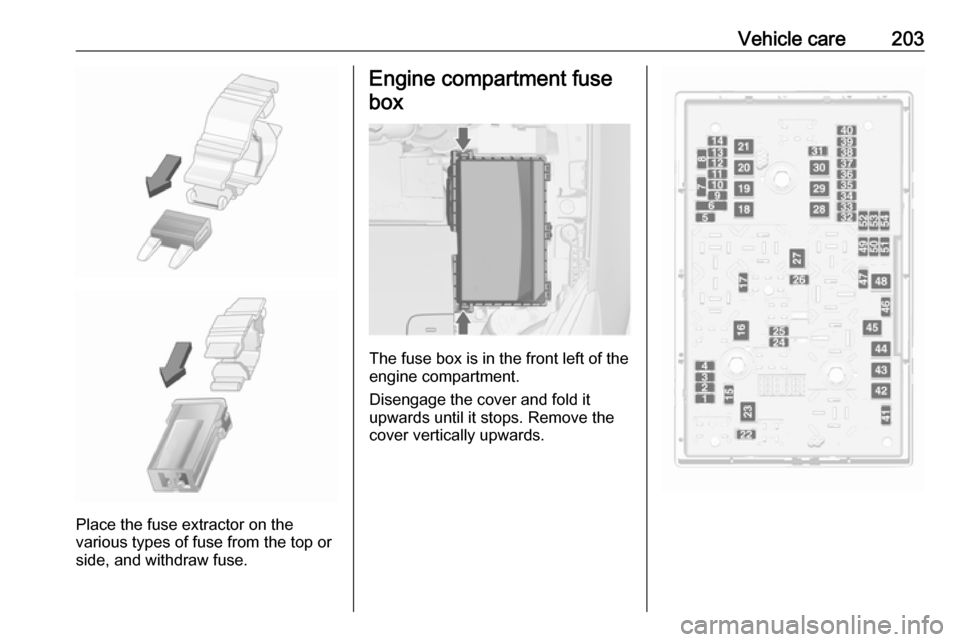

Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.

Vehicle care203
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.

Vehicle care205No.Circuit51–52Auxiliary heater, diesel engine53Transmission control module,
Engine control module54Vacuum pump, instrument
panel cluster, heating ventila‐
tion, air conditioning system
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.

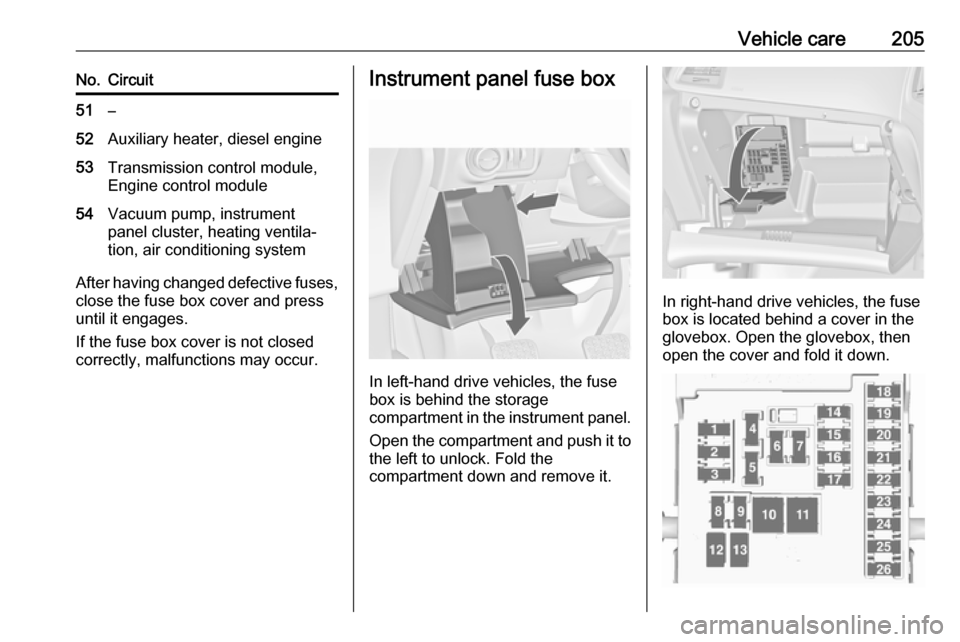

Instrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to the left to unlock. Fold the
compartment down and remove it.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.

206Vehicle careNo.Circuit1Displays2Body control unit, exterior lights3Body control unit, exterior lights4Infotainment system5Infotainment system, instru‐
ment6Power outlet, cigarette lighter7Power outlet8Body control module, left low
beam9Body control module, right low
beam10Body control module, door locks11Interior fan12Driver power seat13Passenger power seat14Diagnostic connector15Airbag16Boot lid relayNo.Circuit17Air conditioning system18Service diagnose19Body control module, brake
lights, tail lights, interior lights20-21Instrument panel22Ignition system23Body control module24Body control module25–26Trunk power outlet accessory
Load compartment fuse box
The fuse box is on the left side of the
load compartment behind a cover.
Remove the cover.
Fuse assignments

Vehicle care207No.Circuit1Soft top control module, power
rail right2–3Parking assist4Selective catalytic reduction
system5–6–7Power seat8Soft top control module9Selective catalytic reduction
system10Selective catalytic reduction
system11Trailer module, tyre pressure
monitor and rear view camera12Soft top control module, tail
lights13–No.Circuit14Rear seat electrical folding15–16Seat ventilation, rear view
camera, soft top control module17–18–19Steering wheel heating20–21Seat heating22–23Soft top control module, power
rail left24Selective catalytic reduction
system25–26Jumper fuse for non logistic
mode27Passive entry28–No.Circuit29Hydraulic unit30–31–32Flex Ride

259Clock............................................. 80
Code ............................................. 99
Collision damage repair ..............252
Control indicators.......................... 86
Control of the vehicle .................134
Controls ........................................ 77
Convex shape .............................. 29
Coolant and antifreeze ...............232
Cruise control ...................... 92, 155
Cupholders .................................. 69
Curve lighting.............................. 114
D Danger, Warnings and Cautions ...4
Daytime running lights ...............114
Declaration of conformity ............248
DEF ............................................ 141
Diesel exhaust fluid ....................141
Diesel fuel system bleeding .......193
Diesel particle filter ...............90, 140
Door open .................................... 93
Doors ............................................ 24
Driver assistance systems ..........155
Driver Information Centre .............93
Driving characteristics and towing tips .............................. 181
Driving hints ................................ 134
E Electric adjustment ......................29
Electrical system......................... 202Electric parking brake ...........89, 149
Electric parking brake fault ...........89
Electronic climate control system 126
Electronic driving programmes ..146
Electronic Stability Control.......... 152
Electronic Stability Control and Traction Control system ............90
Electronic Stability Control off....... 90
End-of-life vehicle recovery .......188
Engine compartment fuse box ...203
Engine coolant ........................... 190
Engine coolant temperature gauge ....................................... 84
Engine data ............................... 240
Engine exhaust .......................... 140
Engine identification ...................236
Engine oil ................... 189, 232, 237
Engine oil pressure ......................91
Entry lighting .............................. 121
Event data recorders ..................255
Exit lighting ................................ 121
Exterior care .............................. 228
Exterior light ................................. 92
Exterior lighting ....................12, 110
Exterior mirrors ............................. 29
F
Fault ........................................... 147
First aid ......................................... 74
First aid kit ................................... 74Fixed air vents ........................... 131
Fog light ....................................... 92
Fog lights ................................... 197
Folding mirrors ............................. 29
Following distance indication ......160
Forward collision alert................. 158
Front airbag system .....................60
Front fog lights ........................... 118
Front seats.................................... 47
Front storage ................................ 69
Front turn signal lights ...............198
Fuel............................................. 176
Fuel consumption - CO 2-
Emissions ............................... 180
Fuel for diesel engines ..............177
Fuel for petrol engines ...............176
Fuel gauge ................................... 84
Funnel......................................... 178
Fuses ......................................... 202
G Gauges ......................................... 83
General information ...................181
Glovebox ..................................... 68
Graphic-Info-Display, Colour- Info-Display .............................. 97
Ground clearance .......................134
H Halogen headlights ....................194
Hand brake ......................... 148, 149
