In brief11
1Fixed air vents ..................... 101
2 Side air vents ...................... 100
3 Light switch .......................... 89
Turn and lane-change
signals, headlight flash,
low beam and high beam .....91
4 Instruments .......................... 67
Driver Information Centre ...... 80
5 Windscreen wiper,
windscreen washer
system, rear window
wiper/washer ........................ 63
Trip odometer reset ............... 68
6 Centre air vents .................. 100
7 Document holder, pocket
for Personal Navigation
Device .................................. 53
8 Headlight range
adjustment ........................... 90
Driver Information Centre
controls ................................ 80
Trip computer ........................ 87
Instrument illumination ..........92Hazard warning flashers .......91
Front fog lights .....................91
Rear fog light ........................ 92
Heated rear window ..............31
Heated exterior mirrors .........28
9 Front passenger airbag ........44
10 Glovebox .............................. 54
11 Climate control system .......... 96
Electronic climate control
system ................................... 98
12 Selector lever, manual
transmission ....................... 109
Manual transmission
automated ........................... 110
13 Ignition switch with
steering wheel lock ............103
14 Steering wheel controls .......62
15 Horn ..................................... 63
Driver airbag ........................ 44
16 Steering wheel adjustment ..62
17 Cruise control .....................117
18 Fuse box ............................. 14219Bonnet release lever ..........128

12In briefExterior lighting
Turn light switch:
§=off / daytime running lights9=sidelights / headlights
Lighting 3 89, Daytime running
lights 3 90.
Fog lights
Press light switch:
>=front fog lightsr=rear fog lightHeadlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=pull lever
High beam 3 89, Headlight flash
3 89.

14In briefWasher and wiper systems
Windscreen wiper
Twist lever:
§=offÇ=intermittent wipingÈ=slowÉ=fast
For a single wipe when the
windscreen wiper is off, move the
lever up.
Windscreen wiper 3 63, Wiper
blade replacement 3 132.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 63, Washer fluid 3 130.
Rear window wiper and washer
systems
Twist band to activate the rear
window wiper.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Push lever: Washer fluid is sprayed
on the rear window and the wiper
wipes a few times.
Rear window wiper/washer 3 64.

24Keys, doors and windows
The door is opened from inside the
vehicle by pressing down the interior
handle.
The right hand rear door is released
using the lever.9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º, push the latch and
swing open to the desired position.9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
Always close the right hand doorbefore the left hand door.
Central locking system 3 21.

Seats, restraints33
Rear head restraints, heightadjustment
Pull the head restraint upwards or
press the catch to release and push the head restraint downwards.
Removal
Rear head restraints, removal
Press both catches, pull the head restraint upwards and remove.
Secure the removed head restraint in the load compartment.
Notice
Approved accessories may only be
attached if the seat is not in use.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest to an angle so that it is possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
tilt the backrest too far back. We
recommend a maximum angle of
approx. 25°.
■ Adjust the steering wheel 3 62.
■ Set the seat high enough to have a
clear field of vision on all sides and
on all display instruments. There
should be at least one hand of
clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 32.
■ Adjust the height of the seat belt 3 39.
Seat adjustment Drive only with seats and backrests
properly engaged.

80Instruments and controlsExterior light8 illuminates green.
The exterior lights are on 3 89.
Exterior light failure
µ illuminates yellow.
One or more of the exterior lights is
faulty 3 133.
Control indicator 9 will illuminate as
an alternative if control indicator µ is
not present. Depending on version, a warning message may also be
displayed in the Driver Information
Centre 3 80.
Generic warning 9 3 73.
High beam C illuminates blue.
Illuminated when high beam is on and
during headlight flash 3 89.
Fog light > illuminates green.
The front fog lights are on 3 91.Rear fog light
r illuminates yellow.
The rear fog light is on 3 92.
Cruise control
m illuminates green.
The system is on.
Cruise control 3 117.
Door open
( illuminates red.
A door or the tailgate is open.Information displays
Driver Information Centre
The Driver Information Centre is
located in the instrument cluster
between the speedometer and
tachometer. Two versions are
available; a Standard version

92LightingRear fog lights
Operated by pressing the r button.
The rear fog light can only be
switched on when both the ignition
and headlights or sidelights (with front
fog lights) are on.
Press the button again to turn the rear fog light off, or turn off the headlights
and/or the front fog lights.
Reversing lights The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist
up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help, switch on the headlights.Interior lighting
Instrument panel
illumination control When driving at night with the
headlights on, adjust the brightness
of the vehicle's interior lighting
(including instrument panel, climate
control display etc.) via the settings
menu of the Driver Information Centre
3 80.
To adjust brightness:
Standard version of Driver
Information Centre
1. Press the SETq button once to
access the settings menu.
2. Scroll through the menu options using the R or S buttons until
menu option ILLU appears in the
display.

Lighting93
3. Press the R or S button to
increase or decrease the displayed value.
4. Press SETq briefly to confirm
changes and automatically return to the previous display screen.
Multifunction version of Driver
Information Centre
1. Press the SETq button to access
the settings menu.
2. Scroll through the menu options using the R or S buttons until
menu option LIGHTING appears
in the display.
3. Press the R or S button to
increase or decrease the displayed value.
4. Press SETq briefly to confirm
changes and automatically return to the previous display screen.
It is also possible to adjust the
brightness using the R or S buttons
without accessing the settings menu.
Driver Information Centre 3 80.Interior lights
Depending on model variant, during
entry and exit of the vehicle the front
and rear courtesy lights come on
automatically and then switch off after
a delay.
Notice
In the event of an accident of a
certain severity, the interior lights come on automatically. Fuel cut-off
system 3 86.
Front courtesy light
Centre switch position: automatic
interior light.
To operate manually when the doors are closed, press the lens on either
side.
Front courtesy light with readinglights
Centre switch position: automatic
interior light.
Can be operated individually or
together with the 7 switch when the
doors are closed.
Press rocker switch 7 left or right to
operate respective reading light.

94Lighting

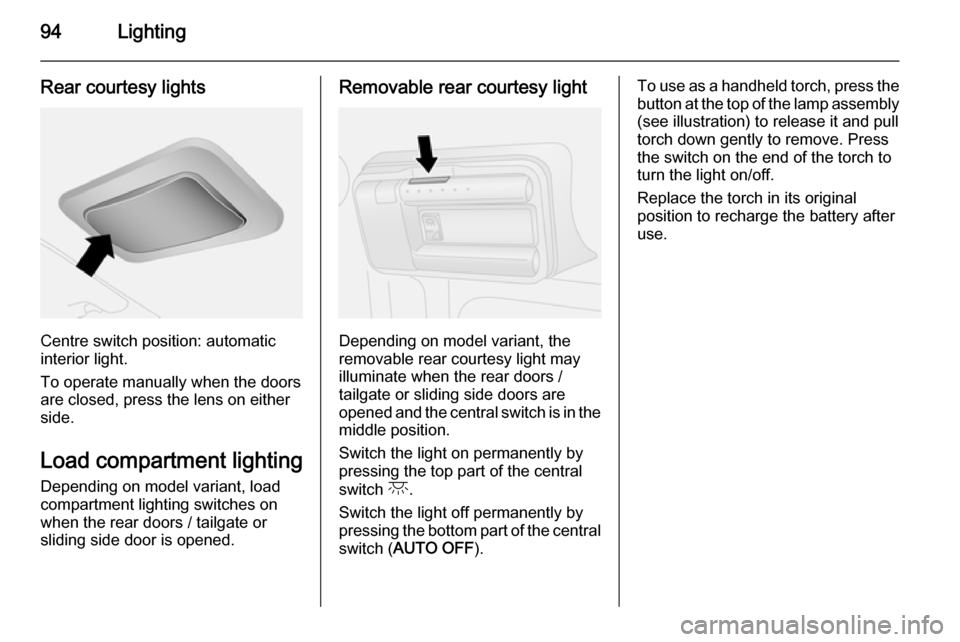

Rear courtesy lights
Centre switch position: automatic
interior light.
To operate manually when the doors are closed, press the lens on either
side.
Load compartment lighting Depending on model variant, load
compartment lighting switches on
when the rear doors / tailgate or
sliding side door is opened.
Removable rear courtesy light
Depending on model variant, the
removable rear courtesy light may
illuminate when the rear doors /
tailgate or sliding side doors are
opened and the central switch is in the middle position.
Switch the light on permanently by pressing the top part of the central
switch c.
Switch the light off permanently by pressing the bottom part of the central switch ( AUTO OFF ).
To use as a handheld torch, press the
button at the top of the lamp assembly (see illustration) to release it and pull
torch down gently to remove. Press
the switch on the end of the torch to
turn the light on/off.
Replace the torch in its original
position to recharge the battery after
use.

Driving and operating121
Fuel selector
Pressing button Y in the centre
console switches between petrol and
natural gas operation. The LED 1
status shows the current operating
mode.
1 off=natural gas
operation.1 illuminates=petrol operation.
As soon as the natural gas tanks are
empty, petrol operation is
automatically engaged. Control
indicator Y illuminates in the Driver
Information Centre 3 80 until the
ignition is switched off.
A slight loss of power and torque can be expected in petrol operation. You
must therefore adapt your driving style (e.g. during overtaking
manoeuvres) and vehicle loads (e.g.
towing loads) accordingly.
Every six months run the petrol tank
down until control indicator §
illuminates and then refuel. This is
necessary to maintain fuel quality as
well as system function necessary for
petrol operation.
Fill the tank completely at regular intervals to prevent corrosion in the
tank.
Refuelling
Fuel filler flap is located at left rear side of vehicle.9 Danger
Before refuelling, switch off engine
and any external heaters with
combustion chambers. Switch off
any mobile phones.
Follow the operating and safety
instructions of the filling station
when refuelling.9 Danger
Fuel is flammable and explosive.
No smoking. No naked flames or
sparks.
If you can smell fuel in your
vehicle, have the cause of this
remedied immediately by a
workshop.
Caution
In case of misfuelling, do not
switch on ignition.
Release the fuel filler flap by pulling
the flap by hand.
Insert key into fuel filler cap and turn
anticlockwise to unlock.
To remove fuel filler cap, rotate
anticlockwise.
