warning VAUXHALL COMBO E 2019.75 Owner's Manual

4IntroductionDanger, Warnings andCautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Page references and index entries
refer to the indented headings given
in the section table of content.
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

In brief111Electric child locks ................. 27
Unlocking tailgate .................31
Child safety system for
rear windows ......................... 40
2 Power windows .....................40
3 Exterior mirrors .....................37
4 Side air vents ...................... 140
5 Cruise control .....................167
Speed limiter ....................... 170
Adaptive cruise control .......167
6 Turn lights ........................... 125
Headlight flash ....................123
High beam ........................... 122
High beam assist ...............122
Exit lighting ......................... 128
Parking lights ...................... 126
Buttons for Driver
Information Centre ..............108
7 Instruments .......................... 97
Driver Information Centre .... 108
8 Infotainment controls9Head-up display ..................112
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 90
11 Air vents ............................. 140
12 Info Display ........................ 110
13 Hazard warning flashers ....124
Central locking system ..........24
14 Anti-theft alarm system
status LED ........................... 34
15 USB charging port ................ 93
16 Storage ................................. 69
18 Climate control system ........ 131
19 Electronic Stability Control
and Traction Control ...........163
Eco mode ............................ 157
Descent control system ....... 164
20 Selective ride control ..........165
21 Inductive charging .................94
22 Manual transmission ..........158
Automatic transmission ......155
23 Power outlet .......................... 93
24 Electric parking brake .........16025Power button ....................... 144
26 Ignition switch .....................143
27 Steering wheel adjustment ..89
28 Horn ..................................... 90
29 Parking assist / Advanced
parking assist .....................183
Electric child locks ................. 27
Eco button for stop-start
system ................................. 147
Lane keep assist .................198
Tyre deflation detection
system ................................. 232
Parking heater ....................138
30 Fuse box ............................ 228
31 Bonnet release lever ..........212
32 Head-up display ..................112
33 Light switch ........................ 121
Front / rear fog lights ..........125
Instrument illumination .......127

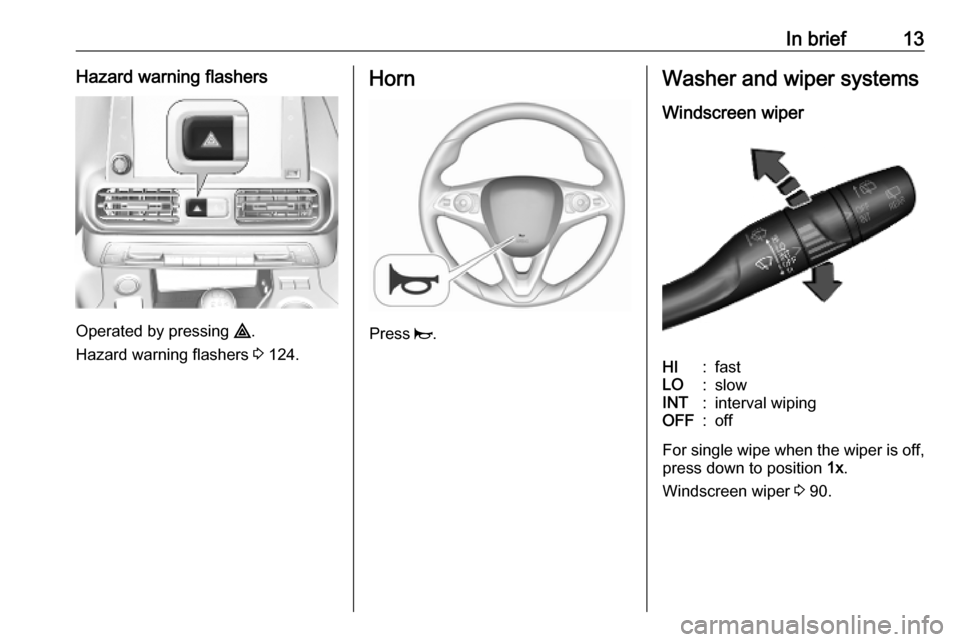

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 124.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wipingOFF:off
For single wipe when the wiper is off,press down to position 1x.
Windscreen wiper 3 90.

In brief19Stop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 147.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P . Turn the front wheels
towards the kerb.
● Close the windows.
● Switch off the engine.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 34.
● The engine cooling fans may run
after the engine has been
switched off 3 212.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 20.
Laying-up the vehicle for a long
period of time 3 211.

Keys, doors and windows21Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key then re-insert it. If the
cylinder still free-wheels, turn the key
through 180° and repeat operation.
Radio remote controlDepending on the version, the radio
remote control enables a operation of
the following functions:
● central locking system 3 24
● anti-theft locking system 3 34
● anti-theft alarm system 3 34
● tailgate unlocking 3 24
● power windows 3 40
● mirrors folding 3 37
● vehicle locator lighting 3 129
● peripheral lighting 3 129
The remote control has a range of up
to several metres, but may also be
much less due to external influences. The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.

Keys, doors and windows25Press N.
If the vehicle is not closed properly,
the central locking system will not
work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers. A precondition is
that the setting is activated in the
vehicle personalisation 3 115.
Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx. one metre of the relevant door side.
Unlocking
Pass a hand behind the door handle
of one of the front doors or the rear
door to unlock the vehicle or press the middle tailgate button.
Keep the hand behind the door
handle or keep the tailgate button
pressed to open the windows.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
passing a hand behind one of the front door handles or the handle
of the rear door. If the vehicle is
equipped with a tailgate, press
the tailgate button.
● Only the front doors and the fuel filler flap will be unlocked bypassing a hand behind one of
front door handles.
Vehicle personalisation 3 115.
Unlocking the load compartment
Only the load compartment, i.e., the
rear door or the tailgate, will be
unlocked by passing a hand behind
the rear door handle or pressing the
tailgate button.
Locking

26Keys, doors and windowsPress with a finger or thumb on one
of the door handles (at the markings)
or press the tailgate button.
All doors, load compartment and fuel
filler flap will be locked.
If the vehicle is not closed properly,
the electronic key remains in the
vehicle or the ignition is not off,
locking will not be permitted.
Confirmation
Operation of central locking system is confirmed by the hazard warning
flashers.
Central locking button
Locks or unlocks all doors and the
load compartment from inside the
passenger compartment. If the
vehicle is equipped with electronic
key system, the fuel filler flap is locked or unlocked, too.
Press Q to lock. The LED in the button
illuminates.
Press Q again to unlock. The LED in
the button extinguishes.
Operation with the key in case of
a central locking system fault
In case of a fault, e.g. vehicle battery
or remote control / electronic key
battery is discharged, the driver's
door can be locked or unlocked with
the mechanical key.
Manual unlocking
Electronic key: press and hold the
latch to extract the integral key.Manually unlock the driver's door by
inserting and turning the key in the
lock cylinder.
The other doors can be opened by
pulling the interior handle.
By switching on the ignition, the anti- theft locking system is deactivated.

Keys, doors and windows27Manual locking
Manually lock the doors, tailgate and
fuel filler flap by inserting and turning the key in the lock cylinder of the
driver's door.
Automatic locking Automatic locking after driving off
This system allows automatic locking of the doors and the tailgate as soon
as the speed of the vehicle exceeds
6 mph.
If one of the doors or the tailgate is
open, the automatic central locking
does not take place. This is signalled
by the sound of the locks rebounding, accompanied by illumination of h in
the instrument cluster, an audible
signal and the display of an alert
message.
This function can be activated or
deactivated at any time. With the
ignition on, press Q until an audible
signal starts and a corresponding message is displayed.
The state of the system stays in
memory when switching off the
ignition.
Automatic relock after unlocking
This feature automatically locks all
doors, load compartment and fuel
filler flap a short time after unlocking
with the remote control or electronic
key, provided no door has been
opened.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.

30Keys, doors and windowsRear doors
Unlock the rear doors with the remote control or by turning the key in the rear
door lock cylinder.
Central locking 3 24.
Always open the left hand door before the right hand door.
To open the left hand rear door, pull
the exterior handle.
The door is opened from inside the
vehicle by pulling the interior handle.
The right hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º, push the latch and
swing open to the desired position.

Keys, doors and windows31Before closing the doors ensure that
the locking stays are in the 90º
position.9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
Always close the right hand door
before the left hand door.
Central locking system 3 24.
Driving with an open load
compartment
In exceptional cases only, it is
possible to drive with the right-hand rear door open, e.g. if long objects
need to be transported. Open the left- hand followed by the right-hand rear
door, then close the left-hand rear door and lock it.9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
When driving with an open load
compartment, exhaust gases
could enter the vehicle. Open the
windows.
Notice
Do not use the left-hand rear door to
hold objects in place.
If possible, secure objects with
lashing straps attached to lashing
eyes 3 78.
Caution
Always make sure that the load in
the vehicle is securely stowed
when driving with an open load compartment.
For further information, refer to
"Loading information" 3 85.
Always comply with local or national regulations.
Load compartment
Tailgate
Opening
