tailgate VAUXHALL COMBO E 2020 Owner's Manual

6In briefIn briefInitial drive informationVehicle unlocking
Press c to unlock the vehicle. Open
the doors by pulling the handles.
Tailgate
After unlocking, press the tailgate
button and open the tailgate.
Radio remote control 3 21.
Central locking system 3 24.
Electronic key system 3 22.
Load compartment 3 31.
Rear doors 3 30
Sliding door 3 29

In brief111Electric child locks ................. 27
Unlocking tailgate .................31
Child safety system for
rear windows ......................... 40
2 Power windows .....................40
3 Exterior mirrors .....................37
4 Side air vents ...................... 140
5 Cruise control .....................167
Speed limiter ....................... 169
Adaptive cruise control .......167
6 Turn lights ........................... 125
Headlight flash ....................123
High beam ........................... 122
High beam assist ...............122
Exit lighting ......................... 128
Parking lights ...................... 126
Buttons for Driver
Information Centre ..............108
7 Instruments .......................... 97
Driver Information Centre .... 108
8 Infotainment controls9Head-up display ..................112
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 90
11 Air vents ............................. 140
12 Info Display ........................ 110
13 Hazard warning flashers ....124
Central locking system ..........24
14 Anti-theft alarm system
status LED ........................... 34
15 USB charging port ................ 93
16 Storage ................................. 69
18 Climate control system ........ 131
19 Electronic Stability Control
and Traction Control ...........163
Eco mode ............................ 157
Descent control system ....... 164
20 Selective ride control ..........165
21 Inductive charging .................94
22 Manual transmission ..........158
Automatic transmission ......155
23 Power outlet .......................... 93
24 Electric parking brake .........16025Power button ....................... 144
26 Ignition switch .....................143
27 Steering wheel adjustment ..89
28 Horn ..................................... 90
29 Parking assist / Advanced
parking assist .....................183
Electric child locks ................. 27
Eco button for stop-start
system ................................. 147
Lane keep assist .................198
Tyre deflation detection
system ................................. 233
Parking heater ....................138
30 Fuse box ............................ 229
31 Bonnet release lever ..........213
32 Head-up display ..................112
33 Light switch ........................ 121
Front / rear fog lights ..........125
Instrument illumination .......126

Keys, doors and windows21Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key then re-insert it. If the
cylinder still free-wheels, turn the key
through 180° and repeat operation.
Radio remote controlDepending on the version, the radio
remote control enables a operation of
the following functions:
● central locking system 3 24
● anti-theft locking system 3 34
● anti-theft alarm system 3 34
● tailgate unlocking 3 24
● power windows 3 40
● mirrors folding 3 37
● vehicle locator lighting 3 129
● peripheral lighting 3 129
The remote control has a range of up
to several metres, but may also be
much less due to external influences. The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.

Keys, doors and windows23Depending on the version, the
electronic key system enables a
keyless operation of the following functions:
● central locking system 3 24
● tailgate unlocking
● ignition switching on and starting the engine 3 145
● headlight activation
The electronic key simply needs to be
on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 21.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Notice
To save battery power, the keyless
functions are set to stand-by after 21 days of non-use. To reactivate the
functions, press a button on the
electronic key.Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly
or the range is reduced.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. Remove the cover.
2. Extract the flat battery from its location.
3. Replace battery with a battery of the same type. Pay attention to
the installation position.
4. Clip the cover in place.
Fault
If the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low. ● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 24.

24Keys, doors and windowsCentral locking system
Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks and opens the respective
door.
Notice
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened. A precondition is that the
setting is activated in the vehicle
personalisation 3 115.
Selective unlocking of cabin and
load compartment
Selective unlocking allows you to
unlock either the doors of the cabin
and the fuel filler flap or the loadcompartment, i.e., sliding doors, rear
door / tailgate. Selective unlocking
has to be configured.Graphic Info Display: Switch on
ignition. Press * more than 2
seconds. An audible signal is given
and a message is displayed in the
Graphic Info Display.
Colour Info Display: Select the
relevant setting in the Vehicle
personalisation.
Vehicle personalisation 3 115.
Remote control operation Unlocking
Press O.
Unlocking mode can be set. Two
settings are selectable:
● All doors and load compartment will be unlocked by pressing O.
● Only the driver's door and the passenger door will be unlocked
by pressing O.
Unlocking the load compartment
Press * or press O two times to
unlock the load compartment only,
i.e., sliding doors and rear doors or
tailgate.
Locking
Close doors and the load
compartment.

Keys, doors and windows25Press N.
If the vehicle is not closed properly,
the central locking system will not
work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers. A precondition is
that the setting is activated in the
vehicle personalisation 3 115.

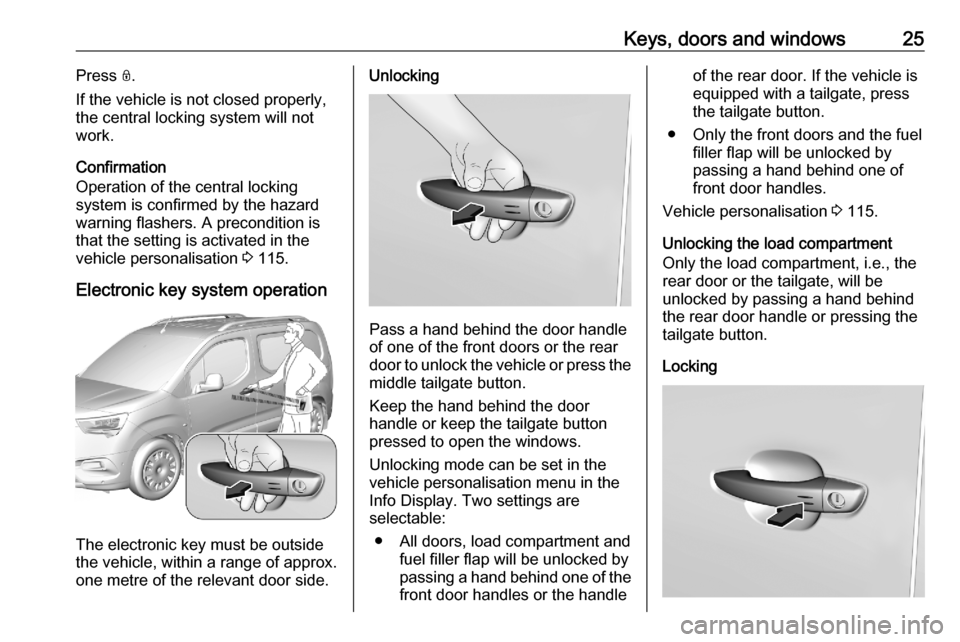

Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx. one metre of the relevant door side.
Unlocking
Pass a hand behind the door handle
of one of the front doors or the rear
door to unlock the vehicle or press the middle tailgate button.
Keep the hand behind the door
handle or keep the tailgate button
pressed to open the windows.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
passing a hand behind one of the front door handles or the handle
of the rear door. If the vehicle is
equipped with a tailgate, press
the tailgate button.
● Only the front doors and the fuel filler flap will be unlocked bypassing a hand behind one of
front door handles.
Vehicle personalisation 3 115.
Unlocking the load compartment
Only the load compartment, i.e., the
rear door or the tailgate, will be
unlocked by passing a hand behind
the rear door handle or pressing the
tailgate button.
Locking

26Keys, doors and windowsPress with a finger or thumb on one
of the door handles (at the markings)
or press the tailgate button.
All doors, load compartment and fuel
filler flap will be locked.
If the vehicle is not closed properly,
the electronic key remains in the
vehicle or the ignition is not off,
locking will not be permitted.
Confirmation
Operation of central locking system is confirmed by the hazard warning
flashers.
Central locking button
Locks or unlocks all doors and the
load compartment from inside the
passenger compartment. If the
vehicle is equipped with electronic
key system, the fuel filler flap is locked or unlocked, too.
Press Q to lock. The LED in the button
illuminates.
Press Q again to unlock. The LED in
the button extinguishes.
Operation with the key in case of
a central locking system fault
In case of a fault, e.g. vehicle battery
or remote control / electronic key
battery is discharged, the driver's
door can be locked or unlocked with
the mechanical key.
Manual unlocking
Electronic key: press and hold the
latch to extract the integral key.Manually unlock the driver's door by
inserting and turning the key in the
lock cylinder.
The other doors can be opened by
pulling the interior handle.
By switching on the ignition, the anti- theft locking system is deactivated.

Keys, doors and windows27Manual locking
Manually lock the doors, tailgate and
fuel filler flap by inserting and turning the key in the lock cylinder of the
driver's door.
Automatic locking Automatic locking after driving off
This system allows automatic locking of the doors and the tailgate as soon
as the speed of the vehicle exceeds
6 mph.
If one of the doors or the tailgate is
open, the automatic central locking
does not take place. This is signalled
by the sound of the locks rebounding, accompanied by illumination of h in
the instrument cluster, an audible
signal and the display of an alert
message.
This function can be activated or
deactivated at any time. With the
ignition on, press Q until an audible
signal starts and a corresponding message is displayed.
The state of the system stays in
memory when switching off the
ignition.
Automatic relock after unlocking
This feature automatically locks all
doors, load compartment and fuel
filler flap a short time after unlocking
with the remote control or electronic
key, provided no door has been
opened.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.

Keys, doors and windows31Before closing the doors ensure that
the locking stays are in the 90º
position.9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
Always close the right hand door
before the left hand door.
Central locking system 3 24.
Driving with an open load
compartment
In exceptional cases only, it is
possible to drive with the right-hand rear door open, e.g. if long objects
need to be transported. Open the left- hand followed by the right-hand rear
door, then close the left-hand rear door and lock it.9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
When driving with an open load
compartment, exhaust gases
could enter the vehicle. Open the
windows.
Notice
Do not use the left-hand rear door to
hold objects in place.
If possible, secure objects with
lashing straps attached to lashing
eyes 3 78.
Caution
Always make sure that the load in
the vehicle is securely stowed
when driving with an open load compartment.
For further information, refer to
"Loading information" 3 85.
Always comply with local or national regulations.
Load compartment
Tailgate
Opening

32Keys, doors and windowsDepending on the version, press
' to unlock the tailgate.
After unlocking, press the middle
tailgate button and open the tailgate.
Closing
Use the interior handle.
Do not push the middle tailgate button whilst closing as this will unlock the
tailgate again.
With the electronic key outside the
vehicle and within a range of approx.
one metre of the tailgate, press the
left tailgate button to lock the vehicle.
Central locking system 3 24.
General hints for operating
tailgate
9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which cannot be seen or
