Instruments and controls89
Control indicators in the centre
console
Turn signal
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes A turn signal or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse.
Bulb replacement 3 191, Fuses
3 200.
Turn signals 3 114.

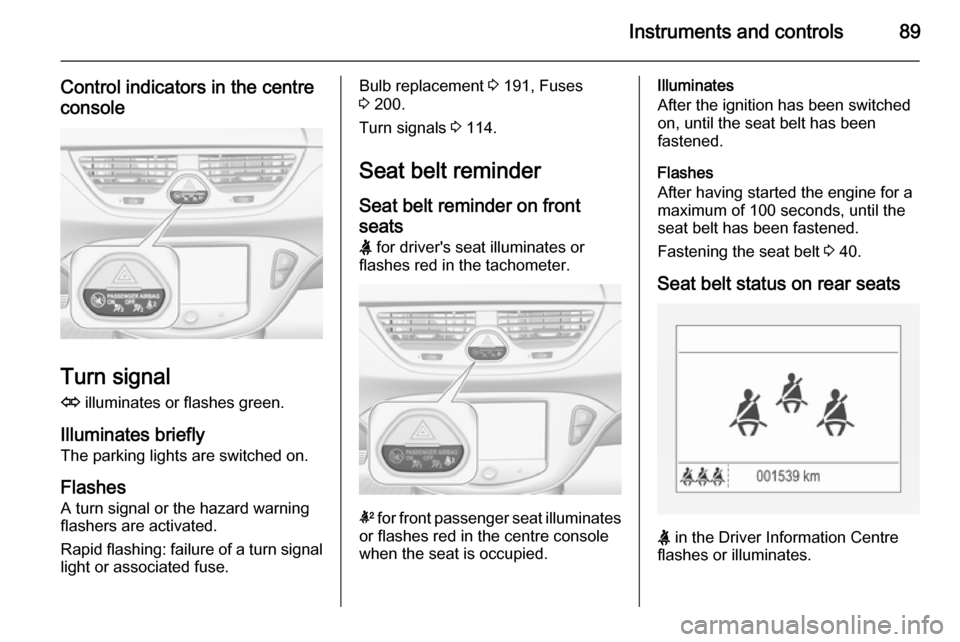

Seat belt reminder Seat belt reminder on front
seats X for driver's seat illuminates or
flashes red in the tachometer.
k for front passenger seat illuminates
or flashes red in the centre console
when the seat is occupied.
Illuminates
After the ignition has been switched on, until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds, until the
seat belt has been fastened.
Fastening the seat belt 3 40.
Seat belt status on rear seats
X in the Driver Information Centre
flashes or illuminates.

90Instruments and controls
Illuminates
After having started the engine for a minimum of 35 seconds, until the seat
belt has been fastened.
If an unfastened seat belt is fastened
whilst driving.
Flashes
After starting-off, when the seat belt is
unfastened.
Fastening the seat belt 3 40.
Airbag and belt tensioners v illuminates red.
When the ignition is switched on, the control indicator illuminates for
approx. four seconds. If it does not
illuminate, does not go out after
four seconds or illuminates whilst driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.9
Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 39, 3 42.
Airbag deactivation
V illuminates yellow.
Illuminates for approx. 60 seconds
after the ignition is switched on. The
front passenger airbag is activated.
* illuminates yellow.
The front passenger airbag is
deactivated 3 47.
9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.

Instruments and controls91
Illuminates when the engine is
running Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine is
running
Fault that could lead to catalytic converter damage. Ease up on the accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service vehicle soon g illuminates yellow.
Additionally, a warning message is
displayed in the Driver Information
Centre.
The vehicle requires a service.
Seek the assistance of a workshop.
Vehicle messages 3 103.
Brake and clutch system R illuminates red.The brake and clutch fluid level is too
low 3 188.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 146.
Operate pedal - illuminates or flashes yellow.
Illuminates
Clutch pedal needs to be depressed
to start the engine in Autostop mode.
Stop-start system 3 133.
Flashes
Clutch pedal needs to be depressed
for a main start of the engine 3 17,
3 132.
On some versions, the operate pedal message is indicated in the Driver
Information Display 3 103.
Antilock brake system
(ABS) u illuminates yellow.
Illuminates for a few seconds after the ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock brake system 3 145.
Gear shifting R with the number of the next higher
gear is indicated, when upshifting is
recommended for fuel saving
reasons.
Power steering
c illuminates yellow.

92Instruments and controls
Illuminates with power steeringreduced
Power steering is reduced due to
overheating of the system. Control
indicator extinguishes when the
system has cooled down.
Stop-start system 3 133.
Illuminates with power steering disabled
Failure in the power steering system.
Consult a workshop.
Illumination of c and b
simultaneously Power steering system must be
calibrated, system calibration 3 149.
Lane departure warning
) illuminates green or flashes yellow.
Illuminates green
System is switched on and ready to operate.Flashes yellow
System recognises an unintended
lane change.
Lane departure warning 3 170
Ultrasonic parking assist
r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or covered by ice or snow
or
Interference due to external sources of ultrasound. Once the source of
interference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Ultrasonic parking assist 3 156.
Electronic Stability Control
off
t illuminates yellow.
The system is deactivated.Electronic Stability Control
and Traction Control
system
b flashes or illuminates yellow.
Flashes The system is actively engaged.
Engine output may be reduced and the vehicle may be braked
automatically to a small degree.
Illuminates A fault in the system is present. A
warning message or warning code
appears in the Driver Information
Centre. Continued driving is possible. The system is not operational. Driving
stability, however, may deteriorate
depending on road surface
conditions.
Have the cause of the fault remedied
by a workshop.
Electronic Stability Control 3 148,
Traction Control system 3 147.

Instruments and controls93Traction Control system off
k illuminates yellow.
The system is deactivated.
Preheating
! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.
Diesel particle filter % illuminates or flashes yellow.
The diesel particle filter requires
cleaning.
Continue driving until %
extinguishes. If possible, do not allow
engine speed to drop below
2000 rpm.
Illuminates
The diesel particle filter is full. Start
cleaning process as soon as
possible.Flashes
The maximum filling level of the filter
is reached. Start cleaning process
immediately to avoid damage to the
engine.
Diesel particle filter 3 136, Stop-start
system 3 133.
Tyre pressure monitoring
system
w illuminates or flashes yellow.
Illuminates
Tyre pressure loss. Stop immediately and check tyre pressure.
Flashes
Fault in system or tyre without
pressure sensor mounted ( e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.
Tyre pressure monitoring system3 207.Engine oil pressure
I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress the clutch.
2. Set selector lever to neutral.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off the ignition.

94Instruments and controls9Warning
When the engine is off,
considerably more force is needed
to brake and steer.
During an Autostop the brake
servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking the
assistance of a workshop 3 185.
Low fuel
Y illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes Fuel used up. Refuel immediately.
Never run the tank dry.
Catalytic converter 3 137.
Bleeding the diesel fuel system
3 191.
Immobiliser
d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Reduced engine power
# illuminates yellow.
The engine power is limited. Consult
a workshop.
Autostop
Autostop active
D illuminates red or white.
Engine is in an Autostop.
Stop-start system 3 133.
Exterior light 8 illuminates green.
The exterior lights are on 3 110.
High beam
C illuminates blue.Illuminated when high beam is on or
during headlight flash 3 111.
High beam assist
l illuminates green.
The high beam assist is activated
3 113.
Fog light
> illuminates green.
The front fog lights are on 3 115.
Rear fog light
r illuminates yellow.
The rear fog light is on 3 115.
Cruise control
m illuminates white or green.
Illuminates white
The system is on.
Illuminates green Cruise control is active.

Instruments and controls95
Cruise control 3 150.
Vehicle detected ahead A illuminates green.
A vehicle ahead is detected in the
same lane.
Forward collision alert 3 153.
Speed limiter L illuminates in the Driver
Information Centre when Speed
limiter is active. Set speed is indicated near L symbol.
Speed limiter 3 152.
Traffic sign assistant
L displays detected traffic signs as
control indicator.
Traffic sign assistant 3 167.
Door open h illuminates.
A door or the tailgate is open.Information displays
Driver Information Centre The Driver Information Centre (DIC)
is located in the instrument cluster.
Depending on the version and
equipment, the Driver Information
Centre (DIC) is available as Baselevel
display, Midlevel display or Uplevel
display.
Following pages are selectable in the DIC using the buttons on the turn
signal lever:
■ trip odometer 3 83
■ vehicle information and settings, see below
■ trip/fuel information, see below ■ economic information, see below
■ navigation information
Following indication appears if
required:
■ warning messages 3 103
■ gear shift indication 3 91
■ drive mode indication 3 138,
3 142■ tyre pressure warning 3 207
■ seat belt reminder indication 3 89
■ autostop indication 3 133
■ service information 3 91
Baselevel-Display
Select subpages by turning the
adjuster wheel on turn signal lever.
Selectable subpages are:
■ engine oil life indication
■ tyre pressure indication
■ tyre loading
■ unit setting

96Instruments and controls
■language setting, if no Infotainment
system is available
■ clock, if no Infotainment system is available
■ outside temperature, if no Infotainment system is available
Some of the displayed functions differ when the vehicle is being driven or at
a standstill.
Midlevel display
The menu pages of the Midlevel
display are selected by pressing
MENU on the turn signal lever.
Selectable menu pages of Midlevel
display are:
■ Trip/Fuel Information Menu menu,
description see below
■ Vehicle Information Menu menu,
description see below
Some of the displayed functions differ
when the vehicle is being driven or at a standstill. Some functions are only
available when the vehicle is being
driven.
Uplevel-DisplayThe menu pages of the Uplevel
display are selected by pressing
MENU on the turn signal lever. Main
menu symbols are indicated in the top line of the display:
■ Trip/Fuel Information Menu ,
displayed by ;, description see
below
■ Vehicle Information Menu ,
displayed by ?, description see
below
■ ECO Information Menu , displayed
by @ , description see below
Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.
Selecting menus and functions
The menus and functions can be
selected via the buttons on the turn
signal lever.

Instruments and controls97
Press MENU to switch between the
main menus or to return from a
submenu to the next higher menu
level.
Turn the adjuster wheel to select a
subpage of the main menu or to set a
numeric value.
Press SET/CLR to select and confirm
a function.
Vehicle and service messages are
popped-up in the DIC if required.
Confirm messages by pressing
SET/CLR . Vehicle messages 3 103.
Trip/Fuel Information Menu
Press MENU to select Trip/Fuel
Information Menu information
page ;.
Turn the adjuster wheel to select a
subpage.
The following list contains all possible Trip/Fuel Information Menu pages.
Some may not be available for your particular vehicle.
Follow the instructions given in the
submenus.
■ trip odometer 1
■ trip odometer 2
■ average fuel economy 1
■ average fuel economy 2
■ digital speed
■ fuel range
■ fuel range LPG version
■ fuel level LPG version
■ instantaneous fuel economy
■ average vehicle speed
■ clock■ temperature
■ blank page
Selection and indication is different
between Midlevel- and Uplevel-
Display.
Trip odometer 1 and 2
Trip odometer displays the current distance since a certain reset.
Trip odometer counts up to a distance
of 2,000 miles then restarts at 0.
Turn the adjuster wheel to select
between trip odometer 1 and 2.
To reset, press SET/CLR for a few
seconds while viewing this page.
Simultaneously average fuel
economy 1 and 2 is indicated together with trip odometer 1 and 2.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
Average fuel economy 1 and 2
Display of average consumption. The measurement can be reset at any
time and starts with a default value.

98Instruments and controls
To reset, press SET/CLR for a few
seconds while viewing this page.
Simultaneously trip odometer 1 and 2
is indicated together with average fuel
economy 1 and 2.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
On vehicles with LPG engines:
Average consumption is indicated for
the currently selected mode (LPG or
petrol).
Digital speed
Digital display of the instantaneous
speed.
Fuel range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.
After refuelling, the range is updated
automatically after a brief delay.
When the fuel level in the tank is low,
a message appears on the display
and the control indicator Y in the fuel
gauge illuminates.When the tank must be refuelled
immediately, a warning message
appears and remains on the display.
Additionally, the control indicator Y in
the fuel gauge flashes 3 94.
Fuel range LPG version
Display of the approximate total fuel
range for each fuel tank (LPG and
petrol). A low fuel level in any tank is indicated by Low in the respective
section.
Fuel level LPG version
Display of the fuel level in percent for the fuel type currently not being used,
e.g. in petrol mode the fuel level for
LPG is displayed.
Instantaneous fuel economy
Display of the instantaneous
consumption.
On vehicles with LPG engines:
Instantaneous consumption is
indicated for the currently selected
mode; LPG or petrol.
Average vehicle speed
Display of average speed. The
measurement can be reset at any
time.
To reset, press SET/CLR for a few
seconds while viewing this page.
Clock
Display of actual time.
Only indicated if no Infotainment
system is available.
Temperature
Display of actual outside
temperature.
