VAUXHALL CORSA 2015.75 User Guide

In brief9
Dazzle from following vehicles at
night is automatically reduced.
Automatic anti-dazzle interior mirror 3 29.
Exterior mirrors
Select the relevant exterior mirror with
the rocker switch and adjust the
mirror with the control :.
Convex exterior mirrors 3 28,
Electric adjustment 3 28, Folding
exterior mirrors 3 28.
Heated exterior mirrors 3 28.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 42, Ignition
positions 3 131.

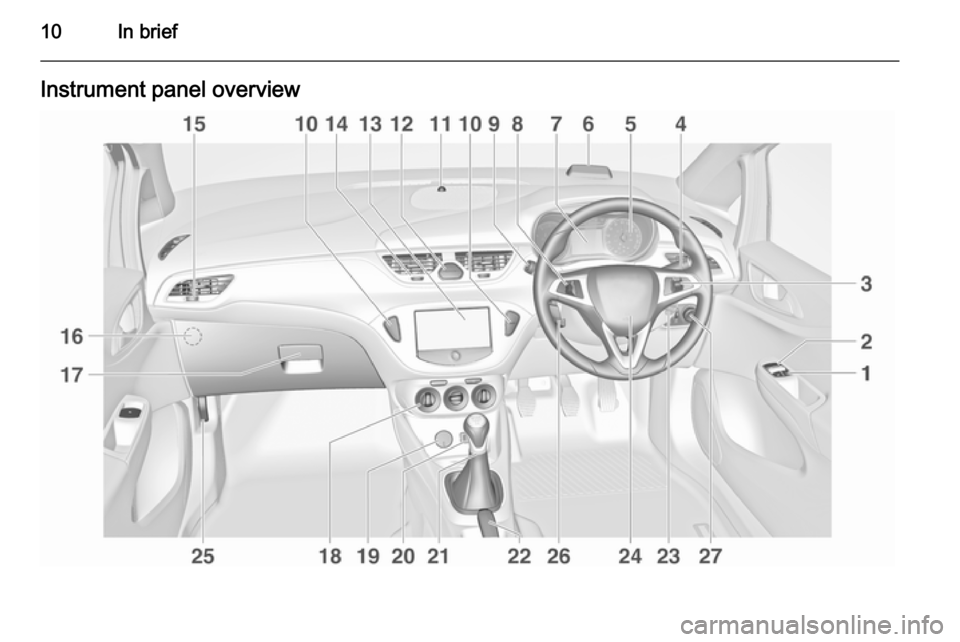

10In briefInstrument panel overview

In brief11
1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................150
Speed limiter ...................... 152
Forward collision alert ........153
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ....114
Exit lighting ......................... 118
Parking lights ...................... 115
Buttons for Driver
Information Centre ................95
5 Instruments .......................... 83
6 Forward collision alert
indicator ............................. 153
7 Driver Information Centre ...... 95
8 Infotainment controls ...........75
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 7710 Central locking system ..........22
City mode ............................ 149
Fuel selector ......................... 85
Eco button for stop-start
system ................................. 133
Traction Control system .....147
Electronic Stability Control . 148
Parking assist ..................... 156
Seat heating .......................... 39
Heated steering wheel ..........76
11 Anti-theft alarm system
status LED ........................... 26
12 Hazard warning flashers ....114
Control indicator for airbag deactivation .......................... 90
Control indicator for front
passenger seat belt .............89
13 Colour-Info-Display ............101
Graphic-Info-Display ...........102
14 Centre air vents .................. 128
15 Side air vents, passenger
side ..................................... 12816Airbag deactivation switch
(behind glovebox cover) ......47
17 Glovebox .............................. 56
Fuse box ............................ 203
18 Climate control system ........ 120
19 Power outlet .......................... 82
20 AUX input, USB input ...........10
21 Selector lever,
transmission ....................... 141
22 Parking brake ......................146
23 Ignition switch with
steering wheel lock ............131
24 Horn ..................................... 76
Driver airbag ........................ 45
25 Bonnet release lever ..........185
26 Steering wheel adjustment ..75
27 Light switch ........................ 110
Headlight range
adjustment ......................... 112
Rear fog light ...................... 115

12In brief
Fuse box ............................ 203
Brightness of instrument
panel illumination ................116Exterior lighting
Light switch
Turn light switch:
7=lights off8=sidelights9=headlights
Fog lights Press buttons in light switch
>=front fog lightsr=rear fog lightLight switch with automatic light
controlAUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=headlights
Automatic light control 3 111.

In brief13

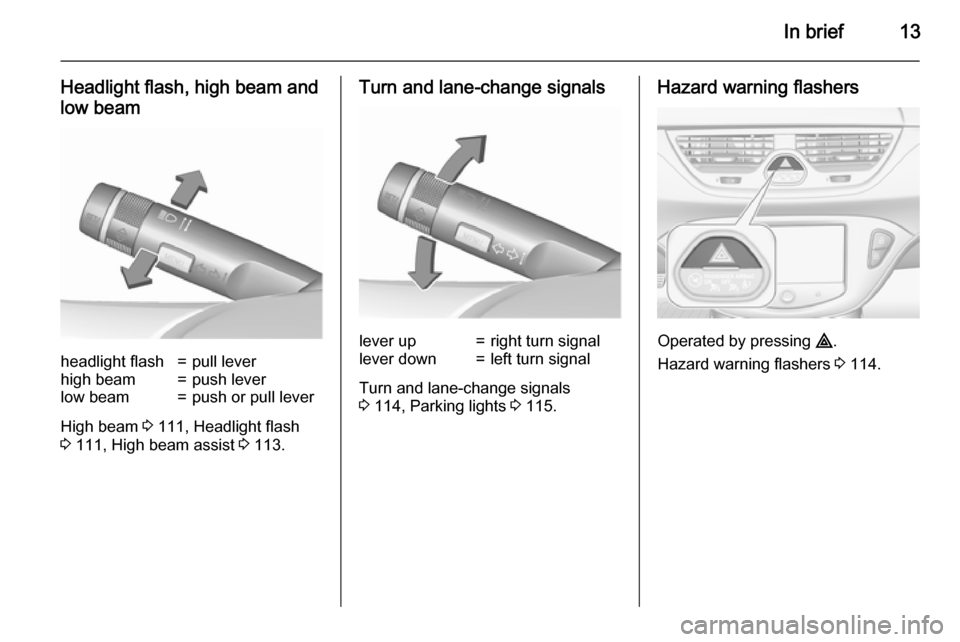

Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
High beam 3 111, Headlight flash
3 111, High beam assist 3 113.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 114, Parking lights 3 115.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 114.

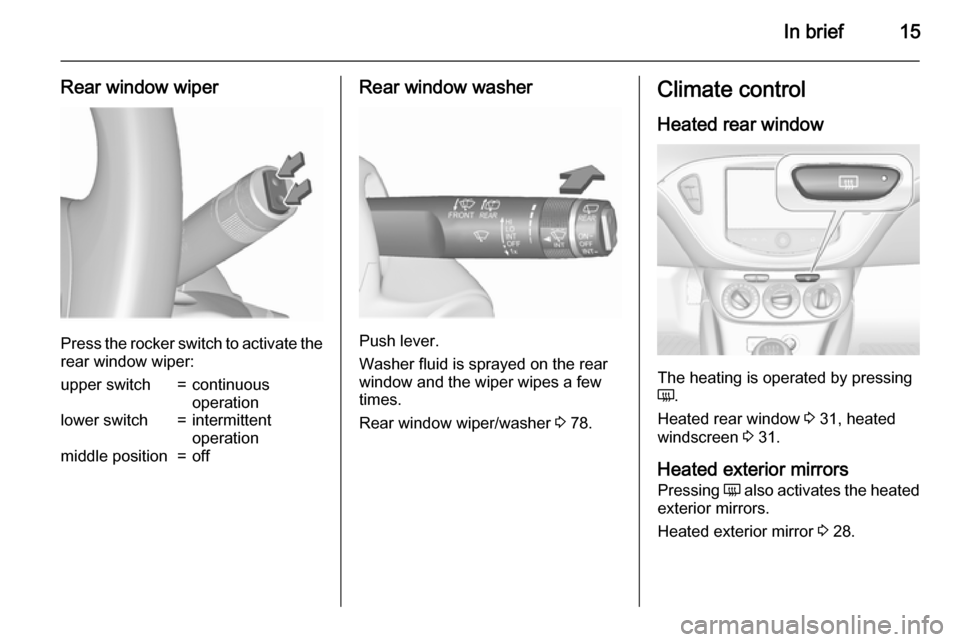

14In briefHorn
Press j.
Washer and wiper systems
Windscreen wiperHI=fastLO=slowINT=interval wiping
or
automatic wiping with rain
sensorOFF=off
For single wipe when the wiper is off, press lever down to position 1x.
Windscreen wiper 3 77.
Windscreen washer
Pull lever.
Windscreen washer system 3 77,
Washer fluid 3 188, Wiper blade
replacement 3 191.

In brief15
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch=continuous
operationlower switch=intermittent
operationmiddle position=offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 78.

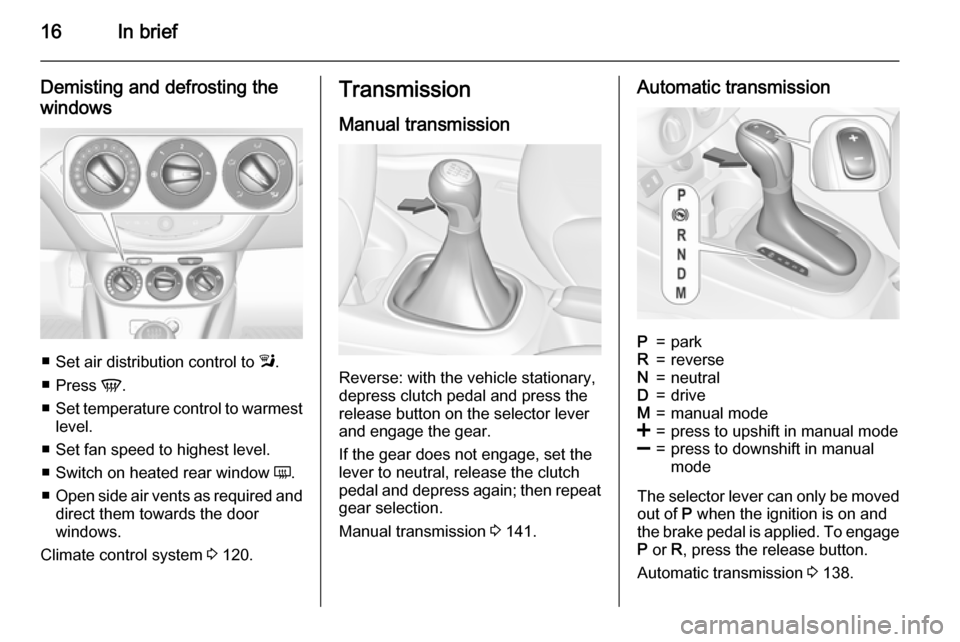

Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 31, heated
windscreen 3 31.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirror 3 28.

16In brief
Demisting and defrosting the
windows
■ Set air distribution control to l.
■ Press V.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards the door
windows.
Climate control system 3 120.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 141.
Automatic transmissionP=parkR=reverseN=neutralD=driveM=manual mode<=press to upshift in manual mode]=press to downshift in manual
mode
The selector lever can only be moved out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 138.

In brief17
Manual transmission automatedR=reverse. Engage only when
vehicle is stationaryN=neutralD=automatic modeM=manual mode<=upshift in manual mode]=downshift in manual mode
Manual transmission automated
3 142.
Starting off
Check before starting off ■ Tyre pressure and condition 3 206,
3 249.
■ Engine oil level and fluid levels 3 185.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats, and seat belts 3 28, 3 35,
3 40.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position 1.
■ Move the steering wheel slightly to release the steering wheel lock.
■ Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
■ Do not operate accelerator pedal.

18In brief
■ Diesel engines: turn the key toposition 2 for preheating and wait
until control indicator !
extinguishes.
■ Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes.
■ Turn key to position 3 and release.
Starting the engine 3 132.Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
Vehicles with manual transmission: ■ Depress the clutch pedal.
■ Set the lever to neutral.
■ Release the clutch pedal.
An Autostop is indicated by the
control indicator D.
To restart the engine, depress the
clutch pedal again. The control
indicator D extinguishes.
Vehicles with manual transmission
automated:
If the vehicle is at a standstill with the
brake pedal depressed, Autostop is
activated automatically, indicated by
control indicator D.
Release the brake pedal or move
selector lever out of D to restart the
engine. Control indicator D
extinguishes.
Stop-start system 3 133.
