Seats, restraints499Danger
Deactivate passenger airbag only
in combination with the use of a
child restraint system, subject to
the instructions and restrictions in
the tables 3 51.
Otherwise, there is a risk of fatal
injury for a person occupying a
seat with a deactivated front
passenger airbag.
If control indicator V illuminates for
approx. 60 seconds after the ignition is switched on, the front passenger
airbag system will inflate in the event
of a collision.
If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.
Change status only when the vehicle is stopped with the ignition off.
Status remains until the next change.
Control indicator for airbag
deactivation 3 91.Child restraints
Child restraint systems
We recommend Vauxhall child
restraint systems which are tailored
specifically to the vehicle.
The following child restraints are
recommended for the following
weight classes:
● Group 0, Group 0+
Maxi Cosi Cabriofix plus Easyfix, for children up to 13 kg
● Group I
VAUXHALL Duo, for children
from 13 kg to 18 kg in this group
When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child restraint system.
Check local laws and regulations for
mandatory use of child restraint
systems. In some countries, the use of child restraint systems is forbidden
on certain seats.

50Seats, restraints9Danger
If using a rear-facing child restraint
system on the front passenger
seat, the airbag system for the
front passenger seat must be
deactivated. This also applies to certain forward-facing child
restraint systems as indicated in
the tables 3 51.
Airbag deactivation 3 48.
Airbag label 3 43.
The rear seats are the most
convenient location to fasten a child restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This ensures that the child's backbone, which is still very weak, is
under less strain in the event of an
accident.
Selecting the right system Only use suitable restraint systems,
e.g. those that comply with valid
UN ECE regulations.
Ensure that the child restraint system to be installed is compatible with the
vehicle type. Refer to the tables on
the following pages, the instructions
supplied with the child restraint
system and the vehicle type list of
non-universal child restraint systems.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not in use, secure the seat with a seat beltor remove it from the vehicle.
Child restraint systems could be
fastened with ISOFIX mounting
brackets, Top-tether if available,
and/or a three-point seat belt. Refer
to the following tables.
Notice
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints51Child restraint installation locations
Permissible options for fastening a child restraint system with a three-point seat belt
Weight and age class
On front passenger seat
On rear outboard seatsOn rear centre seat
activated airbagdeactivated airbagGroup 0: up to 10 kg
or approx. 10 monthsXU 1,2U/L 3XGroup 0+: up to 13 kg
or approx. 2 yearsXU 1,2U/L 3XGroup I: 9 to 18 kg
or approx. 8 months to 4 yearsXU 1,2U/L 3,4XGroup II: 15 to 25 kg
or approx. 3 to 7 yearsU 1,2XU/L 3,4XGroup III: 22 to 36 kg
or approx. 6 to 12 yearsU 1,2XU/L 3,4XU:universal suitability in conjunction with three-point seat beltL:suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint
system)X:no child restraint system permitted in this weight class1:move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position to ensure that the belt runs forwards from the upper anchorage point

52Seats, restraints2:move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary
to a vertical position to ensure that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective backrest to the rearmost position 3 67 , adjust the respective headrest as necessary or remove
if required 3 35
Permissible options for fitting an ISOFIX child restraint system
Weight classSize classFixture
On front passenger seat 5On rear
outboard seatsOn rear
centre seatactivated airbagdeactivated airbagGroup 0: up to 10 kg
or approx. 10 monthsEISO/R1XILIL 3XGroup 0+: up to 13 kg
or approx. 2 yearsEISO/R1XILIL 3XDISO/R2XILIL3XCISO/R3XILIL 3XGroup I: 9 to 18 kg
or approx. 8 months to 4 yearsDISO/R2XILIL 3,4XCISO/R3XILIL3,4XBISO/F2XIL/IUFIL, IUF 3,4XB1ISO/F2XXIL/IUFIL, IUF3,4XAISO/F3XIL/IUFIL, IUF 3,4X

Seats, restraints53
Weight classSize classFixture
On front passenger seat5
On rear
outboard seatsOn rear
centre seatactivated airbagdeactivated airbagGroup II: 15 to 25 kg
or approx. 3 to 7 yearsIL 1,2XIL3,4XGroup III: 22 to 36 kg
or approx. 6 to 12 yearsIL 1,2XIL3,4XIL:suitable for particular
ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.
(ISOFIX/Top-tether fastening points optional for the front passenger seat but not available for sport seats). The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class
(ISOFIX/Top-tether fastening points optional for the front passenger seat (not available for sport seats)X:no ISOFIX child restraint system approved for this weight class1:move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position
to ensure that the belt runs forwards from the upper anchorage point2:move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary
to a vertical position to ensure that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective backrest to the rearmost position 3 67, adjust the respective headrest as necessary or
remove if required 3 355:ISOFIX/Top-tether fastening points optional for the front passenger seat (not available for sport seats)

54Seats, restraintsISOFIX size class and seat deviceA – ISO/F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kgB – ISO/F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kgB1 – ISO/F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kgC – ISO/R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kgD – ISO/R2:rear-facing child restraint system for smaller children in the weight class up to 18 kgE – ISO/R1:rear-facing child restraint system for young children in the weight class up to 13 kg

Seats, restraints55ISOFIX child restraintsystems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.
The vehicle is equipped with guides in
the backrests to support the
installation of the child restraint
system.
ISOFIX child restraint systems on
rear seatsISOFIX mounting brackets on the
rear seats are indicated by the
ISOFIX logo on the backrest.
Open the flaps of the guides before mounting a child restraint system.After removing the child restraint
system, close the flaps.
ISOFIX child restraint systems on
front passenger seat
Place the child restraint system in the
centre of the seat and push
backwards. Make sure that the child
restraint system is engaged properly.
Top-tether fastening eyes
In addition to the ISOFIX mounting,
fasten the Top-tether strap to the
Top-tether fastening eyes.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.
Top-tether fastening eye on rear
seats
The vehicle has two fastening eyes
on the back of the rear seats.
Top-tether fastening eyes are marked
with the symbol : for a child seat.

56Seats, restraintsTop-tether fastening eye on front
passenger seat

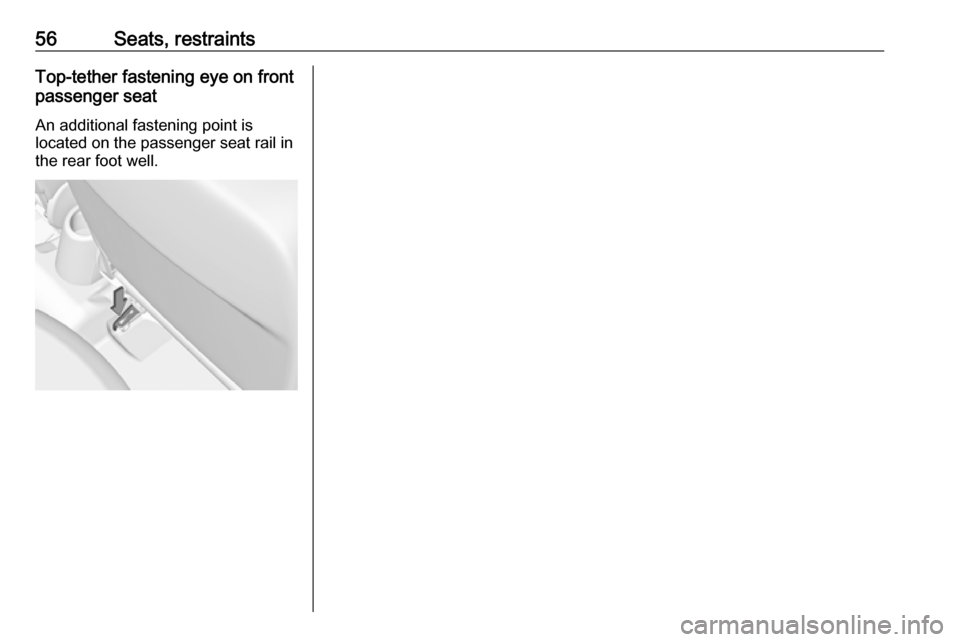

An additional fastening point is
located on the passenger seat rail in
the rear foot well.

Storage57StorageStorage compartments................57
Glovebox ................................... 57
Cupholders ................................ 57
Front storage ............................. 58
Underseat storage .....................59
Rear carrier system ...................59
Load compartment .......................67
Load compartment cover ...........69
Rear floor storage cover ............70
Lashing eyes ............................. 71
Warning triangle ........................72
First aid kit ................................. 72
Roof rack system .........................72
Roof rack ................................... 72
Loading information .....................73Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
Pull lever to open the glovebox cover.
The glovebox features a coin holder
and an adapter for the locking wheel
bolts.
The glovebox should be closed whilst
driving.

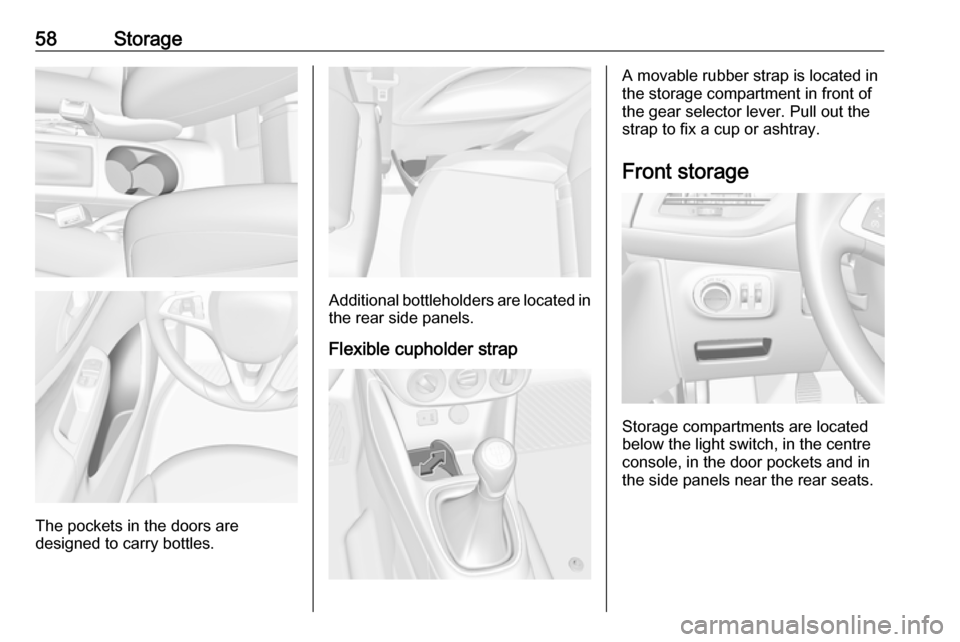

Cupholders
Cupholders are located in the centre
console.

58Storage
The pockets in the doors are
designed to carry bottles.
Additional bottleholders are located in the rear side panels.
Flexible cupholder strap
A movable rubber strap is located in
the storage compartment in front of
the gear selector lever. Pull out the
strap to fix a cup or ashtray.
Front storage
Storage compartments are located
below the light switch, in the centre
console, in the door pockets and in
the side panels near the rear seats.
