technical data VAUXHALL CORSA F 2019 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 32
Storage ........................................ 53
Instruments and controls .............61
Lighting ........................................ 98
Climate control ........................... 108
Driving and operating .................117
Vehicle care ............................... 154
Service and maintenance ..........200
Technical data ........................... 203
Customer information ................213
Index .......................................... 222Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Vauxhall Authorised Repairer.
For gas vehicles, we recommend a
Vauxhall Authorised Repairer
licensed to service gas vehicles.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

Technical data203Technical dataVehicle identification..................203
Vehicle Identification Number ..203
Identification plate ...................204
Engine identification ................204
Vehicle data ............................... 205
Recommended fluids and lubricants ................................ 205
Engine data ............................. 208
Vehicle dimensions .................210
Capacities ................................ 210
Tyre pressures ........................ 212Vehicle identification
Vehicle IdentificationNumber

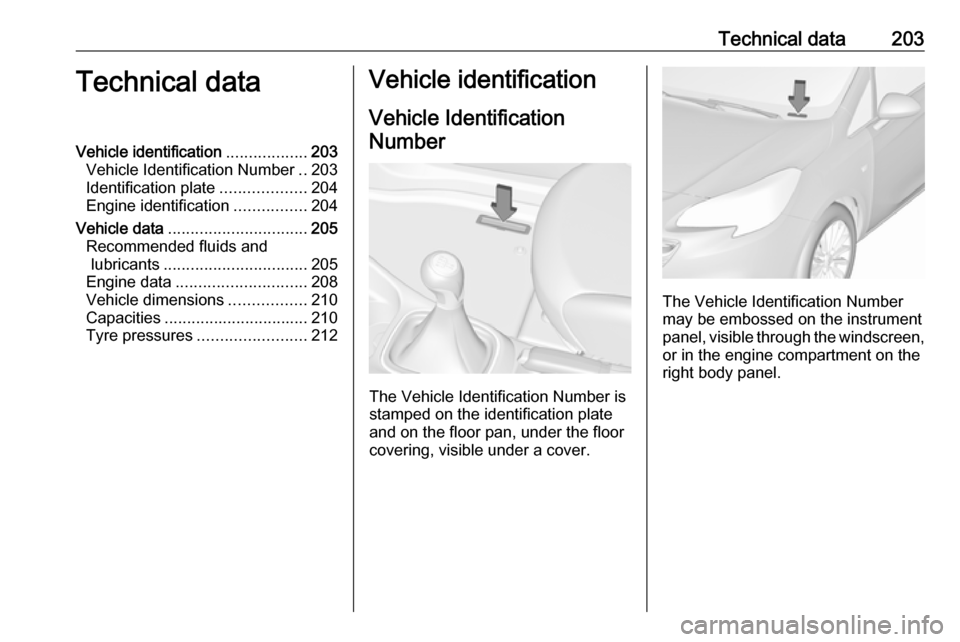

The Vehicle Identification Number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.

204Technical dataIdentification plate
The identification plate is located on
the left or right door frame.
Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight rating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight.
Vehicle's kerb weight depends on the
specification of the vehicle, e.g.
optional equipment and accessories.
Refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables use the
engine identifier code. The engine
data table additionally shows the
engineering code.
Engine data 3 208.
To identify the respective engine,
refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The Certificate of Conformity shows the engine identifier code, other
national publications may show the
engineering code. Check piston
displacement and engine power to
identify the respective engine.

Technical data205Vehicle data
Recommended fluids and lubricants
European service schedule Required engine oil qualityAll European countries with European service interval 3 200Engine oil qualityPetrol engines
B / D / F10XFL, D14NEHAll other petrol engines (including LPG, E85)dexos1 Gen2✔–dexos2–✔
All engines except B / D / F10XFL and D14NEH: In case dexos quality is unavailable, you may use max. 1 l engine oilquality ACEA C3 for topping up once between each engine oil change.
Engine oil viscosity grades
All European countries with European service interval 3 200Ambient temperaturePetrol enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

206Technical dataInternational service schedule
Required engine oil qualityAll European countries with European service interval 3 200Engine oil qualityPetrol engines
B / D / F10XFL, D14NEHAll other petrol engines (including LPG, E85)dexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable, you may use the engine oil qualities listed below:
All countries with international service interval 3 200Engine oil qualityPetrol engines
B / D / F10XFL, D14NEHAll other petrol engines (including LPG, E85)ACEA A3/B4–✔ACEA C3–✔

Technical data207Engine oil viscosity gradesAll countries with international service interval 3 200Ambient temperaturePetrol enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of engine oils with dexos quality is recommended.

208Technical dataEngine dataEngine identifier codeB / D / F10XFLB / D / F10XFTD12XELD14XEJSales designation1.01.01.21.4Engineering codeB10XFTB10XFTB12XERB14XERPiston displacement [cm3
]99999912291398Engine power [kW]66855155at rpm3700 - 60005000 - 600056004200 - 6000Torque [Nm]170170115130at rpm1800 - 37001800 - 450040004000Fuel typePetrolPetrolPetrolPetrolOctane rating RON 2)recommended95959595possible91919898possible98989191Additional fuel type––––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

Technical data209Engine identifier codeD14XELD14NEJD14XELD14NEHSales designation1.41.41.4 LPG1.4 TurboEngineering codeB14XERB14NELB14XERB14NETPiston displacement [cm3
]1398136413981364Engine power [kW]667466110at rpm60003500 - 600060005000Torque [Nm]130200130220at rpm40001850 - 350040003000 - 4500Fuel typePetrolPetrolLiquid gas / PetrolPetrolOctane rating RON 2)recommended95959598possible98989895possible919191–Additional fuel type-–Liquid gas (LPG)–2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

210Technical dataVehicle dimensions5-door vehicle3-door vehicleLength [mm]40214021 - 4036Width with two exterior mirrors [mm]19441944Height (without antenna) [mm]3)1466 - 15161466 - 1501Length of load compartment floor [mm]705705Length of load compartment with folded rear seats [mm]13721372Load compartment width [mm]944944Load compartment height [mm]876843Turning circle diameter [m]4)11.0 - 11.911.0 - 11.93)
Depending on options.
4) Depending on body and equipment variants.
Capacities
Engine oilincluding filter [l]4.0between MIN and MAX [l]1.0
