Driving and operating165The system can not operate when no
lane marking is detected.
System limitations The system performance may not
operate properly when:
● Vehicle speed is below 37 mph.
● Driving on winding or hilly roads.
● During nighttime driving.
● Weather limits visibility, such as fog, rain, or snow.
● The sensor in the windscreen is blocked by snow, ice, slush, mud,dirt, windscreen damage or
affected by foreign items, e.g.
stickers.
● The sun is shining directly into the camera lens.
● Close vehicles ahead.
● Banked roads.
● Road edges.
● Roads with poor lane markings.
● Sudden lighting changes.Driver alert
Driver alert monitores the driving time above a vehicle speed of 65 km/h.
It is recommended to take a break as soon as feeling tired or at least every
two hours.
The system includes a driving time
alert.
Driving time alert
The driver gets notified by a pop-up
reminder symbol ˇ in the Driver
Information Centre simultaneously with a sound alert if the driver has not taken a break after two hours of
driving at a speed above 65 km/h. The
alert is repeated hourly until the
vehicle is stopped, no matter how
vehicle speed evolves.
The counting of driving time alert is
reset when the ignition has been
switched off for a few minutes.
Deactivation or activation The system can be deactivated or
activated in the personalisation menu
3 99.Driver drowsiness detection alert is
reset when the ignition has been
switched off for a few minutes.

Vehicle care191No.Circuit1Fan climate control system2–3Body fuse box4–5Instrument panel fuse box6Engine cooling unit7Body control module8Engine control fuel pump9Engine controlNo.Circuit10Engine control11Engine control12Engine cooling unit13Body control module14Intelligent battery sensor15–16Front fog light17–18High beam right19High beam left20Engine control fuel pump21Starter22–23Starter24Trailer hitch25Instrument panel fuse box26Transmission control moduleNo.Circuit27Body control module28Engine control module29Front wiper30Body control module
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.

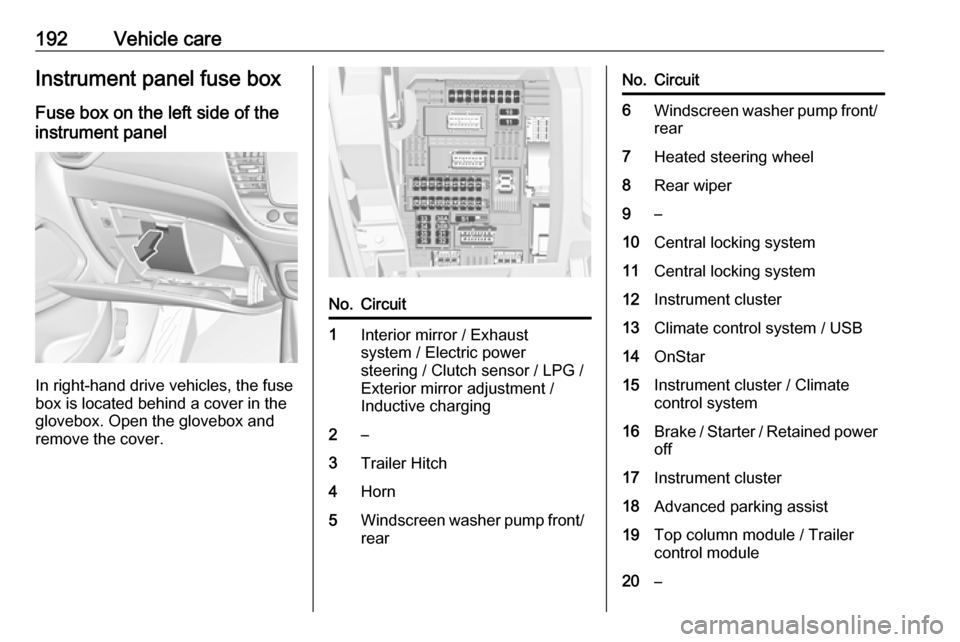

192Vehicle careInstrument panel fuse boxFuse box on the left side of the
instrument panel
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover.
No.Circuit1Interior mirror / Exhaust
system / Electric power
steering / Clutch sensor / LPG /
Exterior mirror adjustment /
Inductive charging2–3Trailer Hitch4Horn5Windscreen washer pump front/
rearNo.Circuit6Windscreen washer pump front/
rear7Heated steering wheel8Rear wiper9–10Central locking system11Central locking system12Instrument cluster13Climate control system / USB14OnStar15Instrument cluster / Climate
control system16Brake / Starter / Retained power off17Instrument cluster18Advanced parking assist19Top column module / Trailer
control module20–

Vehicle care193No.Circuit21Anti-theft alarm system / Start
button22Rain sensor / Camera23Door module24Advanced parking assist /
Camera / Infotainment25Airbag26Top column module27Anti-theft alarm system28–29Infotainment30–31Infotainment32Power outlet front33–34Heated exterior mirrors / Door
moduleNo.Circuit35Instrument cluster / Light
switch / Advanced parking
assist/ Transmission control
module36Courtesy lights / Sunvisor
lights / Glovebox light

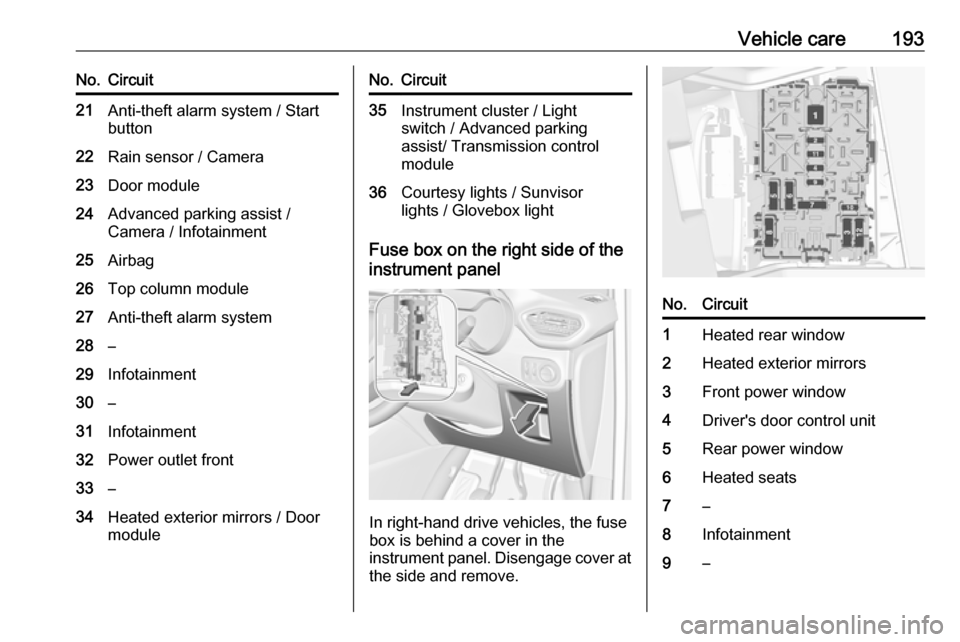

Fuse box on the right side of the
instrument panel
In right-hand drive vehicles, the fuse
box is behind a cover in the
instrument panel. Disengage cover at
the side and remove.
No.Circuit1Heated rear window2Heated exterior mirrors3Front power window4Driver's door control unit5Rear power window6Heated seats7–8Infotainment9–

241RRadio Frequency Identification (RFID) ..................................... 236
Radio remote control ...................22
Rain sensor .................................. 91
Reading lights ............................ 112
Rear floor storage cover ..............67
Rear fog light ....................... 91, 110
Rear seats .................................... 47
Rear view camera ...................... 162
Rear window wiper/washer .......... 76 Recommended fluids and lubricants ........................ 215, 219
Refuelling ................................... 167 Registered trademarks ...............234
Reversing lights .........................111
Ride control systems ..................145
Roof .............................................. 40
Roof load ...................................... 70
Roof rack ..................................... 70
S Safety belts ................................... 48
Seat adjustment ....................... 7, 44
Seat belt ........................................ 8
Seat belt reminder .......................86
Seat belts ..................................... 48
Seat heating ................................. 46
Seat position ................................ 43
Selective catalytic reduction .......136Selector lever ............................. 139
Service ............................... 125, 213
Service display ............................ 84
Service information ....................213
Service vehicle soon .................... 87
Side airbag system ......................54
Side blind spot alert ....................158
Sidelights .................................... 106
Side turn signal lights ................188
Software acknowledgement .......232
Software update ......................... 234
Spare wheel ............................... 204
Speed limiter......................... 91, 148
Speedometer ............................... 82
Starting and operating ................127
Starting off ................................... 17
Starting the engine ....................130
Steering ...................................... 127
Steering wheel adjustment ......9, 73
Steering wheel controls ...............73
Stop engine .................................. 87
Stop-start system........................ 131
Storage ......................................... 63
Storage compartments .................63
Sunvisor lights ........................... 112
Sun visors .................................... 40
Symbols ......................................... 4
System check ............................... 88T
Tachometer ................................. 83
Tail lights ................................... 185
Three-point seat belt .................... 49
Tools .......................................... 194
Tow bar....................................... 169
Towing ................................ 169, 207
Towing another vehicle .............208
Towing equipment .....................170
Towing the vehicle .....................207
Traffic sign assistant .....................91
Trailer coupling ........................... 169
Trailer towing ............................. 170
Transmission ............................... 16
Transmission display .................139
Tread depth ............................... 197
Trip odometer .............................. 83
Turn and lane-change signals ...110
Turn signal ................................... 85
Tyre chains ................................ 199
Tyre deflation detection system . 196
Tyre designations ......................195
Tyre pressure ............................ 195
Tyre pressures ........................... 228
Tyre repair kit ............................. 199
U Ultrasonic parking assist............. 150
Upholstery .................................. 211
Using this manual ..........................3
