mirror controls VAUXHALL CROSSLAND X 2018.5 Owner's Manual

In brief111Power windows .....................36
2 Exterior mirrors .....................33
3 Cruise control .....................149
Speed limiter ....................... 152
4 Turn lights ........................... 112
Headlight flash ....................109
High beam ........................... 109
High beam assist ...............110
Exit lighting ......................... 115
Parking lights ...................... 113
Buttons for Driver
Information Centre ................93
5 Side air vents ...................... 126
6 Instruments .......................... 83
Driver Information Centre ...... 93
7 Buttons for Driver
Information Centre ................93
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 73
9 Head-up display ....................97
10 Centre air vents .................. 12611Hazard warning flashers ....111
12 Info Display .......................... 96
13 Centre air vent ......................96
14 Anti-theft alarm system
status LED ........................... 31
15 Central locking system ..........23
16 Glovebox .............................. 62
Fuse box ............................ 202
17 Controls for Info Display
operation ............................... 96
18 Climate control system ........ 118
19 USB charging port ................ 76
20 Parking assist / Advanced
parking assist .....................159
Lane departure warning .....173
Eco button for stop-start
system ................................. 135
Electronic Stability Control
and Traction Control ..........148
21 Power outlet .......................... 76
22 Manual transmission ..........145
Automatic transmission ......142
23 Manual parking brake .........14724Power button ....................... 131
25 Ignition switch .....................130
26 Steering wheel adjustment ..72
27 Horn ..................................... 73
28 Bonnet release lever ..........187
29 Storage ................................. 62
Fuse box ............................ 202
30 Head-up display ....................97
31 Light switch ........................ 108
Headlight range
adjustment ......................... 110
Front / rear fog lights ..........112
Instrument illumination .......114

Climate control117Climate controlClimate control systems.............117
Heating and ventilation system 117
Air conditioning system ...........118
Electronic climate control system .................................... 121
Auxiliary heater ........................125
Air vents ..................................... 126
Adjustable air vents .................126
Fixed air vents ......................... 127
Maintenance .............................. 127
Air intake ................................. 127
Air conditioning regular operation ................................ 128
Service .................................... 128Climate control systems

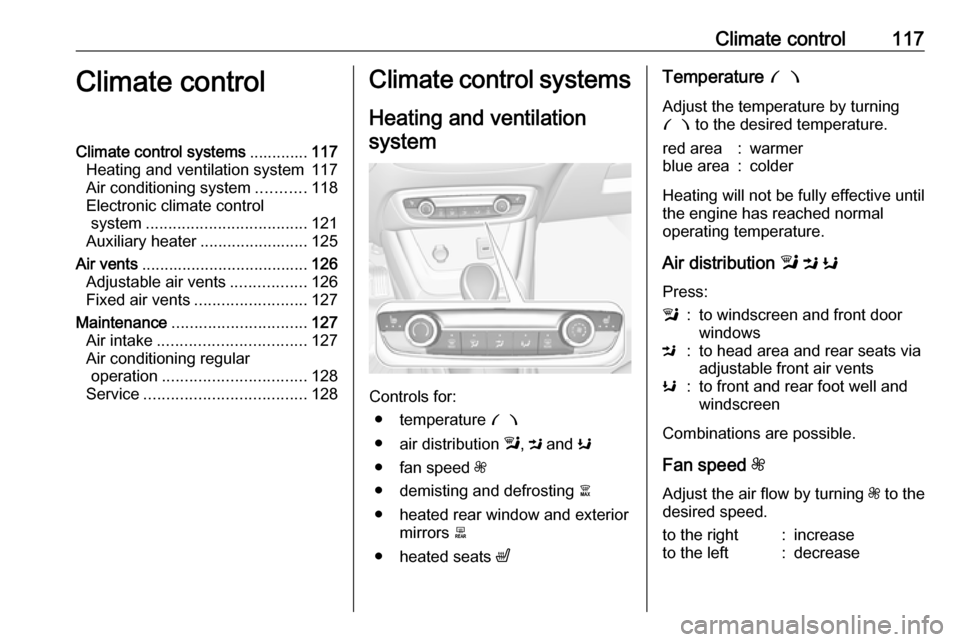

Heating and ventilation system
Controls for: ● temperature £
● air distribution l, M and K
● fan speed Z
● demisting and defrosting à
● heated rear window and exterior mirrors b
● heated seats ß
Temperature £
Adjust the temperature by turning
£ to the desired temperature.red area:warmerblue area:colder
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Air distribution l M K
Press:
l:to windscreen and front door
windowsM:to head area and rear seats via
adjustable front air ventsK:to front and rear foot well and
windscreen
Combinations are possible.
Fan speed Z
Adjust the air flow by turning Z to the
desired speed.
to the right:increaseto the left:decrease

118Climate controlDemisting and defrosting the
windows á
● Press á: the air distribution is
directed towards the windscreen.
● Set temperature controller £ to
warmest level.
● Set fan speed Z to highest level.
● Switch on heated rear window b.
● Open side air vents as required and direct them towards the doorwindows.
Heated rear window and exterior
mirrors b
3 37.
Heated seats ß
3 45.

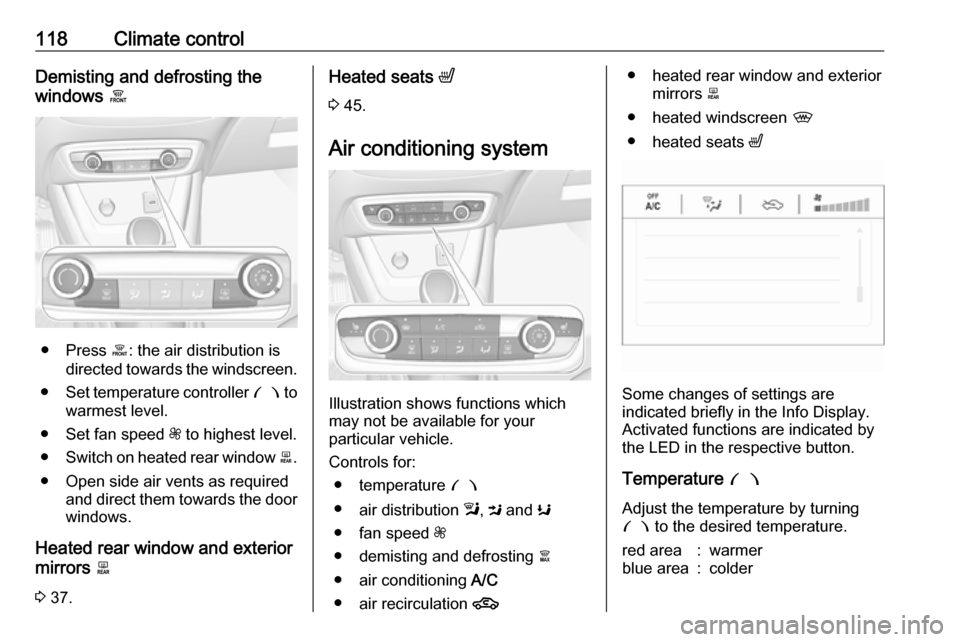

Air conditioning system
Illustration shows functions which
may not be available for your
particular vehicle.
Controls for: ● temperature £
● air distribution l, M and K
● fan speed Z
● demisting and defrosting à
● air conditioning A/C
● air recirculation 4
● heated rear window and exterior
mirrors b
● heated windscreen ,
● heated seats ß
Some changes of settings are
indicated briefly in the Info Display.
Activated functions are indicated by the LED in the respective button.
Temperature £
Adjust the temperature by turning £ to the desired temperature.
red area:warmerblue area:colder

Climate control121Heated rear window, windscreen
and exterior mirrors b
3 37.
Heated seats ß
3 45.

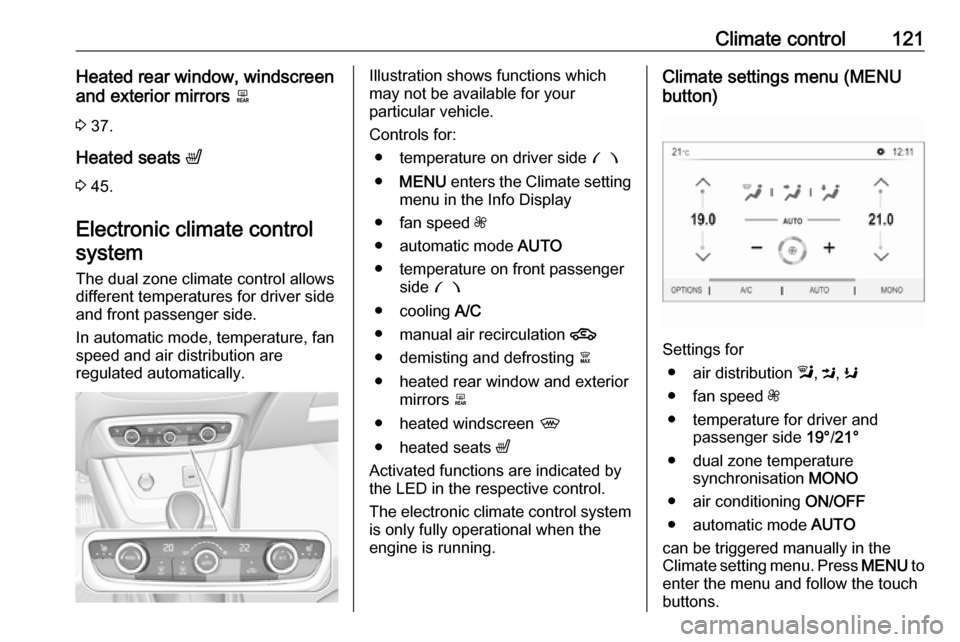

Electronic climate control
system
The dual zone climate control allows
different temperatures for driver side
and front passenger side.
In automatic mode, temperature, fan
speed and air distribution are
regulated automatically.Illustration shows functions which
may not be available for your
particular vehicle.
Controls for: ● temperature on driver side £
● MENU enters the Climate setting
menu in the Info Display
● fan speed Z
● automatic mode AUTO
● temperature on front passenger side £
● cooling A/C
● manual air recirculation 4
● demisting and defrosting à
● heated rear window and exterior mirrors b
● heated windscreen ,
● heated seats ß
Activated functions are indicated by the LED in the respective control.
The electronic climate control system
is only fully operational when the
engine is running.Climate settings menu (MENU
button)
Settings for
● air distribution l, M , K
● fan speed Z
● temperature for driver and passenger side 19°/21°
● dual zone temperature synchronisation MONO
● air conditioning ON/OFF
● automatic mode AUTO
can be triggered manually in the
Climate setting menu. Press MENU to
enter the menu and follow the touch
buttons.

253Clock............................................. 76
Control indicators.......................... 87
Control of the vehicle .................130
Controls ........................................ 72
Convex shape .............................. 33
Coolant and antifreeze ...............227
Cruise control ...................... 93, 149
Cupholders .................................. 62
Curtain airbag system .................. 54
D Danger, Warnings and Cautions ...4
Daytime running lights ...............110
Declaration of conformity ............242
DEF ............................................ 139
Deflation detection system ...........91
Diesel exhaust fluid ....................139
Diesel fuel system bleeding .......191
Diesel particle filter ...............91, 138
Door open .................................... 93
Doors ............................................ 29
Driver alert .................................. 174
Driver assistance systems ..........149
Driver Information Centre .............93
Driving characteristics and towing tips .............................. 181
Driving hints ................................ 130
E
Electric adjustment ......................33
Electrical system......................... 200Electronic climate control system 121
Electronic driving programmes ..144
Electronic key system ...................22
Electronic Stability Control and Traction Control system ....90, 148
Electronic Stability Control and Traction Control system off .......90
End-of-life vehicle recovery .......186
Engine compartment fuse box ...201
Engine coolant ........................... 189
Engine coolant temperature ........91
Engine coolant temperature gauge ....................................... 85
Engine data ............................... 234
Engine exhaust .......................... 138
Engine identification ...................230
Engine oil ................... 188, 227, 231
Engine oil level monitor ................86
Engine oil pressure ......................91
Entry lighting .............................. 115
Event data recorders ..................248
Exit lighting ................................ 115
Exterior care .............................. 221
Exterior light ................................. 92
Exterior lighting ....................12, 108
Exterior mirrors ............................. 33
F Fault ........................................... 144
First aid ......................................... 68First aid kit ................................... 68
Fixed air vents ........................... 127
Fog light ....................................... 92
Fog lights ................................... 195
Folding mirrors ............................. 34
Forward collision alert................. 154
Front airbag system .....................53
Front fog lights ........................... 112
Front pedestrian protection ........158
Front seats.................................... 42
Fuel............................................. 175
Fuel for diesel engines ..............175
Fuel for liquid gas operation .......176
Fuel for petrol engines ...............175
Fuel gauge ................................... 84
Fuel selector ................................ 84
Fuses ......................................... 200
G Gauges ......................................... 83
Gear shifting ................................. 90
General information ...................180
Glass panel .................................. 39
Glovebox ..................................... 62
H
Halogen headlights ....................192
Hand brake ......................... 146, 147
Hazard warning flashers ............111
Headlight flash ........................... 109
Headlight range adjustment ......110
