VAUXHALL CROSSLAND X 2019.75 Owner's Guide
Manufacturer: VAUXHALL, Model Year: 2019.75, Model line: CROSSLAND X, Model: VAUXHALL CROSSLAND X 2019.75Pages: 247, PDF Size: 7.77 MB
Page 21 of 247
In brief19approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 20.
Laying-up the vehicle for a long period of time 3 173.
Page 22 of 247
20Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 20
Keys .......................................... 20
Radio remote control .................21
Electronic key system ................22
Central locking system ..............23
Automatic locking ......................28
Child locks ................................. 28
Doors ........................................... 29
Load compartment ....................29
Vehicle security ............................ 30
Anti-theft locking system ...........30
Anti-theft alarm system ..............31
Immobiliser ................................ 33
Exterior mirrors ............................ 33
Convex shape ........................... 33
Electric adjustment ....................33
Folding mirrors .......................... 34
Heated mirrors ........................... 34
Interior mirrors ............................. 35
Manual anti-dazzle ....................35
Automatic anti-dazzle ................35
Windows ...................................... 35
Windscreen ............................... 35Manual windows........................36
Power windows ......................... 36
Heated rear window ..................37
Heated windscreen ....................38
Sun visors .................................. 38
Roof ............................................. 38
Glass panel ............................... 38Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 208.
Central locking 3 23.
Starting the engine 3 123.
Radio remote control 3 21.
Electronic key 3 22.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 200.
Page 23 of 247

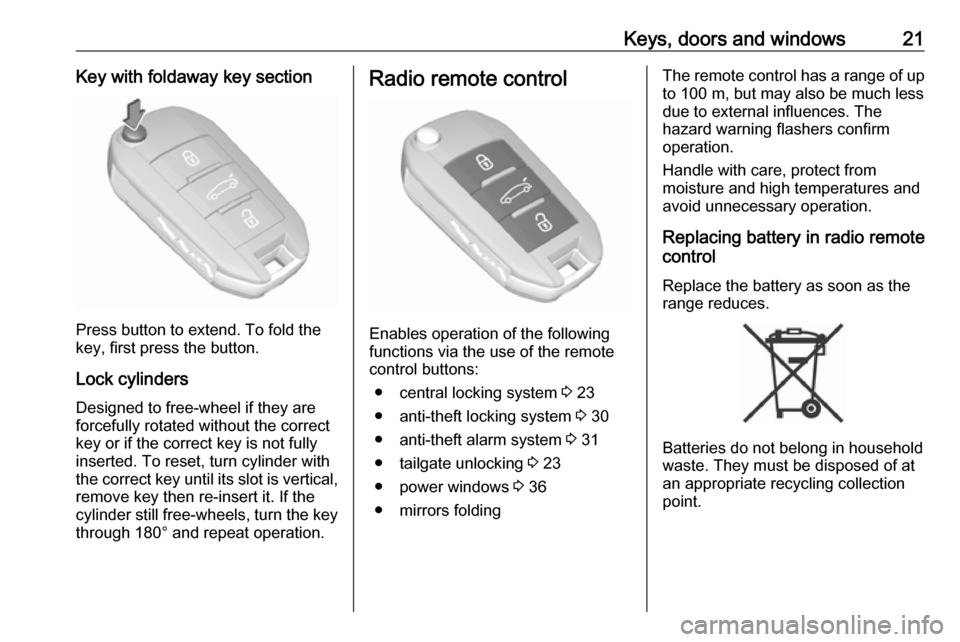

Keys, doors and windows21Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key then re-insert it. If the
cylinder still free-wheels, turn the key
through 180° and repeat operation.
Radio remote control
Enables operation of the following
functions via the use of the remote control buttons:
● central locking system 3 23
● anti-theft locking system 3 30
● anti-theft alarm system 3 31
● tailgate unlocking 3 23
● power windows 3 36
● mirrors folding
The remote control has a range of up
to 100 m, but may also be much less
due to external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Page 24 of 247
22Keys, doors and windows
1. To unclip the cover insert a smallscrewdriver between the back
cover and the remote control.
2. Remove the back cover.
3. Extract the flat battery from its location.
4. Replace battery with a battery of the same type. Pay attention to
the installation position.
5. Clip the cover in place.
Fault
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the radio remote control while not
in range.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual unlocking 3 23.Electronic key system
Enables a keyless operation of the
following functions:
● central locking system 3 23
● ignition switching on and starting the engine 3 123
The electronic key simply needs to be on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 21.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Page 25 of 247

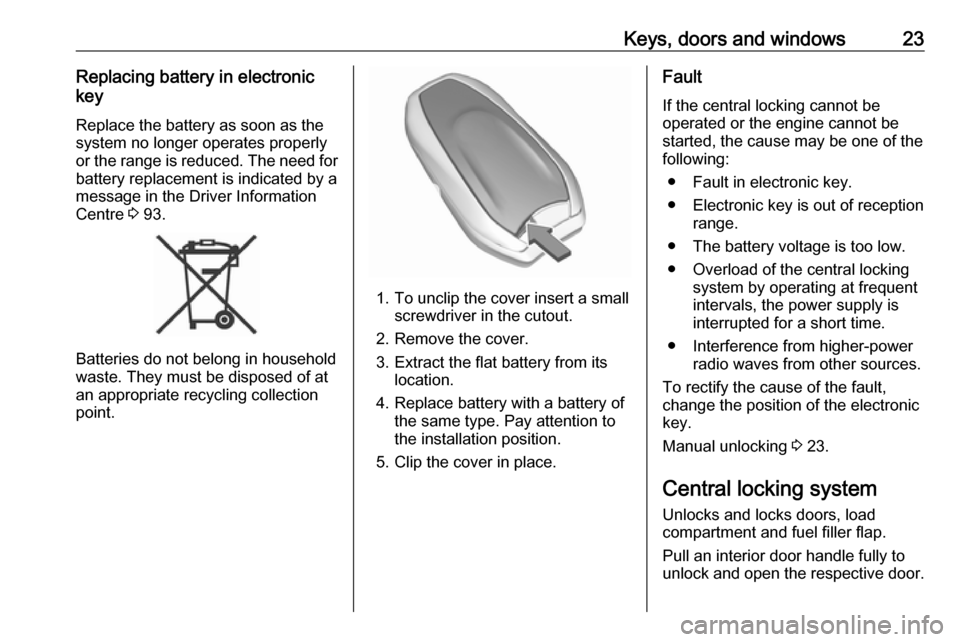

Keys, doors and windows23Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly or the range is reduced. The need for battery replacement is indicated by a
message in the Driver Information
Centre 3 93.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. To unclip the cover insert a small screwdriver in the cutout.
2. Remove the cover.
3. Extract the flat battery from its location.
4. Replace battery with a battery of the same type. Pay attention to
the installation position.
5. Clip the cover in place.
Fault
If the central locking cannot be operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low.
● Overload of the central locking system by operating at frequentintervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 23.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
Pull an interior door handle fully to
unlock and open the respective door.
Page 26 of 247
24Keys, doors and windowsNotice
In the event of an accident in which airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Automatic locking 3 28
Rigid key
Unlocking
Turn key in the driver's door lock
cylinder.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
turning the key once.
● Only the driver's door and fuel filler flap will be unlocked by
turning the key once. To unlock
entire vehicle, turn the key twice.
Vehicle personalisation 3 94.
Locking
Close doors, load compartment and
fuel filler flap.Turn key in the driver's door lock
cylinder.
If the vehicle is not closed properly,
the central locking system will not
work.

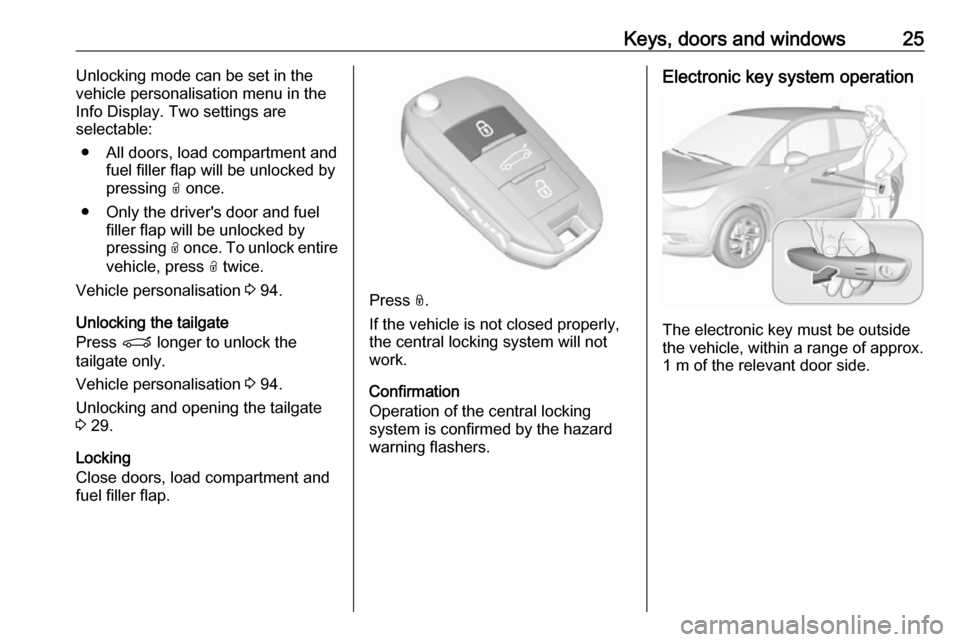

Remote control operation
Unlocking
Press O.
Page 27 of 247
Keys, doors and windows25Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
pressing O once.
● Only the driver's door and fuel filler flap will be unlocked by
pressing O once. To unlock entire
vehicle, press O twice.
Vehicle personalisation 3 94.
Unlocking the tailgate
Press P longer to unlock the
tailgate only.
Vehicle personalisation 3 94.
Unlocking and opening the tailgate
3 29.
Locking
Close doors, load compartment and
fuel filler flap.
Press N.
If the vehicle is not closed properly,
the central locking system will not
work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers.
Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx. 1 m of the relevant door side.
Page 28 of 247

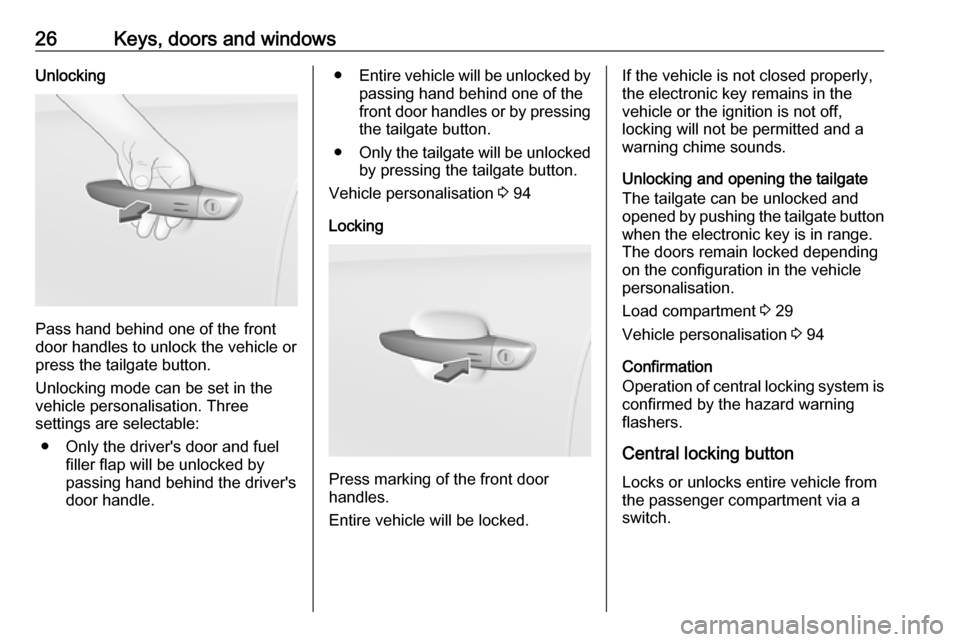

26Keys, doors and windowsUnlocking
Pass hand behind one of the front
door handles to unlock the vehicle or
press the tailgate button.
Unlocking mode can be set in the
vehicle personalisation. Three
settings are selectable:
● Only the driver's door and fuel filler flap will be unlocked by
passing hand behind the driver's
door handle.
● Entire vehicle will be unlocked by
passing hand behind one of the
front door handles or by pressing
the tailgate button.
● Only the tailgate will be unlocked
by pressing the tailgate button.
Vehicle personalisation 3 94
Locking
Press marking of the front door
handles.
Entire vehicle will be locked.
If the vehicle is not closed properly,
the electronic key remains in the
vehicle or the ignition is not off,
locking will not be permitted and a
warning chime sounds.
Unlocking and opening the tailgate
The tailgate can be unlocked and
opened by pushing the tailgate button
when the electronic key is in range.
The doors remain locked depending
on the configuration in the vehicle
personalisation.
Load compartment 3 29
Vehicle personalisation 3 94
Confirmation
Operation of central locking system is
confirmed by the hazard warning
flashers.

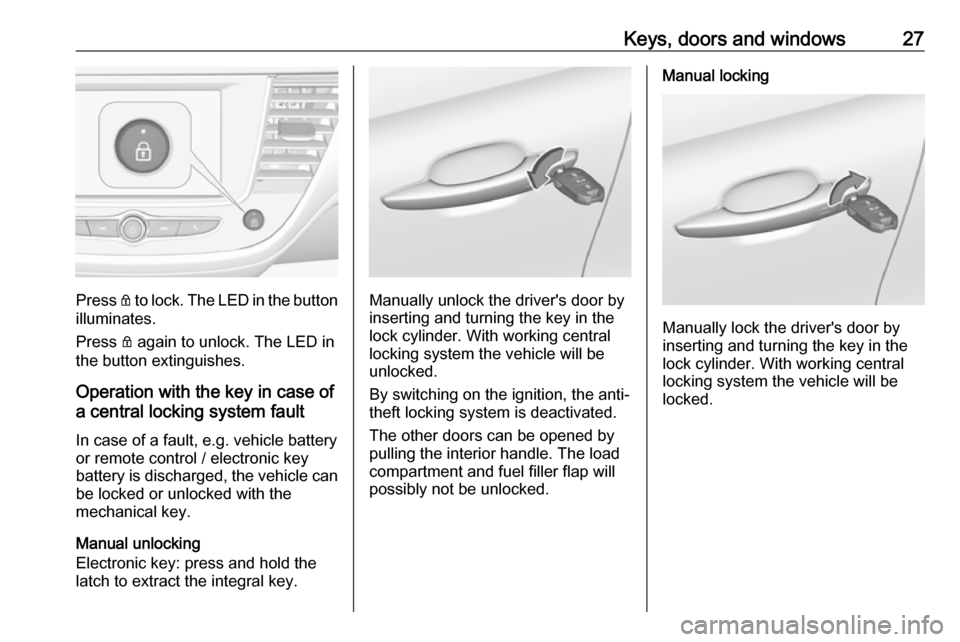

Central locking button Locks or unlocks entire vehicle from
the passenger compartment via a
switch.
Page 29 of 247
Keys, doors and windows27
Press Q to lock. The LED in the button
illuminates.
Press Q again to unlock. The LED in
the button extinguishes.
Operation with the key in case of
a central locking system fault
In case of a fault, e.g. vehicle battery
or remote control / electronic key
battery is discharged, the vehicle can be locked or unlocked with the
mechanical key.
Manual unlocking
Electronic key: press and hold the latch to extract the integral key.Manually unlock the driver's door by
inserting and turning the key in the
lock cylinder. With working central locking system the vehicle will be
unlocked.
By switching on the ignition, the anti- theft locking system is deactivated.
The other doors can be opened by
pulling the interior handle. The load
compartment and fuel filler flap will
possibly not be unlocked.
Manual locking
Manually lock the driver's door by
inserting and turning the key in the lock cylinder. With working centrallocking system the vehicle will be
locked.
Page 30 of 247
28Keys, doors and windows
To lock the other doors, first remove
the black cover by inserting a key and turning clockwise.
Insert key into the recess and move
latch sideways.
Remove key and attach the black cover.
The fuel filler flap and tailgate are
possibly not locked.
Automatic locking Automatic locking after driving off This system allows automatic locking
as soon as the speed of the vehicle
exceeds 6 mph.
If the vehicle is not closed properly,
the automatic locking does not take
place. This is signalled by the sound
of the locks rebounding,
accompanied by illumination of h in
the instrument panel, an audible signal and the display of an alert
message.
Activation or deactivation
With the ignition on, press Q until an
audible signal starts and a
corresponding message is displayed.
The state of the system stays in
memory when switching off the
ignition.
Automatic relock after unlocking
This feature automatically relocks the
vehicle a short time after unlocking
with the remote control or electronic
key, provided vehicle has not been
opened.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Mechanical child locks
