VAUXHALL CROSSLAND X 2019 User Guide

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 35.
Automatic anti-dazzle interior mirror 3 35.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 33.
Electric adjustment 3 33.
Folding mirrors 3 34.
Heated mirrors 3 34.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 42.
Ignition positions 3 131.

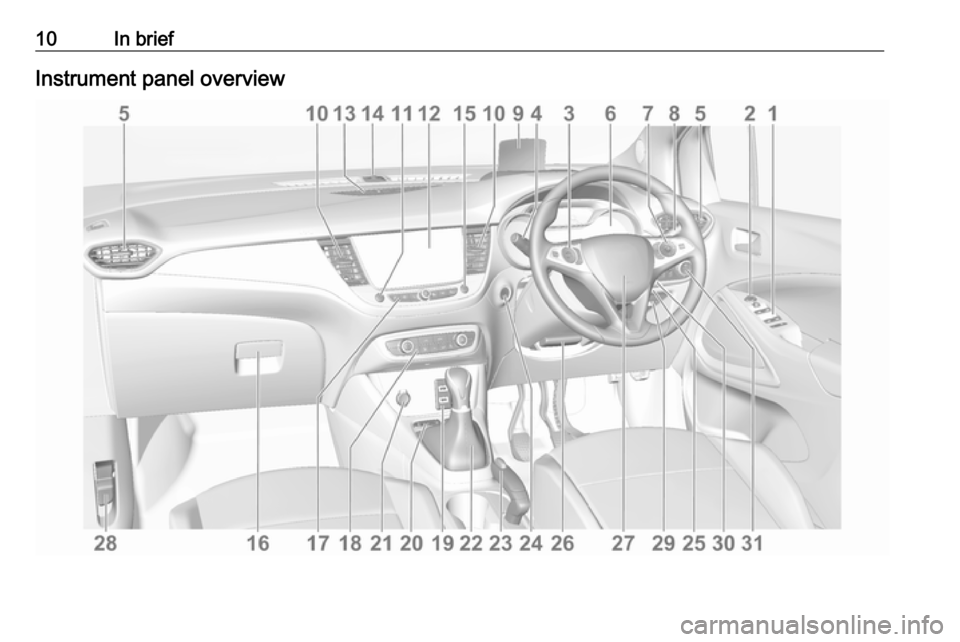

10In briefInstrument panel overview

In brief111Power windows .....................36
2 Exterior mirrors .....................33
3 Cruise control .....................150
Speed limiter ....................... 152
4 Turn lights ........................... 113
Headlight flash ....................110
High beam ........................... 110
High beam assist ...............111
Exit lighting ......................... 116
Parking lights ...................... 114
Buttons for Driver
Information Centre ................94
5 Side air vents ...................... 126
6 Instruments .......................... 83
Driver Information Centre ...... 94
7 Infotainment controls
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 73
9 Head-up display ....................98
10 Centre air vents .................. 126
11 Hazard warning flashers ....11212 Info Display .......................... 96
13 Centre air vent ......................96
14 Anti-theft alarm system
status LED ........................... 31
15 Central locking system ..........23
16 Glovebox .............................. 62
Fuse box ............................ 203
17 Controls for Info Display
operation ............................... 96
18 Climate control system ........ 119
19 USB charging port ................ 76
20 Parking assist / Advanced
parking assist .....................160
Lane departure warning .....174
Eco button for stop-start
system ................................. 136
Electronic Stability Control and Traction Control ..........148
21 Power outlet .......................... 76
22 Manual transmission ..........146
Automatic transmission ......143
23 Manual parking brake .........147
24 Power button ....................... 13225Ignition switch .....................131
26 Steering wheel adjustment ..72
27 Horn ..................................... 73
28 Bonnet release lever ..........188
29 Storage ................................. 62
Fuse box ............................ 203
30 Head-up display ....................98
31 Light switch ........................ 109
Headlight range
adjustment ......................... 111
Front / rear fog lights ..........113
Instrument illumination .......115

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 110.
Fog lights
Press button in light switch:

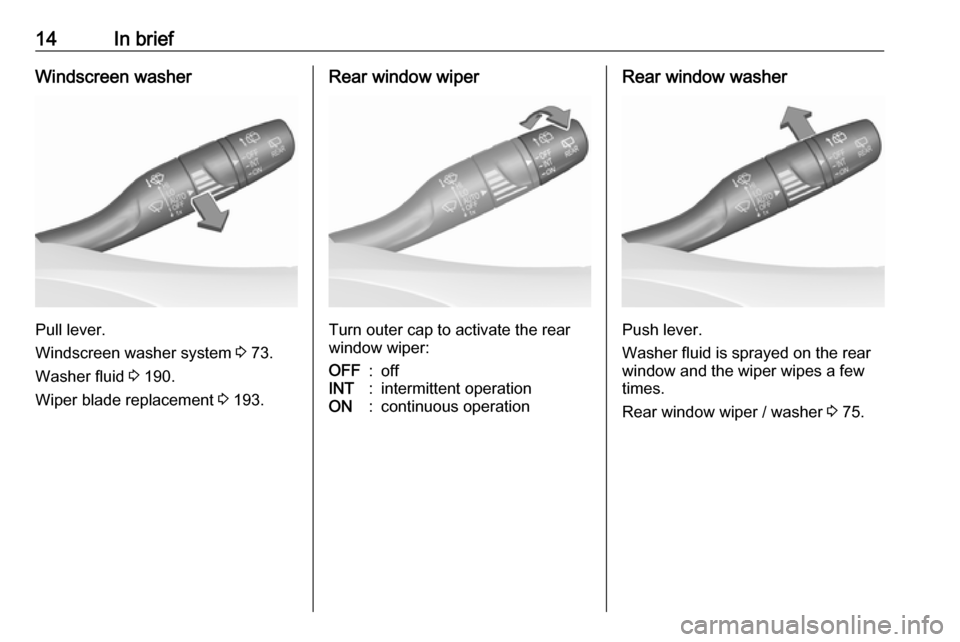

>:front fog lightsø:rear fog lightHeadlight flash and high beampull stalk:headlight flashpush stalk:high beam
High beam 3 110.
High beam assist 3 111.
Headlight flash 3 110.
Adaptive forward lighting 3 111.
Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 113.
Parking lights 3 114.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 112.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 73.

14In briefWindscreen washer
Pull lever.
Windscreen washer system 3 73.
Washer fluid 3 190.
Wiper blade replacement 3 193.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 75.

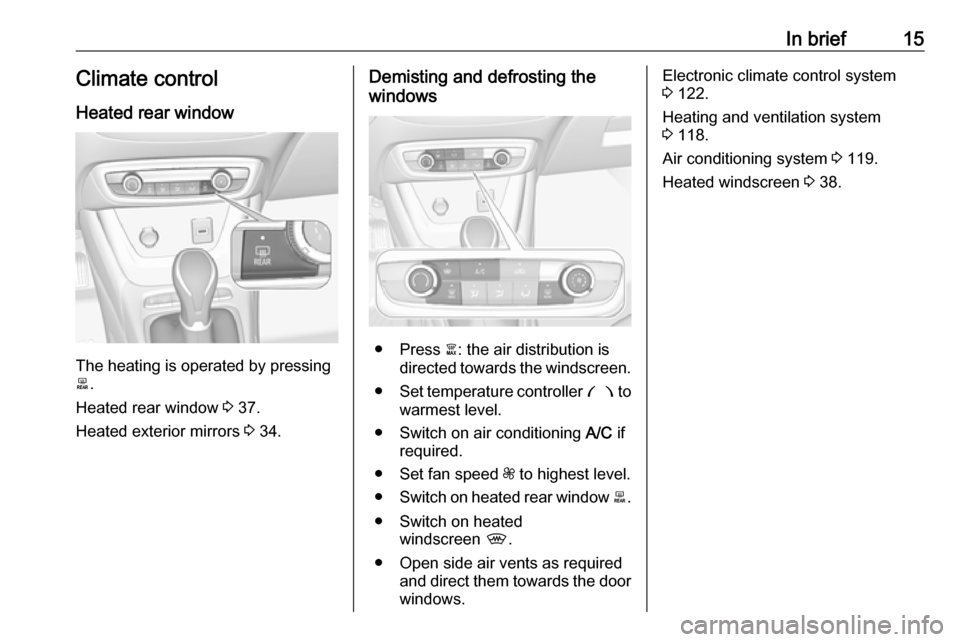

In brief15Climate control
Heated rear window
The heating is operated by pressing
b .
Heated rear window 3 37.
Heated exterior mirrors 3 34.
Demisting and defrosting the
windows
● Press à: the air distribution is
directed towards the windscreen.
● Set temperature controller £ to
warmest level.
● Switch on air conditioning A/C if
required.
● Set fan speed Z to highest level.
● Switch on heated rear window b.
● Switch on heated windscreen ,.
● Open side air vents as required and direct them towards the doorwindows.
Electronic climate control system3 122.
Heating and ventilation system
3 118.
Air conditioning system 3 119.
Heated windscreen 3 38.

16In briefTransmission
Manual transmission
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 146.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 143.
Starting off
Check before starting off ● tyre pressure 3 207 and
condition 3 243
● engine oil level and fluid levels 3 189
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 33,
seats 3 42 and seat belts
3 48
● brake function at low speed, particularly if the brakes are wet

In brief17Starting the engineIgnition switch
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engine: wait until control
indicator ! for preheating
extinguishes.
● Turn key to position 2 and
release after engine has been
started.
Starting the engine 3 134.Power button
● Manual transmission: operate
clutch and brake pedal.
● Automatic transmission: operate brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Press Start/Stop button.
● Release button after starting procedure begins.

18In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 136.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key or
switching off ignition on
vehicles with power button. On an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key or switching off ignition on
vehicles with power button.
Turn the front wheels towards
the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 31.
● The engine cooling fans may run
after the engine has been
switched off 3 188.
