technical data VAUXHALL CROSSLAND X 2019 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 41
Storage ........................................ 62
Instruments and controls .............71
Lighting ...................................... 109
Climate control ........................... 118
Driving and operating .................130
Vehicle care ............................... 186
Service and maintenance ..........226
Technical data ........................... 232
Customer information ................244
Index .......................................... 254Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Vauxhall Authorised Repairer. For
gas vehicles, we recommend a
Vauxhall Authorised Repairer
licensed to service gas vehicles.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

232Technical dataTechnical dataVehicle identification..................232
Vehicle Identification Number ..232
Identification plate ...................232
Engine identification ................233
Vehicle data ............................... 234
Recommended fluids and lubricants ................................ 234
Engine data ............................. 237
Performance ............................ 238
Vehicle weight ......................... 240
Vehicle dimensions .................241
Capacities ................................ 242
Tyre pressures ........................ 243Vehicle identification
Vehicle IdentificationNumber

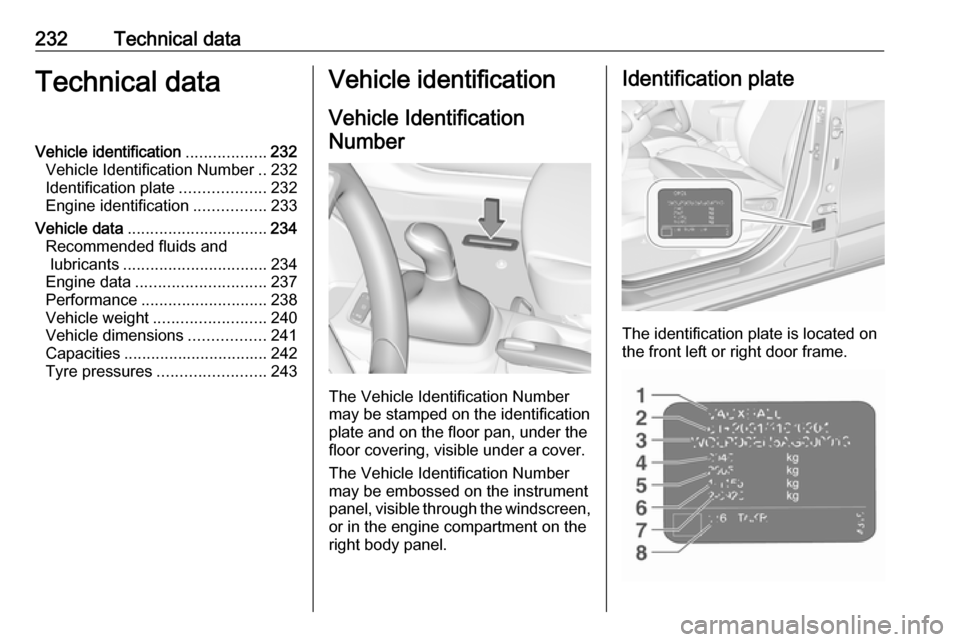

The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

Technical data233Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code.
Engine data 3 237.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

234Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll countries listed in country groups 1 to 3 3 227Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
Diesel engines only: In case dexos quality is unavailable, you may use max. 1 l engine oil quality ACEA C3 once between
each oil change.
Engine oil viscosity grades
All countries listed in country groups 1 to 3 3 227Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data235Service interval country group 4Required engine oil qualityCountries included in country group 4 3 227Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
Countries included in country group 4 3 227Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
Countries included in country group 4 3 227Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

236Technical dataCountries included in country group 4 3 227below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

Technical data237Engine dataEngine identifier codeD12xED12xHLD12xHTSales designation1.21.2 Turbo1.2 TurboEngineering codeEB2FAEB2ADTEB2ADTSPiston displacement [cm3
]119911991199Engine power [kW]618196at rpm575055005500Torque [Nm]118205230at rpm275017501750Fuel typePetrolPetrolPetrolOctane rating RON 2)3)recommended959595possible989898Additional fuel type–––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.
3) In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

238Technical dataEngine identifier codeD15DTD15DTHSales designation1.51.5Engineering codeDV5RDDV5RCPiston displacement [cm3
]14961496Engine power [kW]7588at rpm35004)Torque [Nm]2504)at rpm17504)Fuel typeDieselDieselAdditional fuel type––4) Not available at time of printing.PerformanceEngineD12xED12xHLD12xHTMaximum speed [mph]Manual transmission1064)4)Automatic transmission–4)–4)Not available at time of printing.

Technical data239EngineD15DTD15DTHMaximum speed [mph]Manual transmission4)4)Automatic transmission––4)Not available at time of printing.
