VAUXHALL GRANDLAND X 2018.5 Owner's Manual

Technical data249Vehicle weightKerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmission[kg]B12xHT13501370B16DTH13921430D15DTH1360 / 1375 (ECO)1380D20DTH–1500A16NHT–4)4) Not available at time of printing
Optional equipment and accessories increase the kerb weight.
Loading information 3 76.

250Technical dataVehicle dimensionsLength [mm]4478Width without exterior mirrors [mm]1841Width with two exterior mirrors folded [mm]1970Width with two exterior mirrors [mm]2098Height (without antenna) [mm]1623Length of load compartment floor [mm]876Length of load compartment with folded second row [mm]1869Load compartment width [mm]1053Load compartment height at tailgate [mm]997Wheelbase [mm]2675Turning circle diameter [m]10,5Capacities
Engine oilEngineB12xHTB16DTHD15DTHD20DTHA16NHTincluding filter [l]3.53.753.955.24.25between MIN and MAX [l]1.01.51.61.21.2

Technical data251Fuel tankPetrol / diesel, refilling quantity [l]53
AdBlue tank
AdBlue, refilling quantity [l]17

252Technical dataTyre pressuresVehicle with up to 3 peopleWith full loadEngineTyresfrontrearfrontrear[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])B12XHT215/70 R16,
215/65 R17210/2.1 (30)210/2.1 (30)230/2.3 (33)240/2.4 (35)225/55 R18220/2.2 (32)220/2.2 (32)240/2.4 (35)250/2.5 (36)205/55 R19240/2.4 (35)240/2.4 (35)260/2.6 (38)270/2.7 (39)235/50 R19220/2.2 (32)210/2.1 (30)230/2.3 (33)240/2.4 (35)A16NHT,
D15DTH,
B16DTH215/70 R16,
215/65 R17210/2.1 (30)210/2.1 (30)230/2.3 (33)240/2.4 (35)225/55 R18,
235/50 R19220/2.2 (32)220/2.2 (32)240/2.4 (35)250/2.5 (36)205/55 R19240/2.4 (35)240/2.4 (35)260/2.6 (38)270/2.7 (39)D20DTH215/65 R17220/2.2 (32)220/2.2 (32)240/2.4 (35)250/2.5 (36)225/55 R18,
235/50 R19230/2.3 (33)230/2.3 (33)250/2.5 (36)260/2.6 (38)205/55 R19250/2.5 (36)250/2.5 (36)280/2.8 (41)290/2.9 (42)AllTemporary spare wheel 135/80 R18420/4.2 (60)420/4.2 (60)420/4.2 (60)420/4.2 (60)

Customer information253Customer
informationCustomer information ................253
Declaration of conformity .........253
REACH .................................... 256
Collision damage repair ...........256
Software acknowledgement ....256
Software update ......................258
Registered trademarks ............259
Vehicle data recording and pri‐
vacy ........................................... 259
Event data recorders ...............259
Radio Frequency Identification (RFID) ..................................... 262Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and / or receive radio waves
subject to Directive 1999/5/EC or 2014/53/EU. The manufacturers ofthe systems listed below declare
conformity with Directive 1999/5/EC
or 2014/53/EU . The full text of the EU
declaration of conformity for each
system is available at the following
internet address: www.opel.com/
conformity
Importer is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Navi 5.0 IntelliLink
Continental
LCIE Bureau Veritas-Site de
Fontenay aux Roses, 33 avenue du
général Leclerc, 92260 Fontenay aux Roses, FranceOperation
frequency (MHz)Maximum output
(dBm)2400.0 - 2483.52.22400.0 - 2483.515
Infotainment system R 4.0 IntelliLink
LG Electronics
European Shared Service center B.V.
Krijgsman 1, 1186 DM Amstelveen,
The Netherlands
Operation frequency:
2400.0 - 2483.5 MHz
Maximum output: 4 dBm
Infotainment system R 4.0
Clarion
244 rue du Pré à Varois, 54670
Custines, France
Operation frequency:
2400 - 2480 MHz
Maximum output: 4 dBm
OnStar module
LG Electronics
European Shared Service center B.V.

254Customer informationKrijgsman 1, 1186 DM Amstelveen,
The NetherlandsOperation
frequency (MHz)Maximum output
(dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023
Antenna module
Laird
Daimlerring 31, 31135 Hildesheim,
Germany
Operation frequency: N/A
Maximum output: N/A
ASK Automotive Pvt. Ltd.
Unit 2 Plot No. 30-31, Fathepur-
Nawada, Manesar, Gurugram,
Haryana 122050, India
Operation frequency: N/A
Maximum output: N/A
Radio remote control transmitter
Hülsbeck & Fürst GmbH & Co. KG
Steeger Str. 17, 42551 Velbert,
Germany
Operation frequency: 433.92 MHz
Maximum output: 10 dBm
Radio remote control receiver
Delphi European, Middle Eastern &
African Regional Offices Customer
Technology
Center Avenue de Luxembourg,
L-4940 Bascharage, G.D. of
Luxembourg
Operation frequency: 119 - 128.6 Maximum output: 16dBµA/m @ 10m
Electronic key transmitter
Valeo
43 Rue Bayen, 75017 Paris, France
Operation frequency: 433.92 MHz
Maximum output: 10 dBm
Immobiliser
KOSTAL of America, Inc.350 Stephenson Hwy, Troy MI 48083,
USA
Operation frequency: 125 kHz
Maximum output: 5 dBμA/m at 10m
Radar unit
ZF TRW Autocruise SAS
Secteur de la Pointe du Diable,
Avenue du technopôle, 29280
Plouzane, France
Operation frequency:
24.15 - 24.25 GHz
Maximum output: 20 dBm

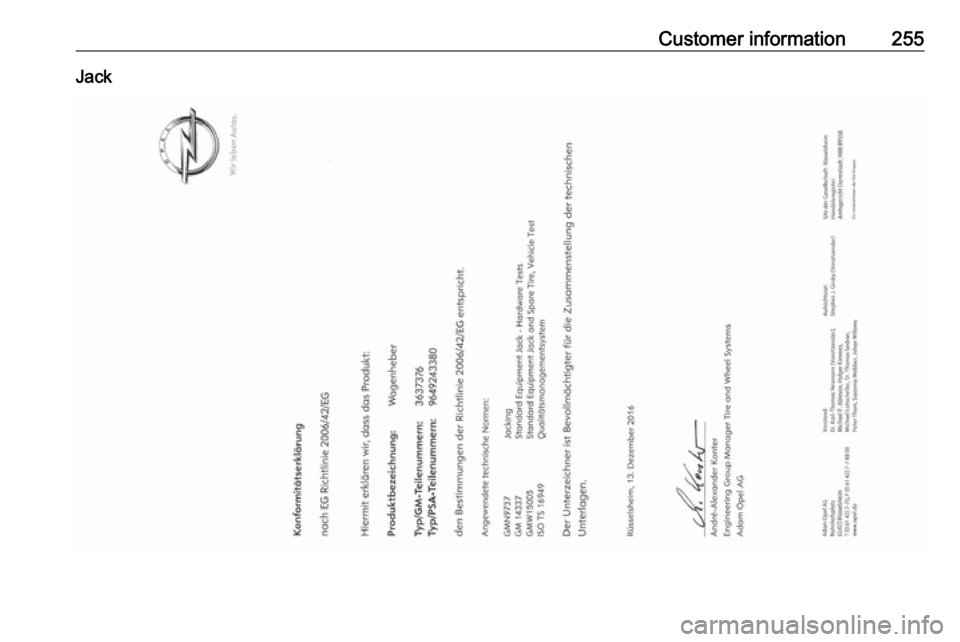

Customer information255Jack

256Customer informationTranslation of the original declarationof conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 3637376
Type/PSA part number: 9649243380
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:GMN9737:jackingGM 14337:standard equipment
jack – hardware
testsGMW15005:standard equipment
jack and spare tyre,
vehicle testISO TS 16949:quality
management
systemsThe signatory is authorised to
compile the technical documentation.
Rüsselsheim, 13th December 2016
signed by
André-Alexander Konter
Engineering Group Manager Tyre
and Wheel Systems
Adam Opel AG
D-65423 Rüsselsheim
REACH Registration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com for further information
and for access to the Article 33
communication.Collision damage repair
Paint thickness
Due to production techniques, the
thickness of the paint can vary
between 50 and 400 µm.
Therefore, different paint thickness is
no indicator for a collision damage
repair.
Software acknowledgement
Certain OnStar components include
libcurl and unzip software and other
third party software. Below are the notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
www.lg.com/global/support/
opensource/index.
libcurl Copyright and permission noticeCopyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.

Customer information257Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or
copyright holders be liable for any
claim, damages or other liability,
whether in an action of contract, tort
or otherwise, arising from, out of or in connection with the software or the
use or other dealings in the software.
Except as contained in this notice, the name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.unzip
This is version 2005-Feb-10 of the
Info-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html
indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian
Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.This software is provided “as is,”
without warranty of any kind, express or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out
of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in
documentation and/or other
materials provided with the
distribution. The sole exception to this condition is redistribution of a
standard UnZipSFX binary
(including SFXWiz) as part of a
self-extracting archive; that is

258Customer informationpermitted without inclusion of this
license, as long as the normal
SFX banner has not been
removed from the binary or
disabled.
3. Altered versions--including, but not limited to, ports to new
operating systems, existing ports
with new graphical interfaces, and dynamic, shared, or static library
versions--must be plainly marked
as such and must not be
misrepresented as being the
original source. Such altered
versions also must not be
misrepresented as being Info-ZIP
releases--including, but not
limited to, labeling of the altered
versions with the names “Info-
ZIP” (or any variation thereof,
including, but not limited to,
different capitalizations), “Pocket
UnZip,” “WiZ” or “MacZip” without
the explicit permission of Info-ZIP.
Such altered versions are further
prohibited from misrepresentativeuse of the Zip-Bugs or Info-ZIP e- mail addresses or of the Info-ZIP
URL(s).
4. Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,”
“UnZip,” “UnZipSFX,” “WiZ,”
“Pocket UnZip,” “Pocket Zip,” and
“MacZip” for its own source and
binary releases.
Software update
The Infotainment system can
download and install selected
software updates over a wireless
connection.
Notice
The availability of these over-the-air
vehicle software updates varies by
vehicle and country. Find more
information on our home page.
Internet connection
Downloading over-the-air vehicle
software updates requires internet
connectivity, which can be accessed
through the vehicle's built-in OnStarconnection or another password-
protected Wi-Fi hotspot, e.g. provided by a mobile phone.
To connect the Infotainment system
to a hotspot, select Settings on the
home screen, Wi-Fi and then Manage
Wi-Fi Networks . Select the desired
Wi-Fi network, and follow the on-
screen prompts.
Updates
The system will prompt for certain
updates to be downloaded and
installed. There is also an option to
check for updates manually.
To manually check for updates, select Settings on the home screen,
Software Information and then
System Update . Follow the on-screen
prompts.
Notice
Steps for downloading and installing updates may vary by vehicle.
Notice
During the installation process, the
vehicle may not be operational.
