stop start VAUXHALL GRANDLAND X 2018.5 Service Manual

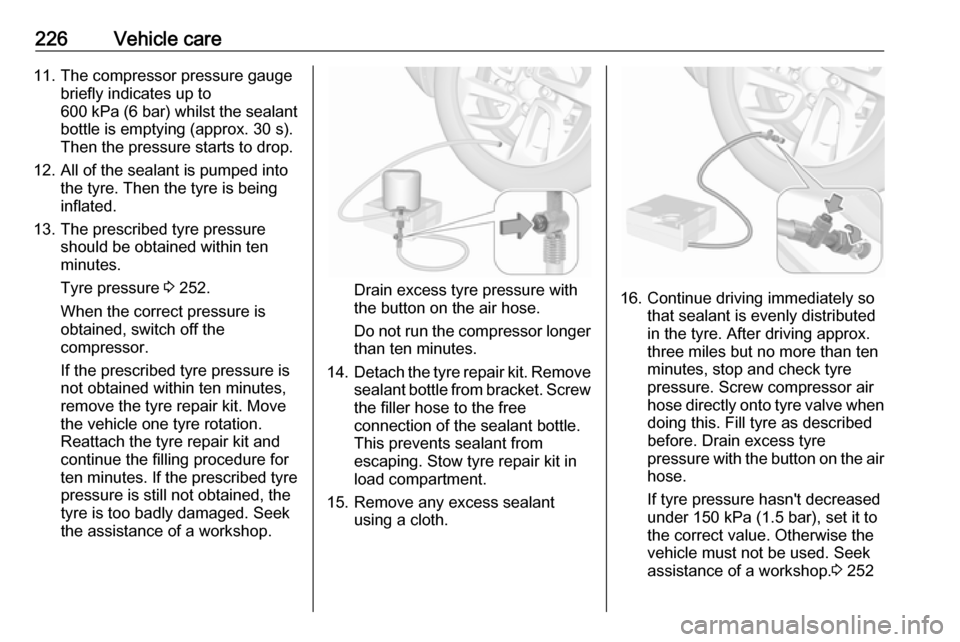

226Vehicle care11. The compressor pressure gaugebriefly indicates up to600 kPa (6 bar) whilst the sealant
bottle is emptying (approx. 30 s).
Then the pressure starts to drop.
12. All of the sealant is pumped into the tyre. Then the tyre is being
inflated.
13. The prescribed tyre pressure should be obtained within ten
minutes.
Tyre pressure 3 252.
When the correct pressure is
obtained, switch off the
compressor.
If the prescribed tyre pressure is
not obtained within ten minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for ten minutes. If the prescribed tyre pressure is still not obtained, the
tyre is too badly damaged. Seek
the assistance of a workshop.
Drain excess tyre pressure with
the button on the air hose.
Do not run the compressor longer
than ten minutes.
14. Detach the tyre repair kit. Remove
sealant bottle from bracket. Screw
the filler hose to the free
connection of the sealant bottle.
This prevents sealant from
escaping. Stow tyre repair kit in
load compartment.
15. Remove any excess sealant using a cloth.16. Continue driving immediately so that sealant is evenly distributed
in the tyre. After driving approx.
three miles but no more than ten
minutes, stop and check tyre
pressure. Screw compressor air
hose directly onto tyre valve when doing this. Fill tyre as described
before. Drain excess tyre
pressure with the button on the air
hose.
If tyre pressure hasn't decreased under 150 kPa (1.5 bar), set it to
the correct value. Otherwise the
vehicle must not be used. Seek
assistance of a workshop. 3 252

Vehicle care2333. Connect the black lead to thenegative terminal of the booster
battery.
4. Connect the other end of the black
lead to a vehicle grounding point
of your vehicle in the engine
compartment.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine: 1. Start the engine of the vehicle providing the jump.
2. After five minutes, start the other engine. Start attempts should be
made for no longer than
15 seconds at an interval of one
minute.
3. Allow both engines to idle for approx. three minutes with the
leads connected.
4. Switch on electrical consumers e.g. headlights, heated rear
window of the vehicle receiving
the jump start.
5. Reverse above sequence exactly when removing leads.Towing

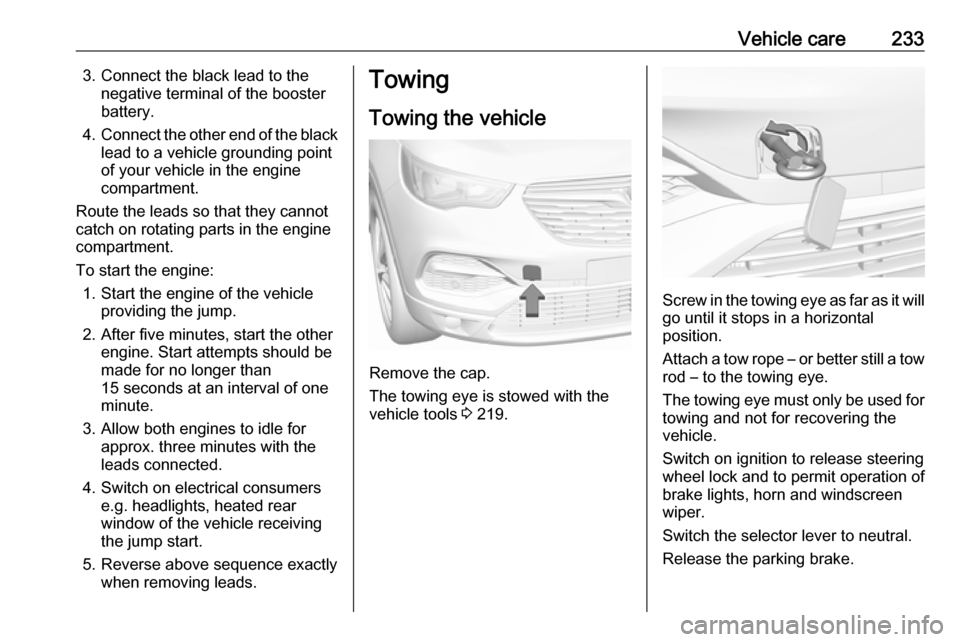

Towing the vehicle
Remove the cap.
The towing eye is stowed with the
vehicle tools 3 219.
Screw in the towing eye as far as it will
go until it stops in a horizontal
position.
Attach a tow rope – or better still a tow
rod – to the towing eye.
The towing eye must only be used for towing and not for recovering the
vehicle.
Switch on ignition to release steering
wheel lock and to permit operation of
brake lights, horn and windscreen
wiper.
Switch the selector lever to neutral.
Release the parking brake.

238Service and maintenanceService and
maintenanceGeneral information ...................238
Service information ..................238
Recommended fluids, lubricants
and parts .................................... 240
Recommended fluids and lubricants ................................ 240General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Severe operating conditions exist if one or more of the following
circumstances occur frequently: Cold
starting, stop and go operation, e.g.
for taxis and police vehicles, trailer
operation, mountain driving, driving
on poor and sandy road surfaces,
increased air pollution, presence of
airborne sand and high dust content,
driving at high altitude and large
variations of temperature.
Under these severe operating
conditions, certain service work may
be required more frequently than the
regular service interval indicated inthe service display. Contact a
workshop for customised service
schedules.
Service display 3 92.
Service intervals - country group 1 Maintenance of your vehicle is
required every 16,000 miles or after
one year, whichever occurs first, unless otherwise indicated in theservice display.
These service intervals are valid for
the following countries:
Andorra, Austria, Belgium, Cyprus,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Liechtenstein, Luxembourg, Malta,
Monaco, Netherlands, Norway,
Portugal, San Marino, Spain,
Sweden, Switzerland, United
Kingdom.
Service intervals - country group 2 Maintenance of your vehicle
equipped with engine DV6FC is
required every 16,000 miles or after
one year, whichever occurs first, unless otherwise indicated in the

267Power button.............................. 135
Power outlets ............................... 84
Power saving mode ....................136
Power seat adjustment ................48
Power windows ............................ 39
Preheating ................................... 97
Puncture ..................................... 228
Q Quickheat ................................... 131
R Radio Frequency Identification (RFID) ..................................... 262
Radio remote control ...................21
Rain sensor .................................. 99
REACH ....................................... 256
Reading lights ............................ 121
Rear floor storage cover ..............72
Rear fog light ....................... 99, 119
Rear seats .................................... 51
Rear view camera ...................... 183
Rear window wiper and washer ..82
Recommended fluids and lubricants ........................ 240, 244
Refuelling ................................... 194 Registered trademarks ...............259
Reversing lights .........................120
Ride control systems ..................154
Roller blinds ................................. 42
Roof .............................................. 42Roof load...................................... 76
Roof rack ..................................... 75
S Safety net .................................... 73
Seat adjustment ............................. 7
Seat belt ........................................ 8
Seat belt reminder .......................93
Seat belts ..................................... 52
Seat heating ................................. 50
Seat heating, rear .....................51
Seat position ................................ 45
Selective catalytic reduction .......143
Selective ride control ..................155
Selector lever ............................. 147
Service ............................... 132, 238
Service display ............................ 92
Service information ....................238
Side airbag system ......................58
Side blind spot alert ..............99, 182
Sidelights .................................... 113
Side turn lights ........................... 214
Software acknowledgement .......256
Software update ......................... 258
Spare wheel ............................... 228
Speed limiter....................... 100, 160
Speedometer ............................... 89
Sport mode ................................ 156
Starting and operating ................134
Starting off ................................... 17Starting the engine ....................137
Steering ...................................... 134
Steering wheel adjustment ......9, 79
Steering wheel controls ...............79
Stop engine .................................. 95
Stop-start system........................ 139
Storage ......................................... 68
Storage compartments .................68
Sunvisor lights ........................... 121
Sun visors .................................... 42
Symbols ......................................... 4
System check ............................... 95
T
Tachometer ................................. 90
Tailgate ......................................... 29
Tail lights ................................... 211
Three-point seat belt .................... 53
Tools .......................................... 219
Tow bar....................................... 196
Towing ................................ 196, 233
Towing another vehicle .............234
Towing equipment .....................197
Towing the vehicle .....................233
Trailer coupling ........................... 196
Trailer stability assist .................200
Trailer towing ............................. 197
Transmission ............................... 17
Transmission display .................147
Tread depth ............................... 222
