bulb replacement VAUXHALL GRANDLAND X 2018 Owner's Manual

Instruments and controls93Turn signal
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes
A turn signal or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn
signal light on trailer.
Bulb replacement 3 210.
Turn signals 3 118.
Seat belt reminder
Seat belt reminder on all seats X illuminates or flashes red in the
instrument cluster together with the
indication in the roof console for each
seat belt.
● When the ignition is switched on,
X in the instrument cluster and
the symbol for the respective
seat in the roof console comes
on, if the seat belt of any
occupied seat has not been
fastened.
● After running up, X in the
instrument cluster and the
symbol for the respective seat in
the roof console flashes for a
certain time together with a
chime. After a certain time of
driving X illuminates constantly
until the seat belt of the
respective seat has been
fastened or if any passenger has
unfastened the seat belt.
Airbag and belt tensioners
v illuminates red.
When the ignition is switched on, the
control indicator illuminates for
approx. four seconds. If it does not
illuminate, does not extinguish after
four seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 52, 3 55.

202Vehicle careVehicle careGeneral Information...................202
Accessories and vehicle modifications .......................... 202
Vehicle storage ........................203
End-of-life vehicle recovery .....204
Vehicle checks ........................... 204
Performing work ......................204
Bonnet ..................................... 204
Engine oil ................................. 205
Engine coolant ......................... 206
Washer fluid ............................ 207
Brakes ..................................... 207
Brake fluid ............................... 207
Vehicle battery ......................... 207
Diesel fuel system bleeding .....209
Wiper blade replacement ........209
Bulb replacement .......................210
Halogen headlights ..................210
LED headlights ........................ 211
Fog lights ................................. 211
Tail lights ................................. 212
Side turn signal lights ..............215
Number plate light ...................215
Interior lights ............................ 215
Instrument panel illumination ...215Vehicle tools .............................. 216
Tools ........................................ 216
Wheels and tyres .......................217
Winter tyres ............................. 217
Tyre designations ....................217
Tyre pressure .......................... 217
Tyre deflation detection system .................................... 218
Tread depth ............................. 219
Changing tyre and wheel size . 220
Wheel covers ........................... 220
Tyre chains .............................. 221
Tyre repair kit .......................... 221
Wheel changing .......................224
Spare wheel ............................ 227
Jump starting ............................. 228
Towing ....................................... 229
Towing the vehicle ...................229
Towing another vehicle ...........230
Appearance care .......................231
Exterior care ............................ 231
Interior care ............................. 233General Information
Accessories and vehicle modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products - even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other
changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may affect driver
assistance systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the operating permit,
impacting the validity of your vehicle
registration.

210Vehicle careBulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base. Do not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check After a bulb replacement switch on
the ignition, operate and check the
lights.

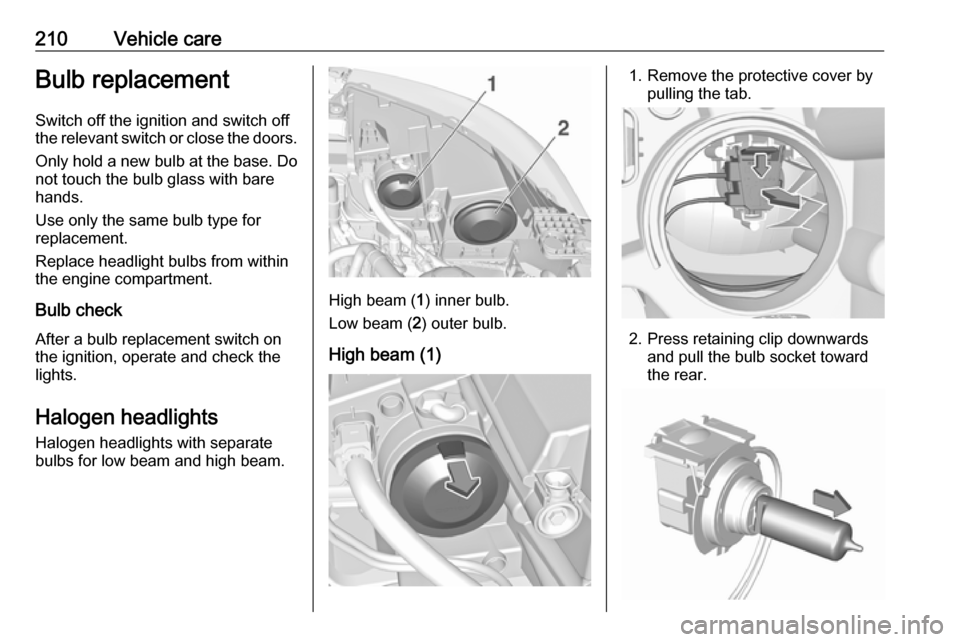

Halogen headlights
Halogen headlights with separate
bulbs for low beam and high beam.
High beam ( 1) inner bulb.
Low beam ( 2) outer bulb.
High beam (1)
1. Remove the protective cover by pulling the tab.
2. Press retaining clip downwardsand pull the bulb socket toward
the rear.

256IndexAAccessories and vehicle modifications .......................... 202
Active emergency braking ..........170
Active head restraints ...................45
Adaptive cruise control .........99, 162
AdBlue .................................. 97, 143
Adjustable air vents ...................131
Advanced parking assist ............177
Airbag and belt tensioners ...........93
Airbag deactivation ................60, 94
Airbag label................................... 55 Airbag system .............................. 55
Air conditioning regular operation ................................ 132
Air conditioning system .............. 124
Air intake .................................... 132
Air vents...................................... 131
Antilock brake system ................ 150
Antilock brake system (ABS) .......95
Anti-theft alarm system ................35
Anti-theft locking system .............. 35
Appearance care ........................231
Armrest ................................... 50, 51
Ashtrays ....................................... 86
Automatic anti-dazzle ..................39
Automatic light control ...............112
Automatic locking ........................28
Automatic transmission .............146Autostop............................... 98, 139
Auxiliary heater ........................... 131
B Battery discharge protection ......122
Battery voltage ........................... 104
BlueInjection ............................... 143
Bonnet ....................................... 204
Brake and clutch fluid .................235
Brake and clutch system .............95
Brake assist ............................... 153
Brake fluid .................................. 207
Brakes ............................... 150, 207
Breakdown.................................. 229
Bulb replacement ....................... 210
C
Capacities .................................. 245
Catalytic converter .....................143
Central locking system ................24
Centre console lighting ..............121
Centre console storage ...............69
Changing tyre and wheel size ...220
Charging system .......................... 94
Child locks ................................... 29
Child restraint installation locations ................................... 64
Child restraints.............................. 61
Child restraint systems ................61
Cigarette lighter ........................... 86
Climate control ............................. 15
