VAUXHALL GRANDLAND X 2019.75 User Guide

In brief9Mirror adjustment

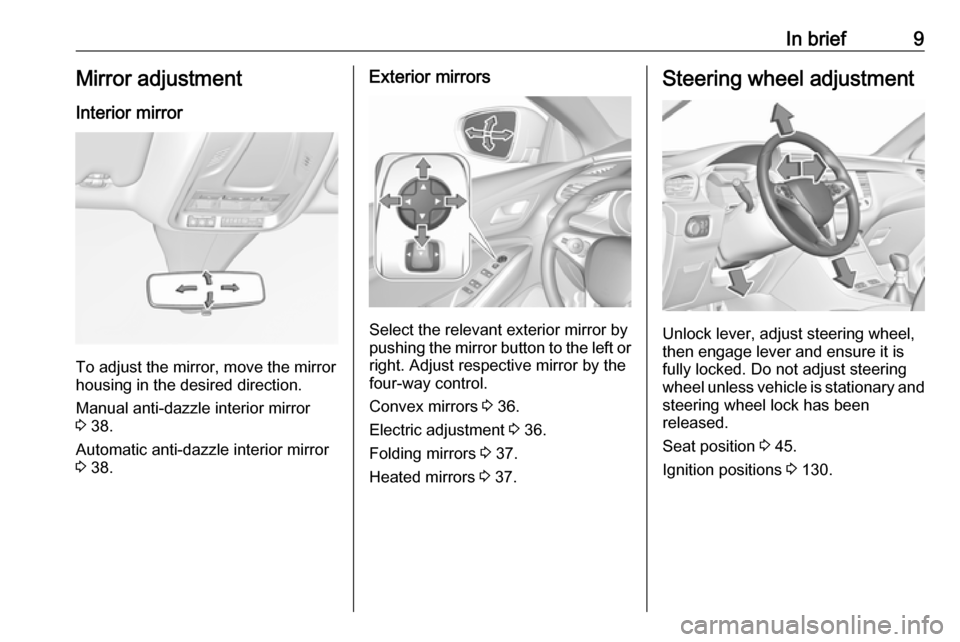

Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 38.
Automatic anti-dazzle interior mirror 3 38.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 36.
Electric adjustment 3 36.
Folding mirrors 3 37.
Heated mirrors 3 37.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 45.
Ignition positions 3 130.

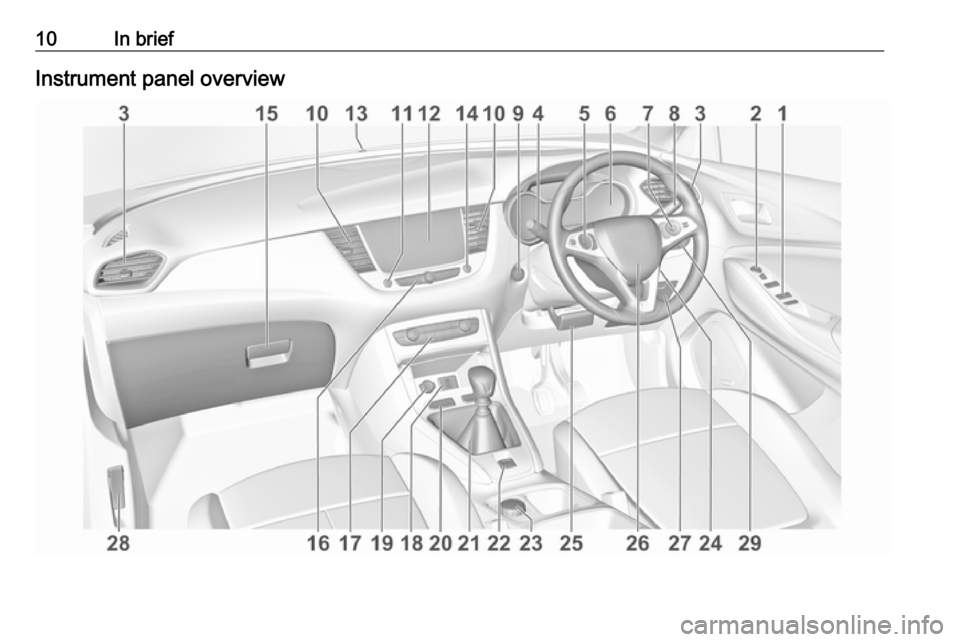

10In briefInstrument panel overview

In brief111Power windows .....................39
2 Exterior mirrors .....................36
3 Side air vents ...................... 126
4 Turn lights, headlight
flash, low/high beam, high
beam assist ......................... 113
Exit lighting ......................... 117
Parking lights ...................... 114
Buttons for Driver
Information Centre ................98
5 Cruise control .....................152
Speed limiter ....................... 155
Heated steering wheel ..........79
6 Instruments .......................... 88
Driver Information Centre ...... 98
7 Infotainment controls
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 80
9 Power button ....................... 131
10 Air vents ............................. 126
11 Hazard warning flashers ....113
12 Info Display ........................ 10013Anti-theft alarm system
status LED ........................... 34
14 Central locking system ..........23
15 Glovebox .............................. 68
16 Controls for Info Display
operation ............................. 100
17 Climate control system ........ 119
18 USB charging port ................ 84
19 Power outlet .......................... 84
20 Parking assist/Advanced
parking assist .....................169
Lane departure warning .....183
Eco button for stop-start
system ................................. 134
Electronic Stability Control and Traction Control ...........149
Sport mode ......................... 151
21 Manual transmission ..........145
Automatic transmission ......142
22 Electric parking brake .........146
23 Selective ride control ..........150
24 Ignition switch .....................130
25 Steering wheel adjustment ..7926 Horn ..................................... 80
27 Storage ................................. 68
28 Bonnet release lever ..........199
29 Light switch ........................ 108
Headlight range
adjustment ......................... 109
Front/rear fog lights ............114
Instrument illumination .......115

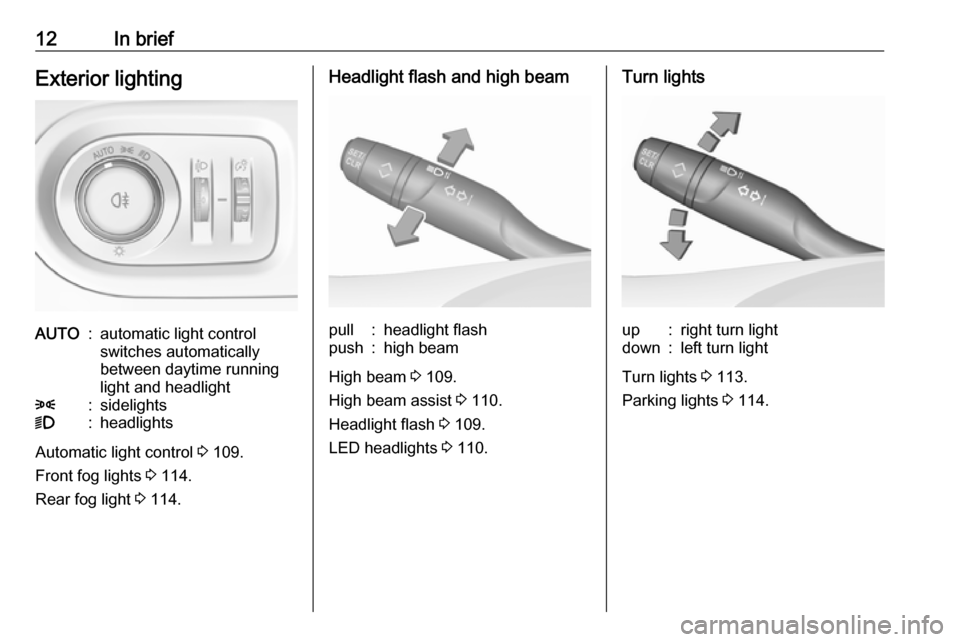

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 109.
Front fog lights 3 114.
Rear fog light 3 114.
Headlight flash and high beampull:headlight flashpush:high beam
High beam 3 109.
High beam assist 3 110.
Headlight flash 3 109.
LED headlights 3 110.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 113.
Parking lights 3 114.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 113.
Horn
Press j.

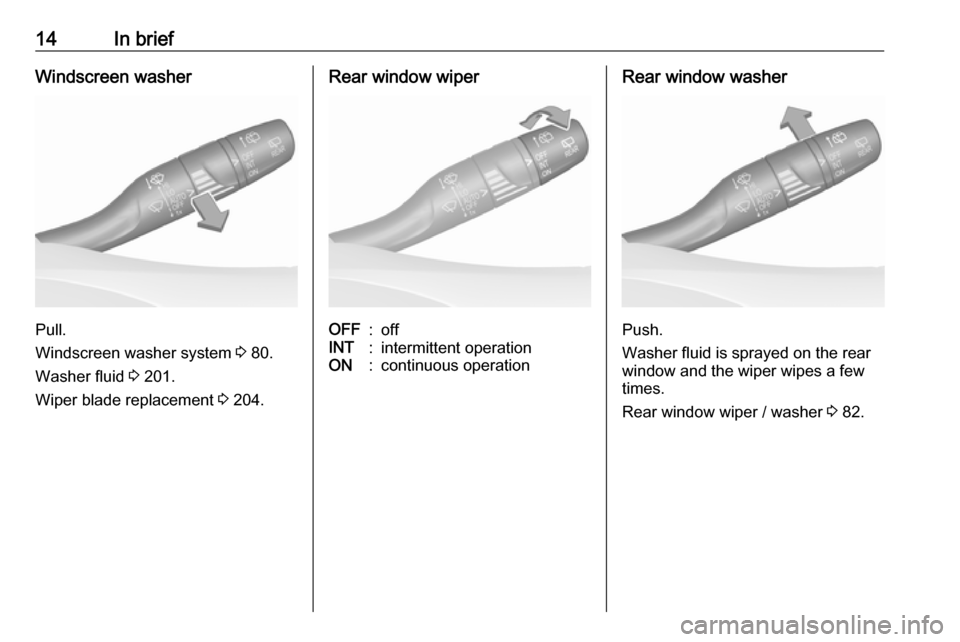

Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press down to position 1x.
Windscreen wiper 3 80.

14In briefWindscreen washer
Pull.
Windscreen washer system 3 80.
Washer fluid 3 201.
Wiper blade replacement 3 204.
Rear window wiperOFF:offINT:intermittent operationON:continuous operationRear window washer
Push.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 82.

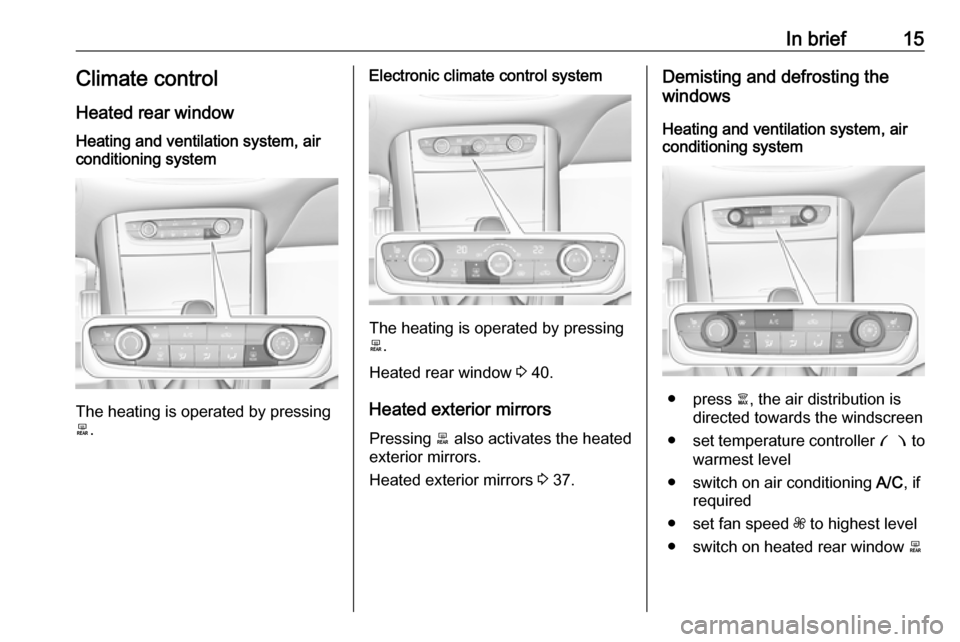

In brief15Climate control
Heated rear windowHeating and ventilation system, air
conditioning system
The heating is operated by pressing
b .
Electronic climate control system
The heating is operated by pressing
b .
Heated rear window 3 40.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 37.
Demisting and defrosting the
windows
Heating and ventilation system, air conditioning system
● press à, the air distribution is
directed towards the windscreen
● set temperature controller £ to
warmest level
● switch on air conditioning A/C, if
required
● set fan speed Z to highest level
● switch on heated rear window b

16In brief●switch on heated windscreen ,
● open side air vents as required and direct them towards the doorwindows
Heating and ventilation system
3 118.
Air conditioning system 3 119.

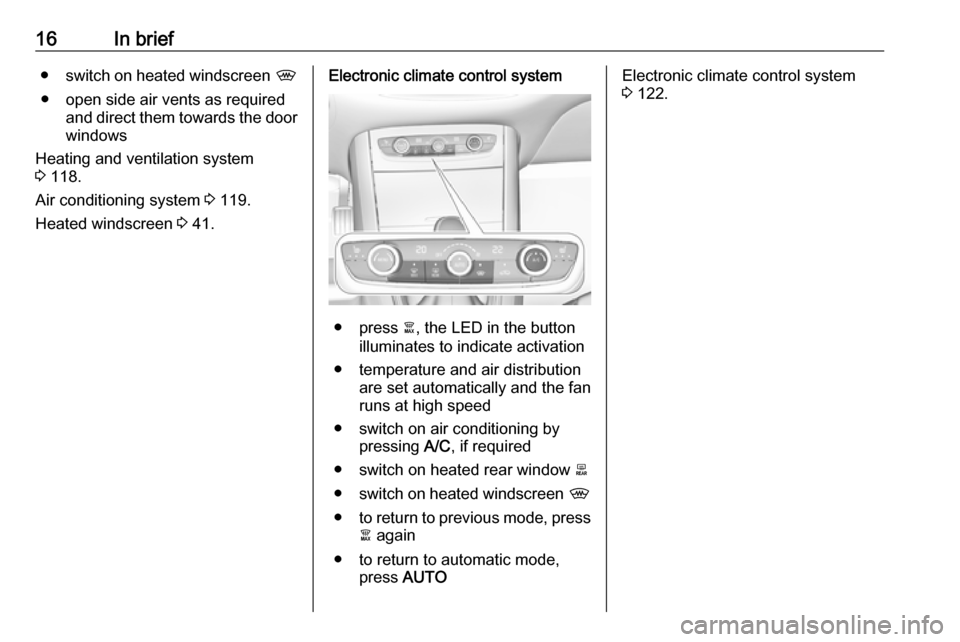

Heated windscreen 3 41.Electronic climate control system
● press à, the LED in the button
illuminates to indicate activation
● temperature and air distribution are set automatically and the fan
runs at high speed
● switch on air conditioning by pressing A/C, if required
● switch on heated rear window b
● switch on heated windscreen ,
● to return to previous mode, press
à again
● to return to automatic mode, press AUTO
Electronic climate control system
3 122.

In brief17Transmission

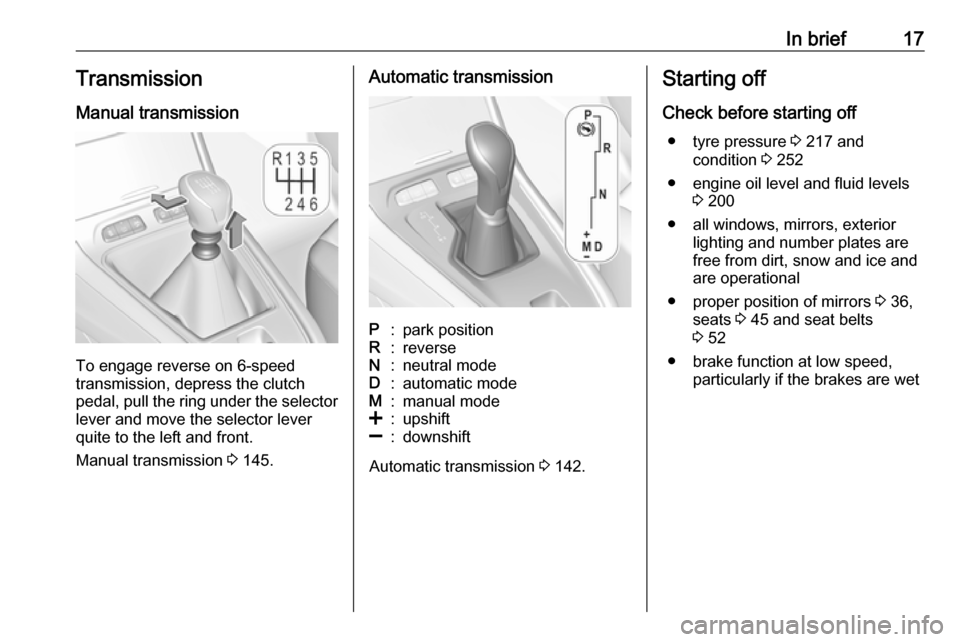

Manual transmission
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever
quite to the left and front.
Manual transmission 3 145.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 142.
Starting off
Check before starting off ● tyre pressure 3 217 and
condition 3 252
● engine oil level and fluid levels 3 200
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 36,
seats 3 45 and seat belts
3 52
● brake function at low speed, particularly if the brakes are wet

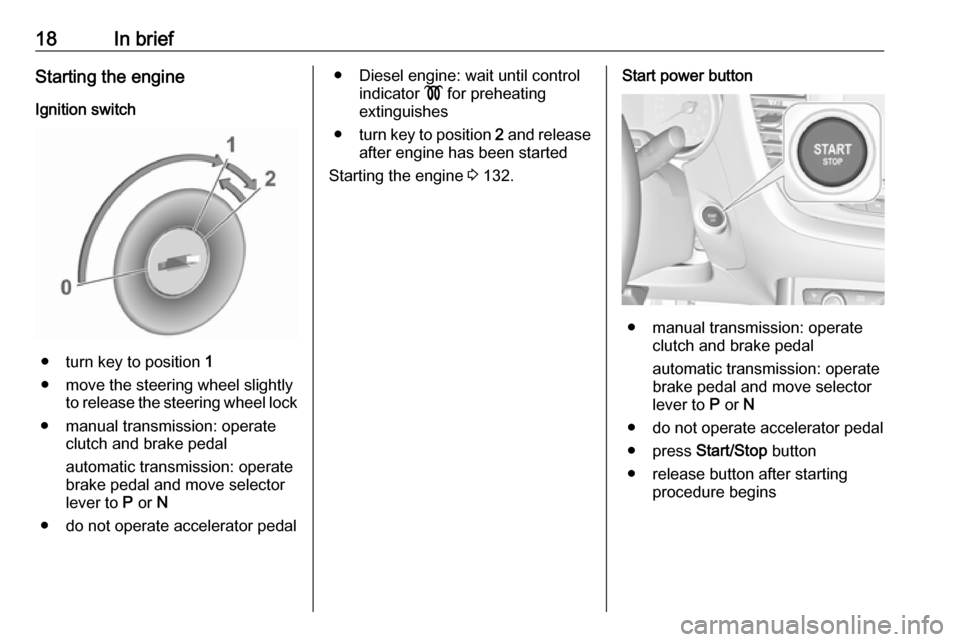

18In briefStarting the engineIgnition switch
● turn key to position 1
● move the steering wheel slightly to release the steering wheel lock
● manual transmission: operate clutch and brake pedal
automatic transmission: operate
brake pedal and move selector lever to P or N
● do not operate accelerator pedal
● Diesel engine: wait until control indicator ! for preheating
extinguishes
● turn key to position 2 and release
after engine has been started
Starting the engine 3 132.Start power button
● manual transmission: operate
clutch and brake pedal
automatic transmission: operate
brake pedal and move selector lever to P or N
● do not operate accelerator pedal
● press Start/Stop button
● release button after starting procedure begins
