VAUXHALL GRANDLAND X 2019.75 Owner's Manual

Service and maintenance239
Engine code
DV5RC
DV5RD
DW10FCDV6D
Country group 119,000 miles / 1 year 1)19,000 miles / 1 year 1)Country group 219,000 miles / 1 year 1)19,000 miles / 1 year 1)Country group 39,000 miles / 1 year12,000 miles / 1 yearCountry group 49,000 miles / 1 year12,000 miles / 1 year9,000 miles / 1 yearCountry group 56,000 miles / 1 year6,000 miles / 1 year6,000 miles / 1 year1)
Unless otherwise indicated in the service display.Country Group 1:
Andorra, Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Republic of Ireland, Italy, Liechtenstein, Luxembourg, Malta, Monaco, Netherlands, Norway, Portugal, San Marino, Spain, Sweden, Switzerland,
United Kingdom.Country Group 2:
Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, FYR of Macedonia, Hungary, Latvia, Lithuania, Poland, Romania, Slovakia, Slovenia.Country Group 3:
Albania, Montenegro, Serbia.Country Group 4:
Israel, South Africa, Turkey, Lesotho, Swaziland.Country Group 5:
All other countries which are not listed in the previous country groups.

240Service and maintenanceConfirmations
Confirmation of service is recorded in the Service and warranty booklet. The date and mileage is completed with the stamp
and signature of the servicing workshop.
Make sure that the Service and warranty booklet is completed correctly as continuous proof of service is essential if any warranty or goodwill claims are to be met, and is also a benefit when selling the vehicle.

Service and maintenance241Recommended fluids,
lubricants and parts
Recommended fluids and lubricants
Only use products that meet the
recommended specifications.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The engine oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 245.
Topping up engine oilCaution
In case of any spilled oil, wipe it up and dispose it properly.
Engine oils of different manufacturersand brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oils for all petrol
engines with only ACEA quality is
prohibited, since it can cause engine
damage under certain operating
conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 245.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature viscosity.
Select the appropriate viscosity grade depending on the minimum ambient
temperature 3 245.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only organic acid type-long life
coolant (LLC) antifreeze approved for
the vehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C. In
cold regions with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37 °C. This concentration

242Service and maintenanceshould be maintained all year round.
The use of additional coolant
additives that intend to give additional
corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.
Washer fluid
Use only washer fluid approved for
the vehicle to prevent damage of
wiper blades, paintwork, plastic and
rubber parts. Consult a workshop.
Brake and clutch fluidOver time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.
AdBlue Only use AdBlue to reduce the
nitrogen oxides in the exhaust
emission 3 138.

Technical data243Technical dataVehicle identification..................243
Vehicle identification number ..243
Identification plate ...................243
Engine identification ................244
Vehicle data ............................... 245
Recommended fluids and lubricants ................................ 245
Engine data ............................. 247
Performance ............................ 249
Vehicle dimensions .................250
Capacities ................................ 251
Tyre pressures ........................ 252Vehicle identification

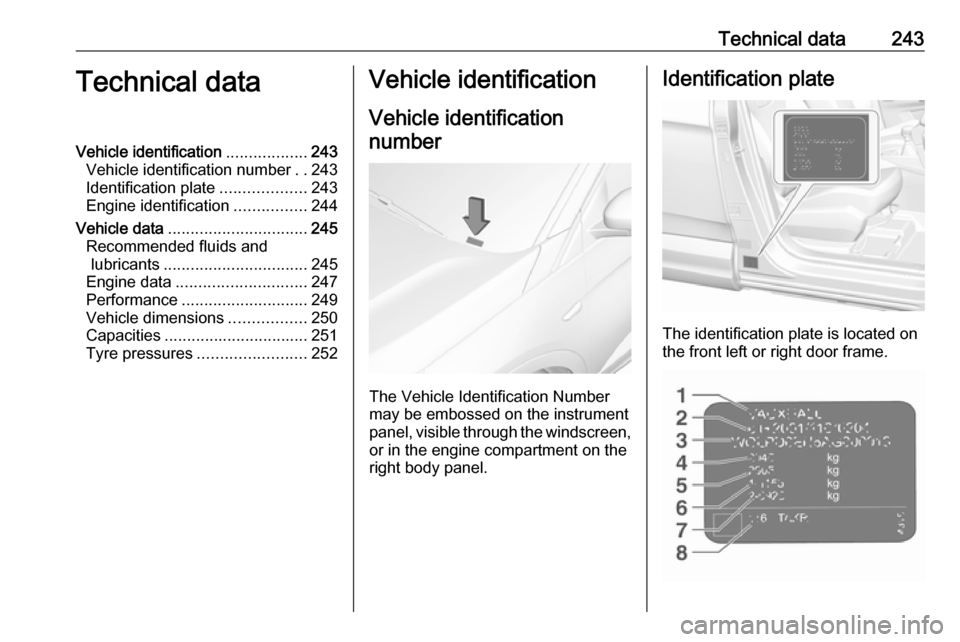

Vehicle identificationnumber
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen, or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

244Technical dataInformation on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight
rating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight.
Vehicle's kerb weight depends on the
specification of the vehicle, e.g.
optional equipment and accessories. Refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code.
Engine data 3 247.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

Technical data245Vehicle data
Recommended fluids and lubricants
Required engine oil quality Country groups 3 237
Countries included in country groups 1 to 3EB2FA
EB2ADT
EB2ADTS
EP6FADTXD
DV5RC
DV5RD
DV5REEP6FDTM
EB2DT
EC5F
DW10FC
DV6D
DV6FD
DV6FEVauxhall Original engine oilB71 2010 / B71 2312B71 2312
Engine EC5F: B71 2290, B71 2296 or B71 300 may also be used.
Countries included in country group 4
all enginesVauxhall Original engine oilB71 2302 / B71 2297
Engine EC5F: B71 2296 or B71 300 may also be used.

246Technical dataCountries included in country group 5all enginesVauxhall Original engine oilB71 2297
Engine oil viscosity gradesCountry groups 3 237
B71 2010B71 2312B71 2302B71 2297Engine oil viscosity gradeSAE 0W-20SAE 0W-30SAE 0W-30SAE 5W-30

Technical data247Engine dataEngine identifier codeD12xHT / F12xHTA16NHTD16xHTSales designation1.2 Turbo1.61.6Engineering codeEB2ADTSEP6FDTMEP6FADTXDPiston displacement [cm3
]120015981598Engine power [kW]96121133at rpm550060005500Torque [Nm]230240250at rpm175014001750Fuel typePetrolPetrolPetrolOctane rating RON 1)2)recommended959595possible989898possible919191Additional fuel type–––1)
A country specific label at the fuel filler flap can supersede the engine specific requirement.
2) In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

248Technical dataEngine identifier codeD15DTHD20DTHSales designation1.52.0Engineering codeDV5RCDW10FCPiston displacement [cm3
]14991997Engine power [kW]96130at rpm37503750Torque [Nm]300400at rpm17502000Fuel typeDieselDiesel
