256Vehicle care

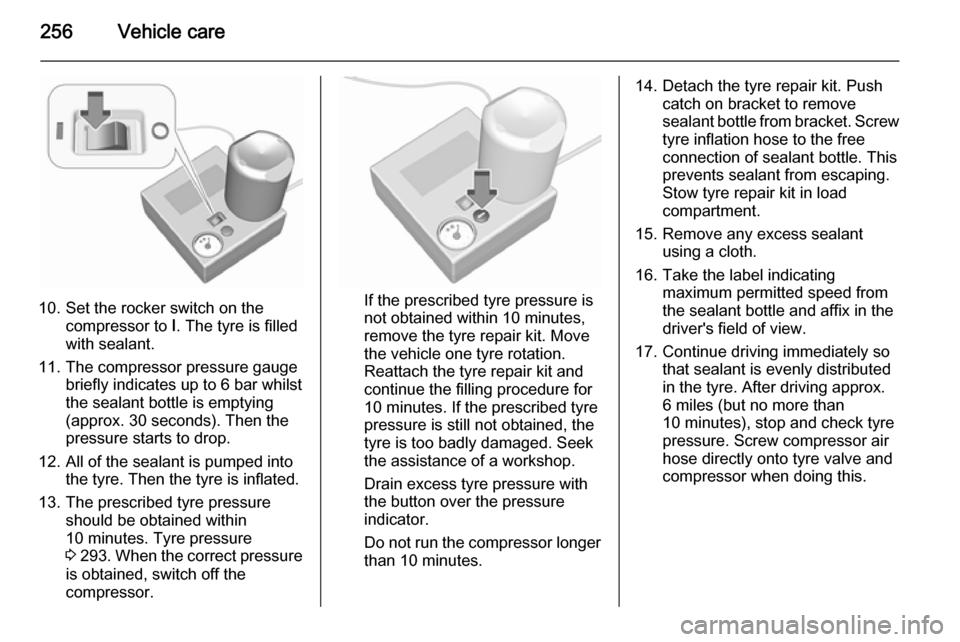

10. Set the rocker switch on thecompressor to I. The tyre is filled
with sealant.
11. The compressor pressure gauge briefly indicates up to 6 bar whilstthe sealant bottle is emptying
(approx. 30 seconds). Then the
pressure starts to drop.
12. All of the sealant is pumped into the tyre. Then the tyre is inflated.
13. The prescribed tyre pressure should be obtained within
10 minutes. Tyre pressure
3 293 . When the correct pressure
is obtained, switch off the
compressor.If the prescribed tyre pressure is
not obtained within 10 minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for 10 minutes. If the prescribed tyre
pressure is still not obtained, the
tyre is too badly damaged. Seek
the assistance of a workshop.
Drain excess tyre pressure with
the button over the pressure indicator.
Do not run the compressor longer than 10 minutes.
14. Detach the tyre repair kit. Push catch on bracket to remove
sealant bottle from bracket. Screw
tyre inflation hose to the free
connection of sealant bottle. This
prevents sealant from escaping.
Stow tyre repair kit in load
compartment.
15. Remove any excess sealant using a cloth.
16. Take the label indicating maximum permitted speed from
the sealant bottle and affix in the
driver's field of view.
17. Continue driving immediately so that sealant is evenly distributedin the tyre. After driving approx.
6 miles (but no more than 10 minutes), stop and check tyre
pressure. Screw compressor air
hose directly onto tyre valve and
compressor when doing this.

262Vehicle care9Warning
Storing a jack, a wheel or other
equipment in the load
compartment could cause injury if they are not fixed properly. During a sudden stop or a collision, looseequipment could strike someone.
Store wheel, jack and tools always
in the original storage location and secure them by fixing.
Temporary spare wheel
Caution
The use of a spare wheel that issmaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the defective tyre replaced as soon as
possible.
Only mount one temporary spare
wheel. Do not drive faster than
50 mph. Take curves slowly. Do not
use for a long period of time.
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full tyre in the rear.
Tyre chains 3 254.
Directional tyres Fit directional tyres such that they roll
in the direction of travel. The rolling
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
The following applies to tyres fitted
opposing the rolling direction:
■ Driveability may be affected. Have the defective tyre renewed or
repaired as soon as possible.
■ Drive particularly carefully on wet and snow-covered road surfaces.Jump starting
Do not start with quick charger.
A vehicle with a discharged vehicle
battery can be started using jump
leads and the vehicle battery of
another vehicle.9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.

286Technical data
4-door SaloonEngineManual transmissionAutomatic transmission[kg]A20DTL1613–A20DTE ecoFLEX8)1613–A20DT16131623A20DTH/B20DTH16131623A20DTH/B20DTH8)1623–A20DTH/B20DTH - All-wheel drive–1788A20DTH/B20DTH - All-wheel drive 8)1788–A20DTR–1664A20DTR8)1664–A20DTR - All-wheel drive–17888)
With stop-start function.

288Technical data
5-door HatchbackEngineManual transmissionAutomatic transmission[kg]A20DTL1613–A20DTE ecoFLEX8)1613–A20DT16131613A20DTH/B20DTH16231623A20DTH/B20DTH8)1623–A20DTH/B20DTH - All-wheel drive–1788A20DTH/B20DTH - All-wheel drive 8)1788–A20DTR–1701A20DTR8)1664–A20DTR - All-wheel drive–18168)
With stop-start function.

290Technical data
Sports Tourer/Country TourerEngineManual transmissionAutomatic transmission[kg]A20DTL1701–A20DTE ecoFLEX8)1733–A20DT17011733A20DTH/B20DTH17331733A20DTH/B20DTH8)1743–A20DTH/B20DTH - All-wheel drive–1843/1865A20DTH/B20DTH - All-wheel drive 8)1843–A20DTR–1733A20DTR8)1733–A20DTR - All-wheel drive–18438)
With stop-start function.
Optional equipment and accessories increase the kerb weight.
Loading information 3 84.
