Introduction3Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Vauxhall Authorised Repairer. For
gas vehicles, we recommend a
Vauxhall Authorised Repairer
licensed to service gas vehicles.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work
according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.■ The table of contents at thebeginning of this manual and withineach section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.

In brief11
1Power windows .....................39
2 Central locking system ..........23
3 Exterior mirrors .....................36
4 Light switch ........................ 126
Headlight range
adjustment ......................... 128
Front/rear fog lights ............132
Instrument illumination .......134
5 Side air vents ...................... 149
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 132
Exit lighting ......................... 136
Parking lights ...................... 133
Buttons for Driver
Information Centre ..............111
7 Cruise control .....................177
Speed limiter ....................... 179
Adaptive cruise control .......180
Forward collision alert .........1878Instruments ........................ 100
Driver Information Centre .... 111
9 Buttons for Driver
Information Centre ..............111
10 Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........88
11 Centre air vents .................. 149
12 Sport/Tour mode ................174
Traction Control system .....172
Electronic Stability Control . 173
Hazard warning flashers ....132
Parking assist/Advanced
parking aid ......................... 193
Lane departure warning .....209
13 Anti-theft alarm system
status LED ........................... 33
14 Colour-Info-Display ............118
15 Glovebox .............................. 70
Fuse box ............................ 24516Control indicator for airbag
activation/deactivation .......105
Control indicator for front
passenger seat belt ...........104
17 Controls for Colour-Info-
Display operation ................118
18 CD-slot
19 Climate control system ........ 138
20 Electric parking brake .........170
21 Touchpad ............................ 118
22 Manual transmission ..........168
Automatic transmission ......164
23 Storage ................................. 70
24 Eco button for stop-start
system ................................. 157
Fuel selector button ............102
25 Ignition/Power switch ..........153
26 Horn ..................................... 87
27 Steering wheel adjustment ..86
28 Bonnet release lever ..........224
29 Storage compartment ...........71

Keys, doors and windows23
FaultIf the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
■ Fault in electronic key.
■ Electronic key is out of reception range.
■ The battery voltage is too low.
■ Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
■ Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 23.
Memorised settings Whenever the ignition is switched off, the following settings are
automatically memorised by the
remote control unit or the electronic
key:■ automatic climate control
■ lighting
■ Infotainment system
■ central locking system
■ Sport mode settings
■ comfort settings
The saved settings are automatically used the next time the ignition is
switched on with the memorised key
with remote control unit 3 153 or
electronic key 3 22.
A precondition is that Personalisation
by Driver is activated in the personal
settings of the Info-Display. This must
be set for each remote control unit or
electronic key which is used.
Also memorised are the adjustments
of the driver's seat and exterior
mirrors, independent of the memory
positions 3 50.
Power seat automatically moves into the saved position when unlocking
and opening the driver's door with the
memorised remote control or
electronic key and Auto Memory
Recall in the Info-Display is activated.Vehicle personalisation 3 122.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks the respective door. Pulling
the handle once more opens the door.
Notice
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.

Keys, doors and windows25
Electronic key system operationThe electronic key must be outside
the vehicle, within a range of approx.
one metre of the relevant door side.
Unlocking
Press the button on any exterior door
handle and pull the handle.
Unlocking mode can be set in the
vehicle personalisation menu in the
Colour-Info-Display. Two settings are selectable:
■ All doors, load compartment and fuel filler flap are unlocked by
pressing a button on any exterior
handle once.
■ Only the driver's door, load compartment and fuel filler flap are
unlocked by pressing the button on driver's door exterior handle once.
To unlock all doors, press button
twice.
Select the relevant setting in Settings,
I Vehicle in the Colour-Info-Display.
Colour-Info-Display 3 118.
Vehicle personalisation 3 122.
The setting can be saved for the
electronic key being used.
Memorised settings 3 23.Locking
Press the button on any exterior door
handle.
All doors, load compartment and fuel
filler flap are locked.
The system only locks if any of the
following occurs:
■ It has been more than 5 seconds since unlocking.
■ The button on an exterior handle has been pressed twice within
5 seconds.
■ Any door has been opened and then all doors are closed.

Keys, doors and windows31
To close, press G in the open
tailgate until the tailgate starts to
move.
Stop or change direction of
movement
Pressing x on radio remote control
or G on the tailgate or press on the
touchpad switch whilst the tailgate is
moving will stop the tailgate in the
current position. Pressing x or
G again will reverse the direction of
movement.
Operation modes
The power tailgate has three modes
of operation, which are controlled by
the switch in the driver's door. To
change the mode, turn the switch:
■ Normal mode MAX: Power tailgate
opens to full height.
■ Intermediate mode 3/4: Power
tailgate opens to a reduced height that can be adjusted.
■ Mode Off: Tailgate can only be
operated manually.
Adjust reduced opening height in
intermediate mode
1. Turn operation mode switch to 3/4 .
2. Open power tailgate with any operation switch.
3. Stop movement at the desired height by pressing any operation
switch. If required, manually move
the stopped tailgate to the desired
position.
4. Press and hold the button on the
inside of the open tailgate for
3 seconds.

40Keys, doors and windowsKeep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Operable with ignition in position
Accessory power mode or Ignition on
power mode 3 153, 3 153.
Retained power off 3 155.
Operate the switch for the respective
window by pushing to open or pulling
to close.
Pushing or pulling gently to the first
detent: window moves up or down as long as the switch is operated.
Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with
safety function enabled. To stop
movement, operate the switch once
more in the same direction.
Power windows can be operated for
approx. 10 minutes after the ignition
is switched off or until the driver's door
is opened.
Safety function If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened again.
Override safety function
In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up without safety function enabled.
To stop movement, release the
switch.Child safety system for rear
windows
Press z to deactivate rear door
power windows; the LED illuminates.
To activate, press z again.
Comfort operating with the
remote control Front windows or all windows can be
operated remotely from outside the
vehicle.

42Keys, doors and windows
If the sun visors have integral mirrors,the mirror covers should be closed
when driving.
Roller blinds
To reduce sunlight at the rear seats,
pull the blind upwards using the grip
and engage it at the top of the door
frame.Roof
Sunroof9 Warning
Take care when operating the
sunroof. Risk of injury, particularly to children.
Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.
Operable with ignition in position
Accessory power mode or Ignition on
power mode 3 153, 3 153.
Retained power off 3 155.
Sunroof, 5-door Hatchback/
4-door Saloon
Open or close
Press p or r gently to the first
detent: sunroof is opened or closed with safety function enabled as long
as the switch is operated.
Press p or r firmly to the second
detent and then release: the sunroof
is opened or closed automatically
with safety function enabled. To stop
movement, operate the switch once
more.

Instruments and controls91
If outside temperature drops to 3 °C,
a warning message is displayed in the Driver Information Centre.
9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above 0
°C.
Clock
Time is shown in the
4.2" Colour-Info-Display.
Date and time are shown in the
8" Colour-Info-Display.
Colour-Info-Display operation 3 118
4.2'' Display
Operate the display by the buttons
below the display.
Press ; and then select the
Settings icon by turning and pressing
MENU .
Select Time menu page.
Set time
Select the 'Set Time' menu item to
enter the respective submenu.
Select the 'Auto Set' screen button at the bottom of the screen. Activate
either 'On - RDS' mode or 'Off -
Manual' mode.
If 'Off - Manual' mode is selected,
adjust hours and minutes by turning
and pressing MENU.
Repeatedly select the 12-24 Hr
screen button at the bottom of the
screen to choose a time mode.
If 12-hour mode is selected, a third
column for AM and PM setting is
displayed. Select the desired option.In 'On - RDS Mode' the RDS signal of
most VHF transmitters automatically
sets the time. RDS time
synchronisation can take a few
minutes. Some transmitters do not
send a correct time signal. In such
cases, it is recommended to switch off automatic time synchronisation.
Return to homepage by pressing ;.
For further information, see Infotainment system manual
8'' Display
Press ; and then select the
Settings icon. Inputs can be done
directly by the finger on the touch screen icons.
Select 'Time and Date' menu page.
Set time
Select the 'Set Time' menu item to
enter the respective submenu.

92Instruments and controls

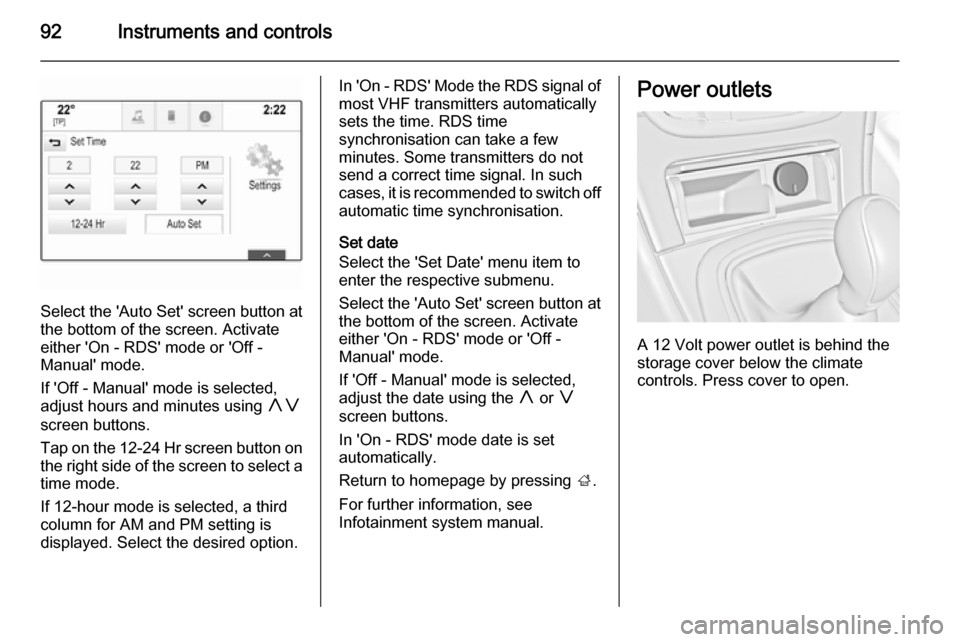

Select the 'Auto Set' screen button at
the bottom of the screen. Activate
either 'On - RDS' mode or 'Off -
Manual' mode.
If 'Off - Manual' mode is selected,
adjust hours and minutes using hg
screen buttons.
Tap on the 12-24 Hr screen button on
the right side of the screen to select a time mode.
If 12-hour mode is selected, a third
column for AM and PM setting is
displayed. Select the desired option.
In 'On - RDS' Mode the RDS signal of
most VHF transmitters automatically
sets the time. RDS time
synchronisation can take a few
minutes. Some transmitters do not send a correct time signal. In suchcases, it is recommended to switch off
automatic time synchronisation.
Set date
Select the 'Set Date' menu item to
enter the respective submenu.
Select the 'Auto Set' screen button at the bottom of the screen. Activate
either 'On - RDS' mode or 'Off -
Manual' mode.
If 'Off - Manual' mode is selected,
adjust the date using the h or g
screen buttons.
In 'On - RDS' mode date is set
automatically.
Return to homepage by pressing ;.
For further information, see
Infotainment system manual.Power outlets
A 12 Volt power outlet is behind the
storage cover below the climate
controls. Press cover to open.

Instruments and controls107
FlashesElectric parking brake is in servicemode. Stop vehicle, apply and
release the electric parking brake to
reset.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Antilock brake system
(ABS) u illuminates yellow.
Illuminates for a few seconds after the ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock brake system 3 169.
Upshift
[ is shown as a symbol in the Driver
Information Centre, when upshifting
is recommended for fuel saving
reasons.
On some versions gear shift
indication is popped up as full page in the Driver Information Centre 3 111.
Gear shifting R or S with the number of the next
higher or lower gear is indicated,
when up- or down-shifting is
recommended.
Variable effort steering c illuminates yellow.
Fault in variable effort steering
system. This may lead to a higher or
lower steering effort. Consult a
workshop.Following distance
E indicates the following distance
setting of adaptive cruise control or the alert timing sensitivity of forwardcollision alert by filled distance bars.
Adaptive cruise control 3 180.
Forward collision alert 3 187.
Lane departure warning ) illuminates green or flashes yellow.
Illuminates green
The system is switched on and ready
to operate.
Flashes yellow
The system recognizes an
unintended lane change.
Ultrasonic parking assist
r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or
covered by ice or snow
