Technical data309Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NHT,
B20DTH
with Sport chassis
and Brembo brake
18''245/40R19230/2.3 (33)220/2.2 (32)270/2.7 (39)290/2.9 (42)260/2.6
(38)300/3.0
(43)235/45R18,250/2.5 (36)250/2.5 (36)270/2.7 (39)290/2.9 (42)260/2.6
(38)320/3.2
(46)245/35R20AllTemporary spare
wheel
125/80 R16
125/70 R17420/4.2 (61)420/4.2 (61)––420/4.2
(61)420/4.2
(61)

310Technical dataCountry Tourer - All wheel driveComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NHT,
B20DTH225/55 R17,220/2.2 (32)220/2.2 (32)270/2.7 (39)290/2.9 (42)220/2.2
(32)290/2.9
(42)235/45 R18,235/50 R18,245/45 R19AllTemporary spare
wheel
125/80 R16
125/70 R17420/4.2 (61)420/4.2 (61)––420/4.2
(61)420/4.2
(61)

Customer information311Customer
informationCustomer information ................311
Declaration of conformity .........311
Collision damage repair ...........314
Software acknowledgement ....314
Vehicle data recording and pri‐ vacy ........................................... 316
Event data recorders ...............316
Radio Frequency Identification (RFID) ..................................... 317Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and/or receive radio waves subject to Directive 1999/5/EC.
These systems are in compliance with the essential requirements andother relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.

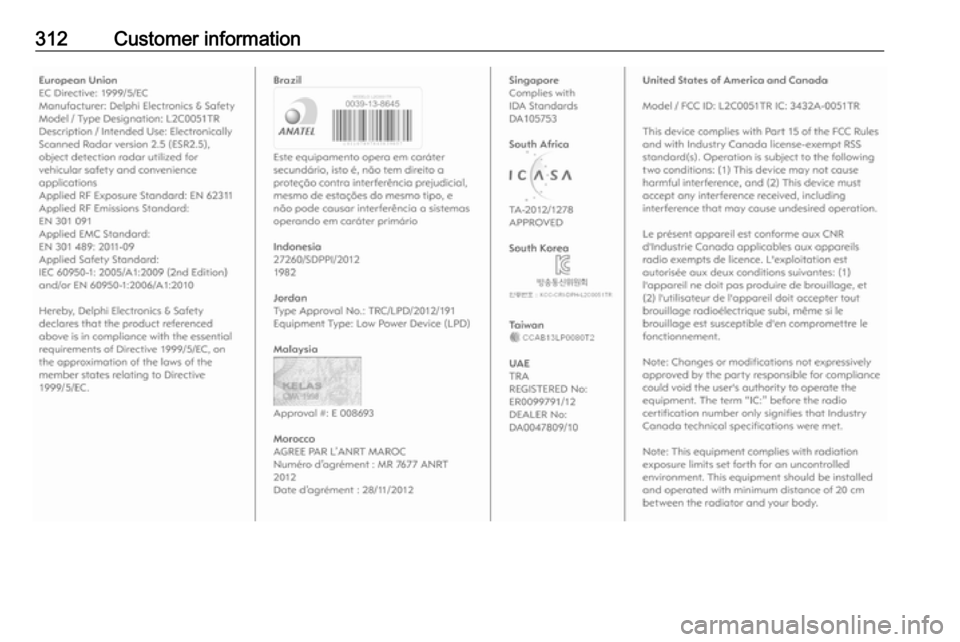

Radar systems
