Page 11 of 301

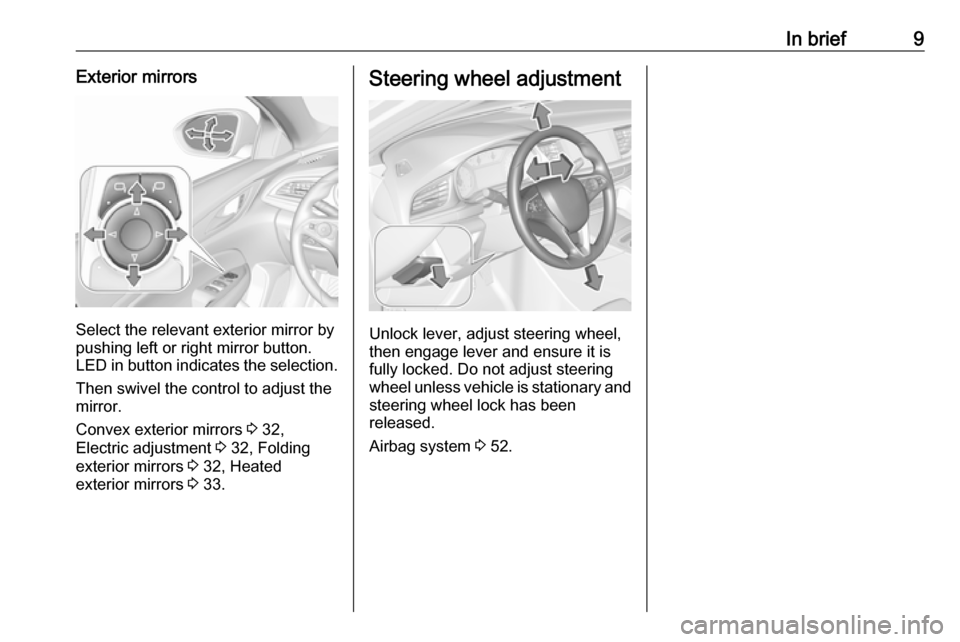

In brief9Exterior mirrors
Select the relevant exterior mirror by
pushing left or right mirror button.
LED in button indicates the selection.
Then swivel the control to adjust the
mirror.
Convex exterior mirrors 3 32,
Electric adjustment 3 32, Folding
exterior mirrors 3 32, Heated
exterior mirrors 3 33.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Airbag system 3 52.
Page 12 of 301

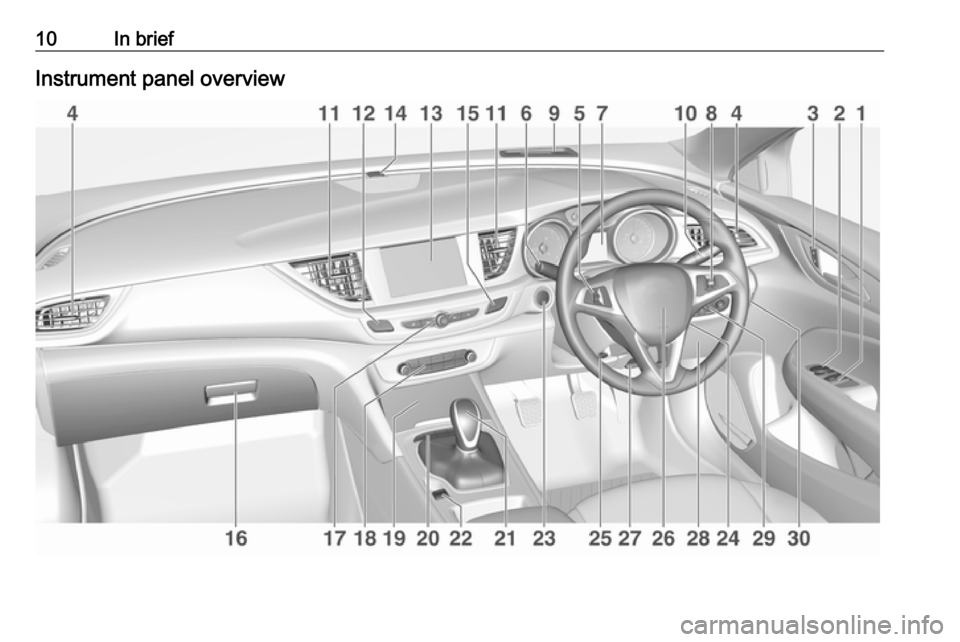

10In briefInstrument panel overview
Page 13 of 301
In brief111Power windows .....................34
2 Exterior mirrors .....................32
3 Central locking system ..........22
4 Side air vents ...................... 148
5 Cruise control .....................177
Speed limiter ....................... 179
Adaptive cruise control .......180
Forward collision alert .........188
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 132
Exit lighting ......................... 136
Parking lights ...................... 133
Buttons for Driver
Information Centre ..............103
7 Instruments .......................... 92
Driver Information Centre .... 103
8 Buttons for Driver
Information Centre ..............103
9 Head-up display ..................11210Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........79
11 Centre air vents .................. 148
12 Hazard warning flashers ....132
13 Info-Display ........................ 110
14 Anti-theft alarm system
status LED ........................... 29
15 Electronic Stability Control . 173
Traction Control system .....172
16 Glovebox .............................. 67
17 Controls for Info-Display
operation ............................. 110
18 Climate control system ........ 139
19 Storage ................................. 67
20 Sport/Tour mode ................174
Parking assist/Advanced
parking assist .....................197
Lane keep assist ................218
Eco button for stop-start
system ................................. 156
21 Manual transmission ..........168
Automatic transmission ......16422Electric parking brake .........170
23 Power switch ....................... 153
25 Steering wheel adjustment ..78
26 Horn ..................................... 79
27 Bonnet release lever ..........230
28 Fuse box ............................ 247
29 Light switch ........................ 125
Headlight range
adjustment ......................... 128
Front/rear fog lights ............133
Instrument illumination .......134
30 Head-up display ..................112
Page 14 of 301
12In briefExterior lighting
Automatic light controlAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 126.
Fog lights
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 126.
Headlight flash 3 128.
LED headlights 3 129.
High beam assist 3 129.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 132, Parking lights 3 133.
Page 15 of 301
In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 132.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 79, Wiper
blade replacement 3 236.
Page 16 of 301
14In briefWindscreen washer
Pull lever.
Windscreen and headlight washer
system 3 79, Washer fluid 3 233.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 81.
Page 17 of 301
In brief15Climate control
Heated rear window
Heating is operated by pressing b.
Heated rear window 3 36.
Heated windscreen
Heating is operated by pressing ,.
Heated windscreen 3 37.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 33.
Demisting and defrosting the
windows, air conditioning system
● Press á: fan automatically
switches to higher speed, the air
distribution is directed towards
the windscreen.
● Set temperature control to warmest level.
● Switch on air conditioning A/C if
required.
● Switch on heated rear window b.
● Open side air vents as required and direct them towards the doorwindows.
Air conditioning system 3 139.
Page 18 of 301
16In briefDemisting and defrosting the
windows, electronic climate
control
● Press à. Temperature and air
distribution are set automatically
and the fan runs at high speed.
● Switch on air conditioning A/C ON in Climate setting menu
by pressing CLIMATE, if
required.
● Switch on heated rear window b.
Electronic climate control system 3 142.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
Manual transmission 3 168.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 164.
Page 19 of 301
In brief17Starting offCheck before starting off ● Tyre pressure and condition 3 250, 3 285.
● Engine oil level and fluid levels 3 231.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 32, 3 41,
3 51.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Ignition switch: turn key toposition 2.
Power button: press
Engine Start/Stop for a few
seconds until green LED
illuminates.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Automatic transmission: operate brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engines: wait until control
indicator ! for preheating
extinguishes.
● Ignition switch: turn key to position 3 and release.
Power button: press
Engine Start/Stop and release.
● The engine starts after a short delay.
Starting the engine 3 154.
Page 20 of 301
18In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
A restart is indicated by the needle at
the idle speed position in the
tachometer.
Stop-start system 3 156.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Pull switch m for
approx. one second and check
if the control indicator m
illuminates.
The electric parking brake is applied when control indicator
m illuminates 3 98.
● Switch off the engine. ● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key or
switching off ignition on
vehicles with power button. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position P before removing the ignition
key or switching off ignition on
vehicles with power button.
Turn the front wheels towards
the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel
until the steering wheel lock is
felt to engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
●
Lock the vehicle with button e on
the radio remote control.
Activate the anti-theft alarm
system 3 29.
● The engine cooling fans may run
after the engine has been
switched off 3 230.
