VAUXHALL INSIGNIA 2017.75 Owner's Manual

Technical data299Capacities
Engine oilEngineB15XHLB15XHTB20NFTincluding Filter [l]4.04.05.7between MIN and MAX [l]1.01.01.0EngineB16DTEB16DTHB20DTHincluding Filter [l]5.05.05.25between MIN and MAX [l]1.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]61
AdBlue tank
AdBlue, refilling quantity [l]15

300Technical dataTyre pressures
Tyre pressures differ depending on the model variant. The order of the listed car models is as follows: ● Vehicles with Front-wheel drive: Grand Sport
● Vehicles with Front-wheel drive: Sports Tourer ● Vehicles with All-wheel drive: Grand Sport
● Vehicles with All-wheel drive: Sports Tourer
Refer to the table header to find the correct tyre pressure for your model.

Technical data301Tyre pressures for vehicles with Front-wheel driveGrand SportComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B15XHL,
B15XHT,
B16DTE,
B16DTH215/60 R16,
225/55 R17,
215/55 R17,
235/45 R18,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)240/2.4
(35)270/2.7
(39)B20DTH225/55 R17,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

302Technical dataSports TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B15XHL,
B15XHT215/60 R16,
215/55 R17,
225/55 R17,
235/45 R18,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)240/2.4
(35)270/2.7
(39)B20DTH225/55 R17,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

Technical data303Tyre pressures for vehicles with All-wheel driveGrand SportComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NFT235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)245/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)B20DTH225/55 R17 97V,
235/45 R18,
245/35 ZR20240/2.4 (35)240/2.4 (35)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)225/55 R17 97W,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

304Technical dataSports TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NFT235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)245/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare
wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

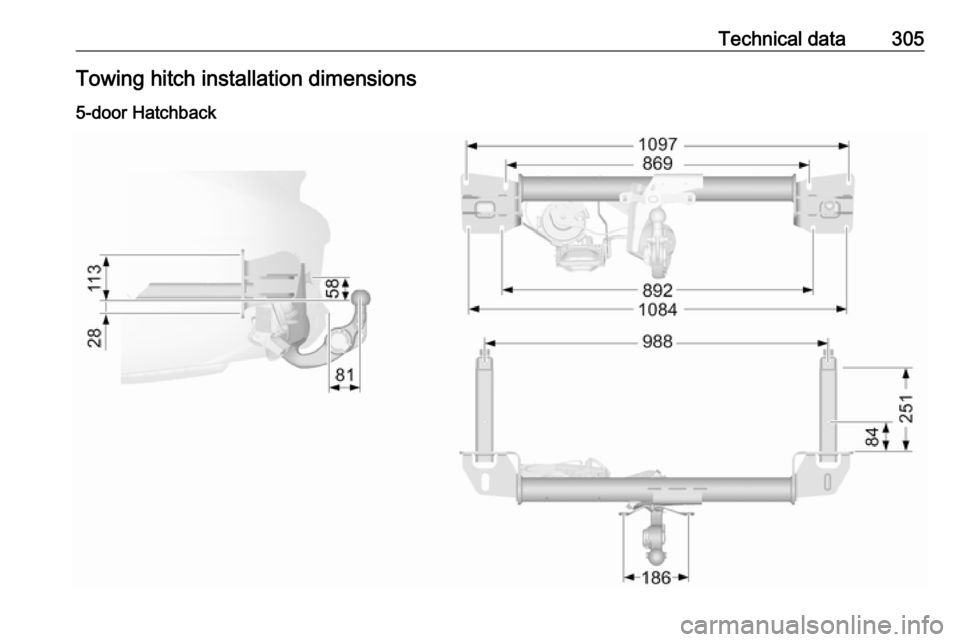

Technical data305Towing hitch installation dimensions
5-door Hatchback

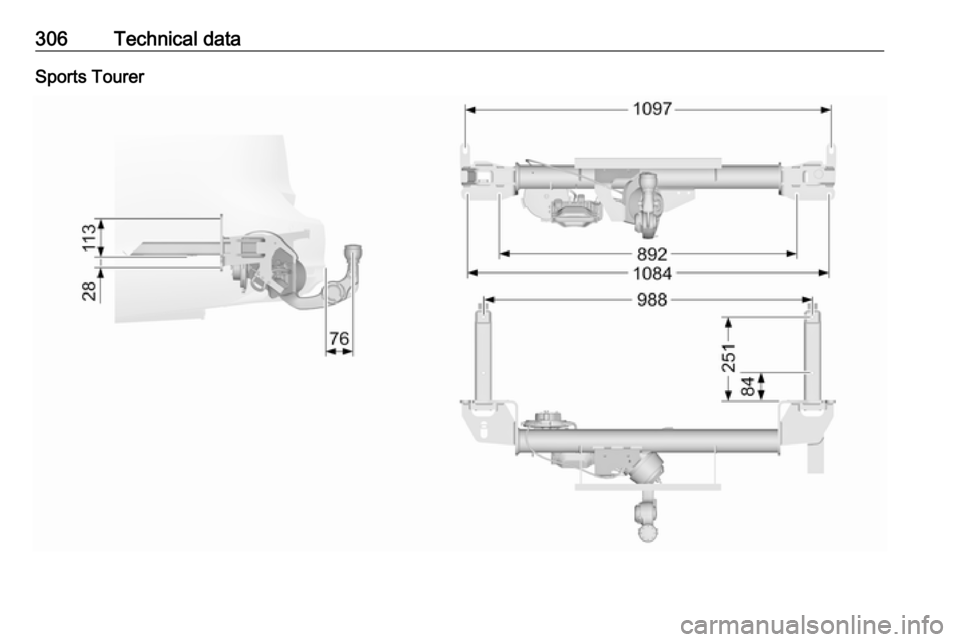

306Technical dataSports Tourer

Customer information307Customer
informationCustomer information ................307
Declaration of conformity .........307
Collision damage repair ...........309
Software acknowledgement ....309
Software update ......................311
Registered trademarks ............311
Vehicle data recording and pri‐
vacy ........................................... 312
Event data recorders ...............312
Radio Frequency Identification (RFID) ..................................... 313Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and/or receive radio waves subject to Directive 1999/5/EC or
2014/53/EU. These systems are in compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC or 2014/53/EU. Copies of the original
Declarations of Conformity can be
obtained on our website.

308Customer informationJack
