fog light VAUXHALL MERIVA 2015.5 Owner's Manual

In brief11
1Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................150
4 Side air vents ...................... 132
5 Turn and lane-change
signals, headlight flash,
low beam and high beam ...120
Exit lighting ......................... 123
Parking lights ...................... 121
Driver Information Centre .... 100
6 Instruments .......................... 89
7 Steering wheel controls .......82
8 Driver Information Centre .... 100
9 Windscreen wiper,
windscreen washer
system, rear wiper, rear
washer system .....................84
10 Centre air vents .................. 132
11 Central locking system ..........21
Hazard warning flashers ....120
Control indicator for airbag
deactivation .......................... 95
12 Info-Display ......................... 10313Sensor for electronic
climate control system .......128
14 Glovebox .............................. 61
Fuse box ............................ 189
15 Traction Control system .....149
Electronic Stability Control . 149
Ultrasonic parking assist ....152
Eco button ........................... 138
Fuel selector ......................... 91
16 Climate control system ........ 125
17 Selector lever, manual
transmission ....................... 145
Automatic transmission ......142
18 Electric parking brake .........147
19 Ignition switch with
steering wheel lock ............136
20 Horn ..................................... 83
Driver airbag ........................ 51
21 Bonnet release lever ..........170
22 Storage compartment ...........61
23 Steering wheel adjustment ..8224 Light switch ........................ 116
Headlight range
adjustment ......................... 118
Front fog lights ...................120
Rear fog light ...................... 121
Instrument illumination .......122

12In briefExterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=low beam
Fog lights
Press light switch
>=front fog lightsr=rear fog light
Lighting 3 116.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 117, High
beam 3 117, Headlight flash 3 117.

Instruments and controls99Immobiliser
d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Reduced engine power
# illuminates yellow.
The engine power is limited. Consult
a workshop.
Exterior light
8 illuminates green.
The exterior lights are on 3 116.
High beam
C illuminates blue.
Illuminated when high beam is on and during headlight flash 3 117.
Adaptive forward lighting
f illuminates or flashes yellow.
Illuminates Fault in system.Seek the assistance of a workshop.
Flashes
System switched to symmetrical low
beam.
Control indicator f flashes for approx.
4 seconds after the ignition is
switched on as a reminder that the
system has been activated 3 118.
Automatic light control 3 117.
Fog light > illuminates green.
The front fog lights are on 3 120.
Rear fog light
r illuminates yellow.
The rear fog light is on 3 121.
Cruise control
m illuminates white or green.
Illuminates white
The system is on.Illuminates green
A certain speed is stored.
Cruise control 3 150.
Door open
h illuminates red.
A door or the tailgate is open.
Automatic locking
^ illuminates amber.
Fault in the automatic locking system. The rear doors are possibly not
secured against opening.9 Warning
Stop your journey immediately!
Follow the instructions as
described in paragraph "Fault in
the automatic locking system"
before continuing your journey
3 24.
Consult a workshop.

106Instruments and controls
No.Vehicle message6Depress brake pedal to release
electrical parking brake7Turn steering wheel, switch
ignition off and then on9Turn steering wheel, start
engine again12Vehicle overloaded13Compressor overheated15Centre high-mounted brake
light failure16Brake light failure17Headlight levelling malfunction18Left low beam failure19Rear fog light failure20Right low beam failure21Left sidelight failure22Right sidelight failure23Reversing light failureNo.Vehicle message24Number plate light failure25Left front turn signal failure26Left rear turn signal failure27Right front turn signal failure28Right rear turn signal failure29Check trailer brake light30Check trailer reversing light31Check left trailer turn signal32Check right trailer turn signal33Check trailer rear fog light34Check trailer rear light35Replace battery in radio remote
control48Clean side blind zone alert
system53Tighten gas cap54Water in diesel fuel filterNo.Vehicle message55Diesel particle filter is full
3 14156Tyre pressure imbalance on
front axle57Tyre pressure imbalance on
rear axle58Tyres without TPMS sensors
detected59Open and then close driver
window60Open and then close front
passenger window61Open and then close rear left
window62Open and then close rear right
window65Theft attempted66Service theft alarm system67Service steering wheel lock68Service power steering

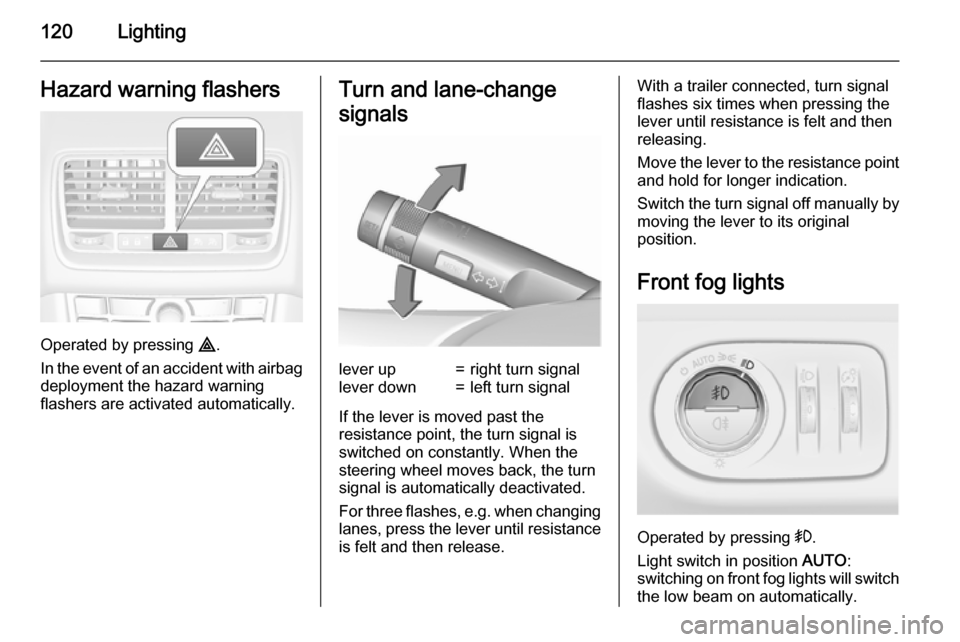

120LightingHazard warning flashers
Operated by pressing ¨.
In the event of an accident with airbag
deployment the hazard warning
flashers are activated automatically.
Turn and lane-change
signalslever up=right turn signallever down=left turn signal
If the lever is moved past the
resistance point, the turn signal is
switched on constantly. When the
steering wheel moves back, the turn
signal is automatically deactivated.
For three flashes, e.g. when changing lanes, press the lever until resistance
is felt and then release.
With a trailer connected, turn signal
flashes six times when pressing the
lever until resistance is felt and then
releasing.
Move the lever to the resistance point
and hold for longer indication.
Switch the turn signal off manually by moving the lever to its original
position.
Front fog lights
Operated by pressing >.
Light switch in position AUTO:
switching on front fog lights will switch the low beam on automatically.

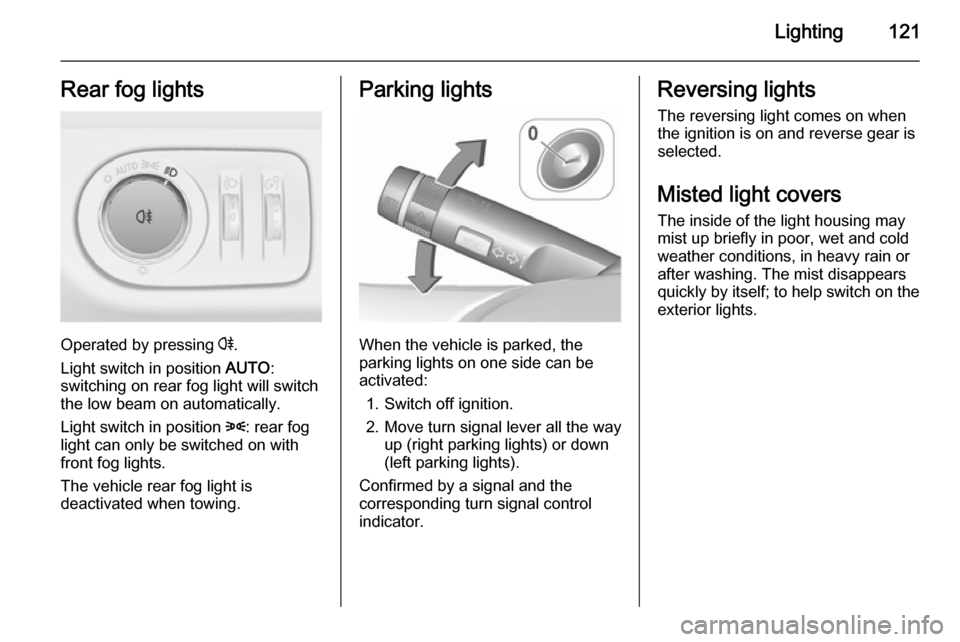

Lighting121Rear fog lights
Operated by pressing r.
Light switch in position AUTO:
switching on rear fog light will switch
the low beam on automatically.
Light switch in position 8: rear fog
light can only be switched on with
front fog lights.
The vehicle rear fog light is
deactivated when towing.
Parking lights
When the vehicle is parked, the
parking lights on one side can be
activated:
1. Switch off ignition.
2. Move turn signal lever all the way up (right parking lights) or down
(left parking lights).
Confirmed by a signal and the
corresponding turn signal control
indicator.
Reversing lights
The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted light covers The inside of the light housing may
mist up briefly in poor, wet and cold weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help switch on the
exterior lights.

180Vehicle care

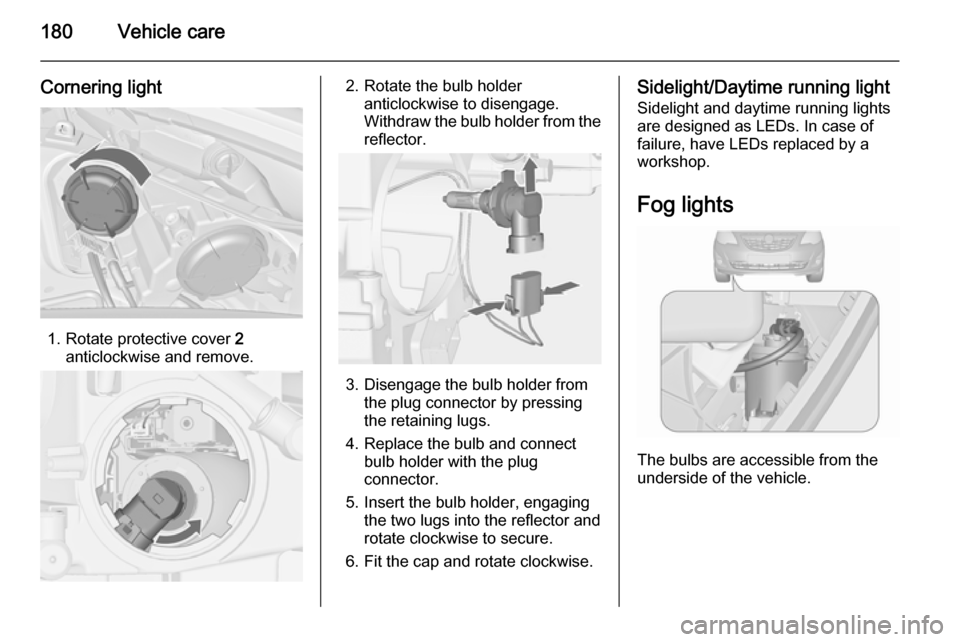

Cornering light
1. Rotate protective cover 2
anticlockwise and remove.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb holder from the plug connector by pressing
the retaining lugs.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.
Sidelight/Daytime running light
Sidelight and daytime running lights
are designed as LEDs. In case of failure, have LEDs replaced by a
workshop.
Fog lights
The bulbs are accessible from the
underside of the vehicle.

Vehicle care183
Tail light (2)
Turn signal light ( 3)
Version with Light Emitting Diode
(LED):
Only brake light ( 1) and turn signal
light ( 2) can be changed.
7. Insert the bulb carrier into the tail light assembly. Connect the
wiring plug. Fit light assembly
onto retaining pins and tighten the securing nuts. Close the cover
and engage.
8. Switch on the ignition, operate and check all lights.

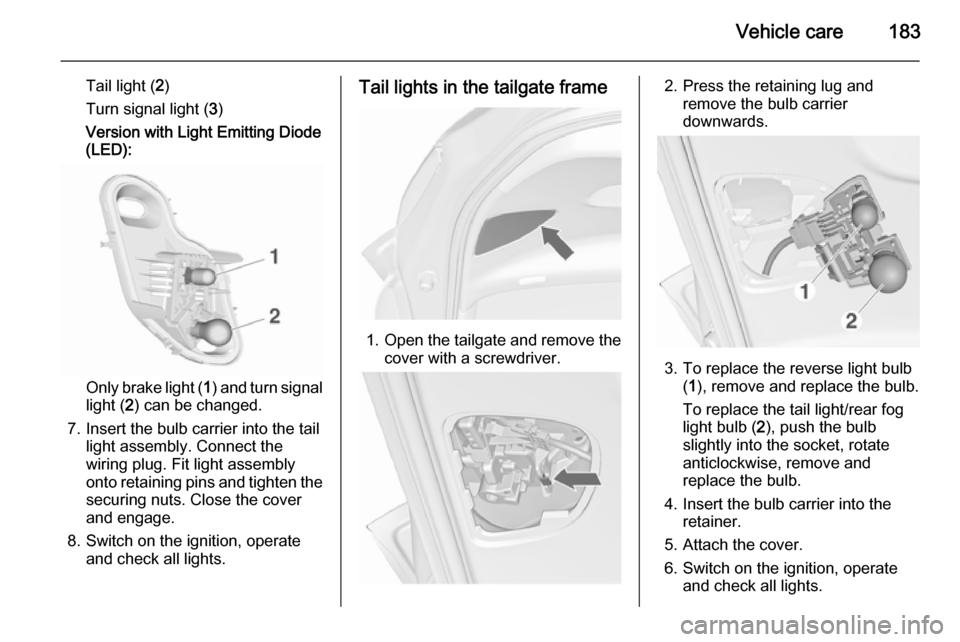

Tail lights in the tailgate frame
1. Open the tailgate and remove the
cover with a screwdriver.
2. Press the retaining lug and remove the bulb carrier
downwards.
3. To replace the reverse light bulb (1 ), remove and replace the bulb.
To replace the tail light/rear fog
light bulb ( 2), push the bulb
slightly into the socket, rotate
anticlockwise, remove and
replace the bulb.
4. Insert the bulb carrier into the retainer.
5. Attach the cover.
6. Switch on the ignition, operate and check all lights.

188Vehicle care
No.Circuit1Starter2–3Fuel filter/Cooling4Horn5Terminal 306Engine control module/Trans‐
mission control unit7Fog light8Engine cooling9Engine cooling10Vacuum pump11Ignition/Preheating12Headlamp levelling13Air conditioning system/
Terminal 1514Transmission control unit15High beam rightNo.Circuit16High beam left17Engine control module18Engine control module/
Terminal 1519Airbag20Engine control module21Engine control module/
Terminal 87

241
Child restraint systems ................54
Cigarette lighter ........................... 89
Climate control ............................. 15
Climate control, service ..............133
Climate control systems .............125
Clock............................................. 86
Code ........................................... 105
Control indicators.......................... 92
Control of the vehicle .................135
Controls ........................................ 82
Controls in steering wheel ............82
Convex shape .............................. 29
Coolant ....................................... 171
Coolant and antifreeze ...............218
Coolant temperature gauge ..........91
Coupling ball bar ........................164
Cruise control ...................... 99, 150
Cupholders .................................. 61
Curtain airbag system .................. 52
Curve lighting.............................. 119
D Danger, Warnings and Cautions ...4
Dashboard .................................... 10
Daytime running light ..................117
Daytime running lights ...............119
Declaration of conformity ............236
Diesel fuel system bleeding .......176
Diesel particle filter ....................141
Door open .................................... 99Doors............................................ 25
Driver assistance systems ..........150
Driver Information Centre ...........100
Driving characteristics and towing tips .............................. 163
Driving hints ................................ 135
E Electric adjustment ......................29
Electrical system......................... 186
Electric parking brake ...........96, 147
Electric parking brake fault ...........96
Electronic climate control system 128
Electronic driving programmes ..144
Electronic Stability Control.......... 149
Electronic Stability Control and Traction Control system ...........97
Electronic Stability Control off ...... 97
End-of-life vehicle recovery .......169
Engine compartment fuse box ...187
Engine coolant ........................... 171
Engine coolant temperature gauge ....................................... 91
Engine data ............................... 225
Engine exhaust .......................... 141
Engine identification ...................221
Engine oil ................... 170, 218, 222
Engine oil pressure ......................98
Entry lighting .............................. 123
Event data recorders ..................237Exhaust gases ............................ 141
Exit lighting ................................ 123
Exterior care .............................. 214
Exterior light ................................. 99
Exterior lighting ....................12, 116
Exterior mirrors ............................. 29
F
Fault ........................................... 144
First aid ......................................... 79
First aid kit ................................... 79
Fixed air vents ........................... 133
Flex-Fix system ............................ 64
Fog light ....................................... 99
Fog lights .................... 120, 121, 180
Folding mirrors ............................. 29
Folding tray .................................. 78
Front airbag system .....................51
Front fog lights ........................... 120
Front seats.................................... 36
Front storage ............................... 63
Front turn signal light ..................176
Front turn signal lights ...............181
Fuel............................................. 156
Fuel consumption - CO 2-
Emissions ............................... 162
Fuel for diesel engines ..............156
Fuel for liquid gas operation .......157
Fuel for petrol engines ...............156
Fuel gauge ................................... 90
