Instruments and controls103
Colour-Info-Display
The Colour-Info-Display indicates incolour:
â–  time 3 85
â–  outside temperature 3 85
â–  date 3 85
â–  electronic climate control settings 3 126
â–  rear view camera 3 153
â–  Infotainment system, see description for Infotainment systemin the Infotainment system manual
â–  navigation, see description for Infotainment system in the
Infotainment system manual
â–  system settings
â–  vehicle messages 3 104
â–  settings for vehicle personalisation 3 111
The type of information and how it is
displayed depends on the equipment
of the vehicle and the settings made.
Selecting menus and settings
Menus and settings are accessed via the display.Selections are made via:
â–  menus
â–  function buttons and multifunction knob of the Infotainment system
Selecting with the Infotainment
system
Select a function via the Infotainment
system buttons. The menu of the
selected function is displayed.
The multifunction knob is used to
select an item and to confirm.
Multifunction knob
The multifunction knob is the central control element for the menus:

104Instruments and controls
Turnâ–  To mark a menu option
â–  To set a numeric value or to display
a menu option
Press (the outer ring) â–  To select or activate the marked option
â–  To confirm a set value
â–  To switch a system function on/off
BACK button
Press button to: â–  exit a menu without changing settings
â–  return from a submenu to a higher menu level
â–  delete the last character in a character sequence
Press and hold the button for a few
seconds to delete the entire entry.
Vehicle personalisation 3 111,
Memorised settings 3 21.Vehicle messages
Messages are indicated mainly in the
Driver Information Centre (DIC), in
some cases together with a warning
and signal buzzer.
Press the SET/CLR button, the
MENU button or turn the adjuster
wheel to confirm a message.
Vehicle messages on the
Midlevel-Display
The vehicle messages are displayed
as code numbers.
No.Vehicle message2No radio remote control
detected, depress clutch pedal
for a restart3Engine coolant level low4Air conditioning off5Steering wheel is locked

106Instruments and controls
No.Vehicle message69Service suspension system70Service level control system71Service rear axle74Service AFL75Service air conditioning76Service side blind zone alert
system79Top up engine oil81Service transmission82Change engine oil soon83Service adaptive cruise control84Engine power is reduced89Service vehicle soon94Shift to park before exiting95Service airbag128Bonnet open134Park assist fault, clean bumperNo.Vehicle message136Service parking assist174Low vehicle battery258Park assist off

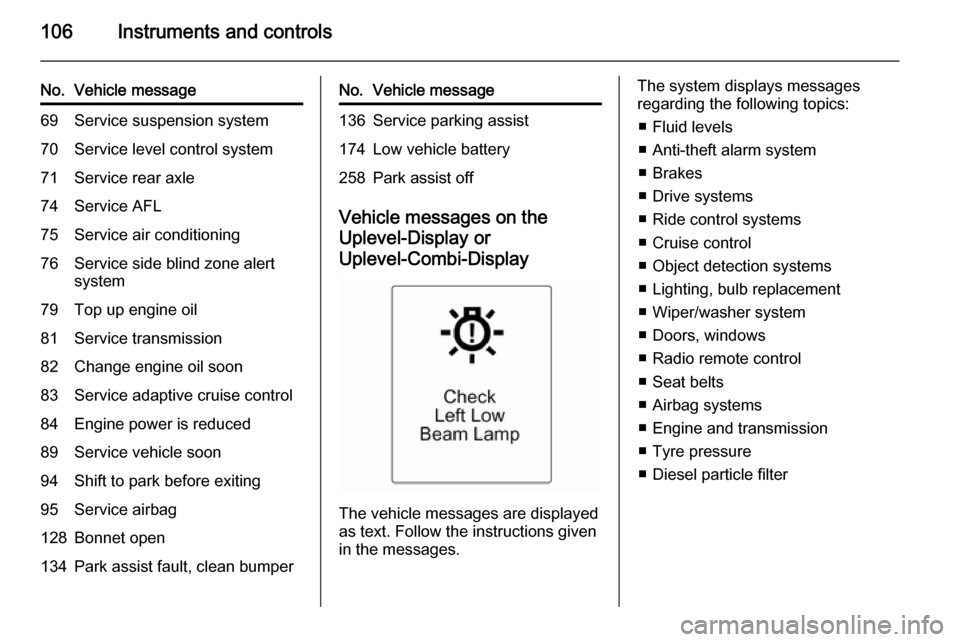

Vehicle messages on the
Uplevel-Display or Uplevel-Combi-Display
The vehicle messages are displayed
as text. Follow the instructions given
in the messages.
The system displays messages
regarding the following topics:
â–  Fluid levels
â–  Anti-theft alarm system
â–  Brakes
â–  Drive systems
â–  Ride control systems
â–  Cruise control
â–  Object detection systems
â–  Lighting, bulb replacement
â–  Wiper/washer system
â–  Doors, windows
â–  Radio remote control
â–  Seat belts
â–  Airbag systems
â–  Engine and transmission
â–  Tyre pressure
â–  Diesel particle filter

Instruments and controls107
Vehicle messages on the
Colour-Info-Display Some important messages appear
additionally in the
Colour-Info-Display. Press the
multifunction knob to confirm a
message. Some messages only pop- up for a few seconds.
Warning chimes Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
When starting the engine or
whilst driving â–  If seat belt is not fastened.
â–  If a door or the tailgate is not fully closed when starting-off.
â–  If a certain speed is exceeded with parking brake applied.
â–  If a programmed speed is exceeded.â–  If a warning message or a warningcode appears in the Driver
Information Centre.
â–  If the parking assist detects an object.
â–  If reverse gear is engaged and the rear end carrier is extended.
â–  If a fault in the automatic locking system is detected.
â–  If the diesel particle filter has reached the maximum filling level.
When the vehicle is parked and/ or the driver's door is opened â–  When the key is in the ignition switch.
â–  With exterior lights on.
During an Autostop â–  If the driver's door is opened.
Battery voltage
When the vehicle battery voltage is
running low, a warning message or
warning code 174 will appear in the
Driver Information Centre.1. Switch off immediately any electrical consumers which are
not required for a safe ride, e.g.
seat heating, heated rear window
or other main consumers.
2. Charge the vehicle battery by driving continuously for a while or
by using a charging device.
The warning message or warning
code will disappear after the engine
has been started twice consecutively
without a voltage drop.
If the vehicle battery cannot be
recharged, have the cause of the fault
remedied by a workshop.

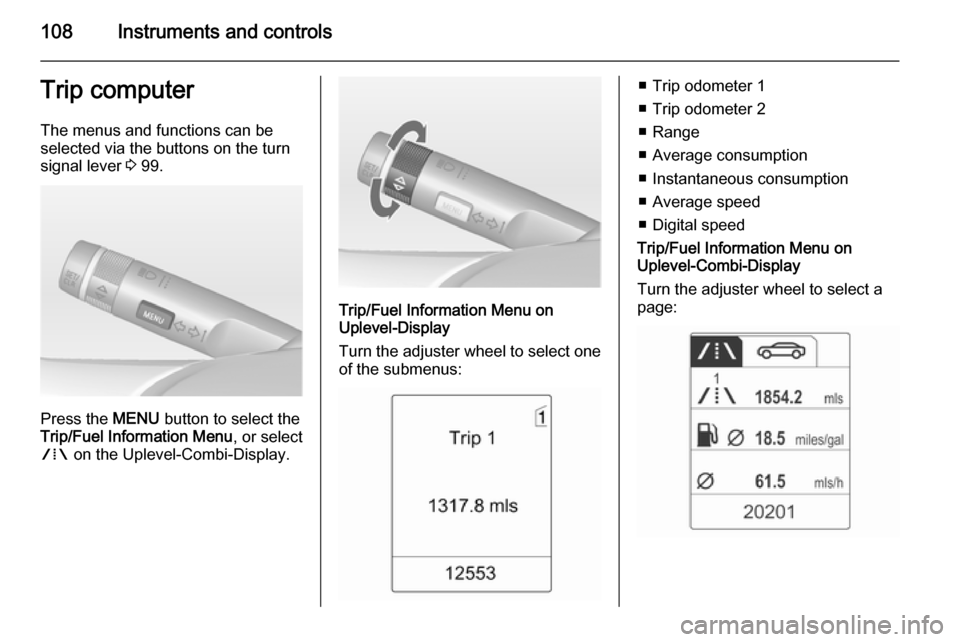

108Instruments and controlsTrip computerThe menus and functions can be
selected via the buttons on the turn signal lever 3 99.
Press the MENU button to select the
Trip/Fuel Information Menu , or select
W on the Uplevel-Combi-Display.
Trip/Fuel Information Menu on
Uplevel-Display
Turn the adjuster wheel to select one of the submenus:
â–  Trip odometer 1
â–  Trip odometer 2
â–  Range
â–  Average consumption
â–  Instantaneous consumption
â–  Average speed
â–  Digital speed

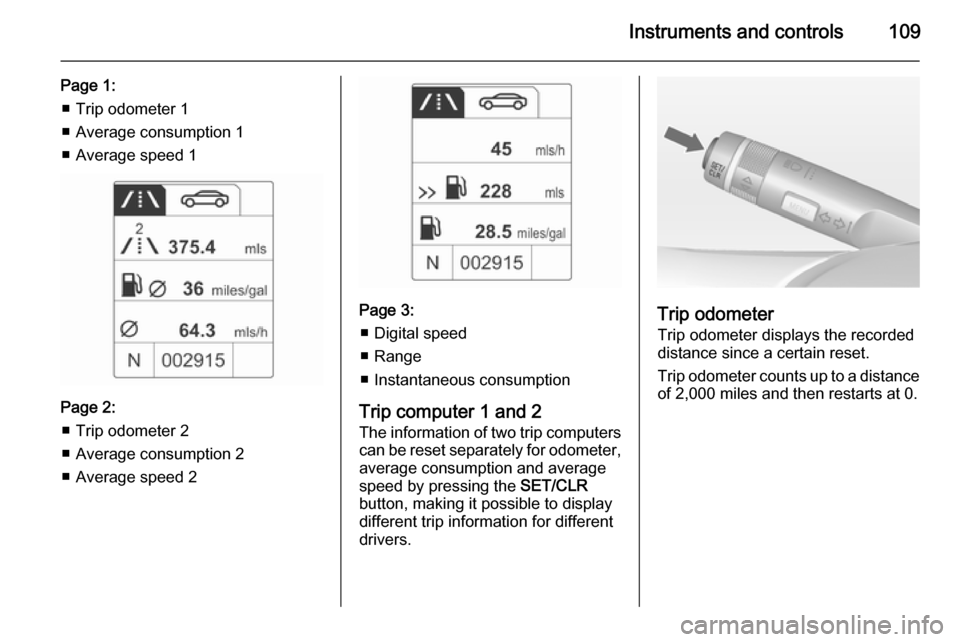

Trip/Fuel Information Menu on
Uplevel-Combi-Display
Turn the adjuster wheel to select a
page:

Instruments and controls109
Page 1:â–  Trip odometer 1
â–  Average consumption 1
â–  Average speed 1
Page 2: â–  Trip odometer 2
â–  Average consumption 2
â–  Average speed 2
Page 3: â–  Digital speed
â–  Range
â–  Instantaneous consumption
Trip computer 1 and 2 The information of two trip computerscan be reset separately for odometer,
average consumption and average
speed by pressing the SET/CLR
button, making it possible to display
different trip information for different
drivers.Trip odometer
Trip odometer displays the recorded
distance since a certain reset.
Trip odometer counts up to a distance
of 2,000 miles and then restarts at 0.

110Instruments and controls

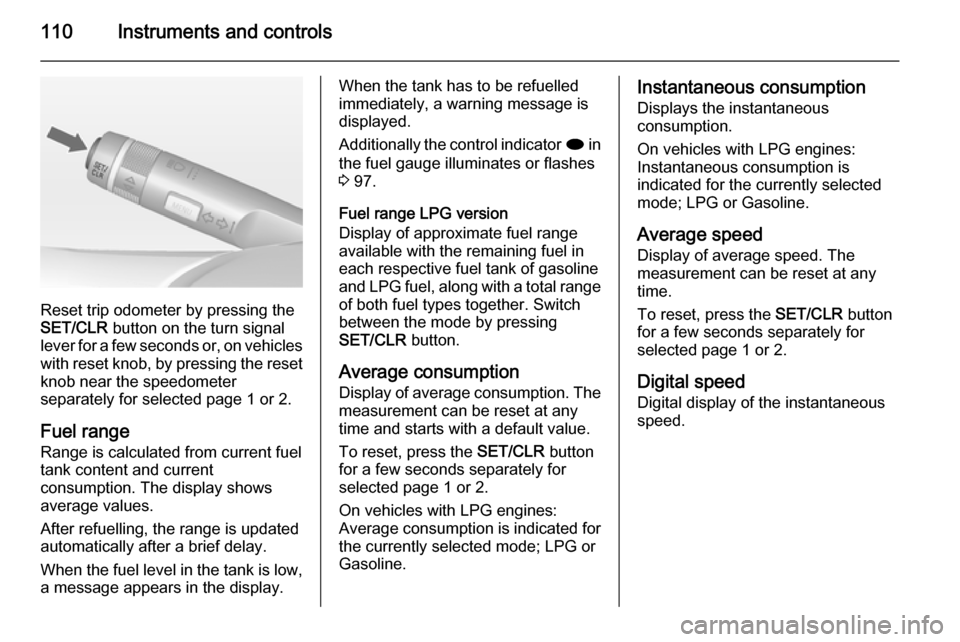

Reset trip odometer by pressing the
SET/CLR button on the turn signal
lever for a few seconds or, on vehicles
with reset knob, by pressing the reset
knob near the speedometer
separately for selected page 1 or 2.
Fuel range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.
After refuelling, the range is updated
automatically after a brief delay.
When the fuel level in the tank is low,
a message appears in the display.
When the tank has to be refuelled
immediately, a warning message is
displayed.
Additionally the control indicator i in
the fuel gauge illuminates or flashes
3 97.
Fuel range LPG version
Display of approximate fuel range
available with the remaining fuel in
each respective fuel tank of gasoline
and LPG fuel, along with a total range
of both fuel types together. Switch
between the mode by pressing
SET/CLR button.
Average consumption
Display of average consumption. The measurement can be reset at any
time and starts with a default value.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
On vehicles with LPG engines:
Average consumption is indicated for
the currently selected mode; LPG or
Gasoline.Instantaneous consumption
Displays the instantaneous
consumption.
On vehicles with LPG engines:
Instantaneous consumption is
indicated for the currently selected
mode; LPG or Gasoline.
Average speed
Display of average speed. The
measurement can be reset at any
time.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
Digital speed
Digital display of the instantaneous
speed.

Instruments and controls111Vehicle personalisation
The vehicle's behaviour can be
personalised by changing the settings in the Info-Display.
Some of the personal settings for
different drivers can be memorised
individually for each vehicle key.
Memorised settings 3 21.
Depending on vehicle equipment and
country-specific regulations some of
the functions described below might
not be available.
Some functions are only displayed or
active when the engine is running.
Personal settings in the
Graphic-Info-Display
CD 300/CD 400/CD400plus
Press the CONFIG button. The menu
Settings is displayed.
The following settings can be
selected by turning and pressing the
multifunction knob:
â–  Languages
â–  Time Date
â–  Radio settings
â–  Phone settings
â–  Vehicle settings
In the corresponding submenus the
following settings can be changed:
Languages
Selection of the desired language.
Time Date
See Clock 3 85.
Radio settings
See description for Infotainment
system in the Infotainment system
manual.
Phone settings
See description for Infotainment
system in the Infotainment system
manual.

112Instruments and controls
Vehicle settings

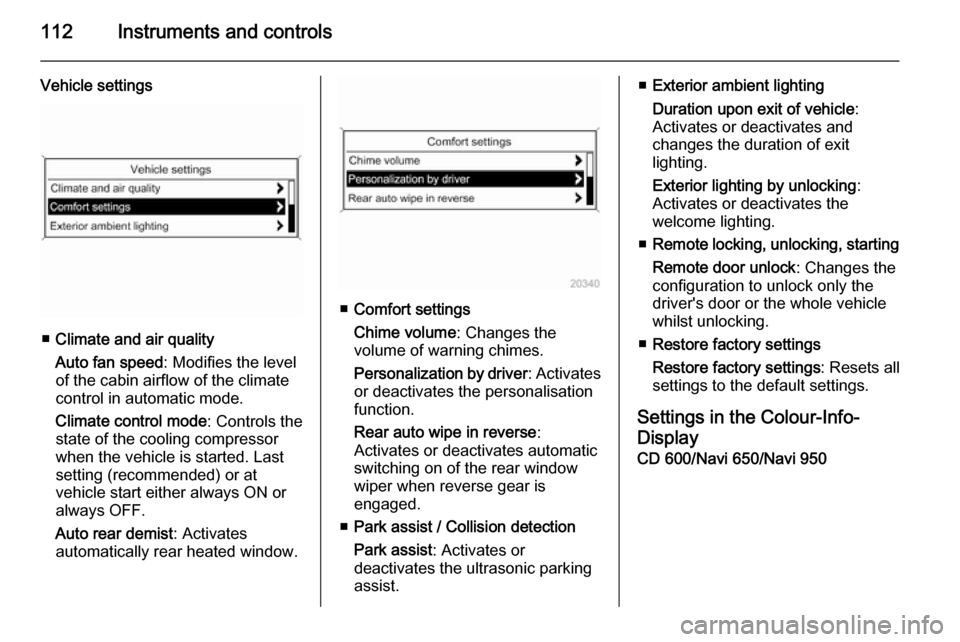

â– Climate and air quality
Auto fan speed : Modifies the level
of the cabin airflow of the climate
control in automatic mode.
Climate control mode : Controls the
state of the cooling compressor
when the vehicle is started. Last
setting (recommended) or at
vehicle start either always ON or
always OFF.
Auto rear demist : Activates
automatically rear heated window.
â–  Comfort settings
Chime volume : Changes the
volume of warning chimes.
Personalization by driver : Activates
or deactivates the personalisation
function.
Rear auto wipe in reverse :
Activates or deactivates automatic
switching on of the rear window
wiper when reverse gear is
engaged.
â–  Park assist / Collision detection
Park assist : Activates or
deactivates the ultrasonic parking
assist.
â–  Exterior ambient lighting
Duration upon exit of vehicle :
Activates or deactivates and
changes the duration of exit
lighting.
Exterior lighting by unlocking :
Activates or deactivates the
welcome lighting.
â–  Remote locking, unlocking, starting
Remote door unlock : Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.
â–  Restore factory settings
Restore factory settings : Resets all
settings to the default settings.
Settings in the Colour-Info-
Display CD 600/Navi 650/Navi 950

Instruments and controls113

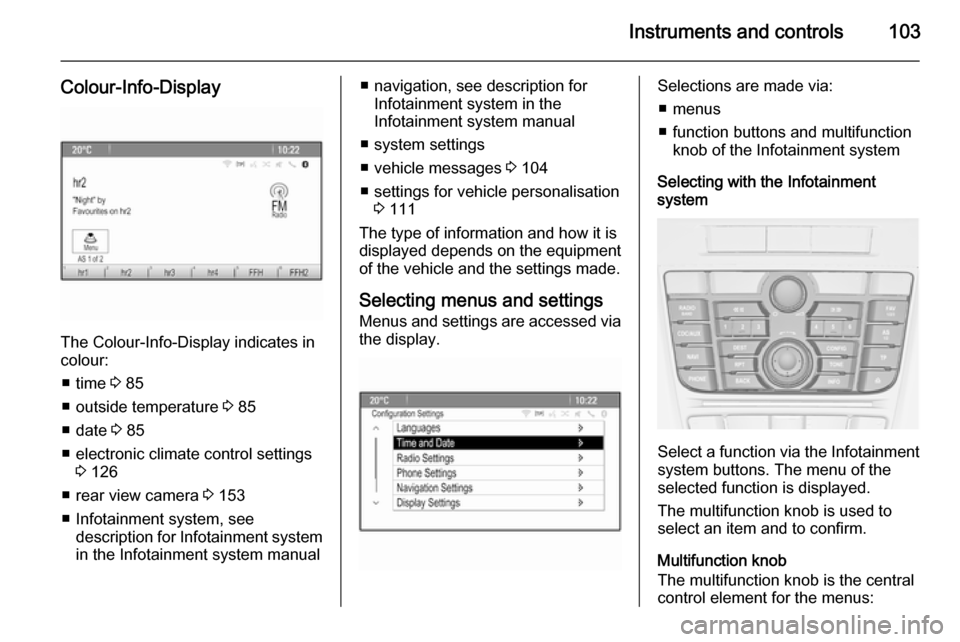

Press the CONFIG button on the
Infotainment system faceplate to
enter the Configuration Settings
menu.
Turn the multifunction knob to scroll
upwards or downwards in the list.
Press the multifunction knob
(Navi 950 / Navi 650: press the outer
ring) to select a menu item.â–  Languages
â–  Time and Date
â–  Radio Settings
â–  Phone Settings
â–  Navigation Settings
â–  Display Settings
â–  Vehicle Settings
In the corresponding submenus the
following settings can be changed:
Languages
Selection of the desired language.
Time and Date
See Infotainment system manual for further information.
Radio Settings
See Infotainment system manual for
further information.
Phone Settings
See Infotainment system manual for
further information.
Navigation Settings
See Infotainment system manual for
further information.
Display Settings â–  Home Page Menu :
See Infotainment system manual
for further information.
â–  Rear Camera Options :
Press to adjust the rear camera
options 3 153.
