52Seats, restraintsISOFIX child restraint
systems

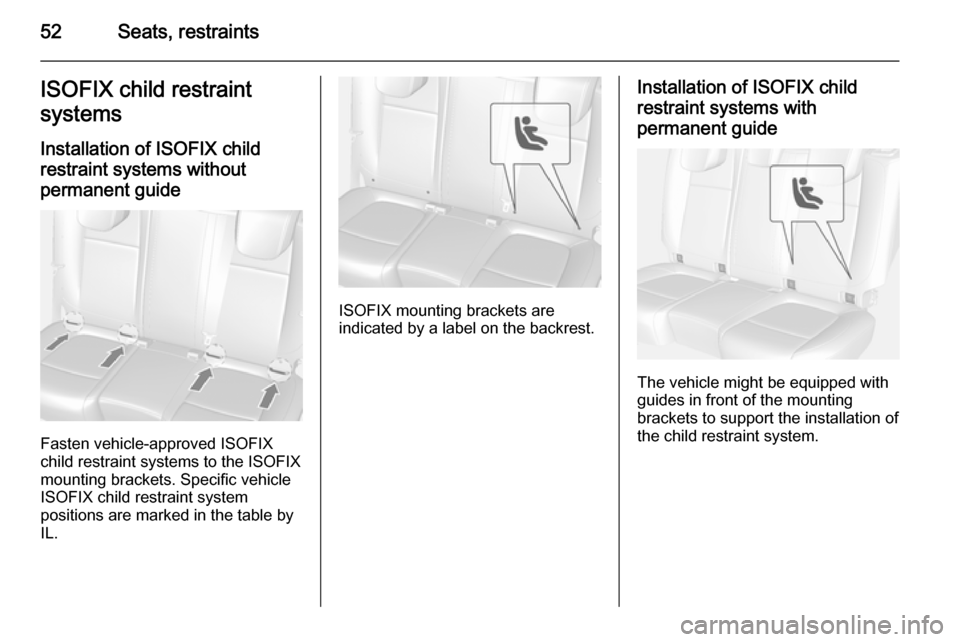

Installation of ISOFIX child
restraint systems without permanent guide
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.
ISOFIX mounting brackets are
indicated by a label on the backrest.

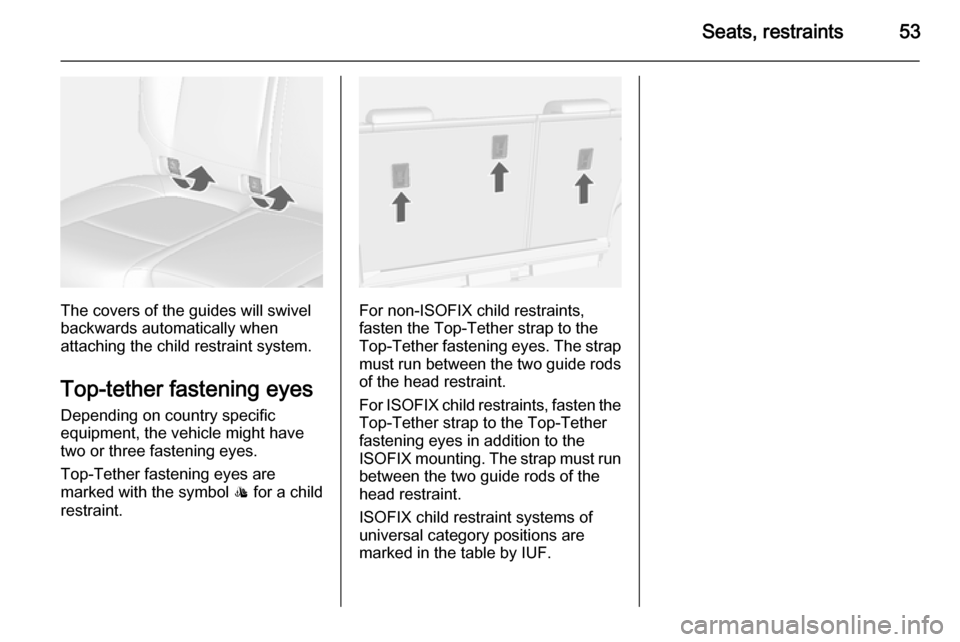

Installation of ISOFIX child
restraint systems with
permanent guide
The vehicle might be equipped with
guides in front of the mounting
brackets to support the installation of the child restraint system.

Seats, restraints53
The covers of the guides will swivel
backwards automatically when
attaching the child restraint system.
Top-tether fastening eyes Depending on country specific
equipment, the vehicle might have
two or three fastening eyes.
Top-Tether fastening eyes are
marked with the symbol : for a child
restraint.For non-ISOFIX child restraints, fasten the Top-Tether strap to the
Top-Tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.
For ISOFIX child restraints, fasten the
Top-Tether strap to the Top-Tether fastening eyes in addition to the
ISOFIX mounting. The strap must run between the two guide rods of the
head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

Instruments and controls85
* illuminates yellow.
The front passenger airbag is
deactivated 3 46.9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Battery is not
charging. Engine cooling may be interrupted. The brake servo unit may
cease to be effective. Seek the
assistance of a workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly after the engine starts.
Illuminates when the engine is running Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine is
running
Fault that could lead to catalytic converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service vehicle soon g illuminates yellow.
Additionally a warning message or a
warning code is displayed.
The vehicle needs a service.Seek the assistance of a workshop.
Vehicle messages 3 94.
Brake and clutch system R illuminates red.
The brake and clutch fluid level is too
low 3 159.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates after the ignition is
switched on if the parking brake is
applied 3 130.
Operate pedal
- illuminates or flashes yellow.
Illuminates Clutch pedal must be depressed to
start the engine in Autostop mode.
Stop-start system 3 120.

212IndexAAccessories and vehicle modifications .......................... 154
Adaptive forward lighting .....88, 106
Adjustable air vents ...................116
Airbag and belt tensioners ...........84
Airbag deactivation ................46, 84
Airbag label................................... 41 Airbag system .............................. 41
Air conditioning regular operation ................................ 117
Air conditioning system .............. 113
Air intake .................................... 117
Air vents...................................... 116
All-wheel drive ........................... 128
Antilock brake system ................ 129
Antilock brake system (ABS) .......86
Anti-theft alarm system ................25
Anti-theft locking system .............. 25
Appearance care ........................191
Automatic anti-dazzle ..................28
Automatic light control ...............103
Automatic locking ........................23
Automatic transmission .............125
Auxiliary heater ........................... 116
B Battery discharge protection ......111
Battery voltage ............................. 96Bicycle rack .................................. 57
Bonnet ....................................... 156
Bonnet open ................................. 89
Brake and clutch fluid .................195
Brake and clutch system .............85
Brake assist ............................... 130
Brake fluid .................................. 159
Brakes ............................... 129, 159
Breakdown.................................. 189
Bulb replacement ....................... 162
C
Capacities .................................. 206
Catalytic converter .....................124
Central locking system ................21
Centre console storage ...............56
Centre high-mounted brake light 167
Changing tyre and wheel size ...179
Charging system .......................... 85
Child locks ................................... 23
Child restraint installation locations ................................... 49
Child restraints.............................. 47
Child restraint systems ................47
Climate control ............................. 15
Climate control systems .............112
Clock ............................................ 76
Code ............................................. 94
Control indicators.......................... 81
Control of the vehicle .................118

214
Head restraints ............................ 33
Heated mirrors ............................. 28
Heated rear window ..................... 30
Heated steering wheel .................73
Heating ........................................ 37
Heating and ventilation system . 112
High beam ........................... 88, 104
Hill start assist ........................... 130
Horn ....................................... 13, 73
I
Identification plate .....................197
Ignition switch positions .............119
Immobiliser ............................ 26, 88
Indicators ...................................... 79
Information displays...................... 89
Initial drive information.................... 6
Instrument panel fuse box .........170
Instrument panel illumination control .................................... 109
Instrument panel overview ........... 10
Instrument panel storage ..............54
Interior care ............................... 193
Interior lighting ............................ 109
Interior lights ...................... 110, 168
Interior mirrors .............................. 28
Interruption of power supply ......127
Introduction .................................... 3
ISOFIX child restraint systems ....52J
Jump starting ............................. 187
K Key, memorised settings ..............21
Keys ............................................. 19
Keys, locks ................................... 19
L Lane departure warning .......86, 144
Lashing eyes ............................... 69
Lighting features .........................111
Light switch ................................ 103
Load compartment ................24, 66
Load compartment cover .............68
Load compartment fuse box ......172
Loading information .....................70
Low fuel ....................................... 88
M
Malfunction indicator light ............85
Manual anti-dazzle ......................28
Manual mode ............................. 126
Manual transmission .................. 128
Manual windows ..........................29
Memorised settings ......................21
Mirror adjustment ........................... 8
Misted light covers .....................109N
New vehicle running-in ..............119
Number plate light .....................167
O
Object detection systems ...........138
Odometer ..................................... 79
Oil, engine .......................... 195, 199
Operate pedal ............................... 85
Outside temperature ....................76
Overrun cut-off ........................... 120
P Parking ................................ 17, 122
Parking assist ............................ 138
Parking brake ............................ 130
Particulate filter ........................... 123
Performance .............................. 203
Performing work ........................155
Pollen filter ................................. 117
Power outlets ............................... 78
Power steering.............................. 86
Power steering fluid ....................158
Power windows ............................ 29
Preheating ................................... 87
Puncture ..................................... 183
