210Phone
■No phone book available
This message will be displayed if
the mobile phone does not support
contacts transmission. If this
message appears after several
attempts, then the device does not
support contacts transmission.Caution
The message will be displayed
when the transmission of contacts
is supported while information with
a device error is also transmitted.
Update the device again if this
occurs.
■ The phone book is empty
This message is displayed if no
phone numbers are stored in the
mobile phone. This will also be displayed if the phone log
transmission is supported, but in a way that is not supported by the
Infotainment system.
Hands free phone
Taking calls
When a phone call comes through the connected Bluetooth mobile phone,
the track currently playing will be cut
off and the phone will ring, displaying
the relevant information.
To talk on the phone, press the q
button on the steering wheel remote
control or turn the multifunction knob
to move to the answer function, and
then press the multifunction knob.
■ To reject a call, press the O
button on the steering wheel
remote control or use the
multifunction knob and select
Decline .

Phone211
■ While talking on the phone, it ispossible to block the transmitted
sound by selecting the Mute Mic
(mute microphone) item by using
the multifunction knob.■ While talking on the phone, press and hold the q button from the
steering wheel remote control to
change to the private call mode
(some phones may not support the
private call mode depending on the
phone's options).
■ When a call is received with the Infotainment system and Bluetooth
is being connected, there are
mobile phones that do not
automatically change to the private call mode. This depends on the
original specifications of each
mobile phone.■ When it is possible to use services related to a third-party conversation
supported by the communications
service provider through an
application, it is possible to make
calls during a call through the
Infotainment system.
■ While third or more-party conversations, displaying contents
may differ from practical
information.

212Phone
Calling by redial
From the steering wheel remote
control, press the q button to display
the redial guidance screen, or press
and hold the button to display the
caller log screen.
Turn the multifunction knob to select
Yes , and then press the multifunction
knob to make a call.
■ If the mobile phone is not in waiting
mode, your phone might not
support the redial function. This
depends on the mobile phone's
options.
■ When redialling a number, the connected phone number will not
be displayed.
■ Depending on the mobile phone, there are cases in which the call is
made through the call history of the
received or missed calls instead of
the redial mode. This depends on
the mobile phone's options.

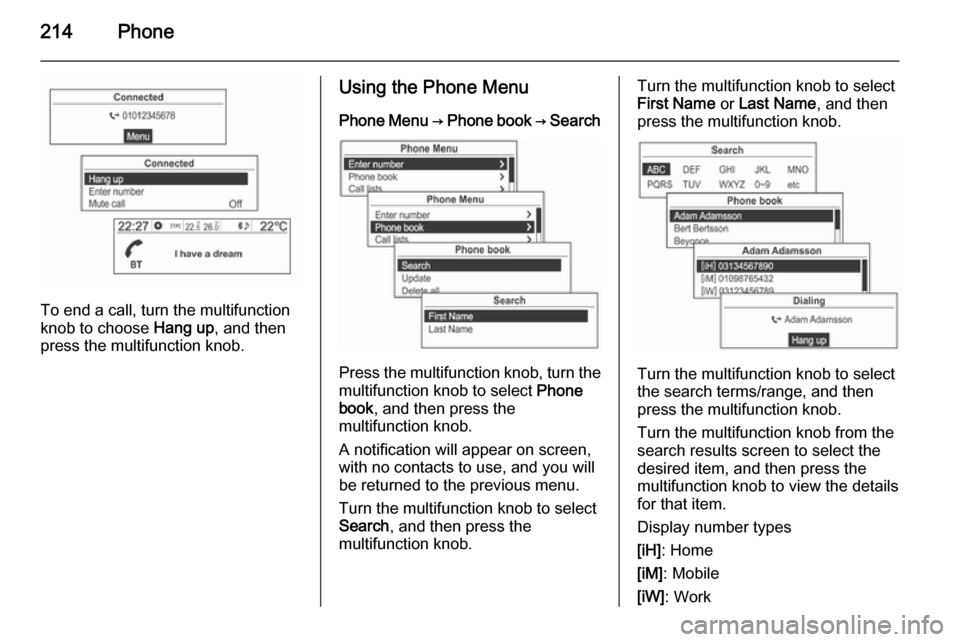

Press the multifunction knob while the phone is connected to display the
connecting functions as shown
below.
Use the multifunction knob to use the
functions in the menu that appears.
Calling by outgoing call log
To make a call by the outgoing call
log, press and hold the q button on
the steering wheel remote control and
turn the multifunction knob to select the desired call list, then press the
multifunction knob.

214Phone
To end a call, turn the multifunction
knob to choose Hang up, and then
press the multifunction knob.
Using the Phone Menu
Phone Menu → Phone book → Search
Press the multifunction knob, turn themultifunction knob to select Phone
book , and then press the
multifunction knob.
A notification will appear on screen, with no contacts to use, and you will
be returned to the previous menu.
Turn the multifunction knob to select
Search , and then press the
multifunction knob.
Turn the multifunction knob to select
First Name or Last Name , and then
press the multifunction knob.
Turn the multifunction knob to select
the search terms/range, and then press the multifunction knob.
Turn the multifunction knob from the
search results screen to select the
desired item, and then press the
multifunction knob to view the details
for that item.
Display number types
[iH] : Home
[iM] : Mobile
[iW] : Work

Phone215
[iO]: Other
To call the relevant number, press the
multifunction knob.
For more information, refer to the
making phone calls item.
Phone Menu → Phone book → Update Update the contacts of the connectedmobile phone to the system's
contacts.
Using the multifunction knob, select
Phone Menu → Phone book →
Update , and then press the
multifunction knob.
Turn the multifunction knob to select
Yes or No, and then press the
multifunction knob to activate or
cancel the update.Notice for updating contacts ■ This function can be used with mobile phones that support a
contacts update and the call history
transmission function. (If the
product is connected to a mobile
phone that does not support these
functions, the call history can be displayed through the Infotainment
system.)
■ An update is not supported for more
than 1,000 contact numbers.■ Be aware that hands-free and Bluetooth audio playback will be cut
off while proceeding with updates
for contacts (other functions except for handsfree and Bluetooth audioplayback can be used.)
■ To update your contacts, it is possible to request for the
transmission certification for
contacts. If the waiting screen does
not change for a long time, you can
check whether the mobile phone is
requesting for certification. When
requesting for certification of the
mobile phone, all Bluetooth
connections will be cut off if it is not accepted, and then the device willbe reconnected.
■ When receiving the call history, it is
possible to request for the
transmission certification for the
call history from the mobile phone.
If the waiting screen does not
change for a long time, check
whether the mobile phone is
requesting for certification.
When requesting for the
certification of the mobile phone, all

216Phone
Bluetooth connections will be cut
off if it is not accepted, and then the
device will be reconnected.
■ If there is a problem in the stored information of the mobile phone,
the contacts may not be updated.
■ The Infotainment system only uses
information coded in UTF-8 format.
■ If other operations (game, map search, navigation, etc.) are
activated during the contacts
update or call history transmission progress, the update/transmission
process may not work.
This is because other operations
running on the mobile phone are
affecting the data transmission.
■ When the contacts update or call history transmission is completed,
all handsfree and Bluetooth audio
play modes will be automatically
disconnected and then
reconnected.
■ If the Infotainment system gets turned off while talking on the
phone, the call will be transmitted to
the mobile phone. Some phonesmay need to setup a call
transmission function beforehand,
depending on the type of the
phone.
■ If the user disconnects the connection directly (using the
Infotainment or mobile phone), the
auto connection function does not
take place.
Auto-connection: This function
automatically finds and connects the device that was last connected.
■ The contacts may not always display all the lists on the phonewhen selected. The Infotainment
system only displays what has
been transmitted from the mobile
phone.
■ The contacts update can only receive four numbers per contacts
directory (mobile phone, office,
home, and other).
■ Changing the language setup during the contacts update will
delete all previous updates.■ If the mobile phone is not set with a
waiting screen, calls may not be
made to this Infotainment system.
■ If the OS of the mobile phone gets updated, it may change how the
phone's Bluetooth function works.
■ Special characters and unsupported languages will be
displayed as ____.
■ Calls registered in the contacts without any name will be indicatedas No number in contact .
■ The Infotainment system will display contacts, call history, and
redial information as it is
transmitted from the mobile phone.

Phone217

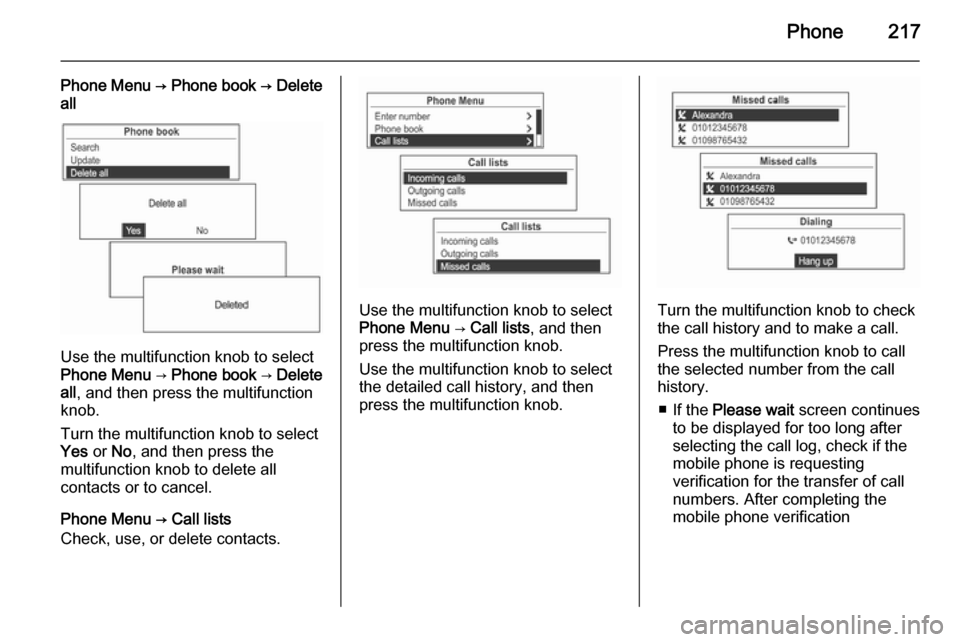

Phone Menu → Phone book → Deleteall
Use the multifunction knob to select
Phone Menu → Phone book → Delete
all , and then press the multifunction
knob.
Turn the multifunction knob to select
Yes or No, and then press the
multifunction knob to delete all
contacts or to cancel.
Phone Menu → Call lists
Check, use, or delete contacts.
Use the multifunction knob to select
Phone Menu → Call lists , and then
press the multifunction knob.
Use the multifunction knob to select
the detailed call history, and then
press the multifunction knob.Turn the multifunction knob to check
the call history and to make a call.
Press the multifunction knob to call
the selected number from the call
history.
■ If the Please wait screen continues
to be displayed for too long after selecting the call log, check if the
mobile phone is requesting
verification for the transfer of call
numbers. After completing the
mobile phone verification

218Phone
procedures, the contacts and the
call log will be transmitted to the Infotainment system.
■ The call log from the mobile phone and the log displayed on the
Infotainment system may be
different. This Infotainment system
shows the information transmitted
from the mobile phone as it is.
Phone Menu → Bluetooth settings
Setup the Bluetooth function.
Using the multifunction knob, select
the Phone Menu → Bluetooth
settings , and then press the
multifunction knob.
To activate the Bluetooth function,
register, connect or delete the
Bluetooth device or change the
Bluetooth code, choose Bluetooth by
using the multifunction knob, and
then use the multifunction knob to set
up the desired item.To set up the ring tone and its volume
used by the Bluetooth function, use
the multifunction knob to select
Sound & Signals , and then set up the
desired items with the multifunction
knob.
