Technical data203Vehicle dimensionsLength [mm]4278Width without exterior mirrors [mm]1764Width with two exterior mirrors [mm]2038Height (without antenna) [mm]1658Length of load compartment floor [mm]729Length of load compartment with folded rear seats [mm]1428Load compartment width [mm]915Load compartment height [mm]757Wheelbase [mm]2555Turning circle diameter [m]11.5

204Technical dataCapacitiesEngine oilEngineA14NETA16XERA18XERA17DTSincluding Filter [l]4.55.14.55.4between MIN and MAX [l]1.01.01.01.0
Fuel tank
EngineA14NETA16XERA18XERA17DTSPetrol/diesel, refilling quantity [l]52525352

Technical data205Tyre pressuresComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A14NET,
A16XER,
A17DTS195/70 R16,200/2.0 (29)200/2.0 (29)270/2.7 (39)280/2.8 (41)270/2.7 (39)280/2.8 (41)205/70 R16,215/60 R17,215/65 R16215/55 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)280/2.8 (41)270/2.7 (39)280/2.8 (41)A18XER195/70 R16,200/2.0 (29)200/2.0 (29)––200/2.0 (29)200/2.0 (29)205/70 R16215/55 R18220/2.2 (32)220/2.2 (32)––220/2.2 (32)220/2.2 (32)AllTemporary spare
wheel420/4.2 (61)420/4.2 (61)––420/4.2 (61)420/4.2 (61)

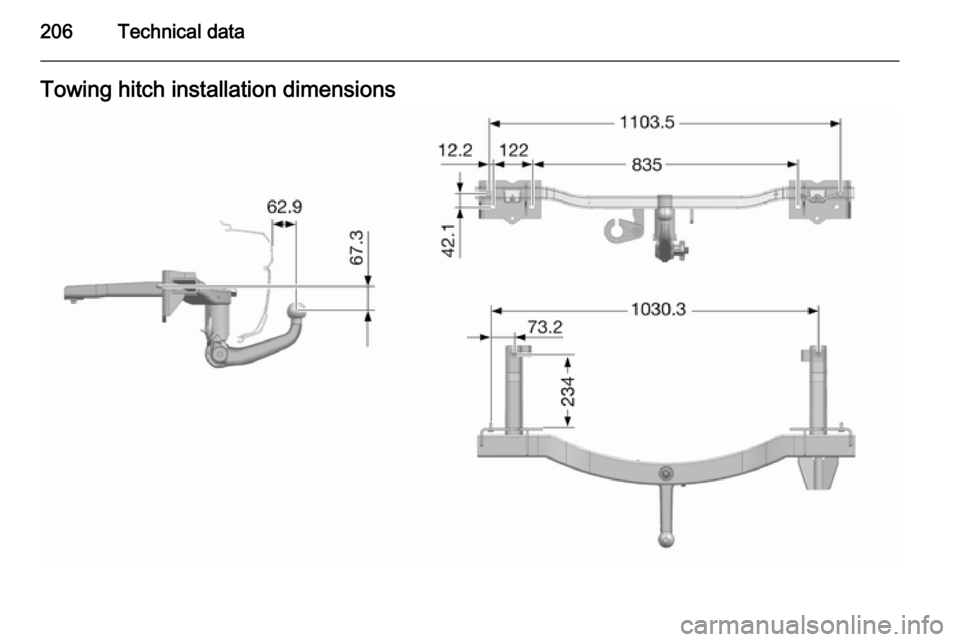

206Technical dataTowing hitch installation dimensions

Customer information207Customer informationCustomer information................207
Vehicle data recording and pri‐
vacy ........................................... 207Customer information
Declaration of conformity
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.Vehicle data recording
and privacy
Event data recorders
Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
■ Operating conditions of system components (e.g. filling levels)
■ Status messages of the vehicle and
its single components (e.g. number of wheel revolutions / rotational
speed, deceleration, lateral
acceleration)
■ Dysfunctions and defects in important system components

208Customer information
■ Vehicle reactions in particulardriving situations (e.g. inflation of
an airbag, activation of the stability
regulation system)
■ Environmental conditions (e.g. temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimizing vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may be associated with a specific person -
possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular vehicle data from the vehicle.Radio Frequency
Identification (RFID) RFID technology is used in somevehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in
Vauxhall vehicles does not use or
record personal information or link with any other Vauxhall system
containing personal information.
