VAUXHALL MOKKA 2015 User Guide

In brief9
Exterior mirrors
Select the relevant exterior mirror andadjust it.
Convex exterior mirrors 3 27,
Electric adjustment 3 27, Folding
exterior mirrors 3 27, Heated
exterior mirrors 3 28.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 41, Ignition
positions 3 121.

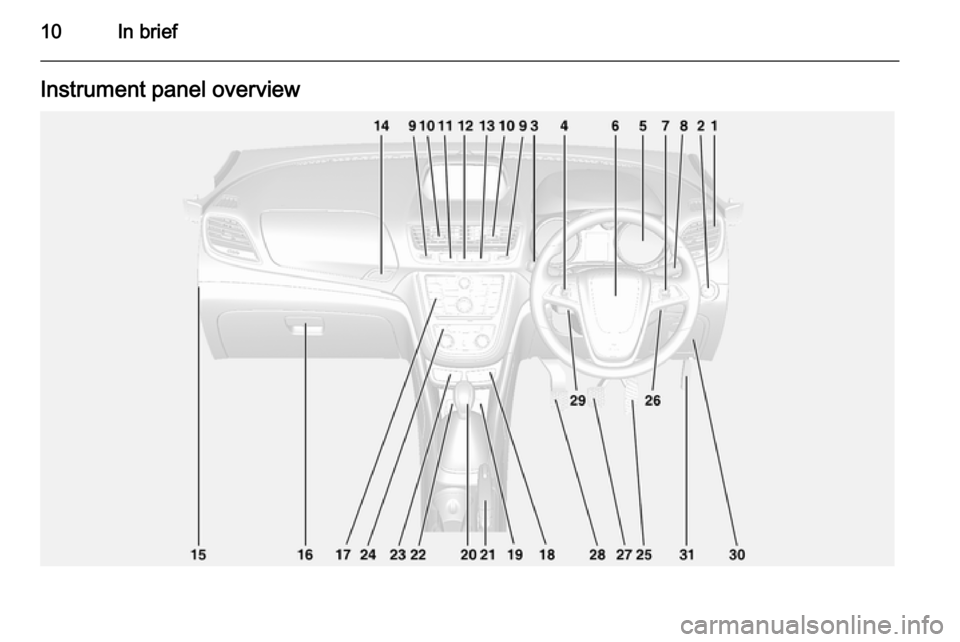

10In briefInstrument panel overview

In brief11
1Side air vents ...................... 118
2 Light switch ......................... 104
3 Turn and lane-change
signals ................................. 109
Headlight flash ....................105
Low beam and high beam ..105
4 Cruise control ...................... 136
Speed limiter ....................... 137
Forward collision alert .........138
5 Instruments ........................... 79
6 Horn ..................................... 73
Driver airbag ........................ 44
7 Steering wheel controls .......72
8 Windscreen wiper,
windscreen washer system ...73
Rear wiper, rear washer system ................................... 75
9 Centre air vents adjustment 118
10 Centre air vents ................... 118
11 Electronic Stability Control . 134
12 Hazard warning flashers ....10913 Control indicator for airbag
deactivation .......................... 84
14 Instrument panel storage
button .................................... 54
15 Passenger airbag
deactivation ........................... 46
16 Glovebox .............................. 55
17 Infotainment system
18 Eco button for stop-start
system ................................. 122
Fuel selector ......................... 80
19 AUX input, USB input, SD
card slot
20 Selector lever, manual
transmission ....................... 130
Automatic transmission ......127
21 Parking brake ......................132
22 Power outlet .......................... 78
23 Parking assist ..................... 140
Descent control system ......... 86
24 Climate control system ........ 113
25 Accelerator pedal ................12126Ignition switch with
steering wheel lock ............121
27 Brake pedal ......................... 131
28 Clutch pedal ........................ 120
29 Steering wheel adjustment ..72
30 Instrument panel storage ......54
31 Bonnet release lever ..........158

12In briefExterior lighting
Turn light switch:
AUTO=automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.m=activation or deactivation of
the automatic light control.
Switch turns back to AUTO.8=sidelights9=low beamVehicles without automatic light
control:7=off
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 104.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 104, High
beam 3 105, Headlight flash 3 105,
Adaptive forward lighting 3 107.

In brief13
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 109.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 109.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI=fastLO=slowINT=interval wiping or automatic
wiping with rain sensorOFF=off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 73, Wiper
blade replacement 3 163.
Windscreen washer systems
Pull lever.
Windscreen washer system 3 73,
Washer fluid 3 161.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch=continuous
operationlower switch=intermittent
operationmiddle position=off

In brief15
Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 75.
Climate control
Heated rear window, heatedexterior mirrors
The heating is operated by pressing
the Ü button.
Heated rear window 3 30.
Demisting and defrosting the
windows
Press button V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 113.

16In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 130.
Automatic transmissionP=parkR=reverseN=neutralD=drive
Manual mode: Move selector lever to
M .
<=higher gear.]=lower gear.
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage P or R, press the release button.
Automatic transmission 3 127.
Starting off
Check before starting off â–  Tyre pressure and condition 3 177,
3 210.
â–  Engine oil level and fluid levels 3 158.
â–  All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
â–  Proper position of mirrors, seats, and seat belts 3 27, 3 34,
3 39.
â–  Brake function at low speed, particularly if the brakes are wet.

In brief17
Starting the engine
â–  Turn key to position 1
â–  move the steering wheel slightly to release the steering wheel lock
â–  operate clutch and brake
â–  automatic transmission in P or N
â–  do not operate accelerator pedal
â–  diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes
â–  turn key to position 3 and release
Starting the engine 3 121.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
â–  Depress the clutch pedal
â–  shift the selector lever to N
â–  release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 122.
Parking9 Warning
â–  Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust system could ignite the surface.
â–  Always apply the parking brake.
Activate the parking brake
without pressing the release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress foot brake
at the same time to reduce
operating force.
â–  Switch off the engine.
â–  If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector lever
to position P before removing
the ignition key. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position

18In briefP before removing the ignition
key. Turn the front wheels
towards the kerb.
â–  Close the windows and the sunroof.
â–  Remove the ignition key. For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
Turn the steering wheel until the
steering wheel lock is felt to
engage.
â–  Lock the vehicle with button e on
the radio remote control.
Activate the anti-theft alarm system
3 25.
â–  The engine cooling fans may run after the engine has been switchedoff 3 157.
â–  After running at high engine speeds
or with high engine loads, operate the engine briefly at a low load or
run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19, Laying-up the
vehicle up for a long period of time
3 156.
