VAUXHALL MOVANO_B 2015.5 User Guide

In brief9
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 30.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 31, Folding
exterior mirrors 3 31, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 46, Ignition
positions 3 110.

10In briefInstrument panel overview

In brief11
1Fixed air vents .................... 107
2 Headlight range
adjustment ........................... 90
Ultrasonic parking assist .....130
Traction control system ......124
Electronic stability program 125
3 Side air vents .....................106
4 Light switch .......................... 89
Turn and lane-change
signals .................................. 91
High beam and low beam,
headlight flash ......................90
Sidelights .............................. 89
Automatic light control .......... 89
Exit lighting ........................... 95
Front fog lights .....................92
Rear fog light ........................ 92
5 Instruments .......................... 74
Transmission display ............77
Driver Information Centre ...... 846 Horn ..................................... 70
Driver airbag ........................ 50
7 Remote control on
steering wheel .......................69
Cruise control .....................126
8 Windscreen wiper,
windscreen washer system ..70
Trip computer ........................ 86
9 Coin tray ............................... 61
10 Power outlet ......................... 72
11 Centre air vents .................. 106
12 Storage compartment ...........61
13 Front passenger airbag .........50
Storage compartment ..........61
14 Glovebox .............................. 62
15 Cupholders ........................... 62
16 Climate control system ......... 96
17 Cigarette lighter .................... 73
Power outlet ......................... 7218Gear lever, Manual
transmission ........................ 117
Manual transmission
automated ........................... 118
19 Cruise control and speed
limiter ................................. 126
Manual transmission
automated,
Winter and Laden modes ....120
Idle speed control ...............111
Stop-start system ................111
20 Ignition switch with
steering wheel lock ............110
21 Steering column controls .....70
22 Steering wheel adjustment ..69
23 Bonnet release lever ..........140
24 Auxiliary heater ...................102
25 Storage compartment ..........61
Fuse box ............................ 157

12In briefExterior lighting
Turn outer light switch:
7=Off0=Sidelights9 P=HeadlightsAUTO=Automatic light control:
Headlights are switched on
and off automatically.
Lighting 3 89, Automatic light
control 3 89, Headlight warning
device 3 86, Adaptive forward
lighting 3 91.
Front and rear fog lights
Turn inner light switch:
>=Front fog lightsr=Rear fog lights
Front and rear fog lights 3 92,
3 92.
Headlight flash, high beam and
low beam
Pull lever.
High beam 3 90, Headlight flash
3 90.

In brief13
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 91.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 91.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiper0=offP=timed interval wiping or
automatic wiping with rain
sensor1=slow2=fast
Windscreen wiper 3 70, Wiper
blade replacement 3 146.
Windscreen washer
Pull lever.
short pull=wiper swipes once
and washer fluid is
sprayed onto the
windscreenlong pull=wiper swipes for a
few strokes and
washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 70, Washer
fluid 3 143.
Climate control
Heated rear window
Heating is operated by pressing the
Ü button.
Heated rear window 3 34.
Heated exterior mirrors
Pressing the Ü button also activates
the heated exterior mirrors.
Heated exterior mirrors 3 31.

In brief15
Demisting and defrosting the
windows
Climate control system
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Set air distribution control to V.
■ Switch on heated rear window Ü.
■ Switch cooling AC on.
■ Open side air vents as required and
direct them towards door windows.
Climate control system 3 96.
Electronic climate control system
Press button V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 98.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 117.

16In brief
Manual transmission automatedN=Neutralo=Drive position+=Higher gear-=Lower gearA/M=Switch between automatic and
manual modeR=reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 118.
Starting off
Check before starting off ■ Tyre pressure and condition 3 159,
3 201.
■ Engine oil level and fluid levels 3 140.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats and seat belts 3 31, 3 37,
3 45.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position A
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ do not operate accelerator pedal
■ turn the key to position M for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre
■ turn key to position D and release
Starting the engine 3 110.

In brief17
Stop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ move the selector lever to N
■ release the clutch pedal
An Autostop is indicated when control
indicator Ï illuminates green in the
instrument cluster.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 111.
Parking9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust system could ignite the surface.
■ Always apply parking brake without pressing release button.Apply as firmly as possible on a
downhill slope or uphill slope.
Depress foot brake at the same
time to reduce operating force.
■ Switch off the engine.
■ If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards
the kerb.
■ Remove the ignition key. Turn the steering wheel until the steering
wheel lock is felt to engage.
■ Close the windows.
■ Lock the vehicle with button e on
the radio remote control 3 20.
■ Activate the anti-theft alarm system
3 28.
■ The engine cooling fans may run after the engine has been switchedoff 3 139.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 18, Laying the vehicle
up for a long period of time 3 138.

18Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 18
Doors ........................................... 24
Vehicle security ............................ 28
Exterior mirrors ............................ 30
Interior mirrors ............................. 32
Windows ...................................... 33
Roof ............................................. 35Keys, locks
Keys Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 175.
Lock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.When the vehicle is taken to a
workshop, this vehicle data is needed in order to perform certain operations.

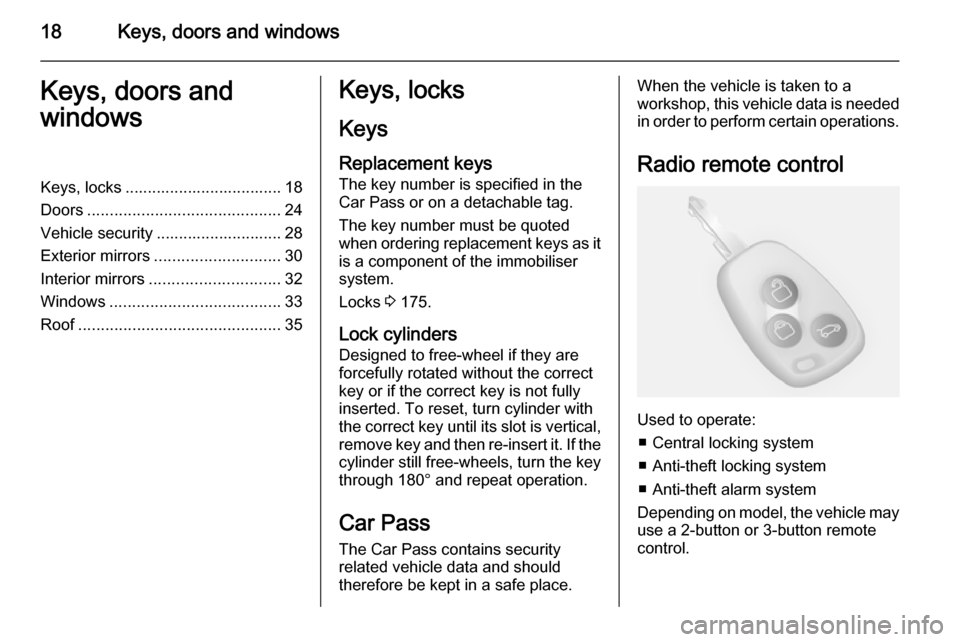

Radio remote control
Used to operate: ■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
