Fuse box ............................ 193Exterior lighting

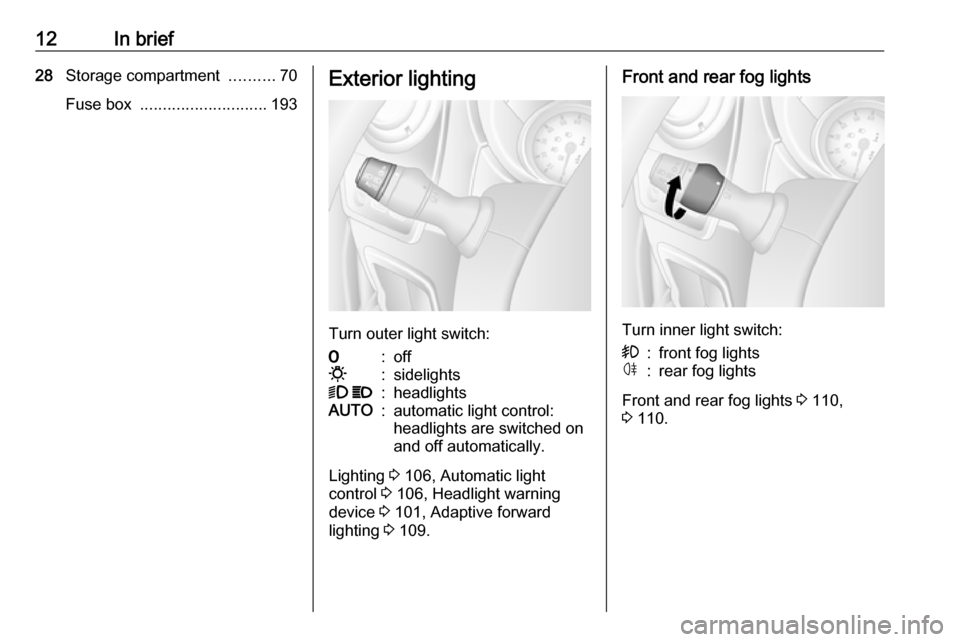

Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 106, Automatic light
control 3 106, Headlight warning
device 3 101, Adaptive forward
lighting 3 109.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front and rear fog lights 3 110,
3 110.

26Keys, doors and windowsWarning lights in the appropriate
doors extinguish.
To unlock, press 0 side of switch.
Warning lights in the appropriate
doors illuminate continuously.
Fault
In the event of a fault in the system,
the warning light alongside the switch illuminates continuously and an
audible warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic lockingAutomatic locking after driving off
Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.
Activation
With the ignition switched on, press and hold the central locking switch e
for approx. five seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press
and hold e for approx. five seconds.
An audible signal confirms
deactivation.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.

Keys, doors and windows31
The left-hand rear door is then
released using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.

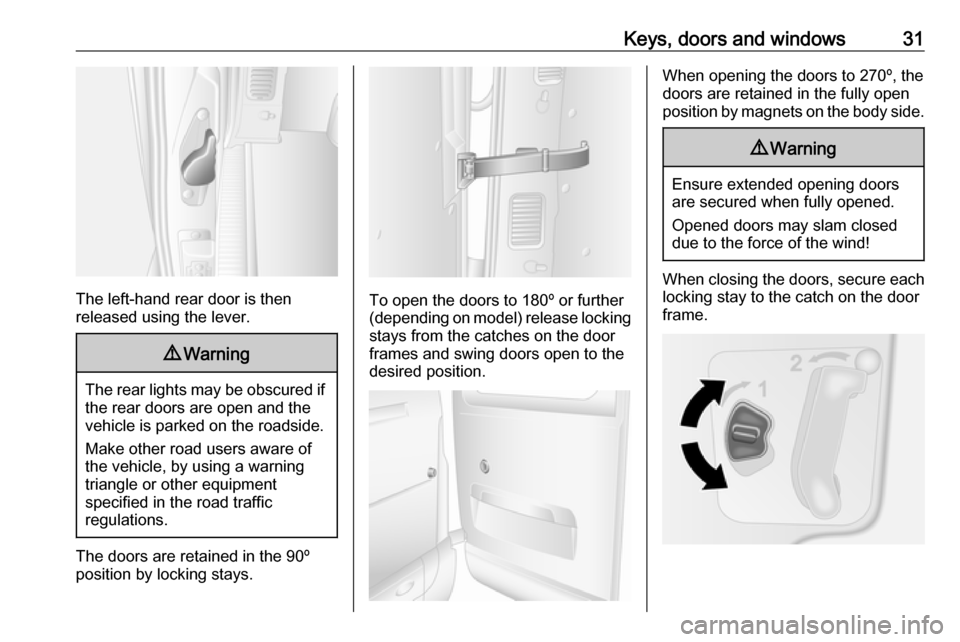

The doors are retained in the 90º
position by locking stays.
To open the doors to 180º or further
(depending on model) release locking
stays from the catches on the door
frames and swing doors open to the
desired position.
When opening the doors to 270º, the doors are retained in the fully open
position by magnets on the body side.9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
When closing the doors, secure each
locking stay to the catch on the door
frame.

32Keys, doors and windowsThe rear doors can be locked from
inside the vehicle with the interior lock switch on the inside of the right-hand
door.
Always close the left-hand door
before the right-hand door.
Combi, Bus
In left-hand drive vehicles, the rear
doors are opened from inside the
vehicle by pulling the interior handle.
In right-hand drive vehicles, from
inside the vehicle pull the interior
handle on the right-hand door and
open, then release the left-hand door by lowering the lever and open.
Always close the left-hand door
before the right-hand door.9 Danger
Do not drive with the rear doors
open or ajar, e.g. when
transporting bulky objects, since
toxic exhaust gases, which cannot
be seen or smelled, could enter
the vehicle. This can cause
unconsciousness and even death.
Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks the doors. All
doors must be closed or the system
cannot be activated.
Notice
The anti-theft locking system cannot be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not
possible with the central locking
switch.
Activation
Press e twice within three seconds.
Hazard warning lights flash
five times as confirmation.
Deactivation Unlock the doors by pressing c on the
remote control.
Anti-theft alarm system The anti-theft alarm system is
operated in conjunction with the
central locking system.

Keys, doors and windows33It monitors:● doors, tailgate, bonnet
● passenger compartment
● load compartment
● ignition
● interruption of alarm siren power supply
Activation All doors and the bonnet must be
closed.
Press e to activate anti-theft alarm
system. Hazard warning lights flash
twice to confirm activation.
If the hazard warning lights do not
flash upon activation, a door or the
bonnet is not fully closed.
Notice
Changes to the vehicle interior, e.g.
the use of seat covers, and open
windows, could impair the function
of passenger compartment
monitoring.
Deactivation
Unlocking the vehicle or switching on the ignition deactivates the anti-theft
alarm system. Hazard warning lights
flash once to confirm deactivation.
Notice
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop the siren, switch on the ignition. The
hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
Activation without monitoring of
passenger compartment
Switch off monitoring of the
passenger compartment when
people or animals are being left in thevehicle, or if the auxiliary heater
3 121 is set for a timed or remote
controlled start.
Depending on vehicle configuration:
● press and hold e, or
● switch ignition on and off twice quickly, then close doors and
activate the anti-theft alarm
system
An audible signal will sound as
confirmation.
The status will remain until the doors
are unlocked.

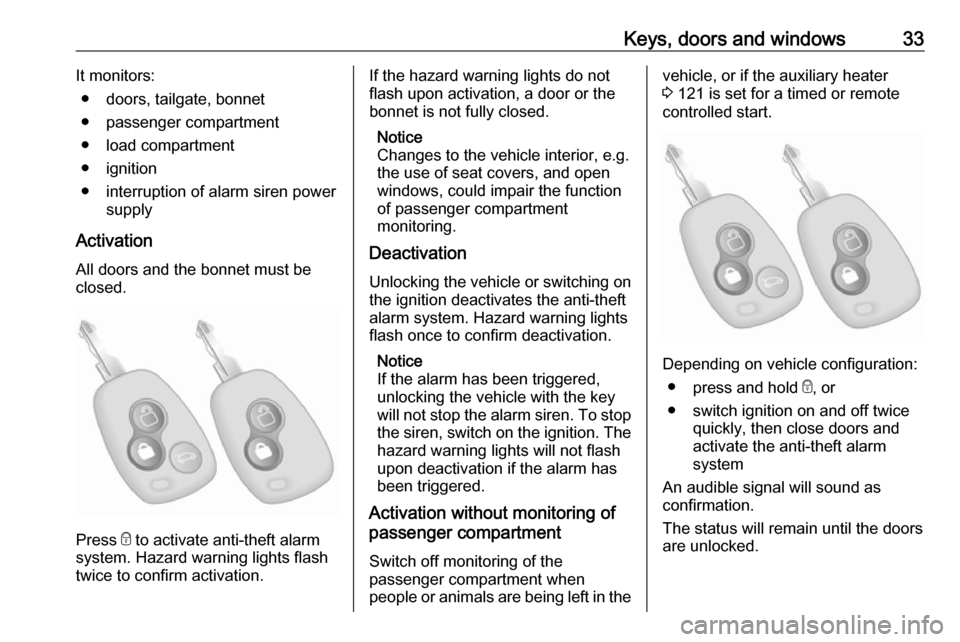

34Keys, doors and windowsAlarmWhen triggered, the alarm sounds via a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. First
deactivate the anti-theft alarm system if the vehicle battery must be
disconnected.
To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect
vehicle battery and unlock vehicle
with remote control button c (or
switch on the ignition).
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.The immobiliser is activated
automatically after the key has been removed from the ignition switch and
also if the key is left in the ignition
switch when the engine is turned off.
If the engine cannot be started, switch off the ignition and remove key, wait
approx. two seconds and then repeat
the start attempt. If start attempt is
unsuccessful, attempt to start the
engine using the spare key and seek
the assistance of a workshop.
Notice
Radio Frequency Identification
(RFID) tags may cause interference
with the key. Do not have it placed near the key when starting the
vehicle.
Notice
The immobiliser does not lock the doors. You should always lock the
vehicle after leaving it and switch on the anti-theft alarm system 3 22,
3 32.Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.
Manual adjustment
Adjust mirrors by swivelling in
required direction.
The lower mirrors are not adjustable.

Instruments and controls81Instruments and
controlsControls ....................................... 82
Steering wheel adjustment ........82
Steering wheel controls .............82
Horn ........................................... 82
Steering column controls ...........82
Windscreen wiper/washer .........83
Outside temperature ..................84
Clock ......................................... 85
Power outlets ............................. 85
Cigarette lighter ......................... 87
Ashtrays .................................... 87
Warning lights, gauges and indi‐
cators ........................................... 87
Instrument cluster ......................87
Speedometer ............................. 87
Odometer .................................. 88
Trip odometer ............................ 88
Tachometer ............................... 88
Fuel gauge ................................ 89
AdBlue gauge ............................ 89
Engine coolant temperature gauge ....................................... 89
Engine oil level monitor .............90
Service display .......................... 90Transmission display .................91
Control indicators ......................91
Turn signal ................................. 94
Seat belt reminder .....................94
Airbag and belt tensioners .........94
Airbag deactivation ....................94
Charging system .......................95
Malfunction indicator light ..........95
Service vehicle soon .................95
Stop engine ............................... 96
Brake system ............................. 96
Antilock brake system (ABS) .....96
Upshift ....................................... 96
Lane departure warning ............96
Electronic Stability Program ......97
Electronic Stability Program off ............................................. 97
Engine coolant temperature ......97
Preheating ................................. 97
AdBlue ....................................... 97
Tyre pressure monitoring system ...................................... 97
Engine oil pressure ....................98
Low fuel ..................................... 98
Stop-start system ......................98
Exterior light .............................. 99
High beam ................................. 99
High beam assist .......................99
Fog light ..................................... 99
Rear fog light ............................. 99Cruise control............................ 99
Tachograph ............................... 99
Door open .................................. 99
Information displays ...................100
Driver Information Centre ........100
Info display .............................. 100
Vehicle messages ......................101
Warning chimes .......................101
Trip computer ............................. 102
Tachograph ................................ 104

Instruments and controls87Cigarette lighter
Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not for combustible rubbish.
Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.
Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.
Speedometer
Indicates vehicle speed.

Instruments and controls101Vehicle messages
Messages appear in the Driver
Information Centre, in combination
with control indicator A or C.
Information messagesInformation messagesBATTERY MODE: ECONOMYESP OFFAUTO LIGHTS DEACTIVATEDOIL LEVEL CORRECT
Fault messages Displayed in combination with control
indicator A. Drive with caution and
seek the assistance of a workshop.
To remove fault message, press
button on end of wiper lever. After a
few seconds the message may
disappear automatically and A
remains illuminated. The fault will
then be stored in the on board
system.
Fault messagesCHECK ESPCHECK FUEL FILTERCHECK GEARBOXCHECK AUTO LIGHTS
Warning messages
These may appear with control
indicator C or in combination with
other warning messages, control
indicators or an audible warning. Stop engine immediately and seek the
assistance of a workshop.
Warning messagesINJECTION FAULTENGINE OVERHEATINGGEARBOX OVERHEATING
Tyre pressure monitoring system
3 199.
Warning chimes
When starting the engine or whilst
driving
Only one warning chime will sound at a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
● If seat belt is not fastened 3 52.
● If a certain speed is exceeded with the parking brake applied
3 153.
● If the parking assist detects an object or a fault is present
3 161.
● If the vehicle has manual transmission automated and the
clutch temperature is too high
3 148.
● If the vehicle speed briefly exceeds a set limit 3 87.
● During closing of the power sliding door 3 27.
● If the sliding door is open and the
parking brake is released 3 27.

102Instruments and controls● During activation anddeactivation of alarm monitoringof vehicle inclination 3 32.
● If the AdBlue level falls below a certain amount or a fault is
present 3 141.
● If the lane departure warning system detects an unintended
lane change and when the
system is activated 3 165.
When the vehicle is parked and/or
the driver's door is opened
● When the key is in the ignition switch.
● With exterior lights on 3 106.
● There is a fault with the power door lock system 3 25.
● If the vehicle has manual transmission automated 3 148;
the parking brake has not been
applied, neutral is not selected or
the brake pedal has not been
depressed. A corresponding
message may also appear in the
Driver Information Centre 3 100.● If the sliding side door exterior
handle is in the open position
when unlocking the vehicle 3 27.
● If the parking brake is not applied
when the power sliding door
switch is pressed 3 27.
● If the power sliding door is locked
from the inside with the child lock
active 3 27.
● If the engine is in an Autostop but
not switched off. Stop-start
system 3 134.Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated electronically.
Depending on vehicle, the following
functions can be selected by pressing button repeatedly on end of wiper
lever:
● fuel used
● average consumption
● instantaneous consumption
● range
● distance travelled
