Instruments and Controls 69
The menu and function can be
selected via the buttons on the
indicator lever.
To display the remaining engine oil
life duration:
PressMENU to select the Vehicle
Information Menu.
Turn the adjuster wheel to select
Remaining Oil Life.
The system must be reset every
time the engine oil is changed to
allow proper functionality. Seek the
assistance of a workshop. Press
SET/CLR to reset. The
ignition must be switched on, with
the engine not running.
When the system has calculated
that engine oil life has been
diminished, Change Engine Oil
Soon or a warning code appears in
the Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
300 miles (whichever occurs first).
Driver Information Centre
0Driver
Information Centre (DIC) 075.
Service information
0Service
Information 0198.
Indicator
G
illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
An indicator or the hazard warning
lights are activated.
Rapid flashing: failure of an
indicator light or associated fuse,
failure of indicator light on trailer. Bulb replacement
0Bulb
Replacement 0167.
Fuses
0Fuses 0173.
Indicators
0Indicator Signals 086.
Seat Belt Reminders
Seat belt reminder on front
seats
>illuminates or flashes red.
Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.
Fastening the seat belt
0
Three-Point Seat belt 036.
Seat belt status on rear seats
>in the Driver Information Centre
flashes or illuminates.
Page 76 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 75

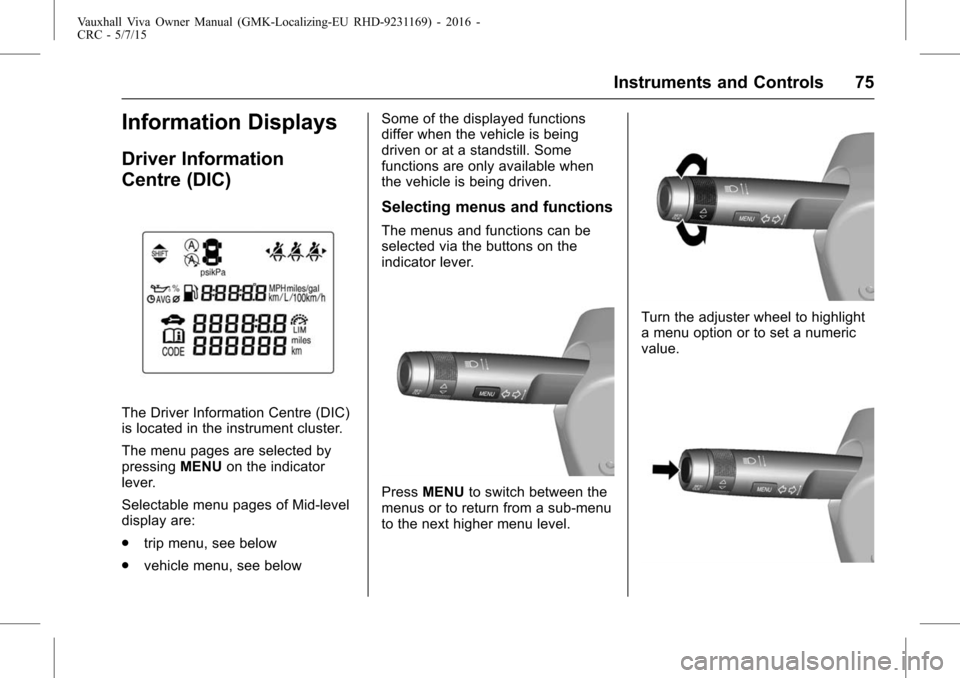

Information Displays
Driver Information
Centre (DIC)
The Driver Information Centre (DIC)
is located in the instrument cluster.
The menu pages are selected by
pressingMENUon the indicator
lever.
Selectable menu pages of Mid-level
display are:
. trip menu, see below
. vehicle menu, see below Some of the displayed functions
differ when the vehicle is being
driven or at a standstill. Some
functions are only available when
the vehicle is being driven.
Selecting menus and functions
The menus and functions can be
selected via the buttons on the
indicator lever.
Press
MENU to switch between the
menus or to return from a sub-menu
to the next higher menu level.
Turn the adjuster wheel to highlight
a menu option or to set a numeric
value.
Page 90 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Lighting 89
On vehicles with light sensor the
brightness can only be adjusted
when the exterior lights are on and
the light sensor detects night
conditions.

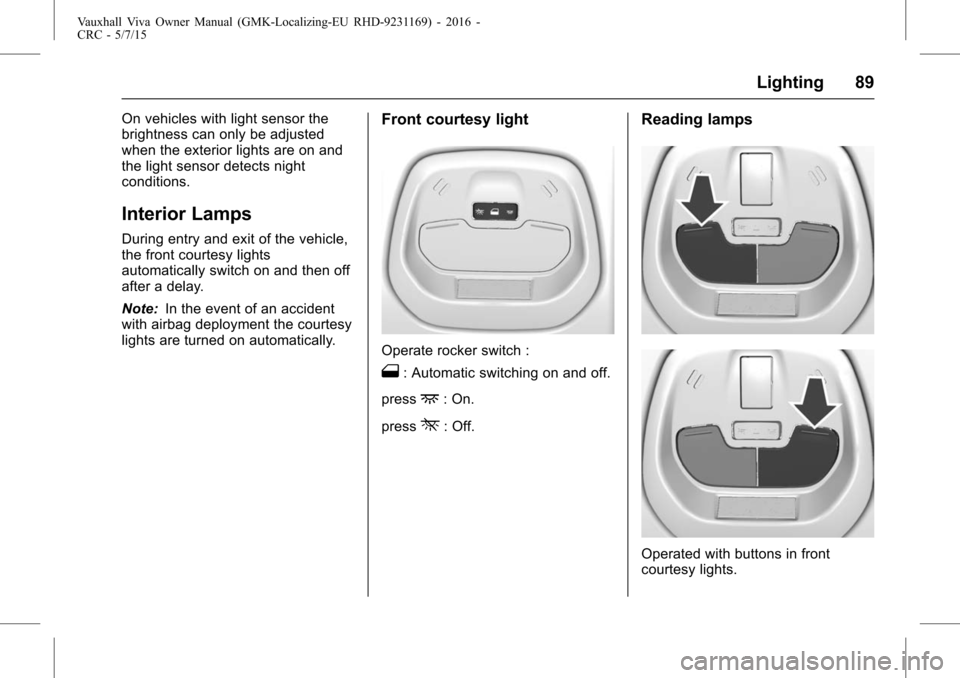

Interior Lamps
During entry and exit of the vehicle,
the front courtesy lights
automatically switch on and then off
after a delay.
Note:In the event of an accident
with airbag deployment the courtesy
lights are turned on automatically.
Front courtesy light
Operate rocker switch :
1: Automatic switching on and off.
press
+: On.
press
*: Off.
Reading lamps
Operated with buttons in front
courtesy lights.
Page 93 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
92 Infotainment System
Infotainment
System
Introduction
Introduction . . . . . . . . . . . . . . . . . . . . 92
Theft-Deterrent Feature . . . . . . . . 92
Overview . . . . . . . . . . . . . . . . . . . . . . 93
Operation . . . . . . . . . . . . . . . . . . . . . . 99
Radio
AM-FM Radio . . . . . . . . . . . . . . . . 102
Radio Data System (RDS) . . . . 106
Audio Players
Auxiliary Devices . . . . . . . . . . . . . 108
Personalisation
Personalisation . . . . . . . . . . . . . . . 115
Phone
Bluetooth ((Type A/B only)) . . . 116
OnStar System
OnStar System . . . . . . . . . . . . . . . 125
Introduction
General
The Infotainment system provides
Infotainment in your car, using the
latest technology.
The radio can be easily used by
registering up to 24 AM-FM radio or
DAB stations with the−(preset)
buttons 1 ~ 4 per every six pages.
The USB player can play connected
USB storage devices or iPod
products.
The function of the Bluetooth phone
connection allows for the use of
wireless hands-free phone calls, as
well as a phone music player.
Connect a portable music player to
the exterior sound input and enjoy
the rich sound of the Infotainment
system.
The digital sound processor
provides a number of preset
equaliser modes for sound
optimisation.
Specifications
‐ Maximum output power : 25 W x
4 channels
‐ Speaker impedance : 4 ohms
The system can be easily adjusted
using the carefully designed
adjusting device, smart display, and
multifunctional menu dial regulator.
. The "Overview " section
provides a simple overview of
the Infotainment system
functions and a summary of all
regulatory devices.
. The "Operation " section
explains the basic controls for
the Infotainment system.
Theft-Deterrent Feature
The Infotainment system is
equipped with an electronic security
system for the purpose of theft
deterrence.
The Infotainment system therefore
functions only in your vehicle and is
worthless to a thief.
Page 96 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Infotainment System 95
9. - (preset) buttons.In Radio mode:
When pressed shortly,
recall the stored radio
station.
When pressed and held,
store the current radio
station to the
Favourites page.
. In Menu mode:
Press any of these buttons
to select the function linked
to that button.
10. FAV (favourites) Press this button to select the
page of saved favourite
channels.
Page 98 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Infotainment System 97
1.P(power) button with
VOLUME dial
. When power is off, press to
turn power on.
. When power is on, press
and hold to turn power off.
. When power is on, press
shortly to turn the mute
function on or off.
. Turn to control volume.
2. RADIO Select Radio mode. Each time
the button is pressed, the
system switches between AM
RADIO →FM RADIO →AM
RADIO →….
3. MEDIA Press the button to enter the
Aux mode.
4. Display Display for Play, Reception,
Menu state and information. 5.g/d(seek)
When pressed shortly,
automatically seeks station
with superior reception.
When pressed and held,
continuously changes the
station until the button is
released. When releasing, the
system stops on the current
frequency displayed or seeks
the next station.
6. TONE
Press this button to enter the
Tone Settings mode.
7. BACK Cancel input content or return
to the previous menu.
8. MENU button with TUNE dial .Turn dial to search the
station on the list screen or
move/change setup content
or setup values. .
Press the button to display
the currently functioning
menu or select/practice
setup content and setup
values.
9. AUX port
Connect the external audio
device.
10. - (preset) buttons .In Radio mode:
When pressed shortly,
recall the stored radio
station.
When pressed and held,
store the current radio
station to the
Favourites page.
. In Menu mode:
Press any of these buttons
to select the function linked
to that button.
11. FAV (favourites) Press this button to select the
page of saved favourite
channels.
Page 99 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
98 Infotainment System

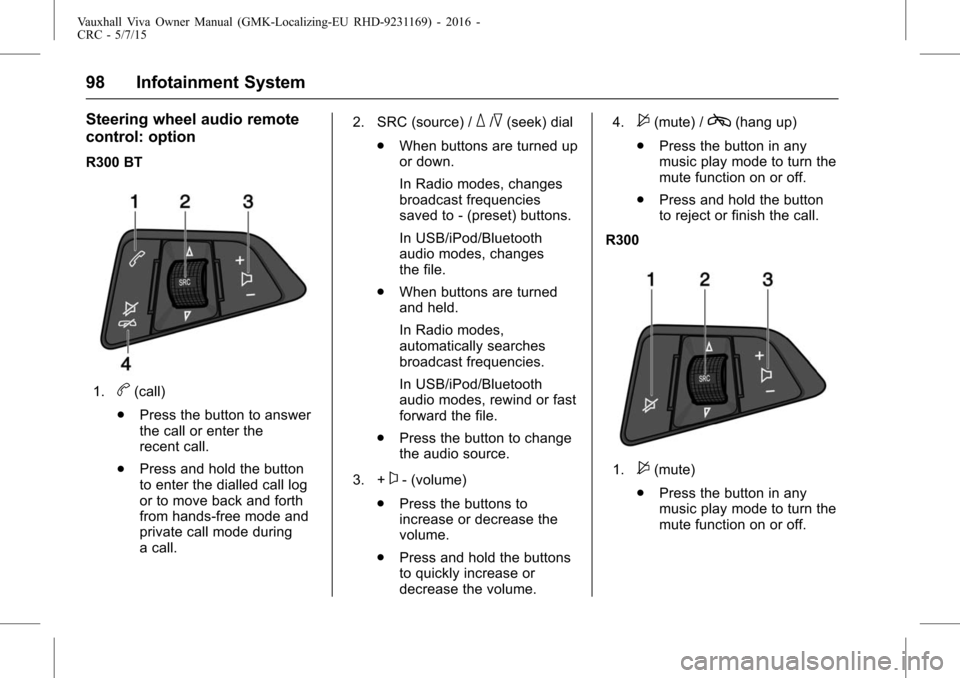

Steering wheel audio remote
control: option
R300 BT
1.b(call)
. Press the button to answer
the call or enter the
recent call.
. Press and hold the button
to enter the dialled call log
or to move back and forth
from hands-free mode and
private call mode during
a call. 2. SRC (source) /
_/^(seek) dial
. When buttons are turned up
or down.
In Radio modes, changes
broadcast frequencies
saved to - (preset) buttons.
In USB/iPod/Bluetooth
audio modes, changes
the file.
. When buttons are turned
and held.
In Radio modes,
automatically searches
broadcast frequencies.
In USB/iPod/Bluetooth
audio modes, rewind or fast
forward the file.
. Press the button to change
the audio source.
3. +
x- (volume)
. Press the buttons to
increase or decrease the
volume.
. Press and hold the buttons
to quickly increase or
decrease the volume. 4.
$(mute) /c(hang up)
. Press the button in any
music play mode to turn the
mute function on or off.
. Press and hold the button
to reject or finish the call.
R300
1.$(mute)
. Press the button in any
music play mode to turn the
mute function on or off.
Page 100 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Infotainment System 99
2. SRC (source) /_/^(seek) dial
. When buttons are turned
up/down.
In Radio modes, changes
broadcast frequencies
saved to Presets.
. When buttons are turned
and held.
In Radio modes,
automatically searches
broadcast frequencies.
. Press the button to change
the audio source.
3. +
x- (volume)
. Press the buttons to
increase or decrease the
volume.
. Press and hold the buttons
to quickly increase or
decrease the volume.

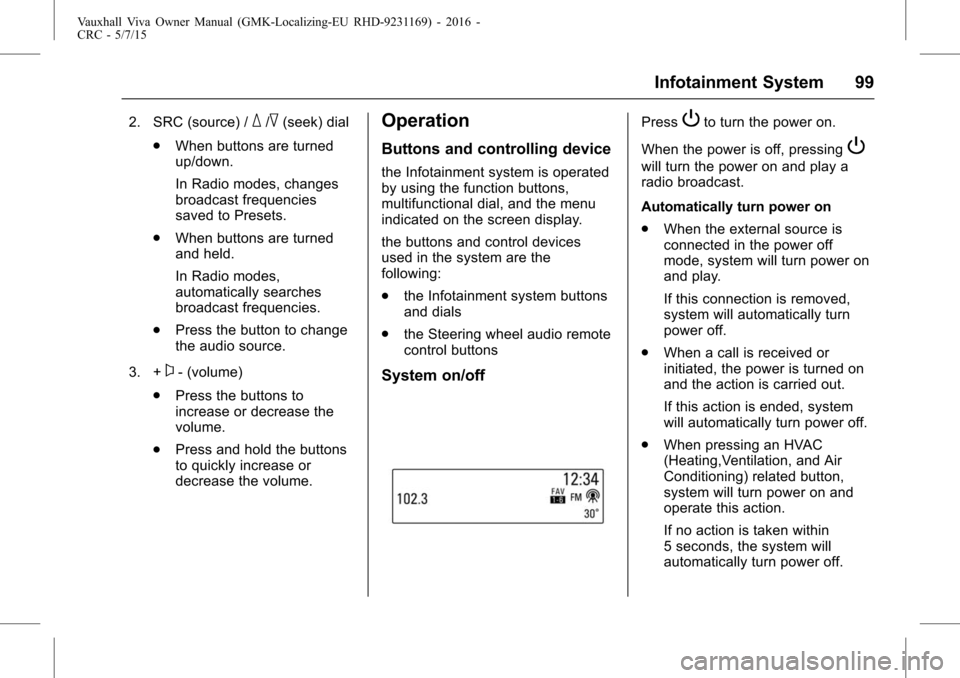

Operation
Buttons and controlling device
the Infotainment system is operated
by using the function buttons,
multifunctional dial, and the menu
indicated on the screen display.
the buttons and control devices
used in the system are the
following:
.the Infotainment system buttons
and dials
. the Steering wheel audio remote
control buttons
System on/off
PressPto turn the power on.
When the power is off, pressing
P
will turn the power on and play a
radio broadcast.
Automatically turn power on
. When the external source is
connected in the power off
mode, system will turn power on
and play.
If this connection is removed,
system will automatically turn
power off.
. When a call is received or
initiated, the power is turned on
and the action is carried out.
If this action is ended, system
will automatically turn power off.
. When pressing an HVAC
(Heating,Ventilation, and Air
Conditioning) related button,
system will turn power on and
operate this action.
If no action is taken within
5 seconds, the system will
automatically turn power off.
Page 106 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Infotainment System 105
.When the beginning or end of
the station list is reached, the
tuning wraps to the beginning or
end of the list depending on the
direction of tuning.
Storing favourites
Repeatedly press FAV to select the
desired page of stored favourites.
Press and hold any of the - (preset)
buttons to store the current radio or
DAB station to that button of the
selected Favourites page.
. Up to 6 Favourites pages can be
stored, and each page can store
up to four radio or DAB stations.
. It is possible to setup the
number of the Favourites pages
being used in Menu →Set
Number of Favourite Pages.
. If a new radio or DAB station is
stored to a - (preset) button
previously stored, its previous
content will be deleted and
replaced with the new radio or
DAB station that is stored. .
The maximum number of
Favourites that a user can store
is 24.
Selecting presets
Repeatedly press FAV to select the
desired FAV preset page.
. The number 1 broadcasting
information of the selected FAV
preset page will be displayed.
Press a - (preset) button to directly
listen to the radio or DAB station
stored to that button.
Waveband menus
While listening to the radio, press
MENU to enter the AM, FM or
DAB menu.
Turn the TUNE dial to move to the
desired menu item, and then press
MENU to select the relevant item or
to enter the item's detailed menu.
AM-FM menu
. Station list: Selects a station in
the list of strong stations.
. Update station list:
Automatically searches and
saves receivable frequencies to
the Station List.
. Manual tuning: Briefly turn the
dial to move to the previous/next
frequency.
. Set number of favourites page:
Set the number of Favourites
pages.
Page 126 of 222
Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Infotainment System 125
Text messages
When a Text Message is received
by the connected Bluetooth mobile
phone, the playing track will be cut
off and the phone will display the
relevant information.
.If the sender is registered in the
phone book, the first and last
name are displayed.
. If the number is not stored in the
phone book, the phone number
is displayed.
. The Text Message alert is
displayed as soon as all
information is available.
To display the entire message,
press - directly below the display
labelled “View”. The detail
message screen is now displayed.OnStar System
OnStar Overview
If equipped, this vehicle has a
comprehensive, in-vehicle system
that can connect to a live Advisor
for Emergency, Security, Navigation,
Connection, and Diagnostic
Services.
For safety, some features are
disabled while the vehicle is in
motion.
Control Panel Overview OnStar
Light
The OnStar system status light is
next to the OnStar buttons. If the
status light is :
. Solid Green : The OnStar
system is ready to make calls
. Flashing Green : On a call
. Red : Indicates a problem
. No Light : OnStar subscription
is not active or has expired and
is not functional OnStar Buttons
X(Hands-free calling) button
:
Press to speak to an Advisor
. Make a call, end a call,
or answer an incoming call.
. Give OnStar Hands-Free Calling
voice commands.
. Give OnStar Turn-by-Turn
Direction voice commands.
Requires the available Directions
and Connections service plan.
Q(OnStar) button : Press to
connect to an Advisor
. Verify account information or
update contact information.
. Get driving directions. Requires
the available Directions and
Connections service plan.
. Receive On-Demand
Diagnostics for a check on the
vehicle's key operating systems.
. Receive Roadside Assistance.
](Emergency) button : Press to
connect to an Emergency Advisor
. Get help for an emergency.
