child restraint VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 31
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 31
Front Seats
Seat Position . . . . . . . . . . . . . . . . . . 33
Seat Adjustment . . . . . . . . . . . . . . . 33
Heated Front Seats . . . . . . . . . . . . 35
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 35
Three-Point Safety Belt . . . . . . . . 36
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 38
Front Airbag System . . . . . . . . . . . 41
Side Airbag System . . . . . . . . . . . . 42
Curtain Airbag System . . . . . . . . . 42
Airbag On-Off Switch . . . . . . . . . . 43
Child Restraints
Child Restraint Systems . . . . . . . 44
Child Restraint InstallationLocations . . . . . . . . . . . . . . . . . . . . . 46
ISOFIX Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 49
Top Tether Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 51Head Restraints
Position
{Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head
restraint should be at upper head
level. If this is not possible for
extremely tall people, set to highest
position, and set to lowest position
for small people.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 35

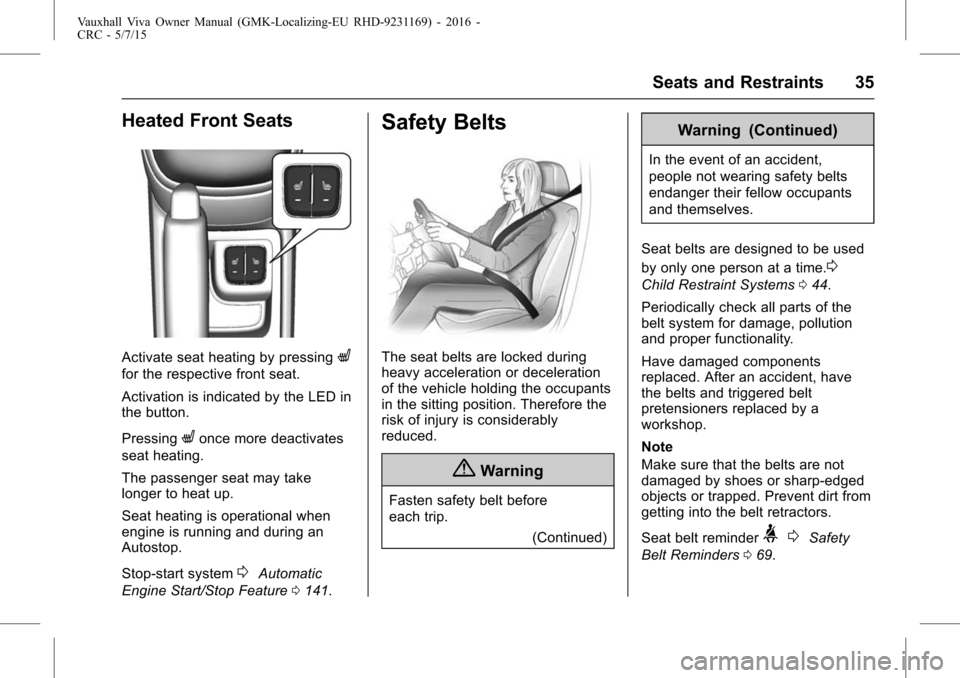

Heated Front Seats
Activate seat heating by pressingL
for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing
Lonce more deactivates
seat heating.
The passenger seat may take
longer to heat up.
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Safety Belts
The seat belts are locked during
heavy acceleration or deceleration
of the vehicle holding the occupants
in the sitting position. Therefore the
risk of injury is considerably
reduced.
{Warning
Fasten safety belt before
each trip.
(Continued)
Warning (Continued)
In the event of an accident,
people not wearing safety belts
endanger their fellow occupants
and themselves.
Seat belts are designed to be used
by only one person at a time.
0
Child Restraint Systems 044.
Periodically check all parts of the
belt system for damage, pollution
and proper functionality.
Have damaged components
replaced. After an accident, have
the belts and triggered belt
pretensioners replaced by a
workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
> 0Safety
Belt Reminders 069.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
38 Seats and Restraints
Airbag System
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered the airbags inflate
within milliseconds. They also
deflate so quickly that it is often
unnoticeable during the collision.
{Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not stick anything on the airbag
covers and do not cover them with
other materials. Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it might
be necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate, escaping
hot gases may cause burns.
Control indicator9for airbag
systems
0Airbag and Seat belt
Tensioner Light 070.
Child restraint systems on
front passenger seat with
airbag systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem
Sitz verwenden, der durch einen
davor befindlichen AKTIVEN
AIRBAG geschützt ist, da dies den

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 41

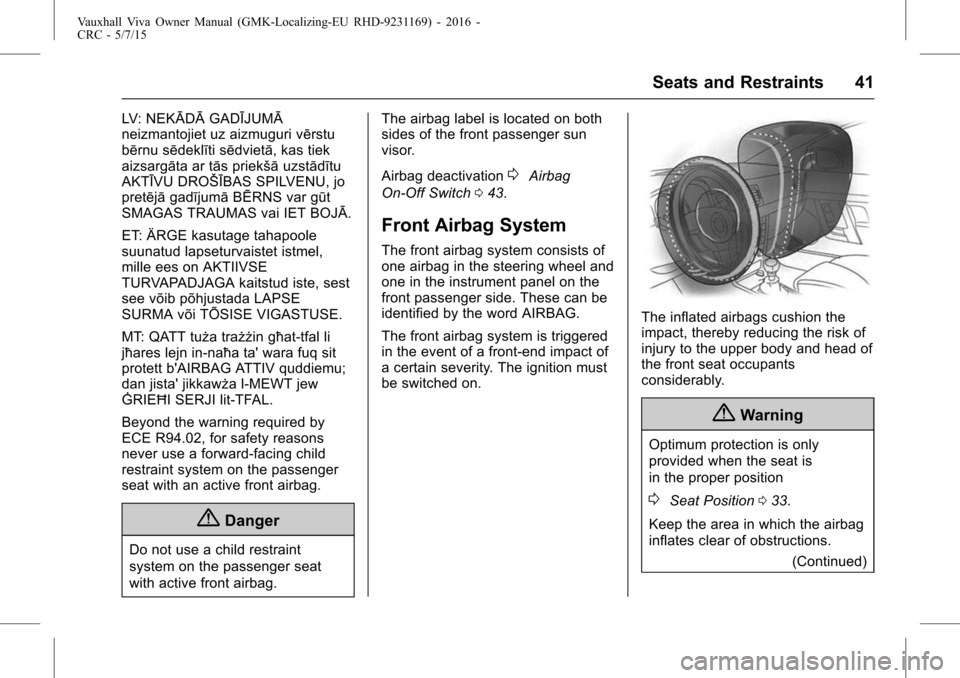

LV: NEKĀDĀGADĪJUMĀ
neizmantojiet uz aizmuguri vērstu
bērnu sēdeklīti sēdvietā, kas tiek
aizsargāta ar tās priekšā uzstādītu
AKTĪVU DROŠĪBAS SPILVENU, jo
pretējā gadījumā BĒRNS var gūt
SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole
suunatud lapseturvaistet istmel,
mille ees on AKTIIVSE
TURVAPADJAGA kaitstud iste, sest
see võib põhjustada LAPSE
SURMA või TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li
jħares lejn in-naħa ta' wara fuq sit
protett b'AIRBAG ATTIV quddiemu;
dan jista' jikkawża l-MEWT jew
ĠRIEĦI SERJI lit-TFAL.
Beyond the warning required by
ECE R94.02, for safety reasons
never use a forward-facing child
restraint system on the passenger
seat with an active front airbag.
{Danger
Do not use a child restraint
system on the passenger seat
with active front airbag. The airbag label is located on both
sides of the front passenger sun
visor.
Airbag deactivation
0Airbag
On-Off Switch 043.
Front Airbag System
The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.
The front airbag system is triggered
in the event of a front-end impact of
a certain severity. The ignition must
be switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.
{Warning
Optimum protection is only
provided when the seat is
in the proper position
0Seat Position 033.
Keep the area in which the airbag
inflates clear of obstructions. (Continued)

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 43
{Warning
Keep the area in which the airbag
inflates clear of obstructions.
The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers.
Do not keep any items in these
clothes.
Airbag On-Off Switch
The front passenger airbag system
must be deactivated if a child
restraint system is to be fitted on
this seat. The side airbag and
curtain airbag systems, the belt
pretensioners and all driver airbag
systems will remain active.
The front passenger airbag system
can be deactivated via a
key-operated switch on the left side
of the instrument panel.
Use the ignition key to choose the
position:
U: Front passenger airbags are
deactivated and will not inflate in the
event of a collision. Control indicator
Uilluminates continuously.
A child restraint system can be
installed in accordance with the
chart.
V: Front passenger airbags are
activated. No child restraint systems
can be installed.
{Danger
Risk of fatal injury for a child
using a child restraint system on
a seat with activated front
passenger airbag.
Risk of fatal injury for an adult
person on a seat with deactivated
front passenger airbag.
If the control indicatorU
illuminates for approx. 60 seconds
after the ignition is switched on, the
front passenger airbag system will

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
44 Seats and Restraints
inflate in the event of a
collision.Status remains until the
next change.
If both control indicators are
illuminated at the same time, there
is a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.
Change status only when the
vehicle is stationary with the
ignition off.
Status remains until the next
change.
Control indicator for airbag
deactivation
0Airbag On-Off Light
0 70.
Child Restraints
Child Restraint Systems
We recommend the following child
restraint systems which are tailored
specifically to the vehicle:
.
Group 0, Group 0+
Maxi-Cosi Cabriofix with ISOFIX
base, for children up to 13 kg.
. Group I
Duo Plus with ISOFIX and Top
tether, in this group.
. Group II, Group III
Kidfix with or without ISOFIX for
children from 15kg up to 36kg.
When a child restraint system is
being used, pay attention to the
following usage and installation
instructions and also those supplied
with the child restraint system. Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
{Danger
If using a rear-facing child
restraint system on the front
passenger seat, the airbag
system for the front passenger
seat must be deactivated. This
also applies to certain
forward-facing child restraint
systems as indicated in the
tables.
Airbag deactivation
0Airbag
On-Off Switch 043.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 45
Selecting the right system
The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This ensures that the
child's backbone, which is still very
weak, is under less strain in the
event of an accident.
Suitable are restraint systems that
comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of
child restraint systems.Ensure that the child restraint
system to be installed is compatible
with the vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is
not in use, secure the seat with a
seat belt or remove it from the
vehicle.
Note
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
46 Seats and Restraints
Child Restraint Installation Locations
Permissible options for fitting a child restraint system
Weight and age classOn front passenger seat
On rear
outboard seats On rear
centre seat
activated airbag deactivated
airbag
Group 0: up to 10 kg
or approx. 10 months X
U 1) UX
Group 0+: up to 13 kg
or approx. 2 years X
U 1) UX
Group I: 9 to 18 kg
or approx. 8 months to 4 years X
U 1) UX
Group II: 15 to 25 kg
or approx. 3 to 7 years X
XU X
Group III: 22 to 36 kg
or approx. 6 to 12 years X
XU X
U : Universal suitability in conjunction with three-point seat belt.
X : No child restraint system permitted in this weight class.
1) : Adjust front seat backrest inclination to upright position.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 47
Permissible options for fitting an ISOFIX child restraint system
Weight and age class Size Class FixtureOn front
passenger seat On rear
outboard seats On rear
centre seat
Group 0: up to 10 kg
or approx. 10 months F
ISO/L1 XXX
G ISO/L2 XXX
E ISO/R1 XIL X
Group 0+: up to 13 kg
or approx. 2 years E
ISO/R1 XIL X
D ISO/R2 XIL X
C ISO/R3 XIL 1) X
Group I: 9 to 18 kg
or approx. 8 months to 4 years D
ISO/R2 XIL X
C ISO/R3 XIL 1) X
B ISO/F2 XIL, IUF X
B1 ISO/F2X XIL, IUF X
A ISO/F3 XIL, IUF X

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
48 Seats and Restraints
Weight and age class Size Class FixtureOn front
passenger seat On rear
outboard seats On rear
centre seat
Group II: 15 to 25 kg
or approx. 3 to 7 years X IL X
Group III: 22 to 36 kg
or approx. 6 to 12 years X IL X
Note
Move front passenger seat to most forward position or move forward until child restraint system does not have any
interference with front seat backrest.
1) : Only applicable for rear outer behind passenger's seat with foremost seating position and backrest upright.
IL : Suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal"
categories.
The ISOFIX restraint system must be approved for the specific vehicle type.
IUF : Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight
class.
X : No ISOFIX child restraint system approved in this weight class.
