fuel pressure VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 59
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . 60
Steering Wheel Controls . . . . . . . 60
Heated Steering Wheel . . . . . . . . 60
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Windscreen Wiper/Washer . . . . . 61
Rear Window Wiper/Washer . . . 62
Outside Temperature . . . . . . . . . . 63
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Power Sockets . . . . . . . . . . . . . . . . 63
Warning Lights, Gauges, and
Indicators
Speedometer . . . . . . . . . . . . . . . . . . 64
Mileometer . . . . . . . . . . . . . . . . . . . . . 64
Trip Odometer . . . . . . . . . . . . . . . . . 64
Rev Counter . . . . . . . . . . . . . . . . . . . 65
Fuel Gauge . . . . . . . . . . . . . . . . . . . . 65
Control Indicators . . . . . . . . . . . . . . 66
Engine Coolant TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . . 68
Service Display . . . . . . . . . . . . . . . . 68
Indicator . . . . . . . . . . . . . . . . . . . . . . . 69
Seat Belt Reminders . . . . . . . . . . . 69
Airbag and Safety Belt Tensioner Light . . . . . . . . . . . . . . . 70 Airbag On-Off Light . . . . . . . . . . . . 70
Charging System Light . . . . . . . . . 70
Malfunction Indicator Lamp . . . . 70
Service Vehicle Soon Light . . . . 71
Brake and Clutch System
Warning Light . . . . . . . . . . . . . . . . 71
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . 71
Gear Shifting Light . . . . . . . . . . . . . 71
Variable Effort Steering Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Lane Departure Warning (LDW) Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Ultrasonic Parking Sensor Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electronic Stability Control (ESC) Indicator Light . . . . . . . . . 72
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . 72
Traction Control System (TCS) Off Light . . . . . . . . . . . . . . . . . . . . . . 72
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . 73
Tyre Pressure Monitoring System Light . . . . . . . . . . . . . . . . . 73
Engine Oil Pressure Light . . . . . . 73
Low Fuel Warning Light . . . . . . . . 74
Auto Stop Mode . . . . . . . . . . . . . . . 74
Immobiliser Light . . . . . . . . . . . . . . 74
Reduced Engine Power Light . . . . . . . . . . . . . . . . . . . . . . . . . 74 Main-Beam On Light . . . . . . . . . . . 74
Front Fog Lamp Light . . . . . . . . . . 74
Rear Fog Lamp Light . . . . . . . . . . 74
Tail lamp Indicator Light . . . . . . . . 74
Cruise Control Light . . . . . . . . . . . 74
Bonnet Ajar Light . . . . . . . . . . . . . . 74
Door Ajar Light . . . . . . . . . . . . . . . . 74
Information Displays
Driver Information
Centre (DIC) . . . . . . . . . . . . . . . . . 75
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . 80
Warning Buzzers . . . . . . . . . . . . . . 81
Vehicle Personalisation
Vehicle Personalisation . . . . . . . . 82

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
126 Infotainment System
.Be a Good Samaritan or
respond to an AMBER Alert.
Get assistance in severe weather or
other crisis and evacuation routes.
OnStar SMS
When the Short Message Service
(SMS) is received by the vehicle,
the pop-up screen with the message
is displayed.
OnStar Welcome
When the user joins and operates
the OnStar service for the first time,
the pop-up screen “Get OnStar
started now. Please, press the
blue button ”is displayed.
OnStar Mobile App Download the
OnStar RemoteLink mobile app to
select Apple
®, Android™, and
BlackBerry®devices to check
vehicle fuel level, oil life, or tyre
pressure; to start the vehicle (if
equipped) or unlock it; or to connect
to an OnStar Advisor.
OnStar Service
Hans-free Calling
Press the
X(Hands-free calling)
button to make a call, end a call,
and answer an incoming call.
Press the
X(Hands-free calling)
button to give OnStar Hands-Free
Calling voice commands.
Press the
X(Hands-free calling)
button to give OnStar Turn-by-Turn
Direction voice commands for
automated directions.
OnStar
Press the
Q(OnStar) button to be
connected to a specially trained
OnStar Advisor who can verify
account information and answer
questions about the system.
Emergency
With Automatic Crash Response,
the built-in system can automatically
connect to help in a crash even if
you cannot ask for it.
Press the
](Emergency) button to
connect to an Emergency Advisor. GPS technology is used to identify
the vehicle location and can provide
critical information to emergency
personnel. The Advisor is also
trained to offer critical assistance in
emergency situations.
1.
P(Power) button with
VOLUME dial
. Turn the dial to adjust the
volume.
. Press the button to turn mute
function on/off.
7. BACK button Cancel the input item or return
to the previous screen/menu.
8. MENU button with TUNE dial
. Turn the dial to move the
desired item.
. Press the button to display the
menu screen provided by the
current item or current mode.
10. - (Preset) buttons
. Press any of these buttons to
select the channel linked to that
button.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
160 Vehicle Care
General Information
Accessories and
Modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other
products - even if they have a
regulatory or otherwise granted
approval.
Do not make any modifications to
the electrical system, e.g. changes
of electronic control units (chip
tuning).
Caution
When transporting the vehicle on
a train or on a recovery vehicle,
the mud flaps might be damaged.
Vehicle Storage
Storage for a long period
of time
If the vehicle is to be stored for
several months :
.Wash and wax the vehicle.
. Have the wax in the engine
compartment and underbody
checked.
. Clean and preserve the rubber
seals.
. Fill up fuel tank completely.
. Change the engine oil.
. Drain the washer fluid reservoir.
. Check the coolant antifreeze
and corrosion protection.
. Adjust tyre pressure to the value
specified for full load.
. Park the vehicle in a dry, well
ventilated place. Engage first or
reverse gear. Prevent the
vehicle from rolling.
. Do not apply the parking brake. .
Open the bonnet, close all doors
and lock the vehicle.
. Disconnect the clamp from the
negative terminal of the vehicle
battery. Beware that all systems
are not functional, e.g. anti-theft
alarm system.
Putting back into operation
When the vehicle is to be put back
into operation :
.Connect the clamp to the
negative terminal of the vehicle
battery. Activate the electronics
of the power windows.
. Check tyre pressure.
. Fill up the washer fluid reservoir.
. Check the engine oil level.
. Check the coolant level.
. Fit the number plate if
necessary.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 179
Directional tyres
Directional tyres must be mounted
so that they rotate in the correct
direction. The proper rotation
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
Tyre Pressure
Check the pressure of cold tyres at
least every 14 days and before any
long journey. Do not forget the
spare wheel. This also applies to
vehicles with tyre pressure
monitoring system.
Unscrew the valve cap.
Tyre pressure0Tyre
Pressure 0209.
The tyre pressure information label
on the left door frame indicates the
original equipment tyres and the
correspondent tyre pressures.
Always inflate the spare tyre to the
pressure specified for full load.
The ECO tyre pressure serves to
achieve the lowest fuel consumption
possible.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase
tyre wear.
Tyre pressures differ depending on
various options. For the correct tyre
pressure value, follow the procedure
below: 1. Identify the engine identifier code.
0Engine Data 0207.
2. Identify the respective tyre.

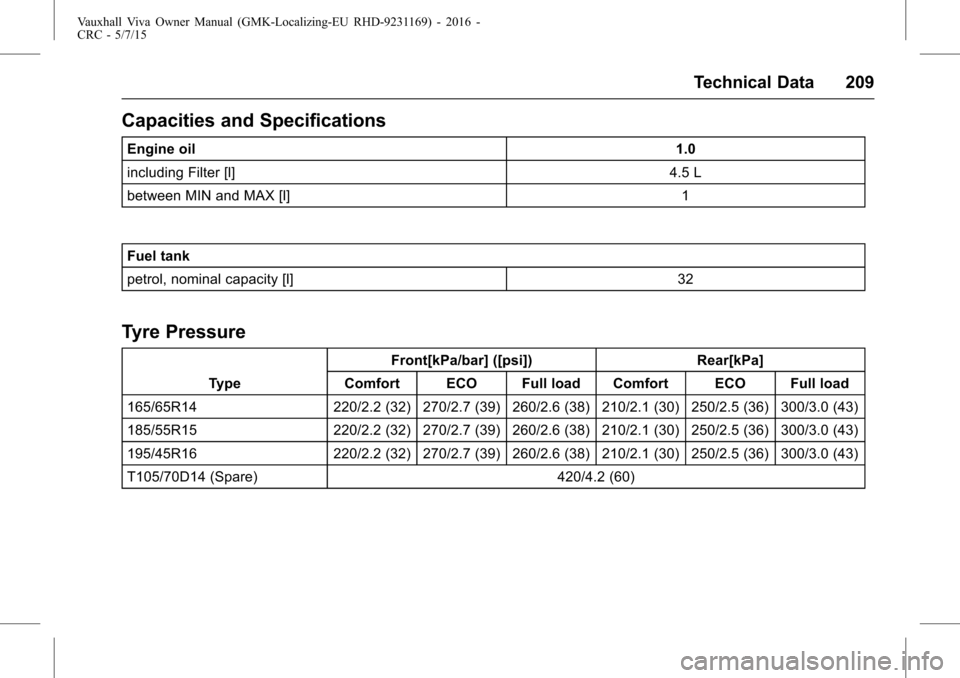

The tyre pressure tables show all
possible tyre combinations
0Tyre
Pressure 0209 For the tyres approved for your
vehicle, refer to the EEC Certificate
of Conformity provided with your
vehicle or other national registration
documents.
The driver is responsible for correct
adjustment of tyre pressure.
{Warning
If the pressure is too low, this can
result in considerable tyre
warmup and internal damage,
leading to tread separation and
even to tyre blow-out at high
speeds.
If the tyre pressure must be reduced
or increased on a vehicle with tyre
pressure monitoring system, switch
off ignition.
After adjusting tyre pressure switch
on ignition and select the according
setting on the page Tyre load in the
Driver Information Centre,
0Driver
Information Centre (DIC) 075.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 195
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
When the engine is not running,
considerably more force is needed
to brake and steer.
To prevent the entry of exhaust
fumes from the towing vehicle,
switch on the air recirculation and
close the windows.
The vehicle must be towed facing
forward, not faster than 55 mph. In
all other cases and when the
transmission is defective, the front
axle must be raised off the ground.
Seek the assistance of a workshop.
After towing, unscrew the
towing eye.
Insert cap and close cap.
Appearance Care
Exterior Care
Locks
The locks are lubricated at the
factory using a high quality lock
cylinder grease. Use de-icing agent
only when absolutely necessary, as
this has a degreasing effect and
impairs lock function. After using
de-icing agent, have the locks
re-greased by a workshop.
Washing
The paintwork of your vehicle is
exposed to environmental
influences. Wash and wax your
vehicle regularly. When using
automatic vehicle washes, select a
programme that includes waxing.
Bird droppings, dead insects, resin,
pollen and the like should be
cleaned off immediately, as they
contain aggressive constituents
which can cause paint damage.
If using a vehicle wash, comply with
the vehicle wash manufacturer's
instructions. The windscreen wipers and rear window wiper must be
switched off. Lock the vehicle so
that the fuel filler flap cannot be
opened. Remove antenna and
external accessories such as roof
racks etc.
If you wash your vehicle by hand,
make sure that the insides of the
wheel housings are also thoroughly
rinsed out.
Clean edges and folds on opened
doors and the bonnet as well as the
areas they cover.Caution
Always use a cleaning agent with
a pH value of 4 to 9.
Do not use cleaning agents on
hot surfaces.
Have the door hinges of all doors
greased by a workshop.
Do not clean the engine
compartment with a steam-jet or
high-pressure jet cleaner.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

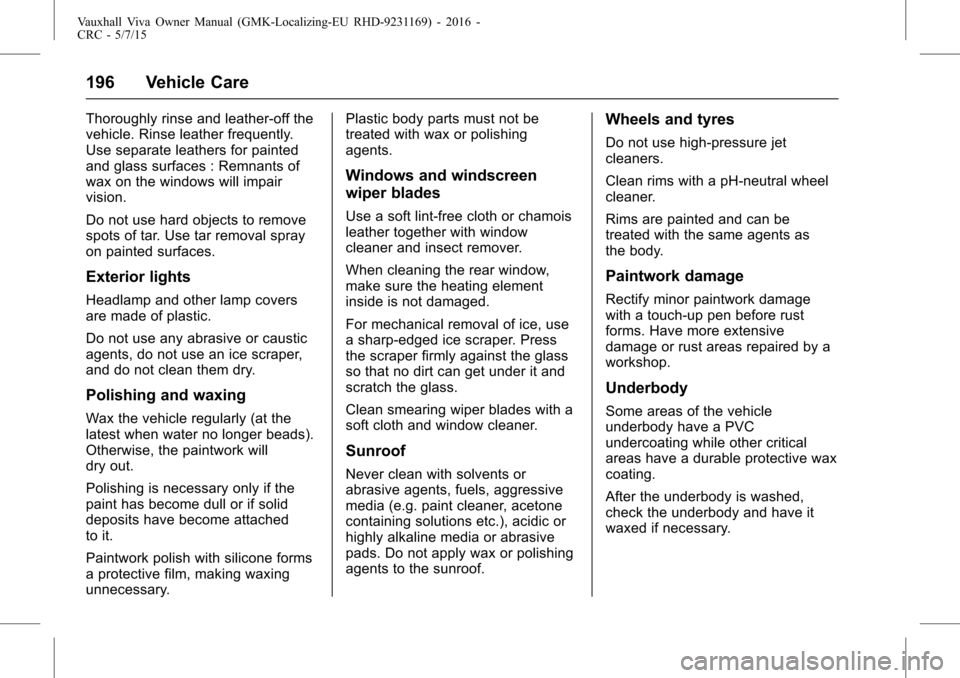

196 Vehicle Care
Thoroughly rinse and leather-off the
vehicle. Rinse leather frequently.
Use separate leathers for painted
and glass surfaces : Remnants of
wax on the windows will impair
vision.
Do not use hard objects to remove
spots of tar. Use tar removal spray
on painted surfaces.
Exterior lights
Headlamp and other lamp covers
are made of plastic.
Do not use any abrasive or caustic
agents, do not use an ice scraper,
and do not clean them dry.
Polishing and waxing
Wax the vehicle regularly (at the
latest when water no longer beads).
Otherwise, the paintwork will
dry out.
Polishing is necessary only if the
paint has become dull or if solid
deposits have become attached
to it.
Paintwork polish with silicone forms
a protective film, making waxing
unnecessary.Plastic body parts must not be
treated with wax or polishing
agents.
Windows and windscreen
wiper blades
Use a soft lint-free cloth or chamois
leather together with window
cleaner and insect remover.
When cleaning the rear window,
make sure the heating element
inside is not damaged.
For mechanical removal of ice, use
a sharp-edged ice scraper. Press
the scraper firmly against the glass
so that no dirt can get under it and
scratch the glass.
Clean smearing wiper blades with a
soft cloth and window cleaner.
Sunroof
Never clean with solvents or
abrasive agents, fuels, aggressive
media (e.g. paint cleaner, acetone
containing solutions etc.), acidic or
highly alkaline media or abrasive
pads. Do not apply wax or polishing
agents to the sunroof.
Wheels and tyres
Do not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be
treated with the same agents as
the body.
Paintwork damage
Rectify minor paintwork damage
with a touch-up pen before rust
forms. Have more extensive
damage or rust areas repaired by a
workshop.
Underbody
Some areas of the vehicle
underbody have a PVC
undercoating while other critical
areas have a durable protective wax
coating.
After the underbody is washed,
check the underbody and have it
waxed if necessary.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Technical Data 209
Capacities and Specifications
Engine oil1.0
including Filter [l] 4.5 L
between MIN and MAX [l] 1
Fuel tank
petrol, nominal capacity [l] 32
Tyre Pressure
TypeFront[kPa/bar] ([psi])
Rear[kPa]
Comfort ECO Full load Comfort ECO Full load
165/65R14 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
185/55R15 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
195/45R16 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
T105/70D14 (Spare) 420/4.2 (60)

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Index 215
D
Danger, Warning, and Caution . . . . 4
Data Recorders, Event . . . . . . . . . 211
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . 86
Declaration of Conformity . . . . . . . 210
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . 108
Dimensions Vehicle . . . . . . . . . . . . . . . . . . . . . . . 208
Displays Service . . . . . . . . . . . . . . . . . . . . . . . . . 68
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . 74
Central Locking System . . . . . . . . 21
Driver Assistance Systems . . . . . 152
Driver Information Centre (DIC) . . . . . . . . . . . . . . . . . . . 75
E
Electrical SystemEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 174
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 173 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 176
Electronic Climate Control
System . . . . . . . . . . . . . . . . . . . . . . . . 132
Electronic Stability Control . . . . . . 148
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . . 72
Electronic Stability Control
Indicator Light . . . . . . . . . . . . . . . . . . 72
Emissions - CO2 Fuel Consumption . . . . . . . . . . . . 158
End-of-Life Vehicle Recovery . . . 161
Engine Automatic Start/StopFeature . . . . . . . . . . . . . . . . . . . . . 141
Check and Service Engine Soon Light . . . . . . . . . . . . . . . . . . . . 70
Coolant . . . . . . . . . . . . . . . . . . . . . . . 163
Coolant Temperature Gauge . . . . 68
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . 73
Exhaust . . . . . . . . . . . . . . . . . . . . . . 144
Pressure Light . . . . . . . . . . . . . . . . . . 73
Reduced Power Light . . . . . . . . . . . 74
Starting . . . . . . . . . . . . . . . . . . . .15, 140
Engine Data . . . . . . . . . . . . . . . . . . . . 207
Engine Identification . . . . . . . . . . . . 205 Entry Lighting . . . . . . . . . . . . . . . . . . . . 90
Event Data Recorders . . . . . . . . . . 211
Exit Lighting . . . . . . . . . . . . . . . . . . . . . 90
Exterior Lamp Controls . . . . . . . . . . 85
F
First Aid Kit . . . . . . . . . . . . . . . . . . . . . . 57
Fixed Air Vents . . . . . . . . . . . . . . . . . 136
Flat Tyre
Changing . . . . . . . . . . . . . . . . . . . . . 188
Fluid Brakes . . . . . . . . . . . . . . . . . . . . . . . . 164
Washer . . . . . . . . . . . . . . . . . . . . . . . 164
Fog Lamp Light, Rear . . . . . . . . . . . 74
Fog Lamps Bulb Replacement . . . . . . . . . . . . 169
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Folding Mirrors . . . . . . . . . . . . . . . . . . 26
Front Airbag System . . . . . . . . . . . . . 41
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Front Indicator Lamps . . . . . . . . . . 169
Front Seat Position Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 33
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 33
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Index 217
L
LampsCornering . . . . . . . . . . . . . . . . . . . . . . . 87
Daytime Running (DRL) . . . . . . . . 86
Exterior Controls . . . . . . . . . . . . . . . . 85
Front Fog . . . . . . . . . . . . . . . . . . . . . . . 87
Front Indicator . . . . . . . . . . . . . . . . 169
Headlamps and ParkingLamps . . . . . . . . . . . . . . . . . . . . . . 167
Interior . . . . . . . . . . . . . . . . . . . . .89, 172
Malfunction Indicator . . . . . . . . . . . 70
Misted Covers . . . . . . . . . . . . . . . . . . 88
Number Plate . . . . . . . . . . . . . . . . . 172
Rear Fog . . . . . . . . . . . . . . . . . . . . . . . 87
Reversing . . . . . . . . . . . . . . . . . . . . . . 88
Side Indicator . . . . . . . . . . . . . . . . . 171
Taillights . . . . . . . . . . . . . . . . . . . . . . 169
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 154
Lane Departure Warning Light . . . 72
Light Electronic Stability Control(ESC), Off . . . . . . . . . . . . . . . . . . . . . 72
Gear Shifting . . . . . . . . . . . . . . . . . . . 71
Traction Control
System (TCS) . . . . . . . . . . . . . . . . . 72
Variable Effort Steering . . . . . . . . . 72
Light, Auto Stop Mode . . . . . . . . . . . 74 Lighting
Centre Console . . . . . . . . . . . . . . . . . 90
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Illumination Control . . . . . . . . . . . . . 88
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Airbag and Safety Belt
Tensioner . . . . . . . . . . . . . . . . . . . . . 70
Airbag On-Off . . . . . . . . . . . . . . . . . . . 70
Antilock Brake System (ABS) Warning . . . . . . . . . . . . . . . . 71
Bonnet Ajar . . . . . . . . . . . . . . . . . . . . . 74
Brake and Clutch System . . . . . . . 71
Charging System . . . . . . . . . . . . . . . 70
Cruise Control . . . . . . . . . . . . . . . . . . 74
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . 74
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . 73
Engine Oil Pressure . . . . . . . . . . . . 73
Fog Lamp, Rear . . . . . . . . . . . . . . . . 74
Front Fog Lamp . . . . . . . . . . . . . . . . 74
Immobiliser . . . . . . . . . . . . . . . . . . . . . 74
Lane Departure Warning . . . . . . . . 72
Low Fuel Warning . . . . . . . . . . . . . . 74
Main-Beam On . . . . . . . . . . . . . . . . . 74
Main/Dipped Beam Changer . . . . 85
Reduced Engine Power . . . . . . . . 74
Seat Belt Reminders . . . . . . . . . . . . 69 Lights (cont'd)
Service Vehicle Soon . . . . . . . . . . . 71
Tail lamp Indicator . . . . . . . . . . . . . . 74
Tyre Pressure Monitoring
System . . . . . . . . . . . . . . . . . . . . . . . . 73
Ultrasonic Parking Sensor . . . . . . 72
Lights, Hazard . . . . . . . . . . . . . . . . . . . 86
Load Compartment . . . . . . . . . . . . . . 53
LoadCompartment . . . . . . . . . . . . . . . 23
Loading the Vehicle . . . . . . . . . . . . . . 57
Locks Central Locking System . . . . . . . . 21
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Low Fuel Warning Light . . . . . . . . . . 74
M
Main-Beam On Light . . . . . . . . . . . . . 74
Maintenance Air Conditioning Regular
Operation . . . . . . . . . . . . . . . . . . . 137
Maintenance Schedule Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 200
Malfunction Indicator Lamp . . . . . . 70
Manual Gearbox . . . . . . . . . . . . . . . . 145
Manual Windows . . . . . . . . . . . . . . . . 27
Memorised Settings . . . . . . . . . . . . . 20
Messages
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 80
