160 Vehicle Care
General Information
Accessories and
Modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other
products - even if they have a
regulatory or otherwise granted
approval.
Do not make any modifications to
the electrical system, e.g. changes
of electronic control units (chip
tuning).
Caution
When transporting the vehicle on
a train or on a recovery vehicle,
the mud flaps might be damaged.
Vehicle Storage
Storage for a long period
of time
If the vehicle is to be stored for
several months :
.Wash and wax the vehicle.
. Have the wax in the engine
compartment and underbody
checked.
. Clean and preserve the rubber
seals.
. Fill up fuel tank completely.
. Change the engine oil.
. Drain the washer fluid reservoir.
. Check the coolant antifreeze
and corrosion protection.
. Adjust tyre pressure to the value
specified for full load.
. Park the vehicle in a dry, well
ventilated place. Engage first or
reverse gear. Prevent the
vehicle from rolling.
. Do not apply the parking brake. .
Open the bonnet, close all doors
and lock the vehicle.
. Disconnect the clamp from the
negative terminal of the vehicle
battery. Beware that all systems
are not functional, e.g. anti-theft
alarm system.
Putting back into operation
When the vehicle is to be put back
into operation :
.Connect the clamp to the
negative terminal of the vehicle
battery. Activate the electronics
of the power windows.
. Check tyre pressure.
. Fill up the washer fluid reservoir.
. Check the engine oil level.
. Check the coolant level.
. Fit the number plate if
necessary.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Technical Data 207

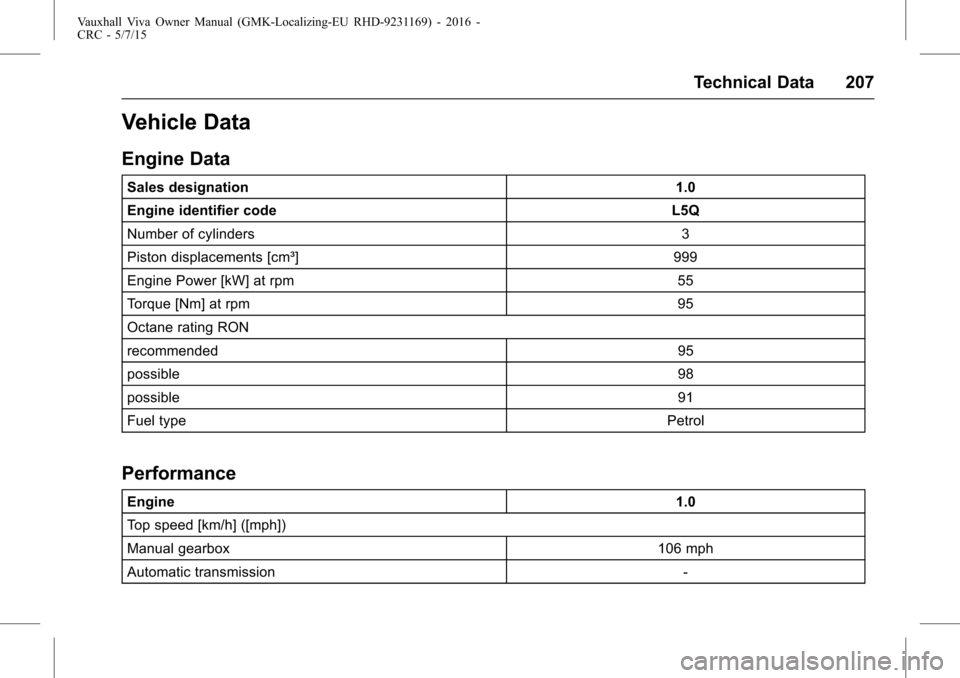

Vehicle Data
Engine Data
Sales designation1.0
Engine identifier code L5Q
Number of cylinders 3
Piston displacements [cm³] 999
Engine Power [kW] at rpm 55
Torque [Nm] at rpm 95
Octane rating RON
recommended 95
possible 98
possible 91
Fuel type Petrol
Performance
Engine 1.0
Top speed [km/h] ([mph])
Manual gearbox 106 mph
Automatic transmission -

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Technical Data 209
Capacities and Specifications
Engine oil1.0
including Filter [l] 4.5 L
between MIN and MAX [l] 1
Fuel tank
petrol, nominal capacity [l] 32
Tyre Pressure
TypeFront[kPa/bar] ([psi])
Rear[kPa]
Comfort ECO Full load Comfort ECO Full load
165/65R14 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
185/55R15 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
195/45R16 220/2.2 (32) 270/2.7 (39) 260/2.6 (38) 210/2.1 (30) 250/2.5 (36) 300/3.0 (43)
T105/70D14 (Spare) 420/4.2 (60)
