headlight VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
10 In Brief
1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 086.
4. Centre air vents on page Adjustable Air Vents 0135.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 086.
Exit lighting on page Exit
Lighting 090.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075. 8. Cruise control, Speed limiter on
page Driver Assistance
Systems 0152.
Heated steering wheel on page
Heated Steering Wheel 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0136.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 026
13. Power windows on page Power
Windows 027.
Central locking system on page
Central Locking System 021. 14. Light switch,
Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085.
15. Traction control system on page Traction Control System
(TCS) 0147.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0141.
City mode on page Electronic
Stability Control (ESC) 0148.
Lane departure warning on
page Lane Departure Warning
(LDW) 0154.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0139.
17. Fuse box on page Fuses 0173.
18. Bonnet release lever on page Bonnet 0161.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 11
19. Horn on pageHorn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Parking brake on page Handbrake 0146.
22. Selector lever, manual gearbox on page Manual
Gearbox 0145.
23. Climate control system on page Electronic Climate
Control System 0132.
24. Glove box on page Glove
Box 053.Exterior Lighting
Turn light switch.
9:Lights off
;:Sidelights
5:Dipped beam
Fog lights
Press light switch.
#: Front fog light
s:Rear fog light
Lighting
0Exterior Lamp
Controls 085.
Headlight flash, main beam
and dipped beam
Headlight flash : Pull lever
Main beam : Push lever
Dipped beam : Push or pull lever
Main beam
0Headlamp Main/
Dipped Beam Changer 085.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
74 Instruments and Controls
Low Fuel Warning Light
.
illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the tank dry.
Catalytic converter
0Catalytic
Converter 0144.
Auto Stop Mode
h
illuminates when engine is in an
Autostop.
Stop-start system
0Starting the
Engine 0140.
Immobiliser Light
A
flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Reduced Engine Power
Light
w
illuminates yellow. The engine power is limited. Consult
a workshop.
Main-Beam On Light
3
illuminates blue.
Illuminated when main beam is on
and during headlight flash
0
Exterior Lamp Controls 085.
Front Fog Lamp Light
#
illuminates green.
The front fog lights are on
0Front
Fog Lamps 087.
Rear Fog Lamp Light
s
illuminates yellow.
The rear fog light is on
0Rear Fog
Lamps 087.
Tail lamp Indicator Light
;
illuminates green.
The exterior lights are on
0
Exterior Lamp Controls 085.
Cruise Control Light
I
illuminates white or green.
Illuminates white
The system is on.
Illuminates green
A certain speed is stored.
Cruise control
0Cruise
Control 0152.
Bonnet Ajar Light
i
illuminates when the bonnet
is open.
Automatic engine stop/start feature
0Automatic Engine Start/Stop
Feature 0141.
Door Ajar Light
U
illuminates red.
A door or the tailgate is open.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
80 Instruments and Controls
Vehicle Messages
Messages are indicated mainly in
the Driver Information Centre (DIC),
in some cases together with a
warning and signal buzzer.
PressSET/CLR, MENUor turn the
adjuster wheel to confirm a
message.
The vehicle messages are
displayed as code numbers.
No. Vehicle message
2 No remote detected, Press clutch
to restart
3 Coolant level low add coolant 4 A/C Off due to high engine temp
5 Steering column is locked
6 Step on brake to release park
brake
7 Turn steering wheel, Turn key Off,
Then On
8 Turn key Off, Then On
–repeat
breath test
9 Turn steering wheel, Start vehicle
again
11 Brakes worn
12 Vehicle overloaded
13 Compressor overheated
15 Check high mounted brake lamp
16 Check brake lamps
17 Headlight levelling malfunction
18 Left dipped beam failure
19 Check rear fog lamp
20 Check right dipped beam lamp
21 Check left position lamp
22 Check right position lamp
23 Reversing light failure
24 Number plate light failure 25 Check left front indicator lamp
26 Left rear turn indicator failure
27 Check right front indicator lamp
28 Check right rear indicator lamp
29 Check trailer brake lamp
30 Check trailer reversing lamp
31 Check left trailer indicator lamp
32 Check right trailer indicator lamp
33 Check trailer rear fog lamp
34 Check trailer rear lamp
35 Replace Battery In Remote Key
36 Stabilitrak Initialising
38 Take steering (text approval still
pending)
48 Side detection system
unavailable
49 Lane departure warning
unavailable
50 Reset bonnet
–see owners
manual
52 Change timing belt
53 Tighten fuel cap / Electric
vehicles

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Lighting 85
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . . 85
Headlamp Main/Dipped-BeamChanger . . . . . . . . . . . . . . . . . . . . . . 85
Headlamp Range Adjustment . . . . . . . . . . . . . . . . . . . 86
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . 86
Hazard Lights . . . . . . . . . . . . . . . . . . 86
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . 86
Front Fog Lamps . . . . . . . . . . . . . . 87
Rear Fog Lamps . . . . . . . . . . . . . . . 87
Cornering Lights . . . . . . . . . . . . . . . 87
Position Lamps . . . . . . . . . . . . . . . . 88
Reversing Lamps . . . . . . . . . . . . . . 88
Misted Lamp Covers . . . . . . . . . . . 88
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . . 88
Interior Lamps . . . . . . . . . . . . . . . . . 89
Lighting Features
Centre Console Lighting . . . . . . . 90
Entry Lighting . . . . . . . . . . . . . . . . . . 90
Exit Lighting . . . . . . . . . . . . . . . . . . . 90
Battery Power Protection . . . . . . 91
Exterior Lighting
Exterior Lamp Controls
Light Switch
Turn light switch:
O : Lights off
;: Sidelights
2: Dipped beam
Control indicator
; 0Tail light
Indicator Light 074.
When dipped beam is on,
;
illuminates. Control indicator; 0
Tail light Indicator Light 074.
Tail lights
Tail lights are illuminated together
with dipped beam and sidelights.
Headlamp Main/
Dipped-Beam Changer
To switch from low to main beam,
push lever.
To switch to dipped beam, push
lever again or pull.
Headlight flash
To activate the headlight flash, pull
lever.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
86 Lighting
Headlamp Range
Adjustment
Manual headlight range
adjustment
To adapt headlight range to the
vehicle load to prevent dazzling:
turn thumb wheel
9to required
position.
0 : Front seats occupied
1 : All seats occupied
2 : All seats occupied and load
compartment laden
3 : Driver's seat occupied and load
compartment laden
Daytime Running
Lamps (DRL)
Daytime running light increases
visibility of the vehicle during
daylight.
They are switched on automatically
when ignition is on.
Hazard Lights
Operated with|.
In the event of an accident with
airbag deployment the hazard
warning flashers are activated
automatically.
Turn and Lane-Change
Signals
Lever up : Right indicator
Lever down : Left indicator
If the lever is moved past the
resistance point, the indicator is
switched on constantly. When the
steering wheel moves back, the
indicator is automatically
deactivated.
For three flashes, e.g. when
changing lanes, press the lever until
resistance is felt and then release.
Move the lever to the resistance
point and hold for longer indication.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 167
Wiper blade on the rear
window
Lift wiper arm. Push the wiper
blade, slightly angled to the wiper
arm, downwards until it disengages.
Attach the wiper blade, slightly
angled to the wiper arm, and push
until it engages.
Lower wiper arm carefully.
Bulb Replacement
Switch off the ignition and switch off
the relevant switch or close the
doors.
Only hold a new bulb at the base!
Do not touch the bulb glass with
bare hands.
Use only the same bulb type for
replacement.
Replace headlamp bulbs from within
the engine compartment.
Bulb check
After a bulb replacement switch on
the ignition, operate and check the
lights.
Headlamps and Parking
Lamps
Dipped beam and main beam
1. Unscrew the three screws.
2. Carefully withdraw theheadlight assembly from
retaining pins and remove as
shown in illustration and
remove, make sure that cable
duct remains in position.
3. Detach plug connector from bulb.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
168 Vehicle Care
4. Remove protective cover.
5. Press spring clip, disengage it.
6. Remove bulb from reflectorhousing.
7. When fitting a new bulb, engage the lugs in the
recesses on the reflector.
8. Engage the spring clip.
9. Place headlight protective cover in position and close.
Parking/Daytime running light
1. Rotate the bulb holderanticlockwise and remove it.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 175
3 Rear demist
4 Outside rear-view mirrorheater
5 Sunroof
6 Continuously Variable transmission control module
7 Mass air flow sensor
8 Auxiliary heater pump
9 Anti-lock brake system valve
10 Regulated voltage control 11 Rear view camera
12 -
13 -
14 Engine control module/ Transmission control
module
15 Fuel injection control module/Starter
16 Fuel pump motor
17 Engine control module1
18 Engine control module2
19 Injector, Ignition 20 Air conditioning system
21 Intelligent battery sensor
22 Electric steering
column lock
23 Cooling fan low
24 -
25 Outside rear-view mirror switch
26 Engine control module/ Automated manual gearbox
module
27 Canister vent solenoid
28 Brake pedal switch
29 Auxiliary occupant sensing
30 Headlight levelling motor
31 Horn
32 Front fog lamp
33 Main beam left
34 Main beam right
35 -
36 Rear wiper motor
37 Cornering lamp left 38 Washer pump motor
39 Cornering lamp right
40 -
41 -
42 Starter 2
43 In-panel bussed electric
centre
44 Automated manual gearbox
45 Starter 1
46 Anti-lock brake system pump
47 Cooling fan hi
48 Front wiper motor
49 In-panel bussed electric centre accessory/RAP
power

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

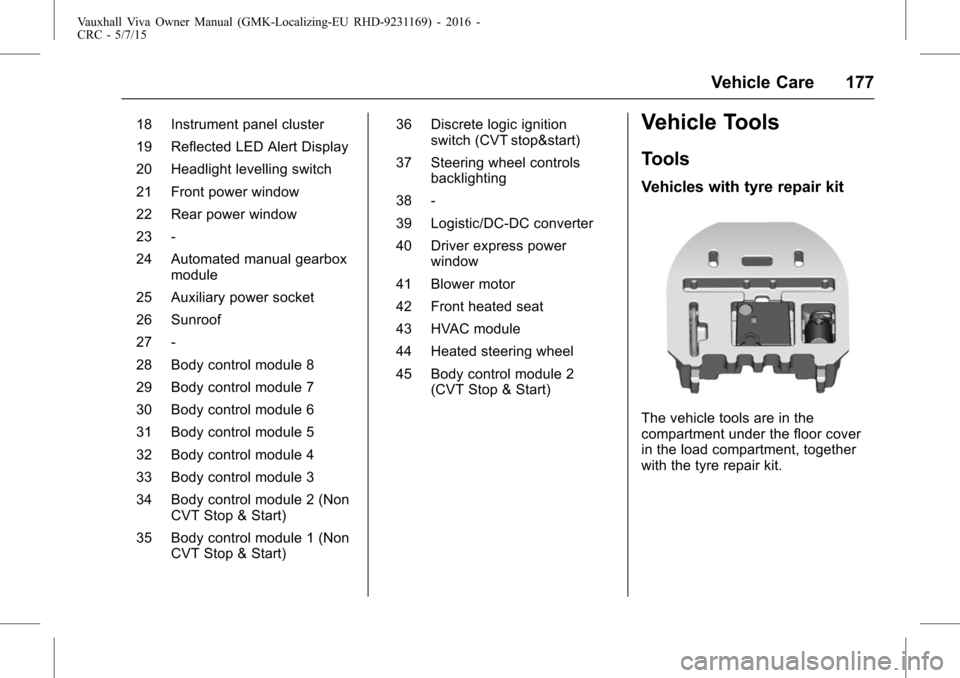

Vehicle Care 177
18 Instrument panel cluster
19 Reflected LED Alert Display
20 Headlight levelling switch
21 Front power window
22 Rear power window
23 -
24 Automated manual gearboxmodule
25 Auxiliary power socket
26 Sunroof
27 -
28 Body control module 8
29 Body control module 7
30 Body control module 6
31 Body control module 5
32 Body control module 4
33 Body control module 3
34 Body control module 2 (Non CVT Stop & Start)
35 Body control module 1 (Non CVT Stop & Start) 36 Discrete logic ignition
switch (CVT stop&start)
37 Steering wheel controls backlighting
38 -
39 Logistic/DC-DC converter
40 Driver express power window
41 Blower motor
42 Front heated seat
43 HVAC module
44 Heated steering wheel
45 Body control module 2 (CVT Stop & Start)Vehicle Tools
Tools
Vehicles with tyre repair kit
The vehicle tools are in the
compartment under the floor cover
in the load compartment, together
with the tyre repair kit.
