height VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
6 In Brief
Seat Adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth
to ensure that the seat is locked in
place.
Seat position
0Seat Position033,
Seat adjustment
0Seat
Adjustment 033.
{Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position
0Seat Position 033,
Seat adjustment
0Seat
Adjustment 033.
Seat height
Lever pumping motion
Up : Seat higher
Down : Seat lower
Seat position
0Seat Position 033,
Seat adjustment
0Seat
Adjustment 033.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 7
Head Restraint
Adjustment
Press release button, adjust height
and engage.
Safety Belts
Pull out the seat belt and engage in
belt buckle. The seat belt must not
be twisted and must fit close against
the body. The backrest must not be
tilted back too far (maximum
approx. 25°).
To release belt, press red button on
belt buckle.
Seat position
0Seat Position033,
Seat belts
0Safety Belts 035,
Airbag system
0Airbag
System 038.
Mirror Adjustment
Interior Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Interior mirror
0Manual Rearview
Mirror 027.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
32 Seats and Restraints
Head restraints on front seats
Height adjustment
Pull the head restraint upwards and
let engage. To move downwards,
press the catch to release and push
the head restraint downwards.
Head restraints on rear seats
Height adjustment
Pull the head restraint upwards or
press the catch to release and push
the head restraint downwards.
Removal
Press both catches, pull the head
restraint upwards and remove.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 33
Front Seats
Seat Position
{Warning
Only drive with the seat correctly
adjusted.
.Sit with buttocks as far back
against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing the pedals. Slide the
front passenger seat as far back
as possible.
. Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest
when turning the steering wheel.
Do not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
. Adjust the steering wheel
0
Steering Wheel Adjustment 060.
. Set the seat high enough to
have a clear field of vision on all
sides and on all display
instruments. There should be at
least one hand of clearance
between your head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
. Adjust the head restraint
0
Head Restraints 031. .
Adjust the height of the seat belt
0Three-Point Seat belt 036.
Seat Adjustment
{Danger
Do not sit nearer than 25 cm to
the steering wheel, to permit safe
airbag deployment.
{Warning
Never adjust seats while driving
as they could move
uncontrollably.
{Warning
Never store any objects under the
seats.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
34 Seats and Restraints

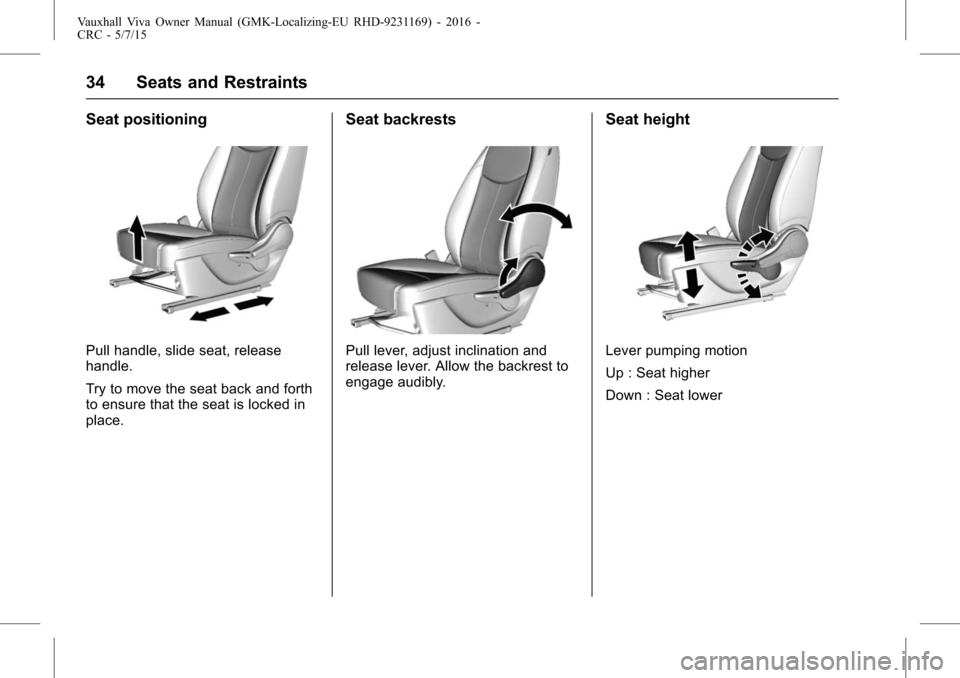

Seat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth
to ensure that the seat is locked in
place.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.
Seat height
Lever pumping motion
Up : Seat higher
Down : Seat lower

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Storage 55
twisted or caught under the seat
cushion, then push the front part of
the seat cushion firmly down until it
latches.
Caution
When returning rear seat backrest
to the upright position, place the
rear seat belt and buckles
between the rear seat backrest
and one cushion. Make sure the
rear seat belt and buckles do not
get pinched under the rear seat
cushion.
Make sure the seat belts are not
twisted or caught in the seat
backrest and are arranged in their
proper position.
Notice: The luggage
compartment shall contain all
fittings installed in production by
the car manufacturer (spare
wheel, jack, etc.). Other features,
either not installed or only
optional, such as first-aid-kit or
fire extinguisher, shall not be
considered. Where special features such as a
folding or removable rear seat of
backrest have been provided by
the manufacturer to obtain
maximum loading volume, the
measurements shall be made with
the following loading limits.
Front loading limit: the rear side of
the backrest of the seats situated
immediately in front of the luggage
compartment set at the normal
driving or riding position as defined
by the manufacturer, and/or the
folded rear seats; the rear seats
and/or backrest folded or removed,
with the front loading limit above the
backrest being a vertical plane
tangential to the rear side of the
front seat backrest and the load
height limited by the roof headlining.
To remove the rear seat cushion,
push the hinges in direction of
arrow.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
162 Vehicle Care

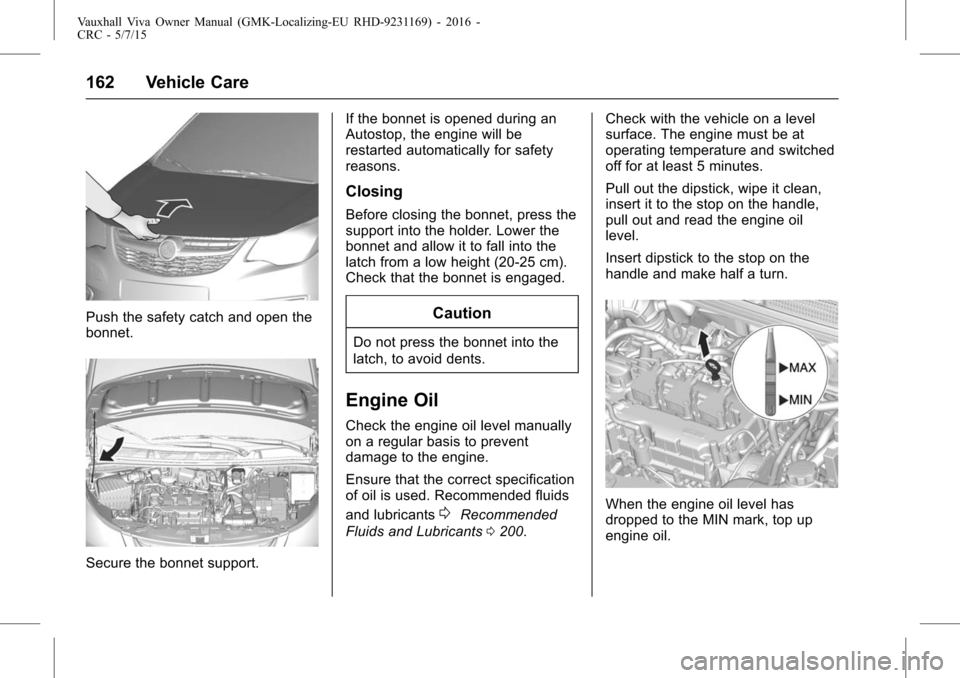

Push the safety catch and open the
bonnet.
Secure the bonnet support.If the bonnet is opened during an
Autostop, the engine will be
restarted automatically for safety
reasons.
Closing
Before closing the bonnet, press the
support into the holder. Lower the
bonnet and allow it to fall into the
latch from a low height (20-25 cm).
Check that the bonnet is engaged.
Caution
Do not press the bonnet into the
latch, to avoid dents.
Engine Oil
Check the engine oil level manually
on a regular basis to prevent
damage to the engine.
Ensure that the correct specification
of oil is used. Recommended fluids
and lubricants
0Recommended
Fluids and Lubricants 0200. Check with the vehicle on a level
surface. The engine must be at
operating temperature and switched
off for at least 5 minutes.
Pull out the dipstick, wipe it clean,
insert it to the stop on the handle,
pull out and read the engine oil
level.
Insert dipstick to the stop on the
handle and make half a turn.When the engine oil level has
dropped to the MIN mark, top up
engine oil.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
178 Vehicle Care

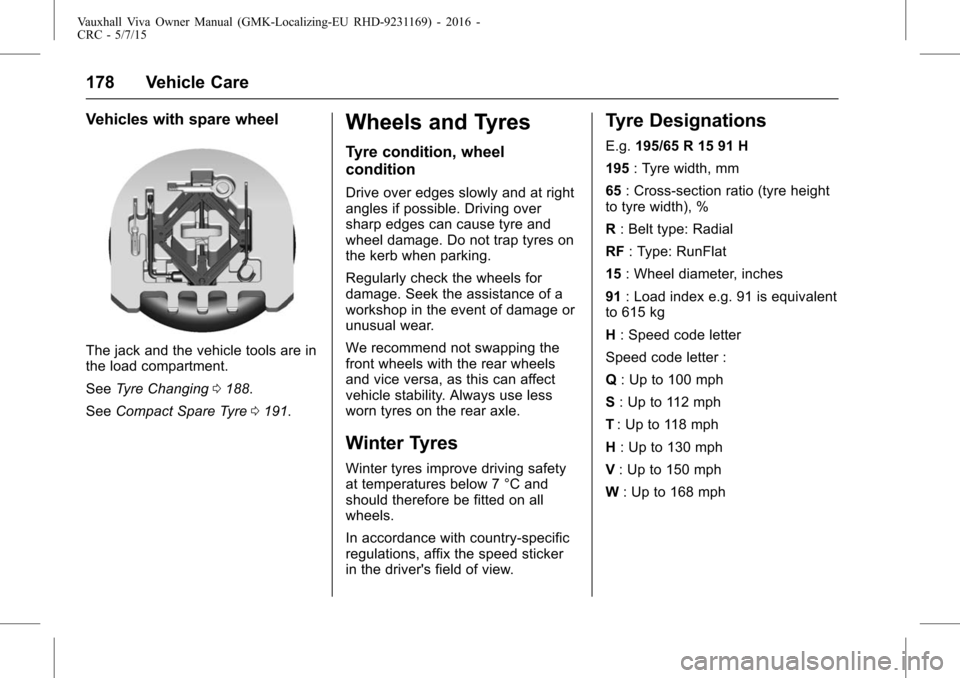

Vehicles with spare wheel
The jack and the vehicle tools are in
the load compartment.
SeeTyre Changing 0188.
See Compact Spare Tyre 0191.
Wheels and Tyres
Tyre condition, wheel
condition
Drive over edges slowly and at right
angles if possible. Driving over
sharp edges can cause tyre and
wheel damage. Do not trap tyres on
the kerb when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
We recommend not swapping the
front wheels with the rear wheels
and vice versa, as this can affect
vehicle stability. Always use less
worn tyres on the rear axle.
Winter Tyres
Winter tyres improve driving safety
at temperatures below 7 °C and
should therefore be fitted on all
wheels.
In accordance with country-specific
regulations, affix the speed sticker
in the driver's field of view.
Tyre Designations
E.g. 195/65 R 15 91 H
195 : Tyre width, mm
65 : Cross-section ratio (tyre height
to tyre width), %
R : Belt type: Radial
RF : Type: RunFlat
15 : Wheel diameter, inches
91 : Load index e.g. 91 is equivalent
to 615 kg
H : Speed code letter
Speed code letter :
Q : Up to 100 mph
S : Up to 112 mph
T : Up to 118 mph
H : Up to 130 mph
V : Up to 150 mph
W : Up to 168 mph

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
190 Vehicle Care

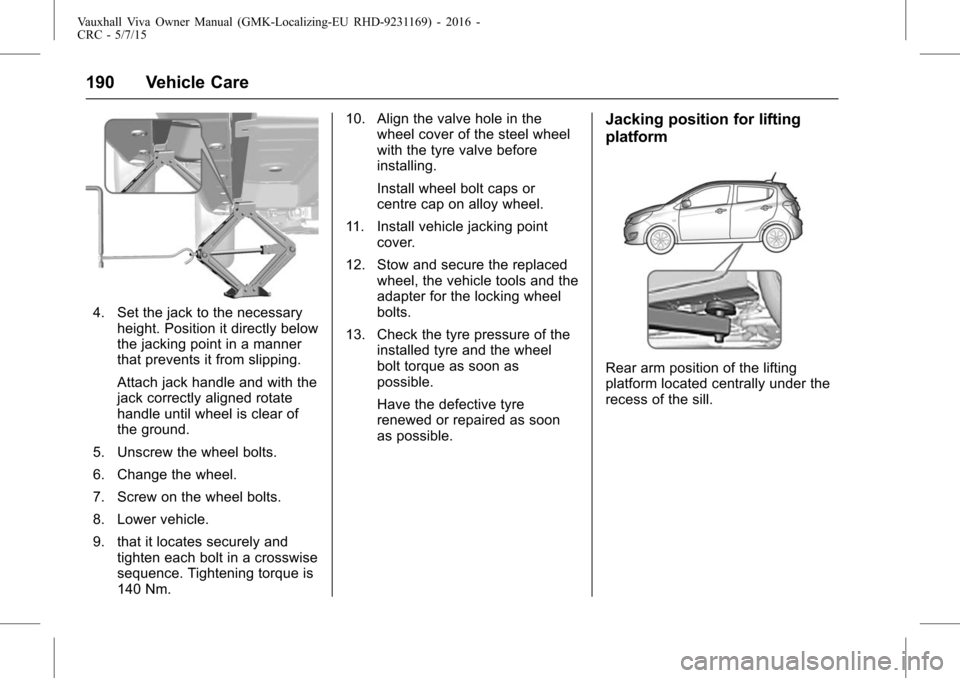

4. Set the jack to the necessaryheight. Position it directly below
the jacking point in a manner
that prevents it from slipping.
Attach jack handle and with the
jack correctly aligned rotate
handle until wheel is clear of
the ground.
5. Unscrew the wheel bolts.
6. Change the wheel.
7. Screw on the wheel bolts.
8. Lower vehicle.
9. that it locates securely and tighten each bolt in a crosswise
sequence. Tightening torque is
140 Nm. 10. Align the valve hole in the
wheel cover of the steel wheel
with the tyre valve before
installing.
Install wheel bolt caps or
centre cap on alloy wheel.
11. Install vehicle jacking point cover.
12. Stow and secure the replaced wheel, the vehicle tools and the
adapter for the locking wheel
bolts.
13. Check the tyre pressure of the installed tyre and the wheel
bolt torque as soon as
possible.
Have the defective tyre
renewed or repaired as soon
as possible.
Jacking position for lifting
platform
Rear arm position of the lifting
platform located centrally under the
recess of the sill.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
208 Technical Data
Vehicle Weight
Kerb weight, Basic model without any optional equipment
Engine4 seater 5 seater
Without/without air
conditioning [kg] L5Q
938/947 939/945
Optional equipment and accessories increase the Kerb weight.
Loading information.
Vehicle Dimensions
Length [mm] 3675
Width without exterior mirrors [mm] 1595
Width with two exterior mirrors [mm] 1876
Height (without aerial) [mm] w/o roof rack 1485
Length of load compartment floor [mm] 486
Length of load compartment with folded rear seats [mm] 1109
Load compartment width [mm] 978
Load compartment height [mm] 522
Height of load compartment opening [mm] 608
Wheelbase [mm] 2385
Turning circle diameter [m] 9.6(14"), 10.4(15")
