mirror VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 5
In Brief
Initial Drive Information
Unlocking the Vehicle . . . . . . . . . . . 5
Seat Adjustment . . . . . . . . . . . . . . . . 6
Head Restraint Adjustment . . . . . . 7
Safety Belts . . . . . . . . . . . . . . . . . . . . . 7
Mirror Adjustment . . . . . . . . . . . . . . . 7
Steering Wheel Adjustment . . . . . 8
Instrument Panel Overview . . . . . . 9
Exterior Lighting . . . . . . . . . . . . . . . 11
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Windscreen Wiper/Washer . . . . . 13
Climate Controls . . . . . . . . . . . . . . . 14
Transmission . . . . . . . . . . . . . . . . . . 15
Starting the Engine . . . . . . . . . . . . 15
Parking . . . . . . . . . . . . . . . . . . . . . . . . 16
Initial Drive
Information
Unlocking the Vehicle
PressKto unlock the doors and
load compartment. Open the doors
by pulling the handles.
To open the tailgate, push the
touchpad switch under the tailgate
moulding.
Unlocks all doors. The hazard
warning lights will flash twice.
Radio remote control
0Radio
Remote Control 019,
Central locking system
0Central
Locking System 021,
Load compartment
0Load
Compartment 023.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 7
Head Restraint
Adjustment
Press release button, adjust height
and engage.
Safety Belts
Pull out the seat belt and engage in
belt buckle. The seat belt must not
be twisted and must fit close against
the body. The backrest must not be
tilted back too far (maximum
approx. 25°).
To release belt, press red button on
belt buckle.
Seat position
0Seat Position033,
Seat belts
0Safety Belts 035,
Airbag system
0Airbag
System 038.
Mirror Adjustment
Interior Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Interior mirror
0Manual Rearview
Mirror 027.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
8 In Brief
Exterior Mirrors
Select the relevant exterior mirror
and adjust it.
Convex exterior mirrors
0Power
Mirrors 026.
Steering Wheel
Adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.
Airbag system
0Airbag
System 038,
Ignition positions
0Ignition
Positions 0139.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
10 In Brief
1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 086.
4. Centre air vents on page Adjustable Air Vents 0135.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 086.
Exit lighting on page Exit
Lighting 090.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075. 8. Cruise control, Speed limiter on
page Driver Assistance
Systems 0152.
Heated steering wheel on page
Heated Steering Wheel 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0136.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 026
13. Power windows on page Power
Windows 027.
Central locking system on page
Central Locking System 021. 14. Light switch,
Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085.
15. Traction control system on page Traction Control System
(TCS) 0147.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0141.
City mode on page Electronic
Stability Control (ESC) 0148.
Lane departure warning on
page Lane Departure Warning
(LDW) 0154.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0139.
17. Fuse box on page Fuses 0173.
18. Bonnet release lever on page Bonnet 0161.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
14 In Brief
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer
0Rear
Window Wiper/Washer 062.
Climate Controls
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
the
=.
Heated rear window
0Heated
Rear Window 029.
Demisting and defrosting the
windows
Press5.
Set the temperature control to the
highest level.
Heated rear window
=on.
Climate control system
0Heating
and Ventilation System 0129.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 15
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0145.
Starting the Engine
Check before starting off
.
Tyre pressure and condition0
Tyre Pressure 0179.
. Engine oil level and fluid levels
0Engine Oil 0162.
. All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
. Proper position of mirrors, seats,
and seat belts
0Convex
Mirrors 026, Seat Position 033,
Three-Point Seat belt 036.
. Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
.
Turn key to position 1.
. Move the steering wheel slightly
to release the steering
wheel lock.
. Operate clutch and brake.
. Automatic transmission in P
or N.
. Do not operate accelerator
pedal.
. Turn key to position 3 and
release Starting the engine.
0
Starting the Engine 0140.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
18 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Car Pass . . . . . . . . . . . . . . . . . . . . . . 19
Radio Remote Control . . . . . . . . . 19
Memorised Settings . . . . . . . . . . . . 20
Central Locking System . . . . . . . 21
Automatic Door Locks . . . . . . . . . 23
Safety Locks . . . . . . . . . . . . . . . . . . . 23
Doors
Load Compartment . . . . . . . . . . . . 23
Vehicle Security
Anti-theft Alarm System . . . . . . . . 24
Immobiliser . . . . . . . . . . . . . . . . . . . . 25
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 26
Power Mirrors . . . . . . . . . . . . . . . . . . 26
Folding Mirrors . . . . . . . . . . . . . . . . . 26
Heated Mirrors . . . . . . . . . . . . . . . . . 26
Interior Mirrors
Manual Rearview Mirror . . . . . . . . 27
Windows
Manual Windows . . . . . . . . . . . . . . 27
Power Windows . . . . . . . . . . . . . . . 27
Heated Rear Window . . . . . . . . . . 29
Sun Visors . . . . . . . . . . . . . . . . . . . . . 29
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 29
Keys and Locks
Keys
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as
it is a component of the immobiliser
system.
Locks
0Exterior Care0195.
Lock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is
vertical, remove key and then
re-insert it. If the cylinder still
free-wheels, turn the key through
180° and repeat operation.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

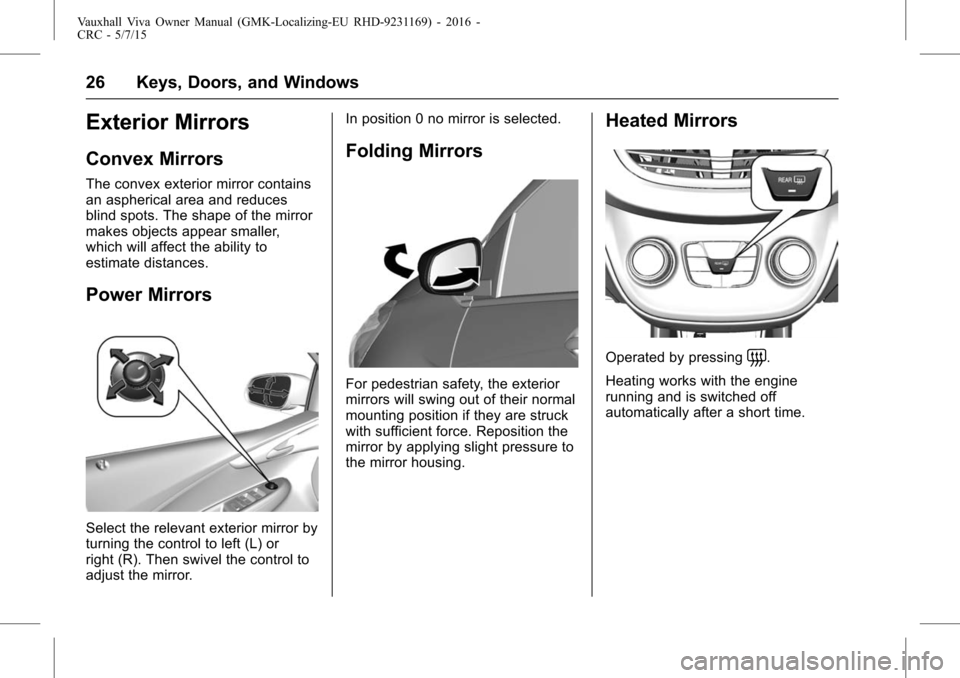

26 Keys, Doors, and Windows
Exterior Mirrors
Convex Mirrors
The convex exterior mirror contains
an aspherical area and reduces
blind spots. The shape of the mirror
makes objects appear smaller,
which will affect the ability to
estimate distances.
Power Mirrors
Select the relevant exterior mirror by
turning the control to left (L) or
right (R). Then swivel the control to
adjust the mirror.In position 0 no mirror is selected.
Folding Mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.
Heated Mirrors
Operated by pressing=.
Heating works with the engine
running and is switched off
automatically after a short time.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 27
Interior Mirrors
Manual Rearview Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Windows
Manual Windows
The door windows can be opened
or closed with the window winders.
Power Windows
{Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.(Continued)
Warning (Continued)
Be careful when closing the
windows. Ensure that nothing
becomes trapped in them as
they move.
Power windows can be operated
with ignition position 2.
Operate the switch for the
respective window by pushing to
open or pulling to close.
Operation
To open the window, press down on
the switch.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 29
Heated Rear Window
Operated by pressing+.
Heating works with the engine
running and is switched off
automatically after a short time.
Sun Visors
The sun visors can be folded down
or swivelled to the side to prevent
dazzling.
If the sun visors have integral
mirrors, the mirror covers should be
closed when driving.
Roof
Sunroof
{Warning
Take care when operating the
sunroof. Risk of injury, particularly
to children.
Keep a close eye on the movable
parts when operating them.
Ensure that nothing becomes
trapped in them as they move.
Sunroof can be operated with
ignition on.
Raise
Hold switch 1 depressed until the
sunroof is raised at the rear.
Open
From raised position press and
release switch 1: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch
once more.
