check transmission fluid VAUXHALL VIVA 2018.5 Owner's Manual
[x] Cancel search | Manufacturer: VAUXHALL, Model Year: 2018.5, Model line: VIVA, Model: VAUXHALL VIVA 2018.5Pages: 201, PDF Size: 5.36 MB
Page 18 of 201

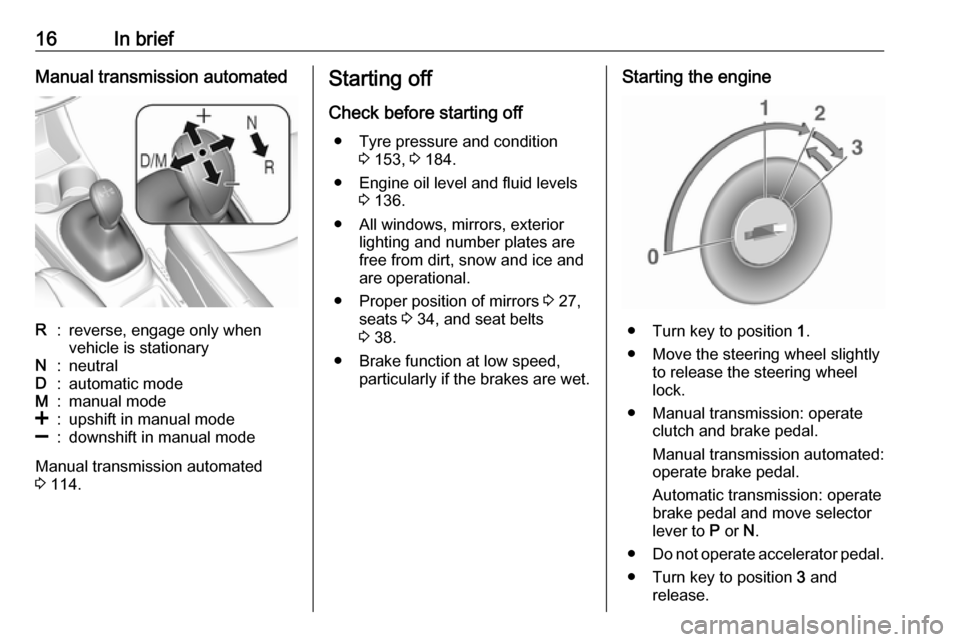

16In briefManual transmission automatedR:reverse, engage only when
vehicle is stationaryN:neutralD:automatic modeM:manual mode<:upshift in manual mode]:downshift in manual mode
Manual transmission automated
3 114.
Starting off
Check before starting off ● Tyre pressure and condition 3 153, 3 184.
● Engine oil level and fluid levels 3 136.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 27,
seats 3 34, and seat belts
3 38.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.
Page 86 of 201
84Instruments and controlsNo.Vehicle message77Service lane departure warning79Top up engine oil81Service transmission / trans‐
mission malfunction
Manual transmission auto‐
mated 3 11582Change engine oil soon84Engine power reduced89Service vehicle soon90Service brake assist95Service airbag145Check washer fluid level151Press clutch to start174Low vehicle battery258Parking assist offVehicle messages on
Colour Info Display
Some important messages appear
additionally in the
Colour Info Display. Some messages only pop-up for a few seconds.
Warning chimes
If several warnings appear at the
same time, only one warning chime
will sound.
When starting the engine or whilst driving
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
● If seat belt is not fastened.
● If a door or the tailgate is not fully
closed when starting off.
● If a certain speed is exceeded with parking brake applied.
● If a programmed speed is exceeded.
● If a warning message appears in the Driver Information Centre orInfo Display.● If the parking assist detects an object.
● If unintended lane change occurs.
● If a fault in the automatic locking system is detected.
When the vehicle is parked and/or the driver's door is opened
● With exterior lights on.
During an Autostop ● If the driver's door is opened.
Battery voltage When the vehicle battery voltage is
running low, the warning code 174 will
appear in the Driver Information
Centre.
1. Switch off immediately any electrical consumers which are
not required for a safe drive, e.g.
Page 199 of 201
197SSafety belts ................................... 37
Seat adjustment ....................... 7, 35 Seat belt ........................................ 8
Seat belt reminder .......................71
Seat belts ..................................... 37
Seat heating ................................. 36
Seat position ................................ 34
Selector lever ............................. 115
Service ....................................... 105
Service display ............................ 67
Service information ....................172
Service vehicle soon .................... 72
Side airbag system ......................43
Sidelights ...................................... 92
Side turn lights ........................... 145
Software acknowledgement .......188
Spare wheel ............................... 164
Speed limiter......................... 75, 123
Speedometer ............................... 63
Starting and operating ................107
Starting off ................................... 16
Starting the engine ............108, 114
Steering ...................................... 107
Steering wheel adjustment ......9, 59
Steering wheel controls ...............59
Stop-start system........................ 109
Storage ......................................... 51
Storage compartments .................51
Sunroof ........................................ 31Sun visors .................................... 31
Symbols ......................................... 4
T
Tachometer ................................. 64
Tail lights ................................... 144
Three-point seat belt .................... 38
Tools .......................................... 151
Towing ........................................ 167
Towing the vehicle .....................167
Traction Control system ............. 119
Traction Control system off........... 74
Transmission ............................... 15
Transmission display .................114
Tread depth ............................... 157
Trip odometer .............................. 64
Turn lights .............................. 70, 94
Tyre chains ................................ 158
Tyre designations ......................152
Tyre pressure ............................ 153
Tyre pressure monitoring system ............................... 74, 154
Tyre pressures ........................... 184
Tyre repair kit ............................. 158
U Ultrasonic parking assist ...... 73, 125
Upholstery .................................. 170
Using this manual ..........................3V
Valet mode ................................... 81
Vehicle battery ........................... 138
Vehicle checks............................ 135
Vehicle data ................................ 177
Vehicle data recording and privacy ..................................... 190
Vehicle dimensions .................... 182
Vehicle Identification Number ....175
Vehicle jack ................................ 151
Vehicle messages .......................82
Vehicle personalisation ...............85
Vehicle specific data ......................3
Vehicle storage ........................... 134
Vehicle tools ............................... 151
Vehicle unlocking ........................... 6
Vehicle weight ........................... 181
Ventilation ..................................... 98
W
Warning chimes ........................... 84
Warning lights ............................... 63
Warning triangle .......................... 55
Washer and wiper systems .........13
Washer fluid ............................... 138
Wheel changing .........................161
Wheel covers ............................. 158
Wheels and tyres .......................152
Windows ....................................... 28
Windscreen................................... 28
