fuse box VAUXHALL VIVA 2018.5 Owner's Manual

In brief111Central locking system ..........21
Power windows .....................29
2 Exterior mirrors .....................27
3 Cruise control .....................122
Speed limiter ...................... 123
Heated steering wheel ..........59
4 Turn lights, headlight
flash, low beam and high
beam ..................................... 94
Exit lighting ........................... 96
Parking lights ........................ 95
5 Side air vents ...................... 104
6 Instruments .......................... 63
7 Driver Information Centre ...... 76
8 Steering wheel controls .......59
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 60
10 Centre air vents .................. 104
11 Hazard warning flashers ......93
12 Info Display ........................... 8113Anti-theft alarm system
status LED ........................... 25
14 Infotainment system
15 Glovebox .............................. 51
16 Climate control system .......... 98
17 AUX input, USB input
18 Selector lever, manual
transmission ....................... 113
Selector lever, manual
transmission automated ......114
19 Seat heating .......................... 36
20 Parking brake ......................118
21 Ignition switch with
steering wheel lock ............107
22 Horn ..................................... 60
Driver airbag ........................ 42
23 Bonnet release lever ..........135
24 Steering wheel adjustment ..59
25 Fuse box ............................ 150
26 Traction Control system .....119
City mode ............................ 121
Stop-start system ................109
Fuel selector ......................... 65
Lane departure warning .....126Electronic Stability Control . 120
27 Light switch .......................... 92
Headlight range
adjustment ........................... 93
Front fog light ........................ 94
Rear fog light ........................ 94
Brightness of instrument
panel illumination ..................95

Vehicle care133Vehicle careGeneral Information...................133
Accessories and vehicle modifications .......................... 133
Vehicle storage ........................134
End-of-life vehicle recovery .....134
Vehicle checks ........................... 135
Performing work ......................135
Bonnet ..................................... 135
Engine oil ................................. 136
Engine coolant ......................... 137
Washer fluid ............................ 138
Brakes ..................................... 138
Brake fluid ............................... 138
Vehicle battery ......................... 138
Wiper blade replacement ........140
Bulb replacement .......................141
Halogen headlights ..................141
Fog lights ................................. 143
Front turn lights .......................143
Tail lights ................................. 144
Side turn lights ......................... 145
Centre high-mounted brake light ......................................... 145
Number plate light ...................146Interior lights ............................ 146
Instrument panel illumination ...146
Electrical system ........................147
Fuses ....................................... 147
Engine compartment fuse box . 148
Instrument panel fuse box .......150
Vehicle tools .............................. 151
Tools ........................................ 151
Wheels and tyres .......................152
Winter tyres ............................. 152
Tyre designations ....................152
Tyre pressure .......................... 153
Tyre pressure monitoring
system .................................... 154
Tread depth ............................. 157
Changing tyre and wheel size . 157 Wheel covers ........................... 158
Tyre chains .............................. 158
Tyre repair kit .......................... 158
Wheel changing .......................161
Spare wheel ............................ 164
Jump starting ............................. 166
Towing ....................................... 167
Towing the vehicle ...................167
Appearance care .......................168
Exterior care ............................ 168
Interior care ............................. 170General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may affect driver
assistance systems, fuel
consumption, CO 2 emissions and
other emissions of the vehicle. They may also invalidate the vehicle
operating permit.

Vehicle care141Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base! Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check After a bulb replacement switch on
the ignition, operate and check the
lights.Halogen headlights

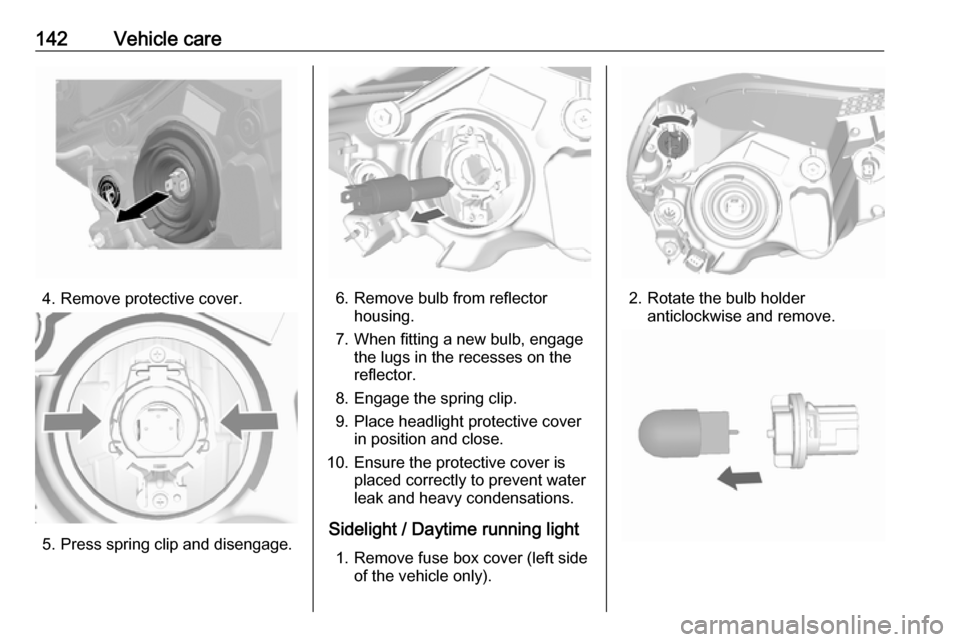

Low beam and high beam

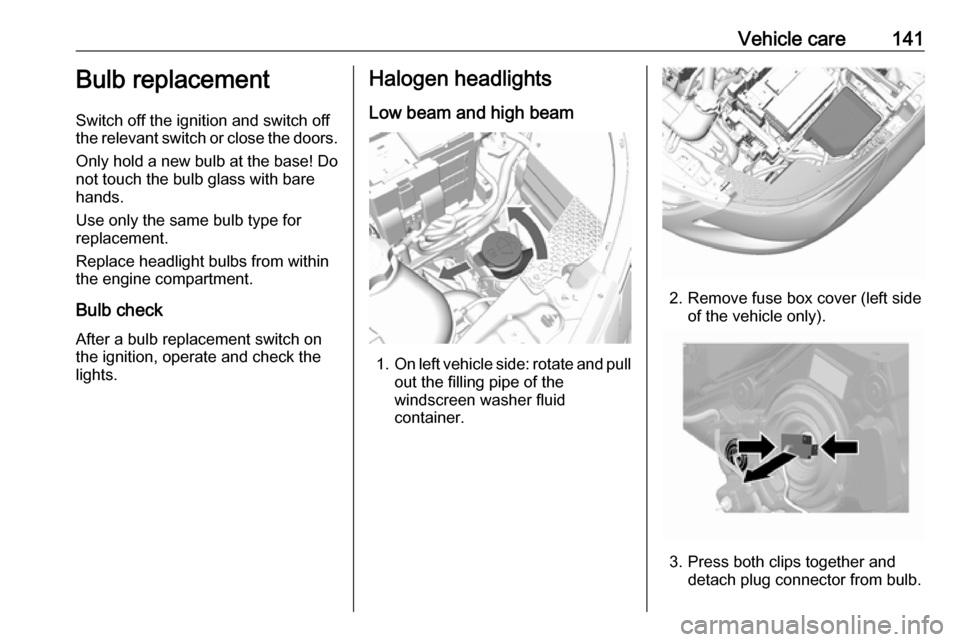

1. On left vehicle side: rotate and pull
out the filling pipe of the
windscreen washer fluid
container.
2. Remove fuse box cover (left side of the vehicle only).
3. Press both clips together anddetach plug connector from bulb.

142Vehicle care
4. Remove protective cover.
5. Press spring clip and disengage.
6. Remove bulb from reflectorhousing.
7. When fitting a new bulb, engage the lugs in the recesses on the
reflector.
8. Engage the spring clip.
9. Place headlight protective cover in position and close.
10. Ensure the protective cover is placed correctly to prevent water
leak and heavy condensations.
Sidelight / Daytime running light 1. Remove fuse box cover (left side of the vehicle only).2. Rotate the bulb holderanticlockwise and remove.

Vehicle care147Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● In the front left of the engine compartment.
● On the driver's side behind a cover in the instrument panel.
Before replacing a fuse, turn off the

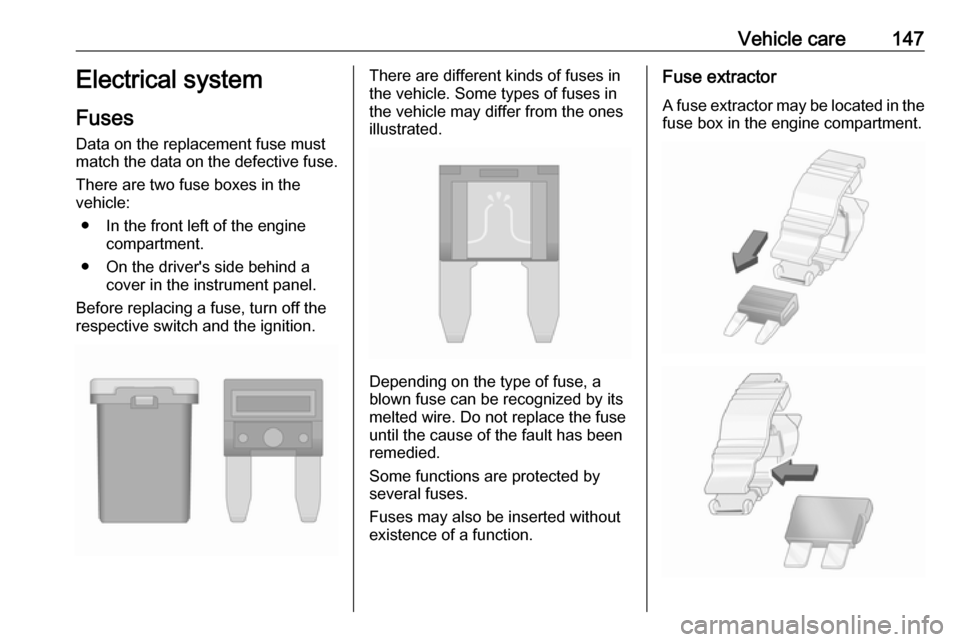

respective switch and the ignition.There are different kinds of fuses in
the vehicle. Some types of fuses in
the vehicle may differ from the ones
illustrated.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.

148Vehicle care
Place the fuse extractor on the
various types of fuse from the top, and
withdraw fuse.

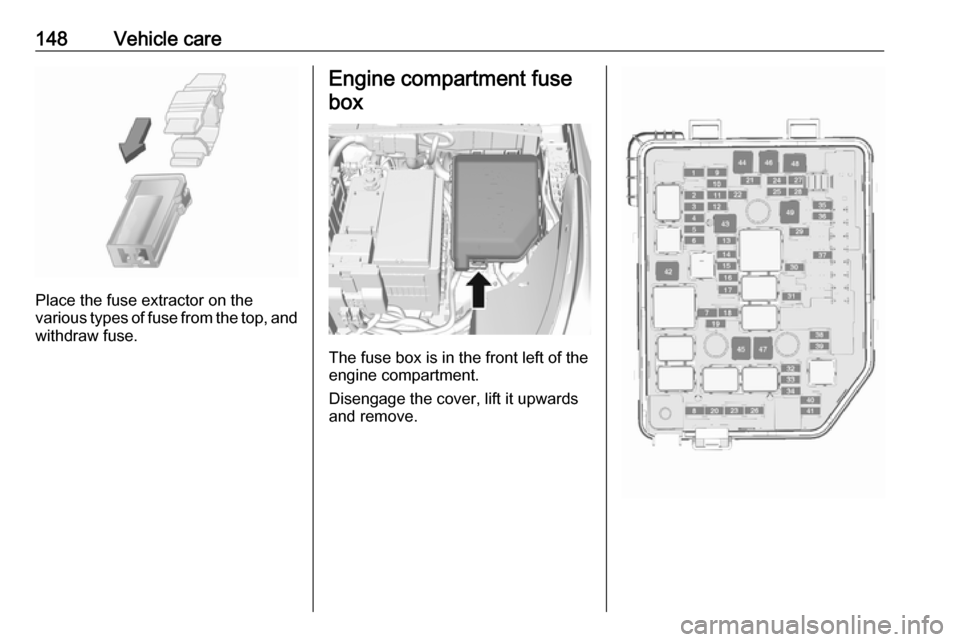

Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover, lift it upwards
and remove.

150Vehicle careNo.Circuit48Front wiper49Body control module/Retained
power off
After having changed defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.

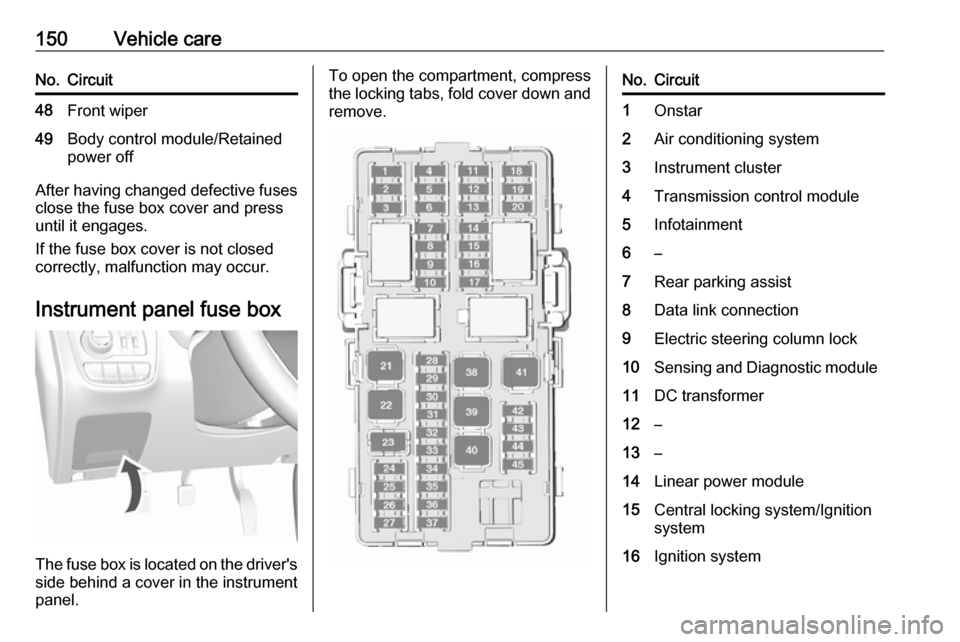

Instrument panel fuse box
The fuse box is located on the driver's
side behind a cover in the instrument
panel.
To open the compartment, compress
the locking tabs, fold cover down and remove.No.Circuit1Onstar2Air conditioning system3Instrument cluster4Transmission control module5Infotainment6–7Rear parking assist8Data link connection9Electric steering column lock10Sensing and Diagnostic module11DC transformer12–13–14Linear power module15Central locking system/Ignition
system16Ignition system
