inflation pressure VAUXHALL VIVA 2019 Owner's Manual

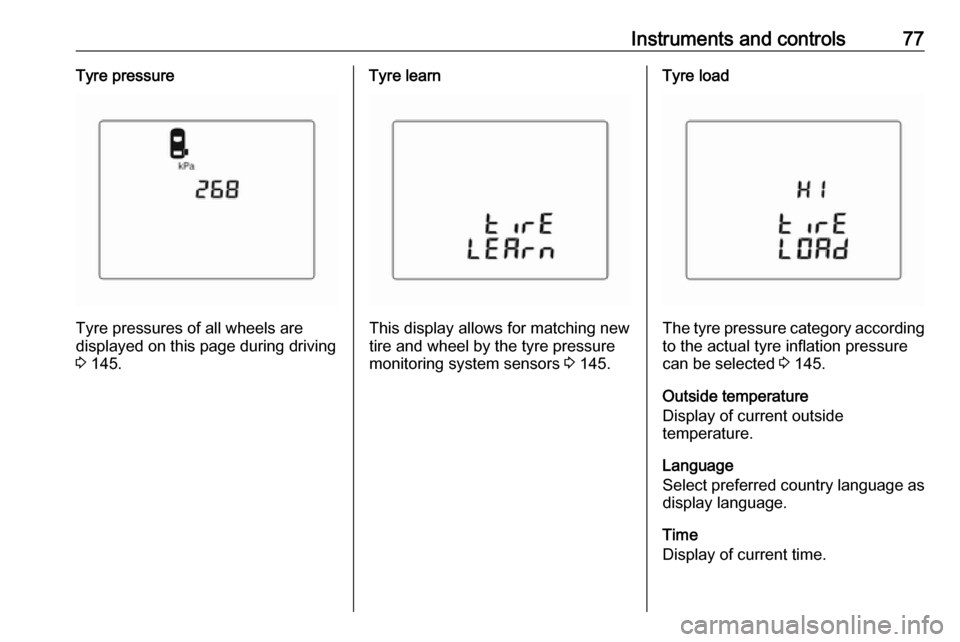

Instruments and controls77Tyre pressure
Tyre pressures of all wheels are
displayed on this page during driving 3 145.
Tyre learn
This display allows for matching new
tire and wheel by the tyre pressure
monitoring system sensors 3 145.
Tyre load
The tyre pressure category according
to the actual tyre inflation pressure
can be selected 3 145.
Outside temperature
Display of current outside
temperature.
Language
Select preferred country language as
display language.
Time
Display of current time.

Vehicle care151
Set the rocker switch on the
compressor to I. The tyre is filled
with sealant.
10. The compressor pressure gauge briefly indicates up to 6 bar whilstthe sealant bottle is emptying
(approx. 30 seconds). Then the
pressure starts to drop.
11. All of the sealant is pumped into the tyre. Then the tyre is inflated.
12. The prescribed tyre pressure should be obtained within
10 minutes.
Tyre pressure 3 172.
When the correct pressure is
obtained, switch off the
compressor.
If the prescribed tyre pressure is
not obtained within 10 minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for
10 minutes. If the prescribed tyre
pressure is still not obtained, the
tyre is too badly damaged. Seek
the assistance of a workshop.
Drain excess tyre pressure with
the button over the pressure indicator.
Depending on version the button
can be located on the air hose.
Do not run the compressor longer
than 10 min.
13. Detach the tyre repair kit. Push catch on bracket to remove
sealant bottle from bracket. Screw the tyre inflation hose to the freeconnection of the sealant bottle.
This prevents sealant from
escaping. Stow tyre repair kit in
load compartment.
14. Remove any excess sealant using a cloth.
