In brief11
1Ashtray .................................. 65
Cupholders ........................... 56
Fuse box ............................. 129
2 Fixed air vents ....................... 91
3 Side air vents ........................ 90
4 Light switch .......................... 79
Rear fog light ......................... 82
Front fog lights .....................81
Exit lighting ............................ 83
Turn and lane-change
signals ................................... 81
Sidelights .............................. 79
Headlight flash, low beam
and high beam ......................80
5 Instruments .......................... 65
Driver Information Centre ..... 74
Transmission display ............68
6 Horn ...................................... 61
Driver airbag ......................... 45
7 Steering column controls ......618Windscreen wiper,
windscreen washer system ..61
Rear window wiper, rear
window washer system ........62
Trip computer ....................... 76
9 Centre air vents ..................... 90
10 Triple-Info-Display .................74
11 Tachograph ........................... 78
12 Front passenger airbag .........45
13 Storage tray ......................... 55
14 Coin tray ............................... 55
15 Storage tray ......................... 55
16 Glovebox .............................. 55
17 Utility hook ........................... 10
18 Climate control system .......... 84
19 Hazard warning flashers .......81
20 Central locking system ..........20
Heated exterior mirrors .........29
Heated rear window ..............31Manual transmission
automated,
Winter and Laden modes ......99
Cruise control and speed
limiter ................................. 104
21 Gear lever, Manual
transmission .......................... 96
Manual transmission
automated ............................. 97
22 Power outlet .......................... 64
Cigarette lighter ..................... 64
23 Ignition switch with
steering wheel lock ...............94
24 Steering wheel adjustment ...60
25 Remote control on
steering wheel ......................60
Cruise control .....................104
26 Ultrasonic parking assist ....108
Headlight range
adjustment ........................... 80
Electronic Stability
Program ............................. 103
Traction Control system ......102

12In brief
27Auxiliary heater .....................87
28 Bonnet release lever ...........116Exterior lighting
Turn light switch
7=Off0=Sidelights9P=Headlights>=Front fog lights>r=Front and rear fog lights
Lighting 3 79, Automatic light
control 3 79, Headlight warning
device 3 75.
Front and rear fog lights
Turn light switch
>=Front fog lights>r=Front and rear fog lights

In brief13

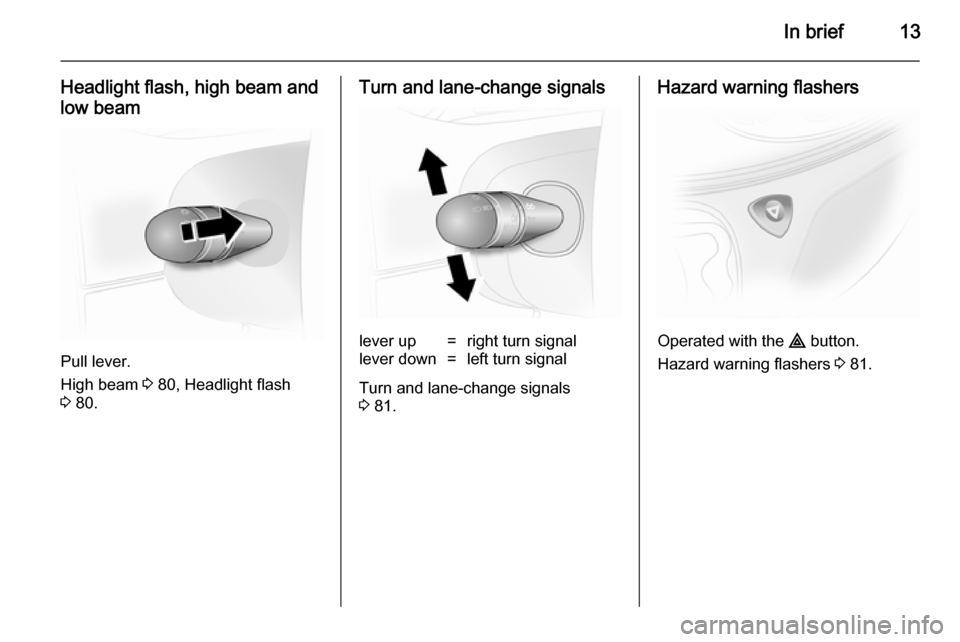

Headlight flash, high beam and
low beam
Pull lever.
High beam 3 80, Headlight flash
3 80.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 81.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 81.

24Keys, doors and windowsDoors
Sliding door
Ensure the side door is fully closed
and secure before driving the vehicle.
The door can be locked from inside
the vehicle with the interior lock
switch.
Rear doors
To open the left hand rear door pull the outside handle. The door is
opened from inside the vehicle by
pulling the interior handle.
The right hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º or further, pull the door
release handles and swing open to
the desired position.
9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
Always close the right hand doorbefore the left hand door.

Keys, doors and windows25Load compartment
Tailgate
Opening
After unlocking with the remote
control, press tailgate button and lift tailgate to the fully open position.
The tailgate can be also opened from inside the vehicle by pushing down
the tailgate interior release.
Notice
In very cold climates, the opening
assistance provided by the tailgate
hydraulic struts may be reduced.
Central locking system 3 20.
Closing
Close tailgate using the interior strap. Ensure tailgate is fully closed.
Central locking system 3 20.
General hints for operating tailgate9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which can not be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Ensure there is adequate
clearance both above (at least
2.15 m) and behind when opening
tailgate.
Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks all doors and
the tailgate.
All doors and the tailgate must be
closed or the system cannot be
activated.
Notice
The anti-theft locking system cannot be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not possible with the central locking
switch.

26Keys, doors and windows
Activation
Press button e twice.
- or -
Turn key in driver's door lock towards
rear of vehicle twice.
Deactivation
Unlock the doors with the key or
button c on the remote control.
Anti-theft alarm system
The anti-theft alarm system is
operated in conjunction with the
central locking system.
It monitors:
■ Doors, tailgate, bonnet
■ Passenger compartment,
■ Load compartment,
■ Vehicle inclination, e.g. if it is raised
■ Ignition
■ Interruption of alarm siren power supply.
Activation All doors and the bonnet must be
closed.Press button e to activate anti-theft
alarm system. Hazard warning lights flash twice to confirm activation.
If the hazard warning lights do not flash upon activation, a door or the
bonnet is not fully closed.
Deactivation
Unlocking the vehicle or switching on the ignition deactivates the anti-theft
alarm system. Hazard warning lights
flash once to confirm deactivation.
Notice
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop
the siren, switch on the ignition. The hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
Activation without monitoring of
passenger compartment
Disable monitoring of the passenger
compartment e.g. when animals are
being left in the vehicle, or if the
auxiliary heater 3 87 has been set
for a timed or remote controlled start.

Keys, doors and windows27
Press and hold button e; an audible
signal will sound as confirmation.
The status will remain until the doors
are unlocked.
Alarm
When triggered, the alarm sounds via a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. First
deactivate the anti-theft alarm system if the vehicle battery must be
disconnected.
To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect vehicle battery and unlock vehicle
with remote control button c (or
switch on the ignition).
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch and
also if the key is left in the ignition
switch when the engine is turned off.
If the engine cannot be started, switch off the ignition and remove key, wait
approx. 2 seconds and then repeat
the start attempt. If start attempt is
unsuccessful, attempt to start the
engine using the spare key and seek
the assistance of a workshop.Notice
The immobiliser does not lock the doors. You should always lock the
vehicle after leaving it and switch on the anti-theft alarm system 3 20,
3 26.

Seats, restraints33
Head restraint removal
To remove the head restraints, pull
lock tab and pull the restraint
upwards.
Stow head restraints securely in load
compartment. Do not drive with head
restraints removed if the seat is
occupied.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 60.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 32.
■ Adjust the height of the seat belt 3 40.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine 3 34.

60Instruments and controlsInstruments and
controlsControls ....................................... 60
Warning lights, gauges and indi‐
cators ........................................... 65
Information displays .....................74
Vehicle messages ........................ 75
Trip computer ............................... 76
Tachograph .................................. 78Controls
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The cruise control and speed limiter
can be operated via the controls on
the steering wheel.
Cruise control and speed limiter
3 104.

Instruments and controls65AshtraysCaution
To be used only for ash and not forcombustible rubbish.
Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.
Warning lights, gauges
and indicators
Speedometer
Indicates vehicle speed.
Maximum speed may be restricted by
a speed regulator. As a visible
indication of this, a warning label is
located on the instrument panel.
A warning buzzer will sound for
10 seconds if the vehicle briefly
exceeds the set limit.
Notice
Under certain conditions (e.g. steep
inclines) the vehicle speed may
exceed the set limit.
Odometer
Displays the recorded distance.
Trip odometer
The trip odometer appears below the
odometer and displays the distance
travelled since the last reset.
To reset, with the trip odometer
displayed, press and hold the button
on the end of the wiper lever for a few
