Seats, restraints49Rear seats
Depending on vehicle, 2nd row and
3rd row rear seats may be fitted.
Rear seat access

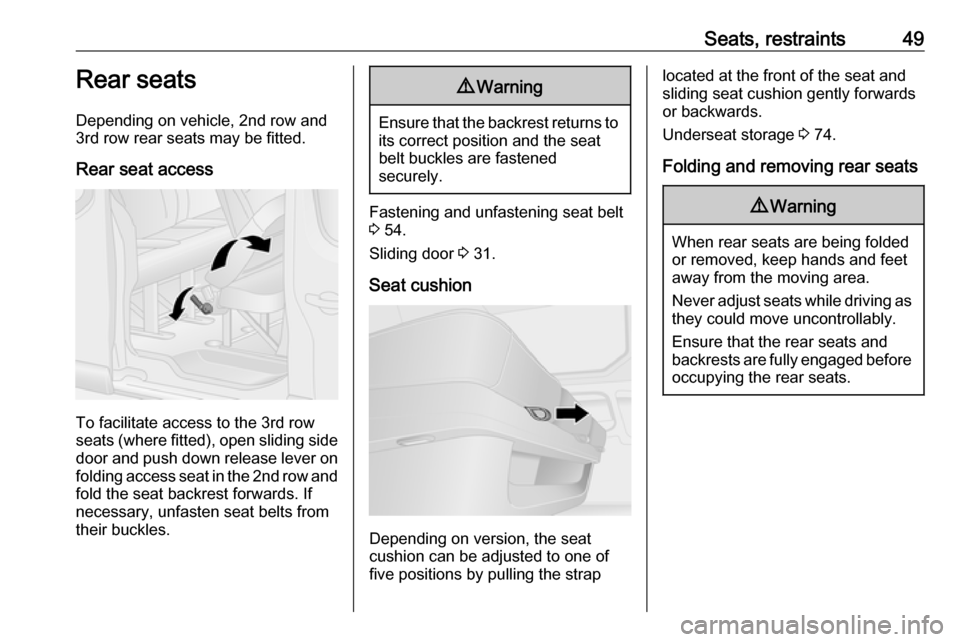

To facilitate access to the 3rd row
seats (where fitted), open sliding side door and push down release lever on folding access seat in the 2nd row and
fold the seat backrest forwards. If
necessary, unfasten seat belts from
their buckles.
9 Warning
Ensure that the backrest returns to
its correct position and the seat
belt buckles are fastened
securely.
Fastening and unfastening seat belt 3 54.
Sliding door 3 31.
Seat cushion
Depending on version, the seat
cushion can be adjusted to one of
five positions by pulling the strap
located at the front of the seat and
sliding seat cushion gently forwards
or backwards.
Underseat storage 3 74.
Folding and removing rear seats9 Warning
When rear seats are being folded
or removed, keep hands and feet
away from the moving area.
Never adjust seats while driving as they could move uncontrollably.
Ensure that the rear seats and
backrests are fully engaged before occupying the rear seats.

50Seats, restraints
Before folding or removing the rear
seats, ensure that the armrests are folded away in their most upright
position.
Before folding or removing the rear
seats, first release outboard seat belts from their buckles and store the
latch plates in their housing.
For the rear centre seat, insert the
latch plate into the buckle 1.

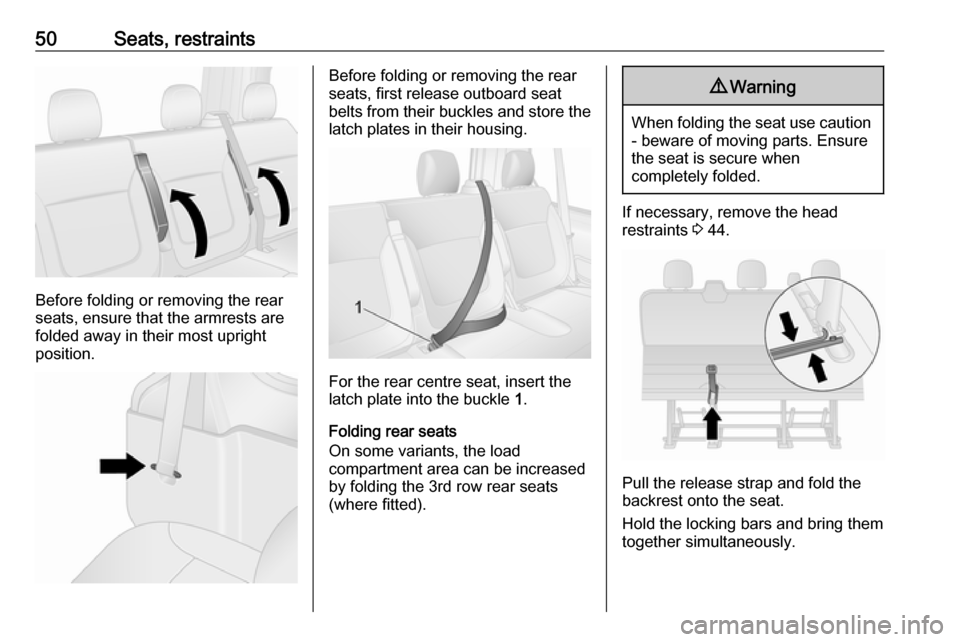

Folding rear seats
On some variants, the load compartment area can be increased
by folding the 3rd row rear seats
(where fitted).
9 Warning
When folding the seat use caution
- beware of moving parts. Ensure
the seat is secure when
completely folded.
If necessary, remove the head
restraints 3 44.
Pull the release strap and fold the
backrest onto the seat.
Hold the locking bars and bring them
together simultaneously.

Seats, restraints51

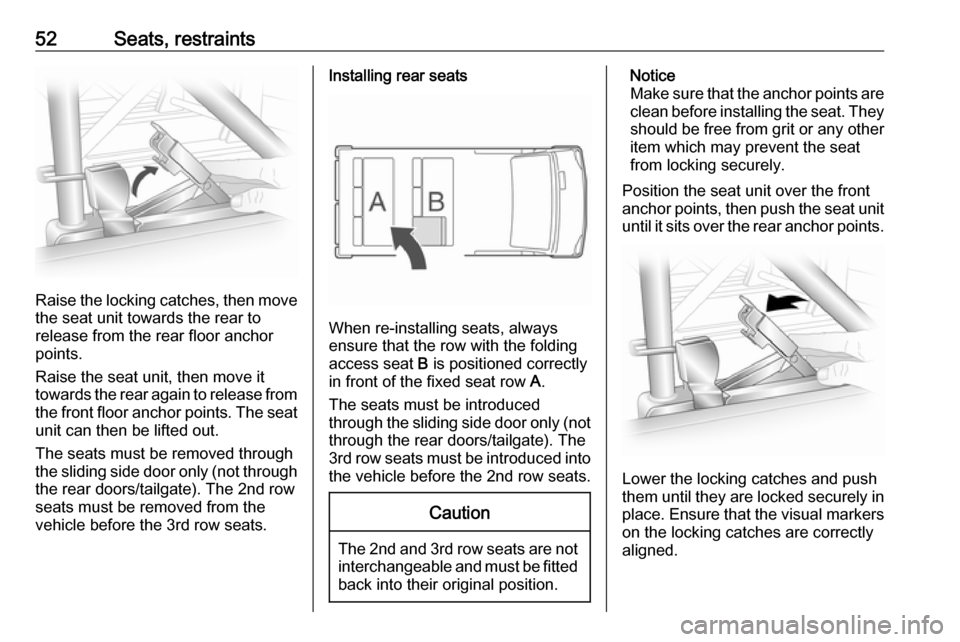

Lift and fold the seat assembly
forwards until it engages in the folded
forward position.
Press on the top of the seat and lock
it into position by pushing the locking
levers (arrowed). Ensure that the seat
is engaged securely.
Caution
For safety reasons, do not place
loads on the folded rear seats.
When returning the seat assembly to its original position, pull locking bars,
carefully lower seat assembly and
ensure the locking levers are correctly located and latched.
Notice
Make sure that the anchor points are
clean before installing the seat. They should be free from grit or any other
item which may prevent the seat
from locking securely.
Raise the backrest, and if necessary,
replace the head restraints.
Removing rear seats
On some variants, the load
compartment area can be increased
by removing the 2nd row and
3rd row rear seats (where fitted).9 Warning
Never remove the rear seats while
driving as they could move
uncontrollably.
9 Warning
Removable seats are heavy! Do
not attempt to remove without
assistance.
If necessary, remove the head
restraints 3 44.

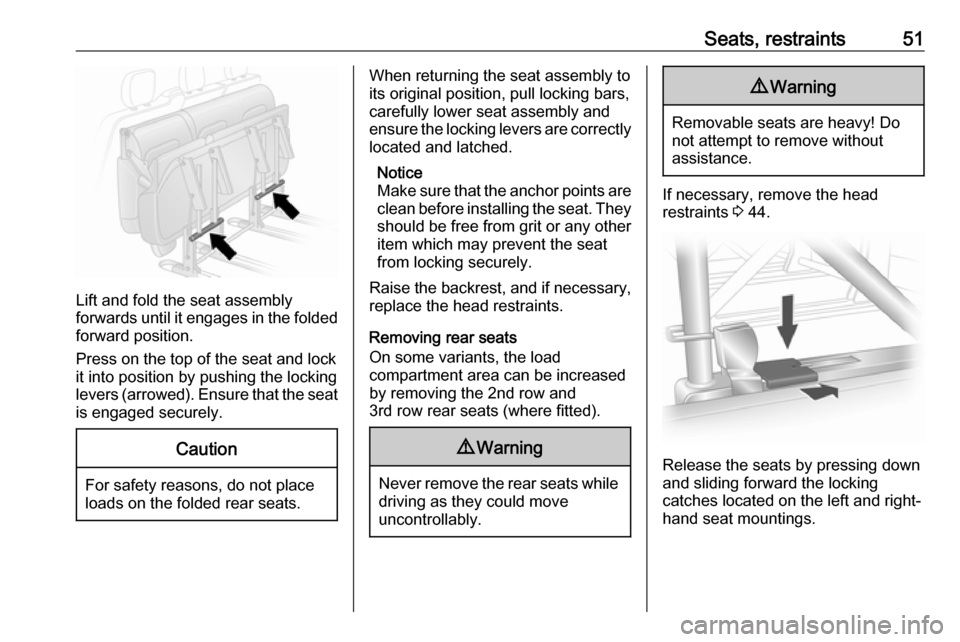

Release the seats by pressing down
and sliding forward the locking
catches located on the left and right-
hand seat mountings.

52Seats, restraints
Raise the locking catches, then movethe seat unit towards the rear to
release from the rear floor anchor
points.
Raise the seat unit, then move it
towards the rear again to release from
the front floor anchor points. The seat unit can then be lifted out.
The seats must be removed through
the sliding side door only (not through
the rear doors/tailgate). The 2nd row
seats must be removed from the
vehicle before the 3rd row seats.
Installing rear seats
When re-installing seats, always
ensure that the row with the folding
access seat B is positioned correctly
in front of the fixed seat row A.
The seats must be introduced
through the sliding side door only (not
through the rear doors/tailgate). The
3rd row seats must be introduced into the vehicle before the 2nd row seats.
Caution
The 2nd and 3rd row seats are not
interchangeable and must be fitted back into their original position.
Notice
Make sure that the anchor points are
clean before installing the seat. They should be free from grit or any other
item which may prevent the seat
from locking securely.
Position the seat unit over the front
anchor points, then push the seat unit
until it sits over the rear anchor points.
Lower the locking catches and push
them until they are locked securely in place. Ensure that the visual markers
on the locking catches are correctly
aligned.

Seats, restraints539Warning
When installing the seats, ensure
that the seats are properly located
on the anchor points and that the
locking catches are fully engaged.
Consult a workshop if the seats
cannot be locked securely in position.
Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Therefore, the risk of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Seat belts are only designed for use
by one person at a time. Child
restraint system 3 63.
Periodically check all parts of the belt system for damage and proper
functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt tensioners
replaced by a workshop.
Notice
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or are trapped. Prevent dirt
from getting into the belt retractors.
Seat belt reminder
Depending on version, both front
seats may be equipped with a seat
belt reminder, indicated by control
indicator X in the roof console
3 95.
Belt force limiters On the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.

54Seats, restraintsBelt tensionersIn the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
tensioners with risk of injury.
Deployment of the belt tensioners is
indicated by continuous illumination
of control indicator v 3 95.
Triggered belt tensioners must be
replaced by a workshop. Belt
tensioners can only be triggered
once.
Notice
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt tensioners.
Do not make any modifications to
belt tensioner components as this
will invalidate the vehicle type
approval.
Three-point seat belt

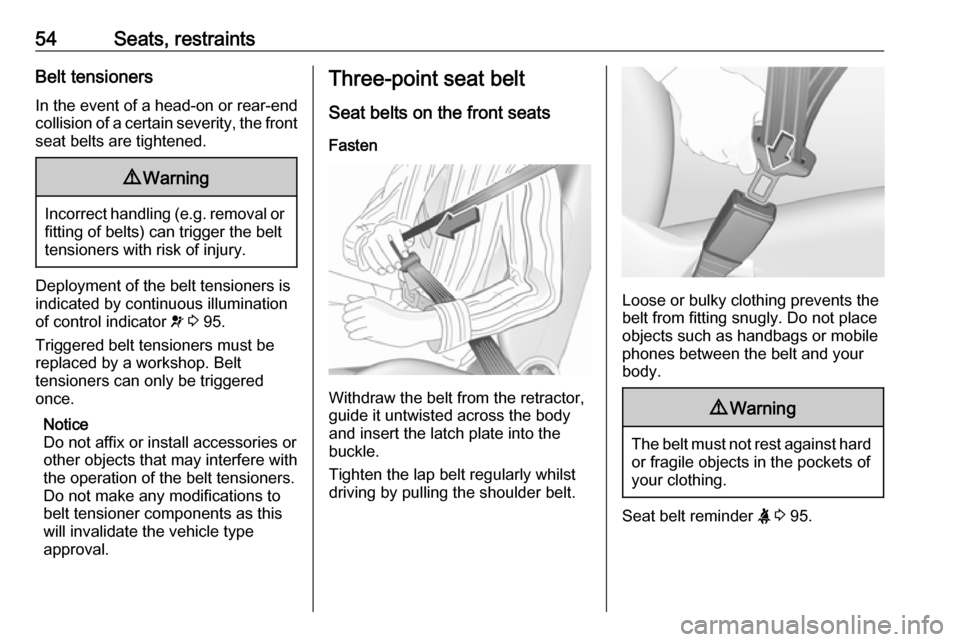

Seat belts on the front seats Fasten
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle.
Tighten the lap belt regularly whilst
driving by pulling the shoulder belt.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Seat belt reminder X 3 95.

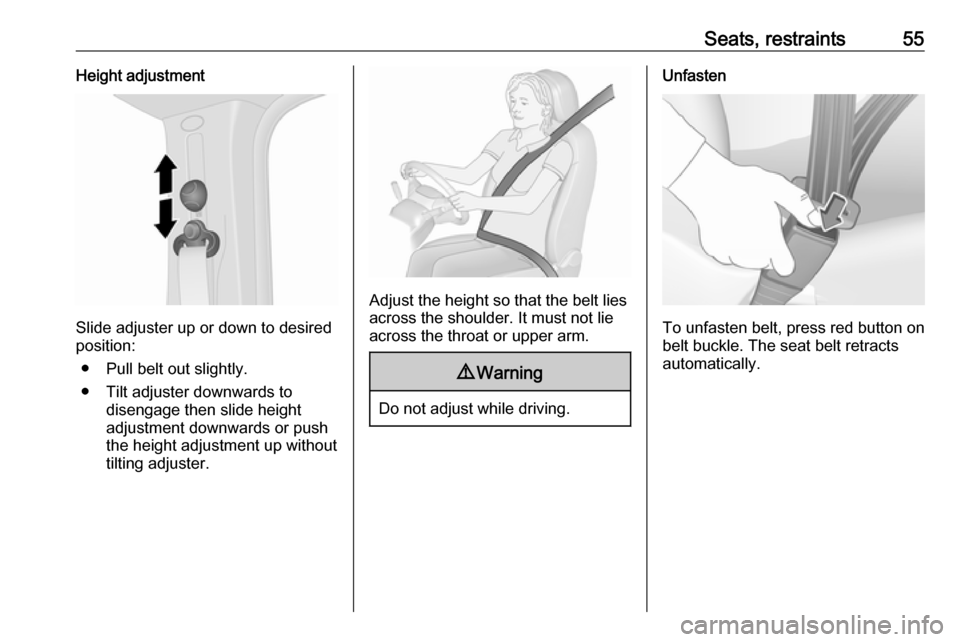

Seats, restraints55Height adjustment
Slide adjuster up or down to desired
position:
● Pull belt out slightly.
● Tilt adjuster downwards to disengage then slide height
adjustment downwards or push
the height adjustment up without
tilting adjuster.
Adjust the height so that the belt lies across the shoulder. It must not lie
across the throat or upper arm.
9 Warning
Do not adjust while driving.
Unfasten
To unfasten belt, press red button on
belt buckle. The seat belt retracts automatically.

56Seats, restraintsSeat belts on the rear seats

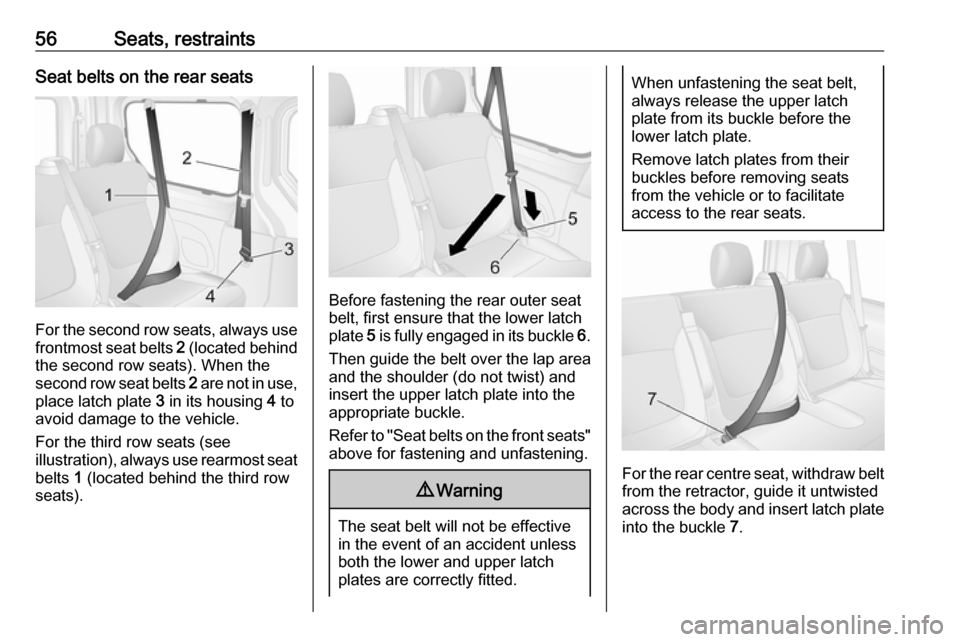

For the second row seats, always use
frontmost seat belts 2 (located behind
the second row seats). When the
second row seat belts 2 are not in use,
place latch plate 3 in its housing 4 to
avoid damage to the vehicle.
For the third row seats (see
illustration), always use rearmost seat
belts 1 (located behind the third row
seats).
Before fastening the rear outer seat
belt, first ensure that the lower latch
plate 5 is fully engaged in its buckle 6.
Then guide the belt over the lap area
and the shoulder (do not twist) and
insert the upper latch plate into the
appropriate buckle.
Refer to "Seat belts on the front seats"
above for fastening and unfastening.
9 Warning
The seat belt will not be effective
in the event of an accident unless both the lower and upper latch
plates are correctly fitted.
When unfastening the seat belt,
always release the upper latch
plate from its buckle before the lower latch plate.
Remove latch plates from their
buckles before removing seats
from the vehicle or to facilitate
access to the rear seats.
For the rear centre seat, withdraw belt from the retractor, guide it untwisted
across the body and insert latch plate
into the buckle 7.

Seats, restraints579Warning
Ensure that the rear seats and
backrests are fully engaged before occupying the rear seats.
Rear seats 3 49.
To avoid damage to the vehicle,
always store outboard rear seat belt
latch plates in their housing, if
available.
For the rear centre seat, insert the
latch plate into the appropriate buckle
when the seat is not occupied.
Using the seat belt while pregnant9 Warning
The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.
Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.9 Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Notice
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not affix any objects onto the
airbag covers and do not cover them with other materials.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be

58Seats, restraintsnecessary to have the steering
wheel, the instrument panel, parts of the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate escaping hot gases may cause burns.
Control indicator v for airbag systems
3 95.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:EN: NEVER use a rear-facing child
restraint system on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro de MUERTE o LESIONES GRAVES
para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts
gericht kinderzitje op een stoel met
een ACTIEVE AIRBAG ervoor, om
DODELIJK of ERNSTIG LETSEL van
het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt
autostol på et forsæde med AKTIV
AIRBAG, BARNET kan komme i
LIVSFARE eller komme ALVORLIGT TIL SKADE.
SV: Använd ALDRIG en bakåtvänd
barnstol på ett säte som skyddas med en framförvarande AKTIV AIRBAG.
DÖDSFALL eller ALLVARLIGA
SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin
suunnattua lasten turvaistuinta
istuimelle, jonka edessä on
AKTIIVINEN TURVATYYNY, LAPSI
VOI KUOLLA tai VAMMAUTUA
VAKAVASTI.
