fuse VAUXHALL VIVARO 2018.5 Owner's Manual

In brief111Side air vents ...................... 127
2 Ashtray .................................. 88
Cupholder ............................ 73
3 Light switch ........................ 108
Rear fog light ....................... 112
Front fog lights ...................111
Exit lighting .......................... 114
Turn lights ........................... 111
Sidelights ............................ 108
Headlight flash, low beam
and high beam ....................109
4 Instruments .......................... 89
Driver Information Centre .... 101
Trip computer .....................104
5 Horn ...................................... 83
Driver airbag ......................... 61
6 Windscreen wiper,
windscreen washer system ..84
Rear window wiper, rear
window washer system ........85
Trip computer .....................1047Card reader for electronic
key system ............................ 21
8 Steering column controls ......83
9 Centre air vents ................... 127
10 Power outlet .......................... 87
Cigarette lighter ..................... 88
Coin tray, USB slot ................ 71
11 Info display .......................... 102
12 Front passenger airbag .........61
13 Glovebox .............................. 72
14 Heated exterior mirrors .........40
Heated rear window ..............43
Idle speed control ...............134
15 Power outlet .......................... 87
Cigarette lighter ..................... 88
16 Climate control system ........ 116
Electronic climate control
system ................................. 118
17 Ashtray .................................. 88
Cupholder ............................ 73
18 Hazard warning flashers .....111
Central locking system ..........2419Power button for electronic
key system .......................... 131
20 Eco button for fuel
economy mode ...................129
21 Stop-start system ................135
Cruise control ...................... 151
Speed limiter ....................... 153
22 Remote control on
steering wheel ......................83
Cruise control .....................151
23 Ignition switch with
steering wheel lock .............131
24 Steering wheel adjustment ...83
25 Bonnet release lever ...........165
26 Fuse box ............................. 181
27 Ultrasonic parking assist ....154
Electronic Stability
Program (ESP® Plus
)............ 149
Traction Control system
(TC) ..................................... 148
Headlight range
adjustment ......................... 109

Instruments and controls95Control indicators in the roof
console
Overview
OTurn lights 3 95XSeat belt reminder 3 96vAirbag and belt tensioners
3 96Ó ONAirbag activation 3 96* OFFAirbag deactivation 3 96pCharging system 3 97ZMalfunction indicator light
3 97jService vehicle soon 3 97CStop engine 3 97RBrake system 3 97uAntilock brake system (ABS)
3 98kjUpshift, downshift 3 98RElectronic Stability Program
3 98ØElectronic Stability Program
off 3 98WEngine coolant temperature
3 98!Preheating 3 99YAdBlue 3 99wTyre pressure monitoring
system 3 99IEngine oil pressure 3 99ECOFuel economy mode 3 100YLow fuel 3 100DAutostop (Stop-start system)
3 100\Autostop inhibited (Stop-
start system) 3 1009Exterior light 3 1008Exterior light 3 100CHigh beam 3 100>Fog light 3 101øRear fog light 3 101mCruise control 3 101USpeed limiter 3 101&Tachograph 3 101yDoor open 3 101
Turn lights
O flashes green.
Flashes if a turn light or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn light or associated fuse.
An audible warning can be heard
when the turn lights are on.
Bulb replacement 3 174.
Fuses 3 180.

Climate control123Remote control (Type A)1 Display:Displays preset, current
time or preset time,
temperature, Z, Ü , Y
and Ö2 7:Long press: switch heater on,
short press: turns display on
or confirms selection3 l:Adjusts values up4 d:Long press: switch heater off,
short press: turns display on
or exit menu5 k:Adjusts values downIf no buttons are pressed within
ten seconds the display automatically
turns off.
Remote control (Type A) fault
displaysINIT:automatic detection –
wait until automatic
detection is finishedNO
SIGNAL:no signal –
check heater fuseZ:poor signal –
move closerÜ:battery low –
replace batteryY:heater fault –
consult workshopAdd, AddE:system in learning
mode
Teach remote control (Type A)
If the vehicle battery is reconnected, the LED in the instrument panel
button illuminates and the system
configures the remote control menu
automatically. If the LED flashes,
select Add or AddE and confirm.
Additional remote control units may
also be configured. Press the button
until LED flashes, switch on the
remote control, select Add and
confirm.
AddE teaches the current remote
control unit exclusively and blocks all
previously configured units. Add
teaches up to four remote control
units, but only one unit can operate
the system at any one time.
Remote control (Type B)1 Display:Displays preset, current
time or preset time,
temperature, Z, Ü , Y
and Ö

124Climate control2 l:Adjusts values up3
OFF:Switch heater off, or press
Y and OFF simultaneously
to confirm selection4 Y:Switch heater on, or press Y
and OFF simultaneously to
confirm selection5 k:Adjusts values down
If no buttons are pressed within
30 seconds the display automatically
turns off.
9 Warning
When refuelling, switch off the
remote control unit as well as the
heater!
The remote control has a maximum
range of 1000 m. The range may be
reduced due to environmental
conditions and as the battery
becomes weaker.
Remote control (Type B) fault
displaysZ:poor signal – adjust positionFAIL:error during signal
transmission –
move closer or check heater
fuseÜ:battery low – replace battery
Teach remote control (Type B)
Up to four additional remote control
units may also be configured. During
additional teaching processes, the
oldest transmitter will be deleted each
time.
Remove the heater fuse for
5 seconds, then refit the fuse. Within
2–6 seconds press OFF for
1 second. Teaching is completed.
If the remote has not been used for a long period, press the OFF button six
times at intervals of 2 seconds, then
press and hold for another
2 seconds, then wait 2 minutes.
Manual control
Depending on version, the auxiliary
heater can also be switched on for the
last duration time or the default
duration 30 minutes, or cut-off
immediately, using the button on the
lower part of the instrument panel,
beside the steering wheel.
The LED in the button confirms
operation.
Battery replacement
Replace the battery when the range
of the remote control is reduced or when the battery charge symbol
flashes.

Vehicle care163Vehicle careGeneral Information...................164
Accessories and vehicle modifications .......................... 164
Vehicle storage ........................164
End-of-life vehicle recovery .....165
Vehicle checks ........................... 165
Performing work ......................165
Bonnet ..................................... 165
Engine oil ................................. 166
Engine air filter ........................ 167
Engine coolant ......................... 168
Power steering fluid .................168
Washer fluid ............................ 169
Brakes ..................................... 169
Brake fluid ............................... 169
Vehicle battery ......................... 170
Diesel fuel filter ........................172
Diesel fuel system bleeding .....172
Wiper blade replacement ........173
Bulb replacement .......................174
Headlights ............................... 174
Fog lights ................................. 175
Front turn lights .......................175
Tail lights ................................. 175
Side turn lights ......................... 176Centre high-mounted brake
light ......................................... 176
Reversing light ......................... 177
Number plate light ...................178
Fog tail light ............................. 178
Interior lights ............................ 179
Instrument panel illumination ...180
Electrical system ........................180
Fuses ....................................... 180
Instrument panel fuse box .......181
Vehicle tools .............................. 184
Tools ........................................ 184
Wheels and tyres .......................185
Tyres ....................................... 185
Winter tyres ............................. 185
Tyre designations ....................185
Tyre pressure .......................... 185
Tyre pressure monitoring system .................................... 187
Tread depth ............................. 189
Changing tyre and wheel size . 189
Wheel covers ........................... 189
Tyre chains .............................. 190
Tyre repair kit .......................... 190
Wheel changing .......................193
Spare wheel ............................ 195
Jump starting ............................. 196Towing....................................... 198
Towing the vehicle ...................198
Towing another vehicle ...........199
Appearance care .......................199
Exterior care ............................ 199
Interior care ............................. 201

180Vehicle careInstrument panel
illumination
Have bulbs replaced by a workshop.Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● on the left-hand side of the instrument panel, behind the trim
panel
● in the engine compartment located next to the battery
Notice
The engine compartment fuse box
should only be accessed by a
workshop.
Before replacing a fuse, turn off the
respective switch and the ignition.

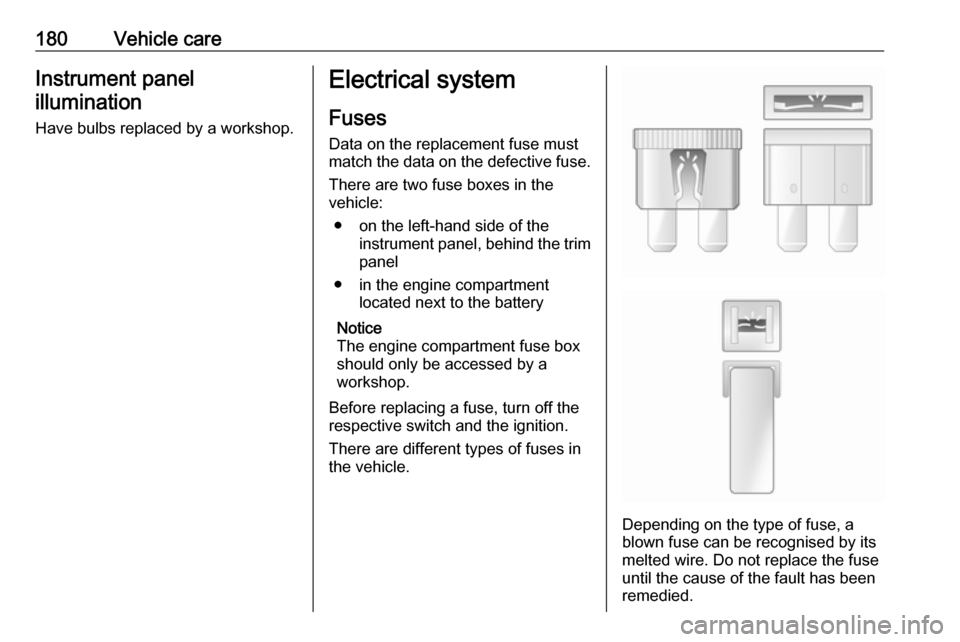

There are different types of fuses inthe vehicle.
Depending on the type of fuse, a
blown fuse can be recognised by its
melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.

Vehicle care181It is advisable to carry a full set of
fuses. Provision is made in the fuse box for the storing of spare fuses.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Notice
Not all fuse box descriptions in this
Owner's Manual may apply to your
vehicle. Refer to the fuse box label,
where fitted.

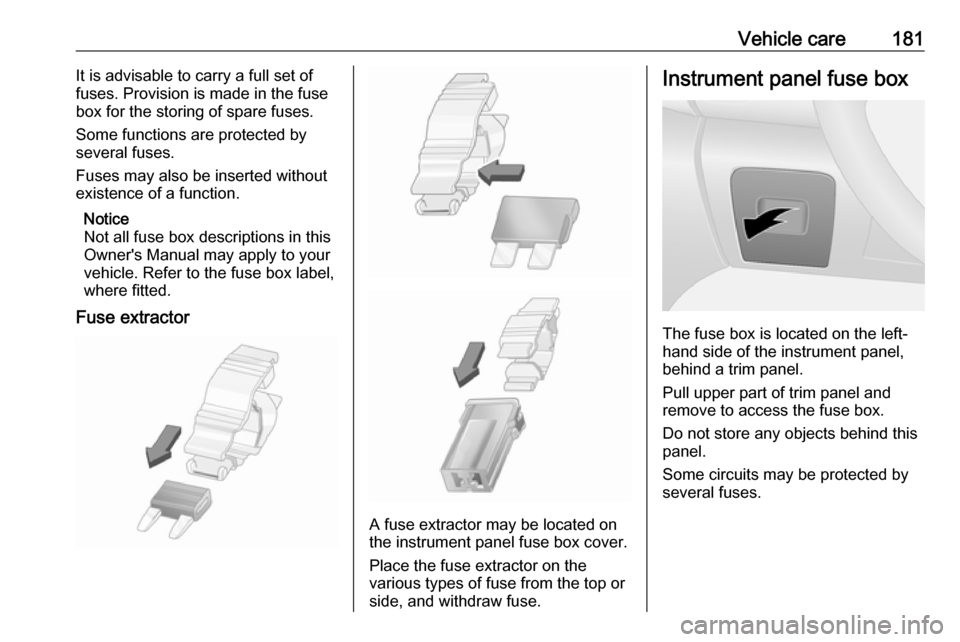

Fuse extractor
A fuse extractor may be located on
the instrument panel fuse box cover.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Instrument panel fuse box
The fuse box is located on the left-
hand side of the instrument panel, behind a trim panel.
Pull upper part of trim panel and
remove to access the fuse box.
Do not store any objects behind this
panel.
Some circuits may be protected by
several fuses.

184Vehicle careNo.Circuit40Rear power outlet41Starting / Body control module42Heated seats43Tachograph44Windscreen wiper45Heating / Air conditioning
After having changed defective fuses,
replace the trim panel.
Vehicle tools
Tools
The jack, wheel wrench, wheel bolt
sleeve, torx key, adapters, wheel
cover hook, towing eye are contained
in a unit, stowed under the driver's
seat.
Slide seat forwards and fold the
backrest forwards 3 46 to access the
tool box. The tool box may be secured
in position with a wing nut. Rotate
wing nut anticlockwise to release.
Wheel changing 3 193.
Spare wheel 3 195.
Vehicles with tyre repair kit: The wheel cover hook and torx key are
stored within the tyre repair kit case,
stowed under the driver's seat.
Tyre repair kit 3 190.

232F
Fault messages .......................... 102
First aid kit ................................... 80
Fixed air vents ........................... 128
Fog light ..................................... 101
Fog lights ............................ 111, 175
Fog tail light ............................... 178
Folding centre seatback ...............73
Folding front centre passenger seat ........................................... 48
Folding mirrors ............................. 39
Foot well lights ............................ 112
Front airbag system .....................61
Front courtesy lights ...................112
Front door pockets........................ 74
Front fog lights ....................108, 111
Front reading light....................... 114 Front seats.................................... 45
Front storage ................................ 73
Front turn lights .......................... 175
Fuel cut-off system .....................134
Fuel economy gauge ....................91
Fuel economy mode ...................100
Fuel economy rating ...........102, 104
Fuel for diesel engines ..............159
Fuel gauge ................................... 90 Fuel tank ..................................... 219
Fuse box ..................................... 181
Fuses ......................................... 180G
Gauges ......................................... 89
General information ...................161
Glovebox ..................................... 72
Glovebox cooler ......................... 128
Glove box lighting .......................114
Grab handles ................................ 76
H Hand brake ................................. 146
Hand brake - see Parking brake. 147
Hazard warning flashers ............111
Headlight flash ........................... 109
Headlight range adjustment ......109
Headlights .................. 108, 109, 174
Headlights when driving abroad 110
Head restraint adjustment .............8
Head restraints ............................ 44
Heated exterior mirrors .................15
Heated mirrors ............................. 40
Heated rear window ...............15, 43
Heating ........................................ 48
Heating and ventilation system . 116
Heat-reflecting windscreen ...........41
High beam ......................... 100, 109
Hill start assist ........................... 147
Horn ....................................... 14, 83
I
Identification plate .....................207
Idle speed control .......................134Ignition switch positions .............131
Immobiliser .................................. 38
Indicators ...................................... 89
Info Display ................................. 102
Information displays.................... 101
Infotainment system ...................102
Initial drive information.................... 6 Instrument cluster ........................89
Instrument panel fuse box .........181
Instrument panel illumination .....180
Instrument panel illumination control .................................... 112
Instrument panel overview ........... 10
Instrument panel storage ..............71
Instrument panel tray ....................71
Interior care ............................... 201
Interior lighting ............................ 112
Interior lights ...................... 112, 179
Interior mirrors .............................. 40
Introduction .................................... 3
ISOFIX .......................................... 64
J Jack ............................................ 184
Journey record............................ 104
Jump starting ............................. 196
K Keys ............................................. 19
Keys, locks ................................... 19
