washer fluid VAUXHALL VIVARO 2018.5 Owner's Manual

In brief15Windscreen washer
Pull lever.
Windscreen washer 3 84.
Washer fluid 3 169.
Rear window wiper and washer
system
Turn lever:
7:offe:wiperf:washer
Rear window wiper and washer 3 85.
Washer fluid 3 169.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 43.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 40.

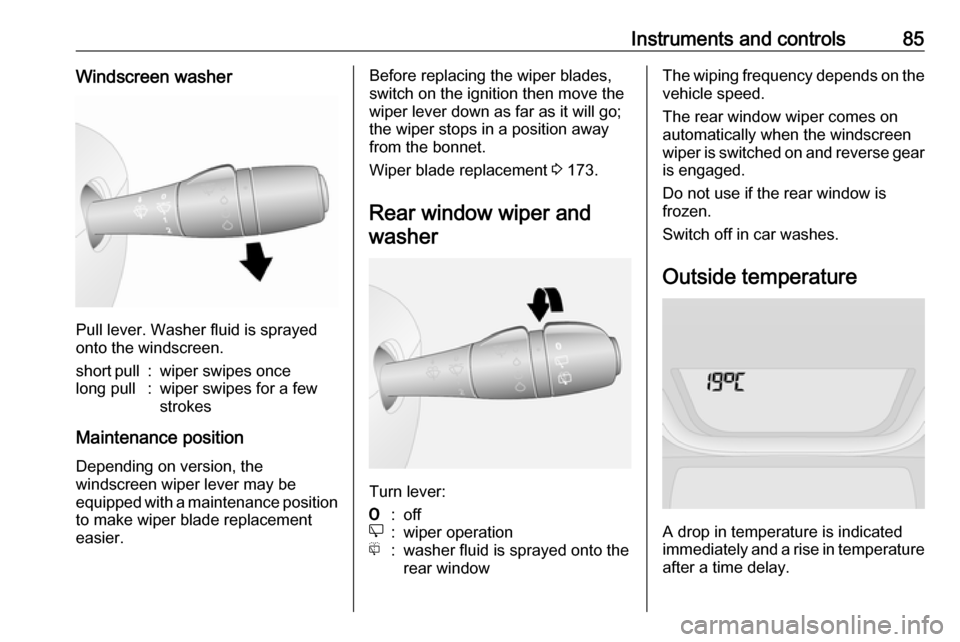

Instruments and controls85Windscreen washer
Pull lever. Washer fluid is sprayed
onto the windscreen.
short pull:wiper swipes oncelong pull:wiper swipes for a few
strokes
Maintenance position
Depending on version, the
windscreen wiper lever may be
equipped with a maintenance position
to make wiper blade replacement
easier.
Before replacing the wiper blades,
switch on the ignition then move the
wiper lever down as far as it will go;
the wiper stops in a position away
from the bonnet.
Wiper blade replacement 3 173.
Rear window wiper and washer
Turn lever:
7:offe:wiper operationf:washer fluid is sprayed onto the
rear windowThe wiping frequency depends on the
vehicle speed.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear is engaged.
Do not use if the rear window is
frozen.
Switch off in car washes.
Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.

Vehicle care163Vehicle careGeneral Information...................164
Accessories and vehicle modifications .......................... 164
Vehicle storage ........................164
End-of-life vehicle recovery .....165
Vehicle checks ........................... 165
Performing work ......................165
Bonnet ..................................... 165
Engine oil ................................. 166
Engine air filter ........................ 167
Engine coolant ......................... 168
Power steering fluid .................168
Washer fluid ............................ 169
Brakes ..................................... 169
Brake fluid ............................... 169
Vehicle battery ......................... 170
Diesel fuel filter ........................172
Diesel fuel system bleeding .....172
Wiper blade replacement ........173
Bulb replacement .......................174
Headlights ............................... 174
Fog lights ................................. 175
Front turn lights .......................175
Tail lights ................................. 175
Side turn lights ......................... 176Centre high-mounted brake
light ......................................... 176
Reversing light ......................... 177
Number plate light ...................178
Fog tail light ............................. 178
Interior lights ............................ 179
Instrument panel illumination ...180
Electrical system ........................180
Fuses ....................................... 180
Instrument panel fuse box .......181
Vehicle tools .............................. 184
Tools ........................................ 184
Wheels and tyres .......................185
Tyres ....................................... 185
Winter tyres ............................. 185
Tyre designations ....................185
Tyre pressure .......................... 185
Tyre pressure monitoring system .................................... 187
Tread depth ............................. 189
Changing tyre and wheel size . 189
Wheel covers ........................... 189
Tyre chains .............................. 190
Tyre repair kit .......................... 190
Wheel changing .......................193
Spare wheel ............................ 195
Jump starting ............................. 196Towing....................................... 198
Towing the vehicle ...................198
Towing another vehicle ...........199
Appearance care .......................199
Exterior care ............................ 199
Interior care ............................. 201

164Vehicle careGeneral Information
Accessories and vehicle modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may affect driver
assistance systems, fuel
consumption, CO 2 emissions and
other emissions of the vehicle. They
may also invalidate the vehicle
operating permit.Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
If the vehicle is to be stored for several months:
● Wash the vehicle. Wax painted parts of the vehicle.
Exterior care 3 199.
● Have the wax in the engine compartment and underbody
checked.
● Clean and preserve rubber seals.
● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir. ● Check the coolant antifreeze and
corrosion protection.
● Adjust tyre pressure to the value specified for full load.
● Park vehicle in a dry, wellventilated place. Engage first or
reverse gear. Prevent the vehicle from rolling.
● Do not apply the parking brake.
● Open the bonnet, close all doors and lock the vehicle.
Putting back into operation
When the vehicle is to be put back into
operation:
● Check tyre pressure.
● Fill up the washer fluid reservoir. ● Check the engine oil level.
● Check the coolant level.
● Since the durability of AdBlue is limited to two years, fluid should
be exchanged if it is too old. Seek the assistance of a workshop.
● Fit the number plate, if necessary.

Vehicle care165End-of-life vehicle recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our website, where legally required. Only
entrust this work to an authorised
recycling centre.Vehicle checks
Performing work9 Warning
Only perform engine compartment
checks when the ignition is off.
The vehicle must not be in an
Autostop 3 135.
The cooling fan may start
operating even if the ignition is off.
9 Danger
The ignition system generates
extremely high voltages. Do not
touch.
The caps for topping up the engine oil, the coolant, the brake fluid, the
washer fluid and the oil dipstick
handle are yellow for ease of
identification.
Bonnet
Opening
Pull the release lever and return it to
its original position.

Vehicle care169The fluid level normally does not need
to be checked. If an unusual noise is
heard during steering or if the power
steering reacts conspicuously, seek
the assistance of a workshop.
If the fluid level in the reservoir falls
below the MIN mark consult a
workshop.
Washer fluid
Fill with clean water mixed with a
suitable quantity of windscreen
washer fluid which contains
antifreeze.
Caution
Only washer fluid with a sufficient
antifreeze concentration provides
protection at low temperatures or
a sudden drop in temperature.
Use of washer fluid containing
isopropanol can damage exterior
lamps.
Washer fluid 3 204.
Brakes Once new brake linings are installed,
do not brake unnecessarily hard for
the first few journeys.
Brake fluid9 Warning
Brake fluid is poisonous and
corrosive. Avoid contact with eyes, skin, fabrics and painted surfaces.

Service and maintenance205Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature viscosity.
Select the appropriate viscosity grade depending on the minimum ambient
temperature 3 208.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only silicate-free long life coolant (LLC) antifreeze approved for thevehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C.
This concentration should be
maintained all year round. The use of additional coolant additives that
intend to give additional corrosionprotection or seal against minor leaks
can cause function problems. Liability
for consequences resulting from the
use of additional coolant additives will be rejected.
Washer fluid Use only washer fluid approved for
the vehicle to prevent damage of
wiper blades, paintwork, plastic and
rubber parts. Consult a workshop.
Brake fluid
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified interval.
AdBlue Only use AdBlue to reduce the
nitrogen oxides in the exhaust
emission 3 140.

233LLashing eyes ............................... 77
Lashing straps .............................. 77
Laying up the vehicle ..........164, 170
LED spotlights ............................ 112
Light covers, misted.................... 112
Lighting ....................................... 108
Lighting features .........................114
Light switch ................................ 108
Load compartment ................33, 76
Load compartment cover .............77
Load compartment grille ...............79
Load compartment lighting .........114
Loading information .....................80
Load-through feature ....................74
Low fuel ..................................... 100
Luggage floor net .........................77
M
Malfunction indicator light ............97
Manual adjustment ......................39
Manual anti-dazzle ......................40
Manual transmission .................. 145
Maximum speed limiter............... 153
Messages ................................... 102
Mirror adjustment ........................... 8
Mirrors .................................... 39, 40
Misted light covers .....................112N
New vehicle running-in ..............131
Number plate light .....................178
O
Object detection systems ...........154
Odometer ..................................... 90
Oil ............................................... 166
Oil, engine .................. 166, 204, 208
Oil pressure .................................. 99
Outside temperature ....................85
Overcab storage ..........................76
Overrun cut-off ........................... 135
P Parking ................................ 18, 138
Parking assist ............................ 154
Parking brake ............................ 147
Parking distance control .............154
Particulate filter ........................... 139
Pedals......................................... 130
Performing work ........................165
Phone controls.............................. 83
Phone holder ................................ 71
Power button ........................ 17, 131
Power outlets ............................... 87
Power steering fluid ....................168
Power windows ............................ 42
Preheating ........................... 99, 133
Puncture ..................................... 193R
Radio Frequency Identification (RFID) ..................................... 228
Radio remote control ...................20
REACH ....................................... 225
Reading lights ............................ 114
Rear air conditioning system .....121
Rear courtesy lights ....................112
Rear door manual lock .................24
Rear doors .............................. 24, 31
Rear fog light ............................. 101
Rear fog lights ....................108, 112
Rear heating system .................. 120
Rear parcel shelf .......................... 77
Rear seats ................................... 49
2nd row seats ............................ 49
3rd row seats............................. 49
Folding ...................................... 49
Installing .................................... 49
Rear seat access ......................49
Removing .................................. 49
Seat cushion adjustment ...........49
Rear seats lights .........................112
Rear view camera ...................... 156
Rear windows .............................. 42
Rear window wiper and washer ..85
Recommended fluids and lubricants ........................ 204, 208
Refuelling ................................... 159
Registered trademarks ...............225

235UUltrasonic parking assist............. 154
Underseat storage .......................74
Upholstery .................................. 201
Upshift .......................................... 98
USB socket ................................... 87
Using this manual ..........................3
V Vehicle battery ...................170, 196
Vehicle checks............................ 165
Vehicle data ................................ 208
Vehicle data recording and privacy ..................................... 225
Vehicle dimensions .................... 215
Vehicle Identification Number ....206
Vehicle jack ................................ 184
Vehicle messages .....................102
Vehicle security ............................ 35
Vehicle shutdown ......................134
Vehicle specific data ......................3
Vehicle storage ........................... 164
Vehicle tools ....................... 184, 198
Vehicle unlocking ........................... 6
Vehicle weight ........................... 212
Ventilation ................................... 116
W
Warning chimes .........................103
Warning lights ............................... 89
Warning messages .....................102Warning triangle .......................... 80
Washer and wiper systems .........14
Washer fluid ............................... 169
Washing the vehicle ...................199
Welcome lighting ........................114
Wheel changing .........................193
Wheel cover hook .......................184
Wheel covers ............................. 189
Wheels and tyres .......................185
Wheel wrench ............................. 184
Wide view mirror ........................... 40
Windows ................................. 41, 42
Windscreen................................... 41
Windscreen stickers .....................41
Windscreen wiper and washer ....84
Winter tyres ............................... 185
Wiper blade replacement ..........173
