Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 44
Storage ........................................ 71
Instruments and controls .............82
Lighting ...................................... 106
Climate control ........................... 114
Driving and operating .................128
Vehicle care ............................... 162
Service and maintenance ..........201
Technical data ........................... 204
Customer information ................218
Index .......................................... 224Contents
Page 13 of 233
In brief111Side air vents ...................... 125
2 Ashtray .................................. 88
Cupholder ............................ 73
3 Light switch ........................ 106
Rear fog light ....................... 110
Front fog lights ...................109
Exit lighting .......................... 112
Turn and lane-change
signals ................................. 109
Sidelights ............................ 106
Headlight flash, low beam
and high beam ....................107
4 Instruments .......................... 89
Driver Information Centre .... 100
Trip computer .....................103
5 Horn ...................................... 83
Driver airbag ......................... 616Windscreen wiper,
windscreen washer system ..84
Rear window wiper, rear
window washer system ........85
Trip computer .....................103
7 Card reader for electronic
key system ............................ 22
8 Steering column controls ......83
9 Centre air vents ................... 125
10 Power outlet .......................... 86
Cigarette lighter ..................... 88
Coin tray, USB slot ................ 71
11 Info display .......................... 100
12 Front passenger airbag .........61
13 Glovebox .............................. 72
14 Heated exterior mirrors .........40
Heated rear window ..............43
Idle speed control ...............133
15 Power outlet .......................... 86
Cigarette lighter ..................... 8816 Climate control system ........ 114
Electronic climate control
system ................................. 116
17 Ashtray .................................. 88
Cupholder ............................ 73
18 Hazard warning flashers .....109
Central locking system ..........24
19 Power button for electronic
key system .......................... 130
20 Eco button for fuel
economy mode ...................128
21 Stop-start system ................134
Cruise control and speed
limiter ................................. 150
22 Remote control on
steering wheel ......................83
Cruise control .....................150
23 Ignition switch with
steering wheel lock .............130
24 Steering wheel adjustment ...83
25 Bonnet release lever ...........164
26 Fuse box ............................. 180
Page 17 of 233
In brief15Windscreen washer

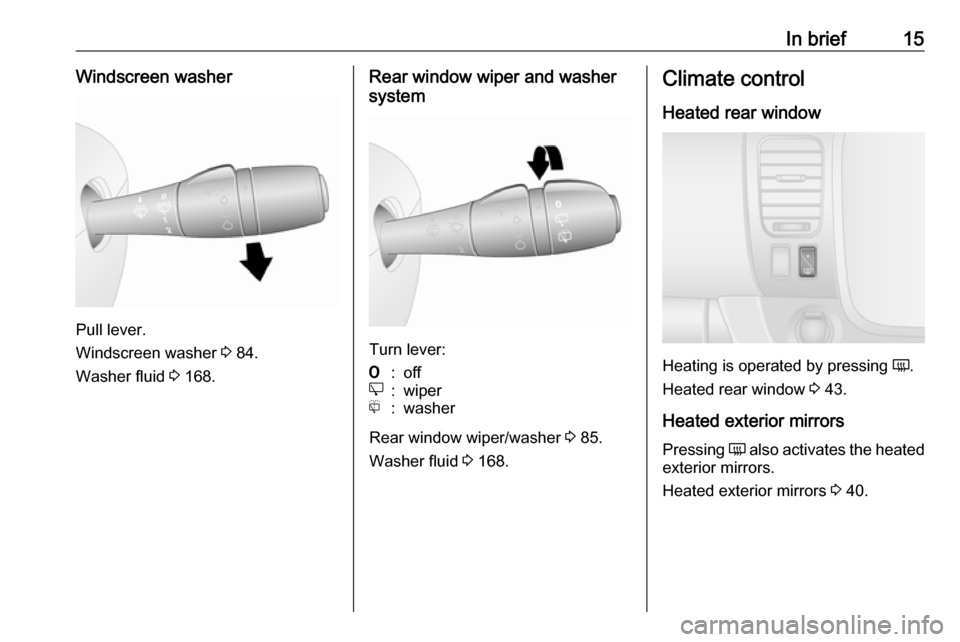

Pull lever.
Windscreen washer 3 84.
Washer fluid 3 168.
Rear window wiper and washer
system
Turn lever:
7:offe:wiperf:washer
Rear window wiper/washer 3 85.
Washer fluid 3 168.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 43.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 40.
Page 18 of 233

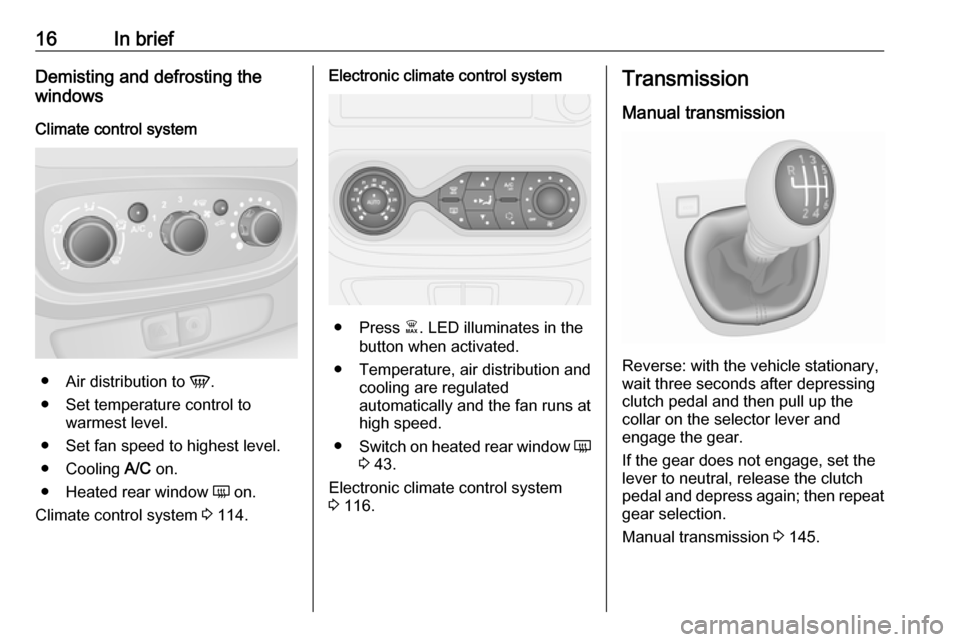

16In briefDemisting and defrosting the
windows
Climate control system
● Air distribution to V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Cooling A/C on.
● Heated rear window Ü on.
Climate control system 3 114.
Electronic climate control system
● Press Ê. LED illuminates in the
button when activated.
● Temperature, air distribution and cooling are regulated
automatically and the fan runs at
high speed.
● Switch on heated rear window Ü
3 43.
Electronic climate control system
3 116.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait three seconds after depressing
clutch pedal and then pull up the
collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 145.
Page 19 of 233
In brief17Starting offCheck before starting off ● Tyre pressure and condition 3 184, 3 217.
● Engine oil level and fluid levels 3 165.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 39, 3 45,
3 54.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine with key

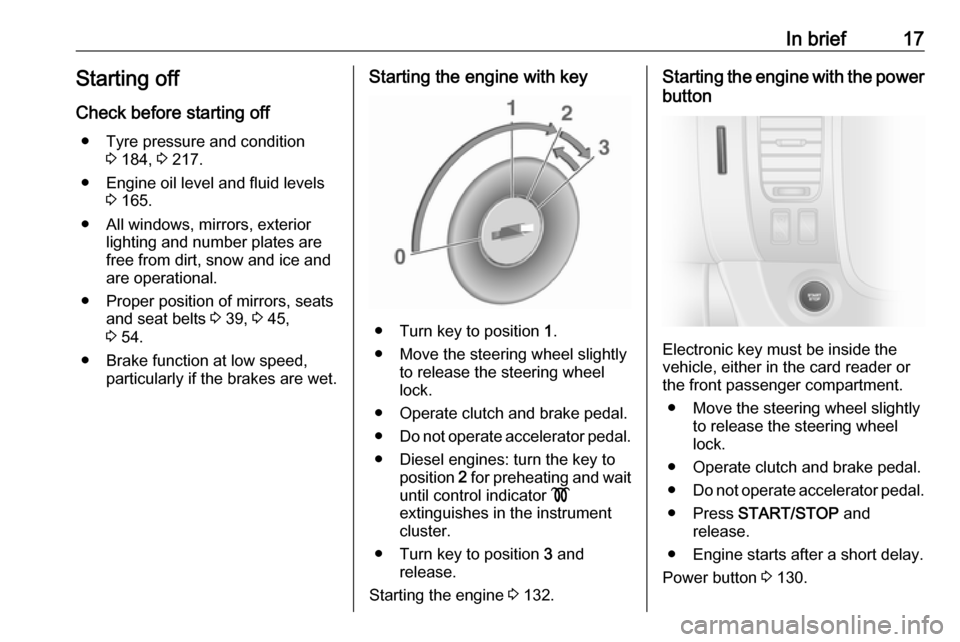

● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake pedal. ● Do not operate accelerator pedal.
● Diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes in the instrument
cluster.
● Turn key to position 3 and
release.
Starting the engine 3 132.
Starting the engine with the power
button
Electronic key must be inside the
vehicle, either in the card reader or
the front passenger compartment.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake pedal.
● Do not operate accelerator pedal.
● Press START/STOP and
release.
● Engine starts after a short delay.
Power button 3 130.
Page 20 of 233
18In briefStop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Move the selector lever to neutral.
● Release the clutch pedal.

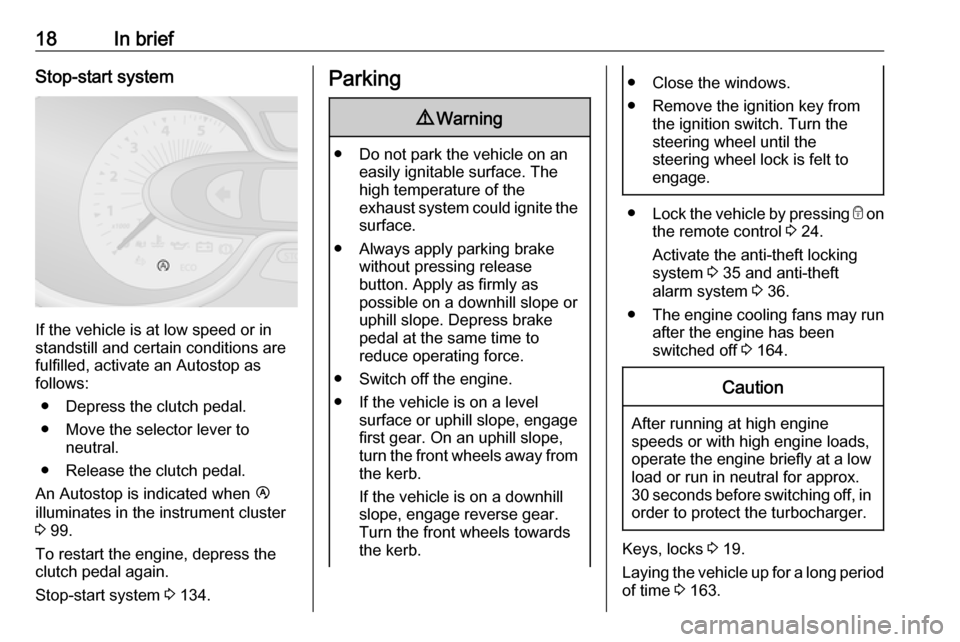

An Autostop is indicated when Ï
illuminates in the instrument cluster
3 99.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 134.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 24.
Activate the anti-theft locking
system 3 35 and anti-theft
alarm system 3 36.
● The engine cooling fans may run
after the engine has been
switched off 3 164.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19.
Laying the vehicle up for a long period
of time 3 163.
Page 21 of 233
Keys, doors and windows19Keys, doors and
windowsKeys, locks ................................... 19
Keys .......................................... 19
Car Pass .................................... 20
Radio remote control .................20

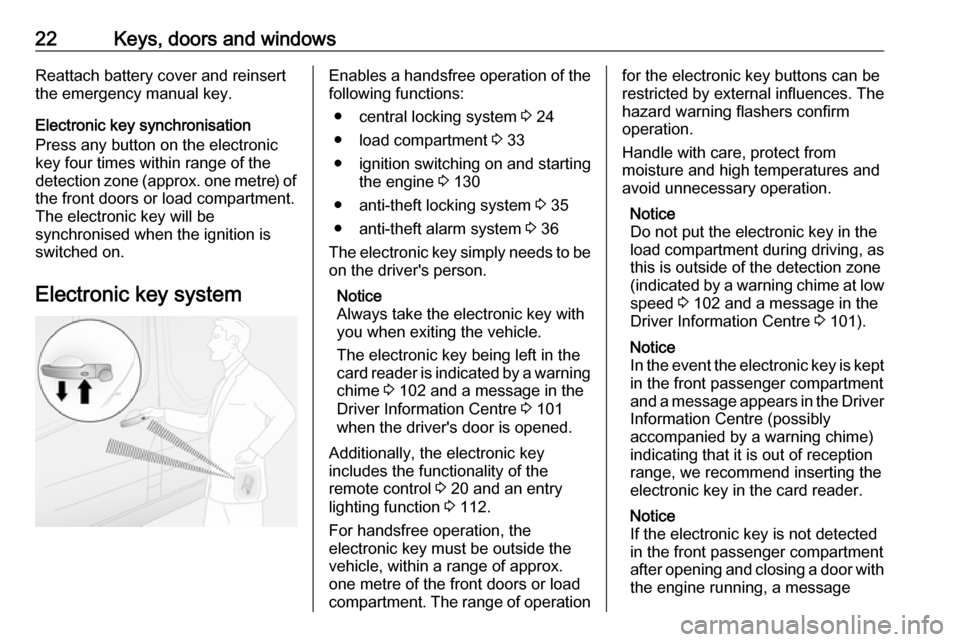

Electronic key system ................22
Door locks ................................. 24
Central locking system ..............24
Automatic locking ......................30
Child locks ................................. 30
Doors ........................................... 31
Sliding door ............................... 31
Rear doors ................................. 31
Load compartment ....................33
Vehicle security ............................ 35
Anti-theft locking system ...........35
Anti-theft alarm system ..............36
Immobiliser ................................ 38
Exterior mirrors ............................ 39
Convex shape ........................... 39
Manual adjustment ....................39
Electric adjustment ....................39
Folding mirrors .......................... 39
Heated mirrors ........................... 40Interior mirrors............................. 40
Manual anti-dazzle ....................40
Automatic anti-dazzle ................41
Windows ...................................... 41
Windscreen ............................... 41
Power windows ......................... 42
Rear windows ............................ 42
Heated rear window ..................43
Sun visors .................................. 43Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified on the
key or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
If the electronic key needs to be
replaced, the vehicle must be taken to a workshop.
Locks 3 198.
Radio remote control 3 20.
Electronic key system 3 22.
Central locking system 3 24.
Starting the engine 3 132.
Page 22 of 233
20Keys, doors and windowsLock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.Radio remote control
Used to operate:
● central locking system 3 24
● load compartment 3 33
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The remote control has a range of
approx. five metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.

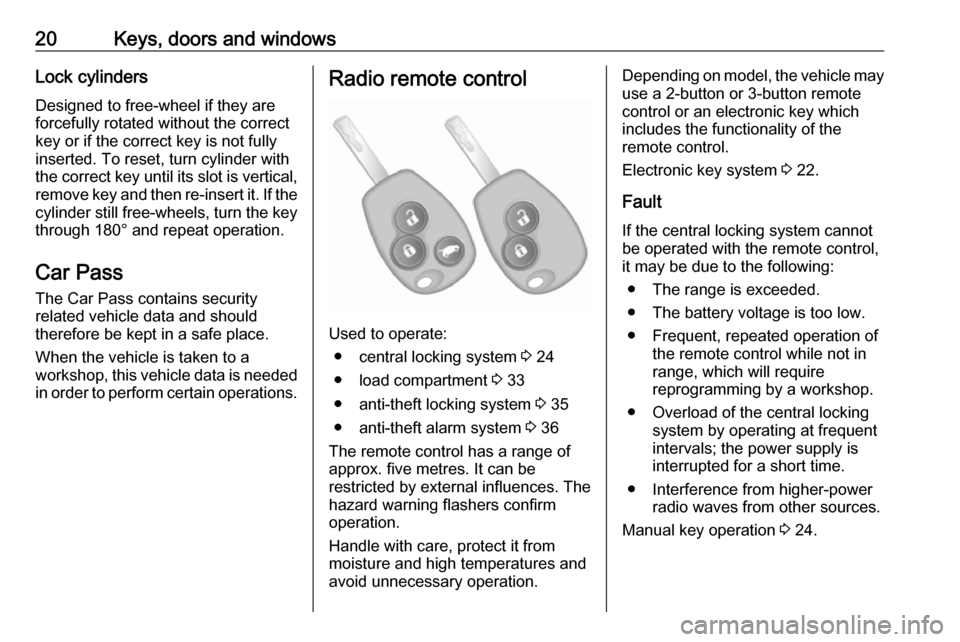

Depending on model, the vehicle may
use a 2-button or 3-button remote
control or an electronic key which
includes the functionality of the
remote control.
Electronic key system 3 22.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual key operation 3 24.
Page 23 of 233
Keys, doors and windows21Remote control battery
replacement

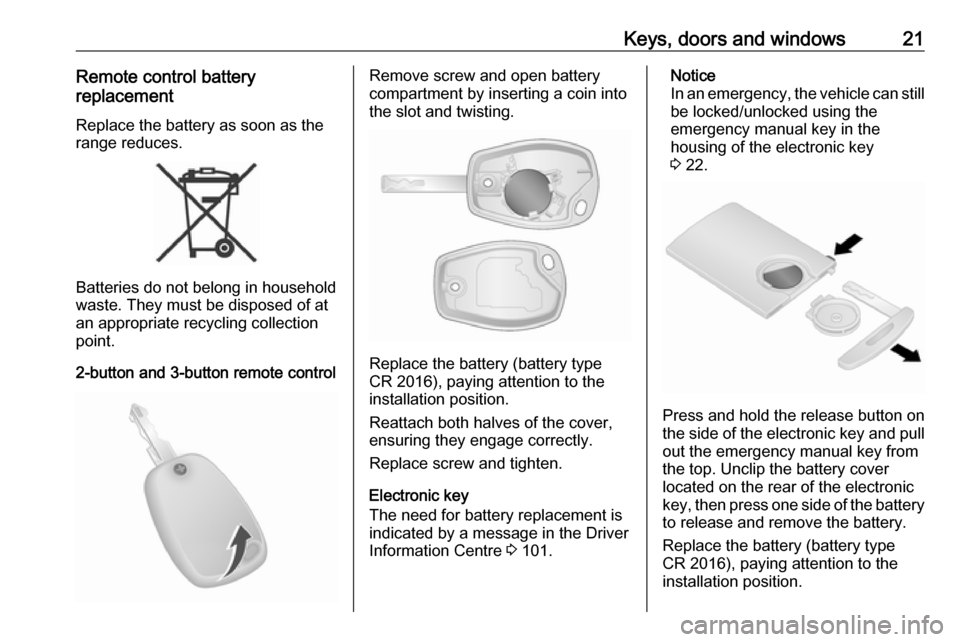

Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
2-button and 3-button remote control
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR 2016), paying attention to the
installation position.
Reattach both halves of the cover,
ensuring they engage correctly.
Replace screw and tighten.
Electronic key
The need for battery replacement is
indicated by a message in the Driver
Information Centre 3 101.
Notice
In an emergency, the vehicle can still be locked/unlocked using the
emergency manual key in the
housing of the electronic key
3 22.
Press and hold the release button on
the side of the electronic key and pull out the emergency manual key from
the top. Unclip the battery cover
located on the rear of the electronic
key, then press one side of the battery
to release and remove the battery.
Replace the battery (battery type
CR 2016), paying attention to the
installation position.
Page 24 of 233
22Keys, doors and windowsReattach battery cover and reinsert
the emergency manual key.
Electronic key synchronisation
Press any button on the electronic
key four times within range of the
detection zone (approx. one metre) of the front doors or load compartment.
The electronic key will be
synchronised when the ignition is
switched on.
Electronic key systemEnables a handsfree operation of the following functions:
● central locking system 3 24
● load compartment 3 33
● ignition switching on and starting the engine 3 130
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The electronic key simply needs to be on the driver's person.
Notice
Always take the electronic key with
you when exiting the vehicle.
The electronic key being left in the
card reader is indicated by a warning
chime 3 102 and a message in the
Driver Information Centre 3 101
when the driver's door is opened.
Additionally, the electronic key
includes the functionality of the
remote control 3 20 and an entry
lighting function 3 112.
For handsfree operation, the
electronic key must be outside the
vehicle, within a range of approx.
one metre of the front doors or load
compartment. The range of operationfor the electronic key buttons can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Notice
Do not put the electronic key in the
load compartment during driving, as
this is outside of the detection zone
(indicated by a warning chime at low speed 3 102 and a message in the
Driver Information Centre 3 101).
Notice
In the event the electronic key is kept
in the front passenger compartment
and a message appears in the Driver
Information Centre (possibly
accompanied by a warning chime)
indicating that it is out of reception
range, we recommend inserting the
electronic key in the card reader.
Notice
If the electronic key is not detected
in the front passenger compartment
after opening and closing a door with the engine running, a message
