VAUXHALL VIVARO 2019 Infotainment system

Introduction211Audio information, e.g.
Radio ..................................... 47
Auxiliary devices ...................60
M USB devices ...................... 62
Bluetooth music ....................65
2 H: System notifications (if
equipped) .............................. 30
3 y: Telephone status ...........106
Call log ................................ 114
4 Outside temperature .............30
5 Clock ..................................... 30
6 Traffic information (if
applicable) ............................. 95
7 Navigation: Direction and
distance to next change of
direction ................................ 74
8 <: Pop-up menu ...................30
9 Navigation display .................74
Map ....................................... 95
10 f: Favourites, e.g. for
Navigation ⇑ ......................... 74
Media t (e.g. Radio) ............47Phone g.............................. 106
Services N........................... 77
11 Driving economy (Eco
Driving) .................................. 30
12 Menu : Access Main menu ..... 30

22Introduction

Introduction231m - Press: Switch on/off ........30
Turn: Change volume ...........30
2 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 57
Long press: Fast rewind .......57
3 CD slot .................................. 57
4 3 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3 CD, Short
press: Skip track forwards ..... 57
Long press: Fast forward ......57
5 d - CD ejection .....................57
6 TEL - Telephone menu .......106
7 AUDIO - Change audio
source ................................... 578
<: Pop-up menu ...................30
9 Central rotary knob ...............30
Press: Confirm an action ....... 30
Turn: Access display
menu options ........................ 30
Turn: Access the stored
radio station list .....................47
Turn: Select next/previous
station ................................... 49
Turn: Change CD/MP3
track ...................................... 57
10 r - Return to previous
menu, cancel an action .........30
11 MENU : Access Main menu ...30
12 7: Go to Home page ............30

24IntroductionNAVI 80 IntelliLink (Type C)

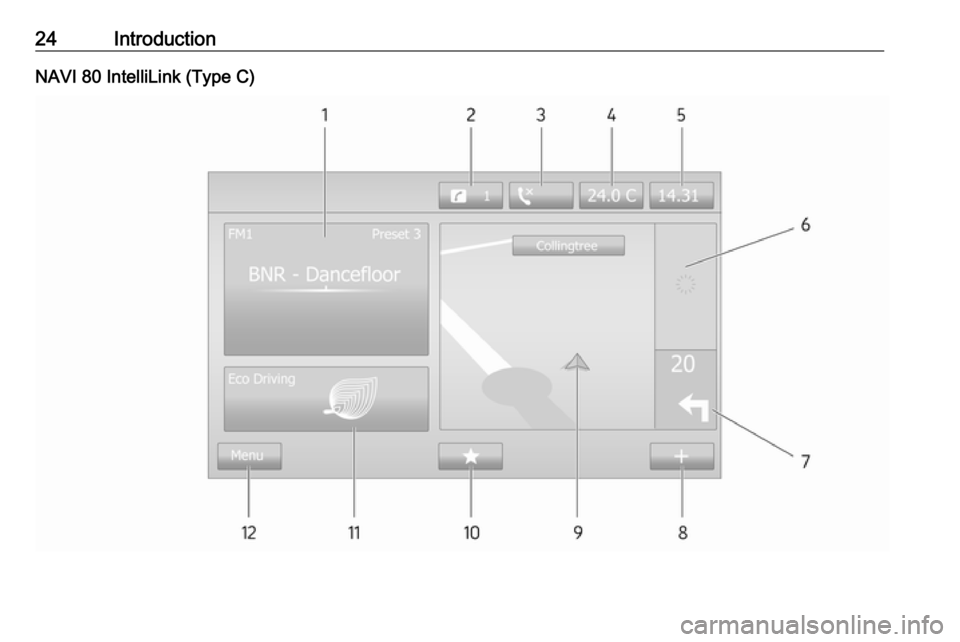

Introduction251Audio information, e.g.
Radio ..................................... 47
Auxiliary devices ...................60
M USB devices ...................... 62
Bluetooth music ....................65
2 H: System notifications (if
equipped) .............................. 30
3 y: Telephone status ...........106
Call log ................................ 114
4 Outside temperature .............30
5 Clock ..................................... 30
6 Traffic information (if
applicable) ............................. 95
7 Navigation: Direction and
distance to next change of
direction ................................ 74
8 <: Pop-up menu ...................30
9 Navigation display .................74
Map ....................................... 95
10 f: Favourites, e.g. for
Navigation ⇑ ......................... 74
Media t (e.g. Radio) ............47Phone g.............................. 106
Services N........................... 77
11 Driving economy (Eco
Driving) .................................. 30
12 Menu : Access Main menu ..... 30

26Introduction

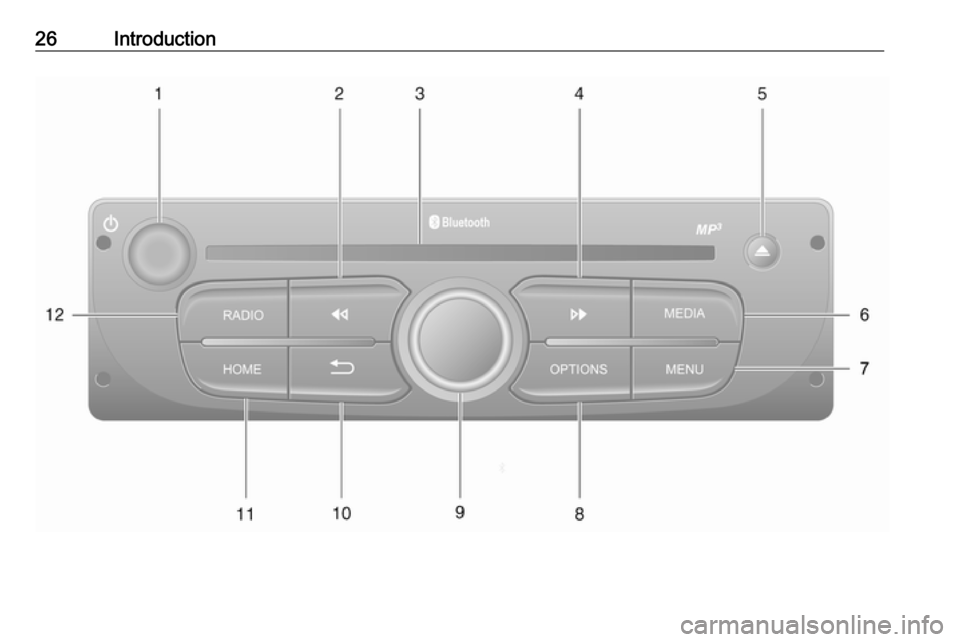

Introduction271m - Press: Switch on/off ........30
Turn: Change volume ...........30
2 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 57
Long press: Fast rewind .......57
3 CD slot .................................. 57
4 3 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3 CD, Short
press: Skip track forwards ..... 57
Long press: Fast forward ......57
5 d - CD ejection .....................57
6 MEDIA - Change audio
source ................................... 57
7 MENU : Access Main menu ...308 OPTIONS : Pop-up menu ......30
9 Central rotary knob ...............30
Press: Confirm an action ....... 30
Turn: Access display
menu options ........................ 30
Turn: Access the stored
radio station list .....................47
Turn: Select next/previous
station ................................... 49
Turn: Change CD/MP3
track ...................................... 57
10 / - Return to previous
menu, cancel an action .........30
11 HOME : Access Main menu ...30
12 RADIO - Change audio
source, waveband .................47Steering column controls -
Type A

28Introduction1 MEDIA - Change audio
source ................................... 30
2 RADIO - Change radio
waveband .............................. 47
3 ! - Increase volume .............30
4 @ - Mute/unmute ...................30
5 78 - Take/end phone call ..114
6 # - Decrease volume ............30
7 5 - Voice recognition ........... 105
8 Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 49
Press: Confirm actions ..........47Steering column controls -
Type B1 MEDIA - Change audio
source ................................... 30
2 RADIO - Change radio
waveband .............................. 47
3 ! - Increase volume .............30
4 @ - Mute/unmute ...................30
5 78 - Take/end phone call ..114
6 # - Decrease volume ............30
7 Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 49
Press: Confirm actions ..........47

Introduction29Steering column controls -
Type C1 SOURCE/AUDIO -
Change audio source ............30
2 78 ...................................... 106
Take/end phone call ...........114
@ - Mute/unmute ...................30
3 ! - Increase volume,
mute/unmute ......................... 30
4 # - Decrease volume,
mute/unmute ......................... 30
5 MODE/OK - Confirm
actions, change audio
mode ..................................... 47
Take/end phone call ...........114
6 Turn: Access display
menu options, next/
previous radio preset /
radio frequency / audio
track ..................................... 47Notice
If equipped, the voice recognition
button 5 may be located on the
steering wheel or on the steering
column controls.
Theft-deterrent feature
Depending on Infotainment system,
an electronic security system is
included for the purpose of theft
deterrence. The Infotainment system
functions only in your vehicle and is
therefore worthless to a thief.
The security code (supplied
separately) must be entered upon
first use of the system and after
prolonged interruptions to the power
supply.
Notice
The security code is not required for
R16 BT USB, CD18 BT USB.
Entering the security code
When first switching on the
Infotainment system, an enter
security code message, e.g. Radio
code followed by 0000 appears on the

30Introductiondisplay screen. Depending on
Infotainment system, the message may only appear after a brief delay.
To enter first digit of security code,
press numbered button 1 on the unit
repeatedly until desired number is
displayed. Enter second, third and
fourth digits using buttons 2, 3 and 4
in the same way.
When the full code is displayed, press and hold button 6 until an audible
signal sounds. The system is
unlocked when the correct code has
been entered.
NAVI 50 IntelliLink,
NAVI 80 IntelliLink : Enter the security
code using numbered buttons 0 to 9
on the touchscreen display. The
system is unlocked when the correct
code has been entered.
Incorrect code entered
Depending on Infotainment system,
when the security code has been
entered incorrectly, an incorrect code message, e.g. Error code followed by
a countdown value, e.g. Wait 100 is
displayed.Wait until the countdown has expired,
then enter the correct code. Each
time the code is entered incorrectly,
the countdown time may be doubled,
depending on Infotainment system.
Changing the geographical area
When the security code is entered,
depending on Infotainment system
you may be prompted to choose a
geographical area, for example:
● Europe
● Asia
● Arabia
● America
Switch off the Infotainment system, then simultaneously press button 1
and 5 and m. Then press _ or 6 until
desired area is highlighted on the display screen and set with button 6.
Usage
Infotainment controls
The Infotainment system is operated
via buttons, rotary knobs and/or
display menus.Inputs are made via:
● the central control unit in the instrument panel 3 6, or
● the controls on the steering column 3 6
● the voice recognition system (if available) 3 103
● the touchscreen (NAVI 50 IntelliLink,
NAVI 80 IntelliLink) 3 38
Notice
Only the most direct ways for menu operation are described in the
subsequent chapters. In some
cases, there may be other options.
Switching the Infotainment
system on or off
Press X to switch the Infotainment
system on.
The previously used audio source is active.
Press X (or, depending on
Infotainment system, press and hold)
to switch the Infotainment system off.
